1. Introduction and Overview
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Godrej 430 L 3 Star Inverter Frost-Free Double Door Refrigerator. Please read these instructions thoroughly before using your appliance and retain them for future reference.
Figure 1.1: Front view of the Godrej 430 L Double Door Refrigerator.
Your refrigerator features a 430-liter capacity, a 3-star energy rating, and advanced inverter technology for efficient cooling. It includes a bottom freezer design, a digital panel for temperature control, a jumbo vegetable tray, Turbo Chill Mode, Air Lock Technology, and toughened glass shelves with an anti-bacterial removal basket.
2. Safety Information
To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:
- Ensure the refrigerator is properly grounded.
- Do not use electrical appliances inside the food storage compartments unless they are of the type recommended by the manufacturer.
- Keep ventilation openings clear of obstruction.
- Do not damage the refrigerant circuit.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Unplug the refrigerator before cleaning or performing any maintenance.
- Keep children away from packaging materials to prevent suffocation.
3. Installation and Setup
3.1 Unpacking
Carefully remove all packaging materials, including foam and adhesive tape. Dispose of packaging responsibly. Check the appliance for any damage incurred during transit. Report any damage to your retailer immediately.
3.2 Placement
- Place the refrigerator on a firm, level surface to prevent vibrations and noise.
- Ensure adequate ventilation around the appliance. Maintain a minimum clearance of 10 cm (4 inches) from the back and sides, and 30 cm (12 inches) from the top.
- Avoid placing the refrigerator in direct sunlight or near heat sources such as stoves, heaters, or radiators, as this will increase energy consumption.
- The appliance dimensions are approximately 76.2 cm (L) x 68.5 cm (W) x 185.5 cm (H).
Figure 3.1: Refrigerator dimensions for proper placement.
3.3 Initial Cleaning
Before first use, clean the interior and exterior of the refrigerator with a soft cloth and a mild detergent solution. Wipe dry thoroughly.
3.4 Power Connection
Connect the power cord to a dedicated 230V AC power outlet. Do not use extension cords or multi-plugs. Allow the refrigerator to stand for at least 2-4 hours before plugging it in to allow refrigerants to settle.
3.5 Initial Cooling
After plugging in, allow the refrigerator to operate empty for at least 4-6 hours to reach optimal cooling temperatures before loading food items.
4. Operating Instructions
4.1 Digital Control Panel
Your refrigerator is equipped with a digital control panel to adjust temperature settings and activate special features. The panel is located on the exterior of the refrigerator door.
Figure 4.1: Digital control panel for temperature adjustment and feature selection.
- Temperature Adjustment: Use the 'Up' and 'Down' arrows to set the desired temperature for the refrigerator and freezer compartments. Press 'SET' to confirm.
- Turbo Chill Mode: Activate this mode for rapid cooling of newly added items or for quick ice making. Refer to the on-screen indicator for activation.
4.2 Refrigerator Compartment
The upper compartment is the fresh food section, featuring spill-proof toughened glass shelves and an anti-bacterial removal basket. The jumbo vegetable tray provides ample space for fruits and vegetables.
Figure 4.2: Interior layout of the fresh food compartment with shelves and vegetable tray.
4.3 Freezer Compartment
The bottom compartment is the freezer, designed for long-term storage of frozen foods. It utilizes Frost-Free technology to prevent ice build-up, eliminating the need for manual defrosting.
Figure 4.3: Freezer compartment with storage drawers.
4.4 Air Lock Technology
This feature helps maintain optimal humidity and temperature levels within the refrigerator, preserving food freshness for longer periods.
5. Care and Maintenance
5.1 Cleaning the Interior
Unplug the refrigerator before cleaning. Remove all food items and shelves. Wash the interior surfaces with a solution of mild detergent and warm water. Rinse and dry thoroughly. Do not use abrasive cleaners or harsh chemicals.
5.2 Cleaning the Exterior
Wipe the exterior surfaces with a soft cloth dampened with mild detergent. For the digital panel, use a dry, soft cloth. Keep the door seals clean to ensure a tight seal and efficient operation.
5.3 Frost-Free System
Your refrigerator is equipped with a Frost-Free system, which automatically defrosts the freezer compartment. This eliminates the need for manual defrosting. Ensure the freezer door is always closed properly to maintain efficiency.
5.4 Power Saving Tips
- Avoid opening the doors frequently or for extended periods.
- Allow hot foods to cool to room temperature before placing them in the refrigerator.
- Ensure the door seals are clean and intact.
- Do not overload the refrigerator, as this can impede air circulation.
6. Troubleshooting
Before contacting customer service, please refer to the following common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator not cooling | Power cord unplugged; temperature setting too high; door not closed properly; poor ventilation. | Check power connection; adjust temperature; ensure door is sealed; provide adequate clearance. |
| Unusual noise | Refrigerator not level; items vibrating inside; compressor noise (normal). | Adjust leveling feet; rearrange items; compressor noise is normal during operation. |
| Water leakage | Drain hole blocked; drip tray overflowing. | Clear the drain hole; empty and clean the drip tray. |
| Door not closing properly | Door gasket dirty or damaged; refrigerator not level; food items obstructing closure. | Clean or replace gasket; level the appliance; rearrange contents. |
If the problem persists after attempting these solutions, please contact Godrej customer service.
7. Specifications
Technical specifications for the Godrej R B NXW AURA 445MDI 3.4 RB WIN Refrigerator:
| Feature | Specification |
|---|---|
| Brand | Godrej |
| Model | R B NXW AURA 445MDI 3.4 RB WIN |
| Capacity | 430 Litres |
| Fresh Food Capacity | 323 Litres |
| Freezer Capacity | 107 Litres |
| Energy Efficiency | 3 Star Rating (2019) |
| Annual Energy Consumption | 286 Kilowatt Hours |
| Defrost System | Frost Free |
| Compressor Type | Inverter Technology |
| Form Factor | Double Door (Bottom Freezer) |
| Shelf Type | Toughened Glass |
| Voltage | 230 Volts |
| Dimensions (LxWxH) | 76.2 x 68.5 x 185.5 Centimeters |
| Item Weight | 9 kg |
| Included Components | 1 Refrigerator, User Manual, Warranty Card |

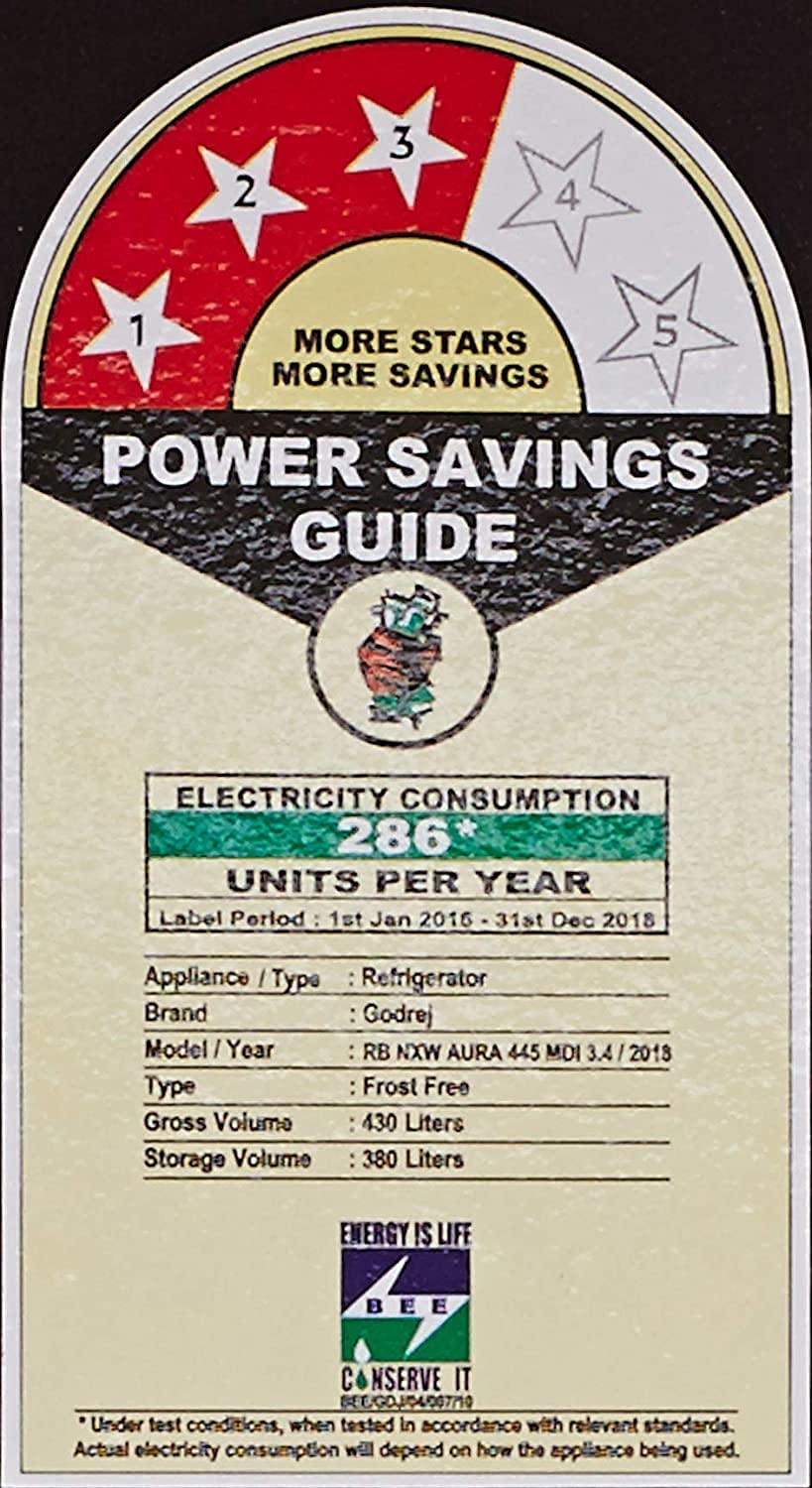

Figure 7.1: Power Savings Guide and Energy Label.
8. Warranty and Customer Support
8.1 Warranty Information
Your Godrej Refrigerator comes with a comprehensive warranty:
- Product Warranty: 1 year from the date of purchase.
- Inverter Compressor Warranty: 10 years from the date of purchase.
Please retain your purchase receipt and warranty card for any warranty claims. The warranty covers manufacturing defects under normal use conditions.
8.2 Customer Support
For service requests, technical assistance, or any queries regarding your Godrej refrigerator, please contact:
- Godrej Customer Care: 18002095511
- Manufacturer: Godrej & Boyce MFG Co Ltd, Vikhroli, Mumbai - 400079
