Introduction
Thank you for choosing the Artiss Elan Bar Stool Set. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new bar stools. Please read this manual thoroughly before use and retain it for future reference.
Safety Information
To ensure safe operation and prevent damage, please observe the following safety guidelines:
- Maximum Weight Capacity: Do not exceed the maximum weight recommendation of 150 kg (330 lbs) per stool.
- Floor Protection: Always use the provided floor protector under the base to prevent scratches and damage to your flooring.
- Stable Surface: Ensure the stool is placed on a flat, stable, and level surface before use.
- Assembly: Assemble the stools strictly according to the instructions. Ensure all components are securely fastened before use.
- Children: Keep children away from the assembly area. Do not allow children to play on or with the stools unsupervised.
- Gas Lift: Do not attempt to disassemble or tamper with the gas lift mechanism. It contains pressurized gas.
Package Contents
Verify that all components are present and undamaged before beginning assembly. If any parts are missing or damaged, please contact customer support.
- Artiss Elan Bar Stool x 2 (Disassembled components)
- Assembly Manual x 1
- Hardware Pack (screws, washers, Allen key, etc.)
Assembly Instructions
Follow these steps carefully to assemble your Artiss Elan Bar Stools. It is recommended to assemble on a soft, clean surface to prevent scratching.
- Unpack Components: Carefully remove all parts from the packaging and lay them out. Check against the parts list (if provided in physical manual) to ensure everything is present.
- Attach Footrest to Pole: Slide the semi-circular footrest onto the chrome pole. Ensure it is oriented correctly and secured if there's a locking mechanism.
- Insert Gas Lift into Base: Place the large, stable base on the floor. Insert the wider end of the gas lift cylinder into the central hole of the base. Ensure the floor protector is already attached to the bottom of the base.
- Attach Seat to Gas Lift: Carefully align the mounting plate on the underside of the seat with the top of the gas lift cylinder. Press down firmly until the seat is securely seated on the gas lift.
- Secure Seat to Pole (if applicable): If your model has additional screws to secure the seat to the pole, insert and tighten them now using the provided Allen key.
- Test Stability: Once assembled, gently test the stability of the stool before full use. Ensure all connections are tight.
Figure 1: Bar Stool Dimensions. This diagram illustrates the key measurements of the bar stool, including adjustable seat height (66-79cm), seat width, and base diameter, which are crucial for assembly and placement.
Figure 2: Assembled Bar Stools. A view of the two fully assembled Artiss Elan Bar Stools, showcasing their black faux leather seats with rhombus-motif stitching and polished chrome bases.
Operating Instructions
Your Artiss Elan Bar Stool is designed for ease of use with its adjustable height and swivel features.
- Height Adjustment: To adjust the seat height, locate the lever under the seat. While seated, pull the lever up to lower the seat. To raise the seat, stand up slightly and pull the lever up; the gas lift will extend the seat upwards. Release the lever at the desired height.
- Swivel Function: The seat features a 360-degree swivel function, allowing for easy rotation in any direction. Simply turn the seat to face your desired orientation.
Figure 3: SGS-Tested Gas Lift. This image highlights the SGS certification on the gas lift, indicating its safety and durability for height adjustment.

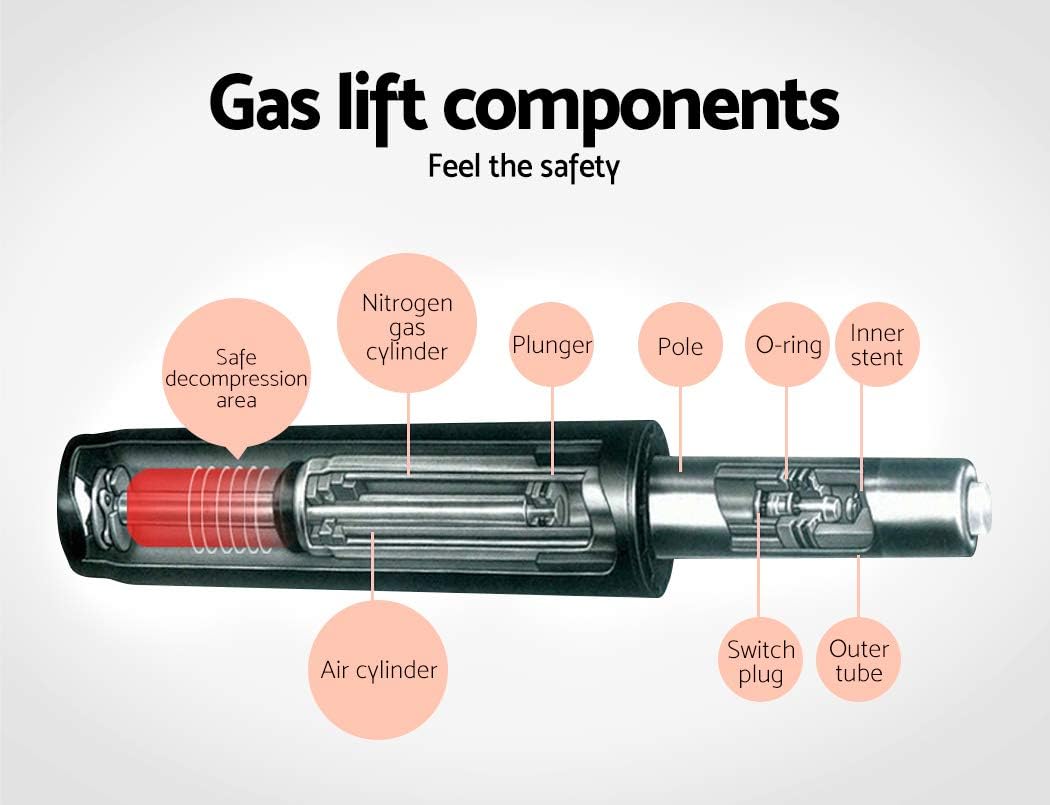

Figure 4: Gas Lift Components. A detailed diagram showing the various internal components of the gas lift cylinder, such as the nitrogen gas cylinder, plunger, and outer tube, explaining its mechanism.
Maintenance and Care
Proper care will extend the life and appearance of your bar stools.
- Cleaning: Wipe the faux leather seat and chrome base with a damp cloth. For stubborn stains on the faux leather, use a mild soap solution and wipe dry immediately. Avoid abrasive cleaners or harsh chemicals.
- Regular Checks: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
- Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause the faux leather to fade or crack.
- Protect from Spills: Wipe up spills immediately to prevent staining, especially on the faux leather.
Troubleshooting
If you encounter any issues with your bar stools, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Stool wobbles or is unstable | Loose connections; Uneven floor | Check and tighten all screws. Ensure the stool is on a flat, level surface. |
| Gas lift not adjusting height | Lever not fully engaged; Gas lift malfunction | Ensure the lever is pulled completely. If issue persists, contact customer support. |
| Squeaking noise during swivel | Lack of lubrication; Loose components | Apply a small amount of silicone-based lubricant to the swivel mechanism. Check for loose connections. |
| Seat feels loose on the pole | Seat not fully seated on gas lift; Mounting screws loose | Press down firmly on the seat to ensure it's fully engaged with the gas lift. Tighten any mounting screws if applicable. |
Specifications
Detailed specifications for the Artiss Elan Bar Stool Set:
| Feature | Detail |
|---|---|
| Brand | Artiss |
| Model Number | BA-K-704-BKX2 |
| Product Dimensions (D x W x H) | 18.11"D x 16.14"W x 34.25"H (approximate, varies with height adjustment) |
| Seat Height Range | 66~79 cm (26~31 inches) |
| Color | Black |
| Seat Material | Premium PU Leather |
| Base Material | Steel with Chrome Finish |
| Weight Capacity | 150 kg (330 lbs) |
| Item Weight | 33 pounds (per set of 2) |
| Assembly Required | Yes |
| Features | 360-degree swivel seat, SGS Tested gas lift, Rhombus-motif backrest, Extra thick foam padded, Semi-circular footrest, Floor protector under base |
Warranty and Support
Artiss products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your purchase or visit the official Artiss website. If you require technical assistance, have questions about assembly, or need to report a missing/damaged part, please contact Artiss customer support through their official channels or the retailer from whom you purchased the product.
For the latest support information and contact details, please visit: www.artiss.com.au
