Introduction
Image: The VONROC 1050W Dual Action Orbital Polisher, main product view.
This manual provides essential instructions for the safe and effective use of your VONROC 1050W Dual Action Orbital Polisher (Model PM501AC). Designed for polishing vehicles and boats, this tool combines a powerful 1050W motor with constant speed electronics and a soft start function for optimal results. Please read this manual thoroughly before operation and keep it for future reference.
Safety Instructions
Always follow basic safety precautions when using electrical tools to reduce the risk of fire, electric shock, and personal injury.
- Read All Instructions: Familiarize yourself with the tool's operation and safety guidelines before use.
- Wear Eye Protection: Always wear safety goggles to protect your eyes from debris.
- Keep Work Area Clean: Cluttered areas invite accidents. Ensure your workspace is well-lit and free of obstructions.
- Avoid Dangerous Environments: Do not use power tools in damp or wet locations, or expose them to rain.
- Secure Workpiece: Always secure the item being polished to prevent movement during operation.
- Unplug When Not in Use: Disconnect the polisher from the power source before making adjustments, changing accessories, or storing it.
- Use Correct Accessories: Only use accessories recommended by VONROC for this polisher.
- Maintain Proper Footing and Balance: Do not overreach. Keep proper footing and balance at all times.
- Inspect Tool Before Use: Check for damaged parts, misalignment, or any other condition that may affect its operation.
- Keep Children Away: Do not allow children or untrained persons to operate this tool.
Package Contents
Upon unpacking, ensure all items are present and undamaged:
- VONROC 1050W Dual Action Orbital Polisher (PM501AC)
- 150mm Backing Plate
- Polishing Sponge
- 1 Polishing Disc
Setup
- Attach Backing Plate: Align the 150mm backing plate with the polisher's spindle. Securely fasten it by rotating clockwise until tight.
- Attach Polishing Pad/Disc: The polishing sponge or disc attaches to the backing plate using its hook-and-loop (Velcro) surface. Ensure it is centered and firmly pressed onto the backing plate.
- Power Connection: Connect the 4-meter power cable to a suitable 240V power outlet. Ensure the power switch on the polisher is in the "OFF" position before plugging in.

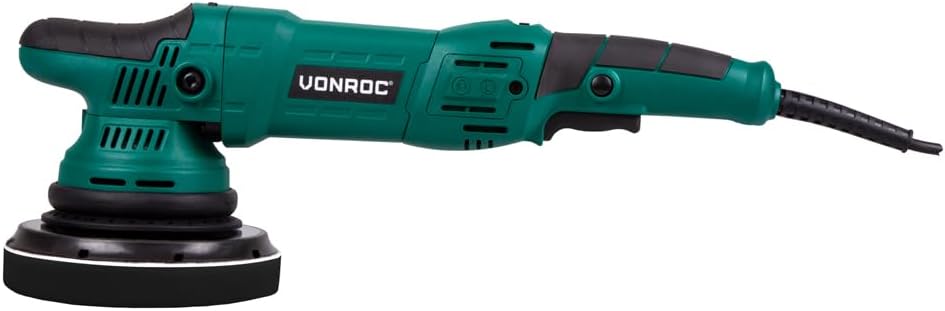

Image: Side view of the VONROC orbital polisher, showing its general shape and power cord connection point.
Operating Instructions
Follow these steps for effective and safe polishing:
- Prepare Surface: Ensure the surface to be polished is clean, dry, and free of contaminants.
- Apply Compound: Apply a small amount of polishing compound directly onto the polishing disc or the surface area to be worked on.
- Set Speed: Use the speed dial (typically located on the top or side of the tool) to select the desired speed. Start with a lower speed to spread the compound, then increase as needed. The polisher offers speeds up to 4800 RPM.
- Soft Start Feature: The integrated soft start ensures the machine begins slowly, preventing polishing compounds from splattering and reducing waste.
- Begin Polishing: Place the polishing disc flat on the surface before turning the tool on. Turn on the polisher and move it in a controlled, overlapping pattern. Maintain light, even pressure.
- Constant Speed Electronics: The constant speed electronics maintain consistent power during demanding tasks, ensuring uniform results.
- 21mm Orbit: The 21mm orbit minimizes heat buildup, reducing the risk of burning the lacquer, even during extended use.
- Monitor Results: Continuously check the surface for desired results. Wipe off excess compound with a clean microfiber cloth.
- Finish: Once polishing is complete, turn off the polisher, lift it from the surface, and unplug it from the power source.
Image: A person demonstrating the use of the VONROC orbital polisher on a car's hood, showing the polishing action.
Image: A close-up view of the speed control dial on the polisher, indicating adjustable settings for different tasks.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your polisher.
- Cleaning: After each use, wipe down the polisher with a clean, dry cloth to remove any dust or compound residue. Do not use harsh chemicals or immerse the tool in water.
- Pad Care: Clean polishing pads thoroughly after each use. Depending on the pad type, they can often be washed with mild soap and water, then air-dried.
- Cord Inspection: Regularly inspect the 4-meter power cord for any signs of damage, cuts, or fraying. If damaged, have it replaced by a qualified technician.
- Storage: Store the polisher in a dry, secure place, out of reach of children. Protect it from direct sunlight and extreme temperatures.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Polisher does not start. | No power supply; power switch off; damaged cord. | Check power outlet; ensure switch is ON; inspect power cord for damage. |
| Poor polishing results. | Incorrect pad/compound; insufficient pressure; worn pad. | Use appropriate pad/compound for the task; apply even pressure; replace worn pads. |
| Excessive vibration. | Unbalanced pad; loose backing plate. | Ensure pad is centered; tighten backing plate securely. |
Specifications
| Model Number | PM501AC |
| Power Input | 1050 Watt |
| Voltage | 240 Volts |
| No-Load Speed | 4800 RPM |
| Polishing Pad Diameter | 150 mm |
| Orbit Diameter | 21 mm |
| Cable Length | 4 meters |
| Weight | 2.7 kg (5.95 lbs) |
| Dimensions (L x W x H) | 47 x 17 x 13 cm |
| Material | Stainless Steel |
| Intended Use | Car, Boat Polishing |
Warranty and Support
VONROC products are manufactured to high-quality standards. For detailed warranty information, product registration, or technical support, please visit the official VONROC website or contact your authorized retailer. Keep your purchase receipt as proof of purchase.
Online Resources: For additional tips, tutorials, and FAQs, please refer to the VONROC brand store or the manufacturer's website.
