Introduction
Thank you for choosing the Schütte Caribbean Duroplast Soft-Close Toilet Seat, Model 82363. This high-quality toilet seat combines innovative design with practical features for enhanced comfort and hygiene in your bathroom. It features a soft-close mechanism for quiet operation, a quick-release function for easy cleaning, and is made from durable, scratch-resistant Duroplast material. This manual provides essential information for proper installation, use, and maintenance to ensure long-lasting performance.
Image: The Schütte Caribbean Duroplast Soft-Close Toilet Seat, featuring a vibrant beach motif on the lid, designed for comfort and hygiene.
Setup and Installation
The Schütte Caribbean Duroplast Toilet Seat is designed for easy top-mount installation on most standard toilet bowls. Please follow these steps carefully:
- Unpack Components: Carefully remove all parts from the packaging. Verify that all included components are present: 1 pre-assembled toilet seat with lid and seat, 2 tilt dowels, 2 mounting plates with adhesive pads, and any buffer elements.
- Prepare Toilet Bowl: Ensure the toilet bowl's mounting holes are clean and free from debris.
- Insert Dowels: Insert the two tilt dowels into the mounting holes of the toilet bowl from above.
- Attach Mounting Plates: Place the mounting plates over the dowels. The adhesive pads on the underside of the mounting plates should be positioned to prevent the seat from slipping once installed.
- Position Seat: Align the toilet seat hinges with the mounting plates. Gently press down to secure the seat onto the mounting plates.
- Adjust and Tighten: Adjust the seat position to ensure it is centered and properly aligned with the toilet bowl. Once satisfied, tighten the mounting screws from above to firmly secure the seat. Do not overtighten.
Image: Illustration demonstrating the simple top-mount installation process, indicating correct and incorrect methods for securing the seat.
Image: The complete set of components included in the package, showing the pre-assembled toilet seat, lid, and all necessary mounting hardware for installation.
Operating Instructions
Soft-Close Mechanism
The toilet seat is equipped with an integrated soft-close mechanism. To activate, simply tap the lid or seat gently downwards. The mechanism will then slowly and silently lower the lid and seat to the closed position, preventing slamming and extending the product's lifespan.
Image: The soft-close feature in action, illustrating the controlled and silent descent of the toilet seat lid.
Quick-Release Function
For thorough cleaning, the toilet seat can be easily removed using its quick-release function. Locate the quick-release buttons or levers near the hinges. Press or lift them according to the design, and the seat can be lifted straight off the mounting posts. Reattach by aligning the seat with the posts and pressing down until it clicks securely into place.
Image: A visual guide to the quick-release mechanism, demonstrating how to detach the toilet seat for convenient cleaning and reattach it securely.
Maintenance and Cleaning
The Duroplast material of your Schütte toilet seat features an extremely hard and smooth surface, making it highly resistant to scratches and easy to clean. Regular cleaning will maintain its hygienic properties and appearance.
- Daily Cleaning: Use a soft cloth, warm water, and a mild, non-abrasive household cleaner. Wipe down all surfaces of the seat and lid.
- Deep Cleaning: Utilize the quick-release function to remove the seat from the toilet bowl. This allows for thorough cleaning of both the seat and the hard-to-reach areas of the toilet bowl.
- Avoid Harsh Chemicals: Do not use abrasive cleaners, scouring pads, strong acids, or chlorine-based products, as these can damage the surface and the soft-close mechanism.
- Drying: Always dry the seat and hinges thoroughly after cleaning to prevent water spots and maintain hygiene.

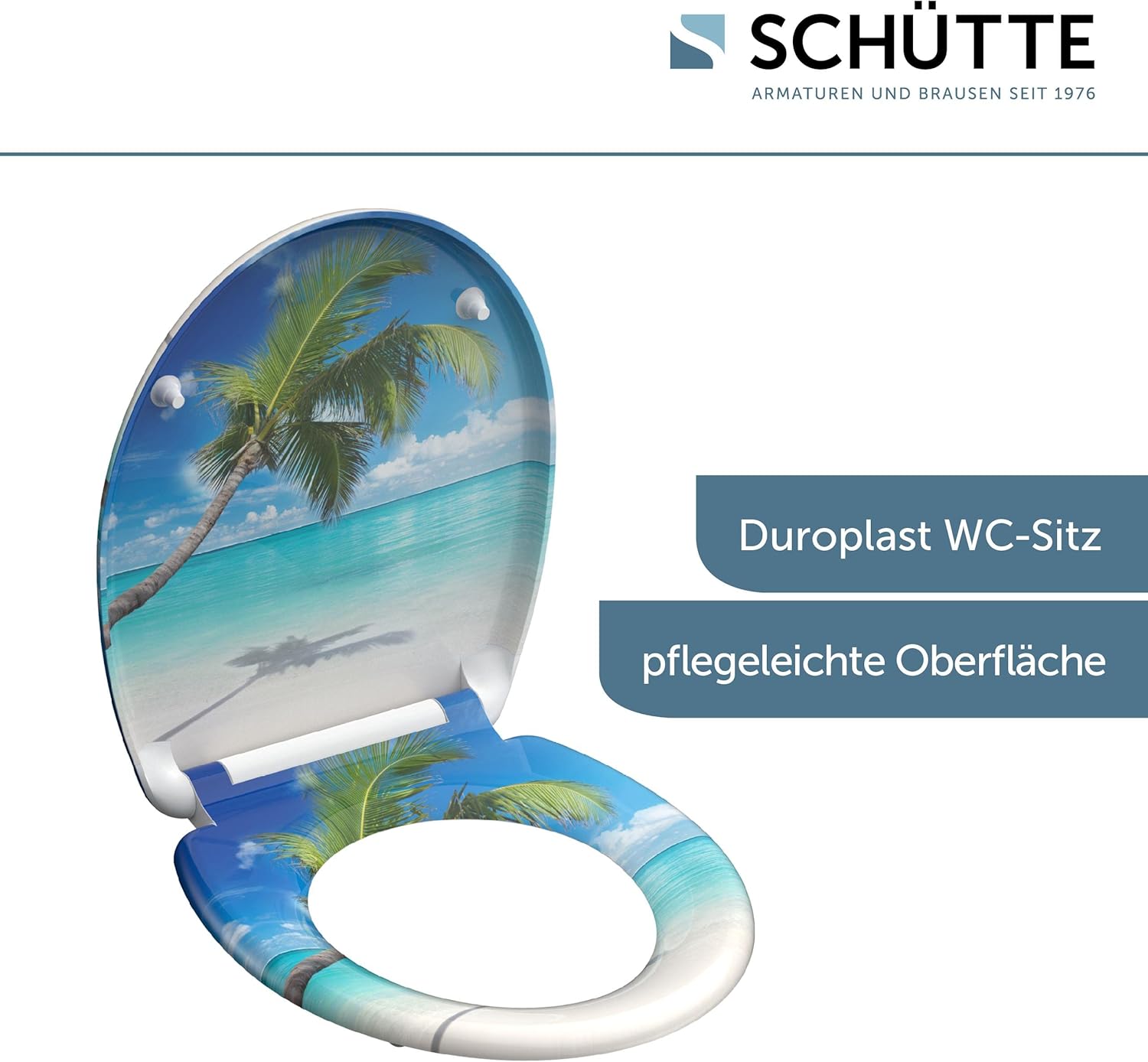

Image: The smooth, easy-to-clean surface of the Duroplast toilet seat, designed for hygienic maintenance.
Troubleshooting
If you encounter any issues with your toilet seat, please refer to the following common problems and solutions:
- Seat is Loose or Slips:
- Ensure the mounting screws are securely tightened.
- Verify that the adhesive pads on the mounting plates are properly positioned and making contact with the toilet bowl to prevent movement.
- Soft-Close Mechanism Not Working Properly:
- Check for any obstructions around the hinges that might be preventing smooth operation.
- Ensure the seat is correctly installed and not misaligned, which could strain the mechanism.
- Clean the hinge area to remove any dirt or residue that might impede the soft-close function.
- Difficulty Removing/Reattaching Seat (Quick-Release):
- Ensure you are pressing or lifting the quick-release buttons/levers firmly and correctly.
- Check for any debris or buildup in the hinge area that might be obstructing the mechanism.
If these steps do not resolve the issue, please contact customer support.
Specifications
| Model Number | 82363 |
| Brand | Schütte |
| Material | Duroplast (Thermoset Plastic) |
| Color/Style | Caribbean Motif |
| Shape | Oval |
| Dimensions (L x W x H) | 45.3 cm x 37.4 cm x 4 cm (approx. 17.8 in x 14.7 in x 1.6 in) |
| Weight | 2 kg (approx. 4.4 lbs) |
| Maximum Load Capacity | 150 kg (approx. 330 lbs) |
| Features | Soft-Close Mechanism, Quick-Release Function, Top-Mount Installation, Scratch-Resistant Surface |
Image: Detailed diagram illustrating the key dimensions of the toilet seat, including length, width, and hinge spacing.
Warranty and Support
Schütte, a leading German manufacturer in the sanitary sector for over 40 years, stands behind the quality of its products. For any questions regarding your product, assembly, or if you have a complaint, please contact our customer support:
Contact Number: +49 (0) 5407-81529-0
Please note that while the product may include German assembly instructions, this manual is provided in English for your convenience.
