1. Introduction
This manual provides essential information for the safe and efficient operation of your Touchstone Sideline Elite Smart 50-inch WiFi-Enabled Electric Fireplace. Please read all instructions carefully before installation and use to ensure proper function and to prevent potential hazards. This electric fireplace is designed for in-wall recessed installation, offering a modern aesthetic with customizable flame and heat settings.
Figure 1.1: The Touchstone Sideline Elite Smart 50-inch Electric Fireplace seamlessly integrated into a living space.
2. Safety Information
Always adhere to basic safety precautions to reduce the risk of fire, electric shock, and injury to persons. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the fireplace. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the fireplace. This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. The glass front does not get hot enough to cause burns, making it safe for young children.
3. Included Components
Your Touchstone Sideline Elite Smart 50-inch Electric Fireplace package includes the following items:
- Electric Fireplace Unit
- Remote Control (2 AAA batteries required, not included)
- Faux Fire Log Set
- Clear Crystal Media
- Driftwood Media
- Drywall Anchors and Screws for installation
Figure 3.1: The fireplace comes with a log set, crystals, and driftwood for customizable aesthetics.
4. Specifications
| Feature | Specification |
|---|---|
| Brand | Touchstone |
| Model Name | Sideline Elite Smart 50'' 80036 |
| Product Dimensions (Overall) | 49.75" W x 19.25" H x 5.5" D |
| Recessed Dimensions | 48 7/16" W x 18" H x 5 1/8" D |
| Chamber Width | 50 Inches |
| Power Source | AC |
| Power Consumption | 1500 Watts |
| Voltage | 120V |
| Heat Output | 5000 British Thermal Units (BTU) |
| Heating Coverage | Up to 400 sq. ft. |
| Installation Type | Wall Mount (Recessed) |
| Special Feature | 3 Prong Outlet, Hardwired Option, WiFi-Enabled |
| Material | Alloy Steel, Glass |
| Item Weight | 55 Pounds |
Figure 4.1: Detailed dimensions for planning your recessed installation.
5. Setup and Installation
The Touchstone Sideline Elite Smart 50-inch Electric Fireplace is designed for in-wall recessed installation. Careful measurement and preparation are crucial for a seamless fit.
5.1. Site Preparation
- Measure Twice: Before cutting, verify the rough opening dimensions: 48 7/16" W x 18" H x 5 1/8" D.
- Ensure the fireplace is positioned at least 8 inches below the ceiling or any item mounted above it to allow for proper heat dissipation.
- Ensure a 120V power outlet is available within reach of the power cord, or prepare for hardwiring.
5.2. Recessed Installation
Follow the detailed instructions provided in the included assembly manual for cutting the wall opening and securing the unit. The fireplace can be plugged into a standard 3-prong outlet or hardwired by a qualified electrician.
Figure 5.1: The fireplace is designed for flush, in-wall recessed mounting.
Video 5.1: This video demonstrates the Touchstone Sideline Elite fireplace in a room setting, highlighting its aesthetic integration and recessed installation.
6. Operating Instructions
Your Touchstone Sideline Elite fireplace offers multiple control options for convenience and customization.
6.1. Remote Control
The included remote control allows you to manage all fireplace functions from a distance. Ensure 2 AAA batteries are installed (not included).
- Power: Turn the fireplace ON/OFF.
- Flame Color: Cycle through 6 flame color options.
- Ember Brightness: Adjust the brightness of the ember bed.
- Ember Bed Color: Cycle through 10 media color options.
- Timer: Set an automatic shut-off timer (1-8 hours).
- Hi/Low Heat: Toggle between high and low heat settings.
- Thermostat: Adjust the desired room temperature (68-88°F).
- Flame Speed: Change the speed of the flame effect (3 speeds).
- Flame and Fire Bed Intensity: Adjust the intensity of the flame and ember bed (5 settings).
6.2. Control Panel
The integrated control panel on the unit provides direct access to essential functions.

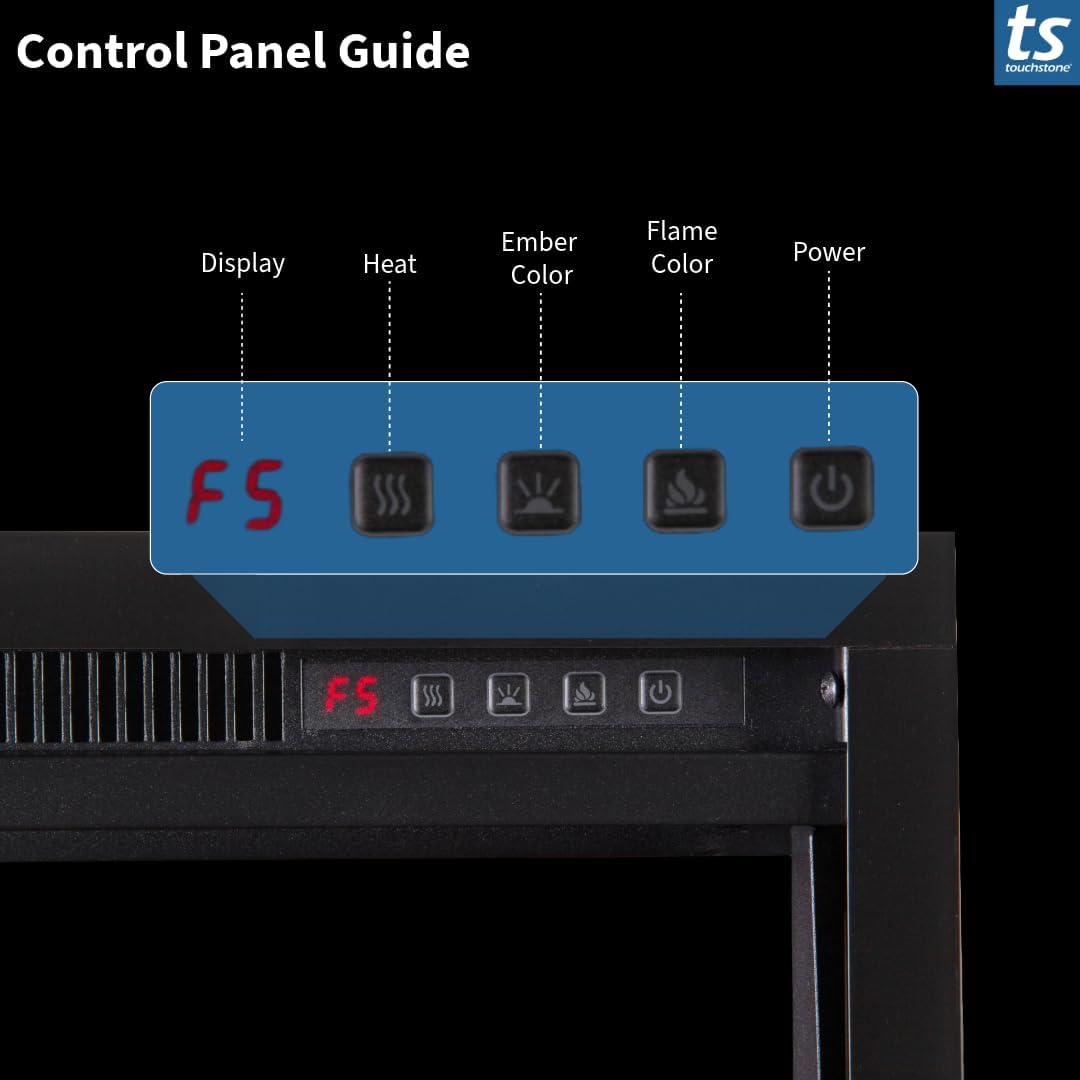

Figure 6.1: The control panel offers direct access to fireplace settings.
6.3. WiFi and Smart Device Control
The Sideline Elite Smart fireplace is WiFi-enabled and can be controlled via a dedicated mobile app or integrated with smart home devices like Amazon Alexa and Google Home. Refer to the separate WiFi setup guide for detailed instructions on connecting your fireplace to your home network and smart devices.
Figure 6.2: Control your fireplace using the remote, mobile app, or smart home devices.
Figure 6.3: Explore 6 flame colors and 10 media colors for 60 total combinations.
Figure 6.4: The flexible heating system provides warmth with timer and thermostat options.
Video 6.1: This video showcases the various features of the Touchstone Sideline Elite Smart Electric Fireplace, including flame effects and controls.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your electric fireplace.
- Cleaning: Ensure the unit is turned OFF and unplugged before cleaning. Use a soft, damp cloth to clean the exterior surfaces. Do not use abrasive cleaners or sprays.
- Ventilation: Keep the heat vents located on the upper front area clear of any obstructions to ensure proper airflow and heating efficiency.
- Light Bulbs: The flame effect uses LED technology, which typically does not require replacement.
8. Troubleshooting
If you encounter any issues with your fireplace, refer to the following common troubleshooting steps:
- No Power: Check if the power cord is securely plugged into a 120V outlet. Verify that the circuit breaker is not tripped.
- No Heat: Ensure the heat function is activated via the remote or control panel. Check the thermostat setting; if the room temperature is above the set temperature, the heater will not activate.
- No Flame Effect: Confirm the unit is powered on. Adjust flame brightness and color settings.
- Remote Not Working: Replace the 2 AAA batteries in the remote control. Ensure there are no obstructions between the remote and the fireplace's sensor.
For persistent issues, please contact Touchstone customer support.
9. Warranty and Support
Your Touchstone Sideline Elite Smart 50-inch Electric Fireplace comes with a limited warranty. Please refer to the warranty card included in your packaging for specific terms and conditions.
For technical assistance, warranty claims, or any questions regarding your product, please contact Touchstone Home Products customer support. Contact information can typically be found on the manufacturer's website or in your product documentation.
