Ralbay Modern Black Bathroom Vanity Light

1. Important Safety Information

Please read these instructions carefully before installation and use. Keep this manual for future reference.

• Electrical Safety: Always disconnect power at the fuse or circuit breaker before installation, maintenance, or cleaning. Ensure proper grounding to avoid electrical shock.
• Qualified Electrician: Installation should be performed by a qualified electrician or a person with sufficient electrical knowledge to ensure safety and compliance with local electrical codes.
• Voltage Compatibility: This fixture is designed for 110-260V AC. Verify your power supply matches this requirement.
• Water Resistance: The fixture is IP44 rated, meaning it is protected against splashing water. It is suitable for bathroom environments but should not be submerged.
• Non-Dimmable: This light fixture is not dimmable. Do not connect it to a dimmer switch.
• LEDs: The integrated LED light source is non-removable. Do not attempt to replace the LEDs.

2. Product Overview

The Ralbay Modern Black Bathroom Vanity Light is a sleek, contemporary lighting fixture designed for indoor use, particularly in bathrooms, dressing tables, and vanity areas. It provides natural white light (4000K) with both upward and downward illumination, creating a balanced and ambient glow.

Key Features:

• IP44 Waterproof and CE certified for safety and durability.
• Modern minimalist design with a matte black finish.
• Up and down lighting for soft, ambient illumination.
• Long lifespan of up to 50,000 hours.
• Natural White 4000K color temperature.
• Easy installation suitable for US junction box standards.

Package Contents:

• 1 x Ralbay Modern Black Bathroom Vanity Light (32.6 inch, 30W)
• 1 x Mounting Bracket
• 2 x M4 Screws
• 2 x Drop-in Anchors
• 3 x Wire Nuts
• 1 x Instruction Manual

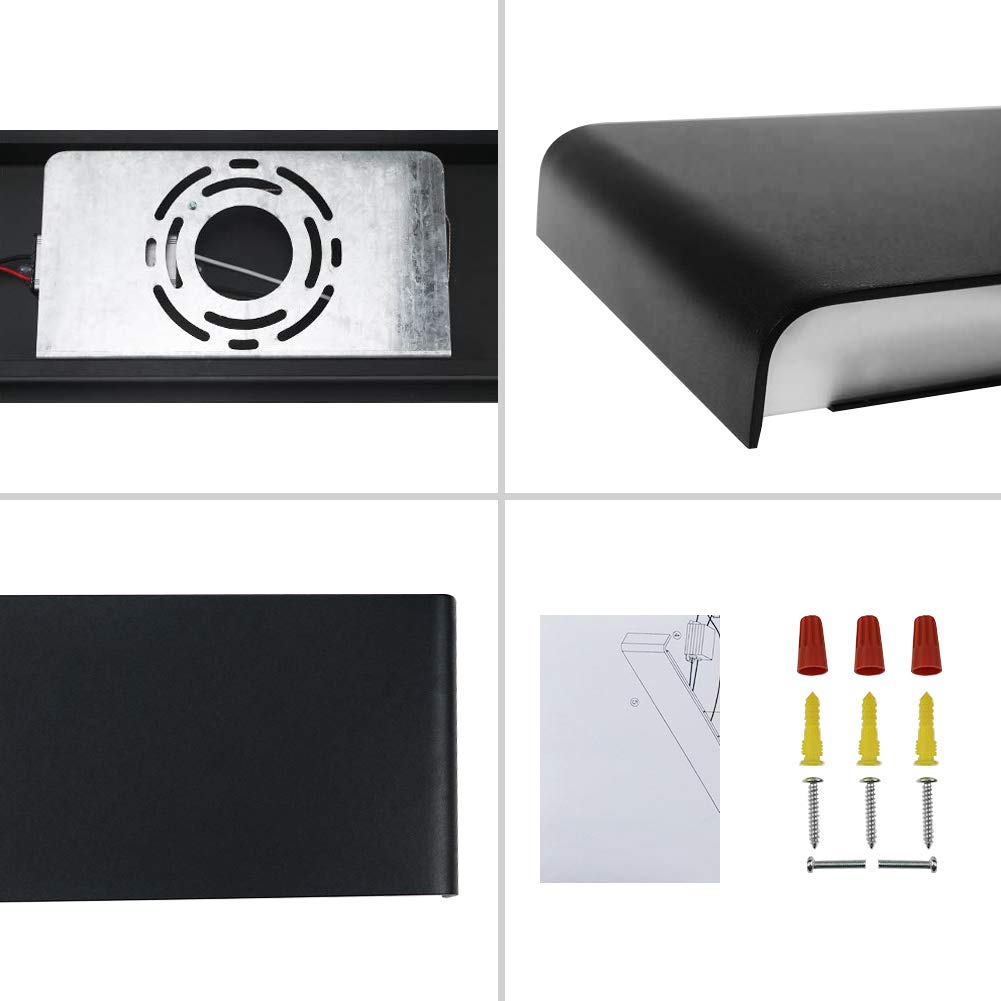

Image: View of the light fixture's components and mounting hardware.

3. Specifications

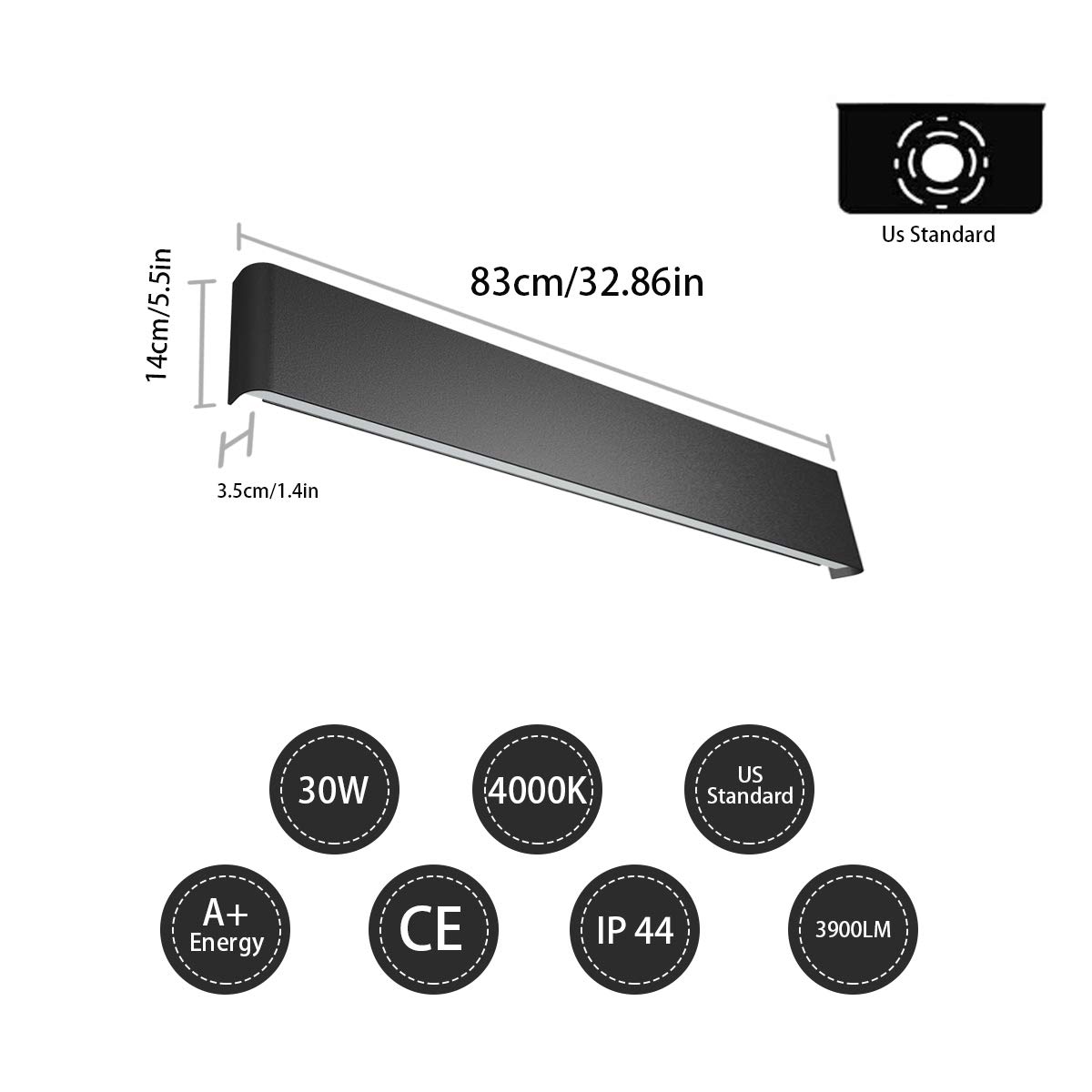

Image: Product dimensions and key specifications.

Image: Available sizes and corresponding wattages.

4. Installation Instructions

WARNING: CUT OFF POWER AT FUSE OR CIRCUIT BREAKER BEFORE INSTALLATION.

1. Prepare Mounting Surface:
   Drill two holes in the desired mounting location on the wall. Insert the provided drop-in anchors into the drilled holes. Fix the mounting bracket to the wall using the M4 screws, ensuring it is securely fastened.
2. Electrical Connection:
   Connect the fixture's wires to the 110/220V AC power supply. Ensure the Neutral (N), Live (L), and Earth (Ground) connections are correct according to local electrical codes. Use the provided wire nuts to secure connections. This fixture is designed to fit standard US junction boxes.
3. Mount the Fixture:
   Carefully align the light fixture with the mounting bracket. Securely fix the lamp to the bracket using the supplied screws.
4. Test Operation:
   Once the installation is complete, restore power at the fuse or circuit breaker and test the light fixture.

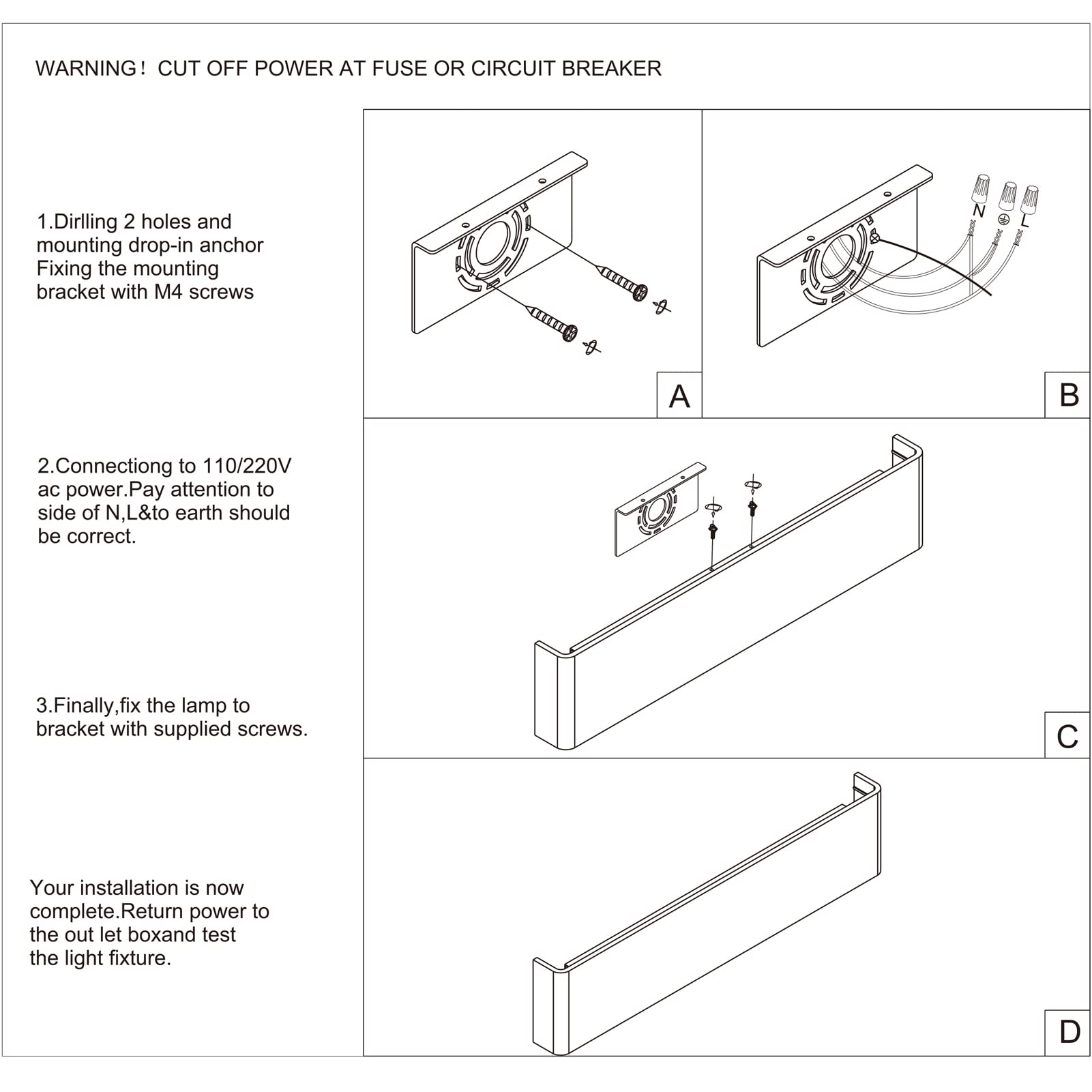

Image: Detailed installation steps.

5. Operation

The Ralbay Modern Black Bathroom Vanity Light is designed for straightforward operation. Once properly installed and connected to a power source, it can be turned ON/OFF using a standard wall switch (not included).

• Light Output: The fixture provides 3900 lumens of natural white light at 4000 Kelvin.
• Up/Down Lighting: Light is emitted from both the top and bottom edges of the fixture, creating a soft, ambient glow on the wall and illuminating the area below.
• Instant On: The LED light turns on instantly without flickering or warm-up time.
• Non-Dimmable: This fixture is not compatible with dimmer switches.

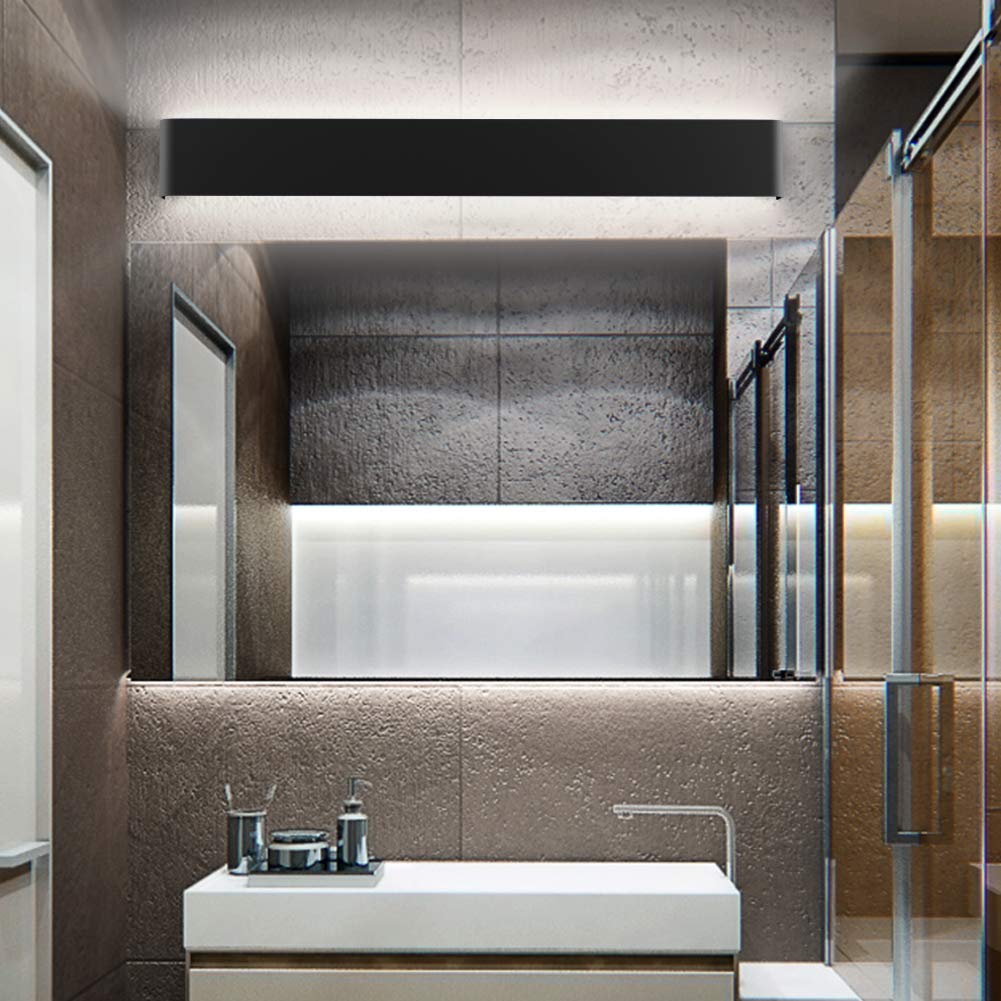

Image: Light fixture installed in a bathroom.

Image: Light fixture installed vertically.

6. Care and Maintenance

To ensure the longevity and optimal performance of your Ralbay Vanity Light, follow these simple care and maintenance guidelines:

• Cleaning: Disconnect power before cleaning. Use a soft, dry, or slightly damp cloth to wipe the surface of the fixture. Avoid abrasive cleaners, solvents, or polishes that could damage the finish or acrylic diffuser.
• Inspection: Periodically check the fixture for any signs of damage, loose connections, or wear. If any issues are found, disconnect power and consult a qualified electrician.
• LED Lifespan: The integrated LEDs have a long lifespan of approximately 50,000 hours and do not require replacement.

7. Troubleshooting

If you encounter any issues with your light fixture, please refer to the following common problems and solutions:

• Light does not turn ON:
  • Check if the power supply is connected and the circuit breaker is ON.
  • Ensure all wire connections are secure and correctly matched (Live, Neutral, Earth).
  • Verify the wall switch is in the ON position.
• Light flickers:
  • Confirm that the fixture is not connected to a dimmer switch, as it is non-dimmable.
  • Check for loose wire connections.
• Insufficient brightness:
  • Ensure the fixture is clean and free from dust or debris on the diffusers.
  • Verify the room size is appropriate for the light output (3900 lumens).

If the problem persists after attempting these solutions, please contact customer support.

8. Warranty and Support

Ralbay products are manufactured with quality and durability in mind. For specific warranty details, please refer to the product packaging or contact Ralbay customer service directly.

Customer Support:

For technical assistance, replacement parts, or any questions regarding your Ralbay Modern Black Bathroom Vanity Light, please contact our customer support team. Contact information can typically be found on our official website or through your purchase platform.

Please have your model number (A065-83cm-Heike-4000K) and purchase date available when contacting support.
