1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your HOMCOM Folding Dining Table. Please read this manual thoroughly before assembly and use to ensure proper function and longevity of your product.
Image 1.1: The HOMCOM Folding Dining Table in its fully extended configuration, ready for use.
2. Safety Information
Adhere to the following safety guidelines to prevent injury or damage to the product:
- Ensure all wheels are locked when the table is in use or stationary to prevent unintended movement.
- Do not exceed the maximum recommended load of 20 kilograms (44 lbs) on the tabletop or shelves.
- Keep small parts and assembly hardware away from children.
- Assemble the table on a soft, clean surface to avoid scratching the finish.
- Periodically check all fasteners to ensure they remain tight.
3. Package Contents
Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer support.
- Tabletop sections (main and two drop leaves)
- Central support frame with shelves
- Folding leg supports (2)
- Lockable casters (4)
- Assembly hardware (screws, hinges, pegs, locking bolts)
- Instruction manual
4. Setup and Assembly
Assembly typically requires two adults. Follow the steps carefully. A power drill with adjustable torque is recommended for screws, but use caution to avoid stripping.
4.1 Preparation
- Unpack all components and lay them out on a protected surface.
- Identify all parts and hardware using the provided parts list (if available, otherwise refer to diagrams).
- Ensure you have the correct screwdriver size for the provided screws to prevent stripping.
4.2 Assembly Steps
- Attach Casters: Secure the four lockable casters to the base of the central support frame and the folding leg supports. Ensure they are firmly attached.
- Assemble Central Unit: Construct the central support frame, including the 2-tier shelves, according to the diagrams.
- Attach Drop Leaves: Carefully align and attach the drop leaf tabletop sections to the central tabletop using the provided hinges. Ensure hinges are aligned perpendicularly before screwing to prevent misalignment.
- Install Locking Mechanisms: Attach the locking bolts or mechanisms that secure the drop leaves in the extended position.
Image 4.1: Detail of the locking mechanism that secures the drop leaf in the upright position.
Image 4.2: A lockable wheel, essential for securing the table in place.
5. Operating Instructions
5.1 Extending the Tabletop
- To extend one side: Gently lift one drop leaf until it is level with the main tabletop. Engage the support leg underneath and secure it with the locking mechanism.
- To extend both sides: Repeat the process for the second drop leaf.

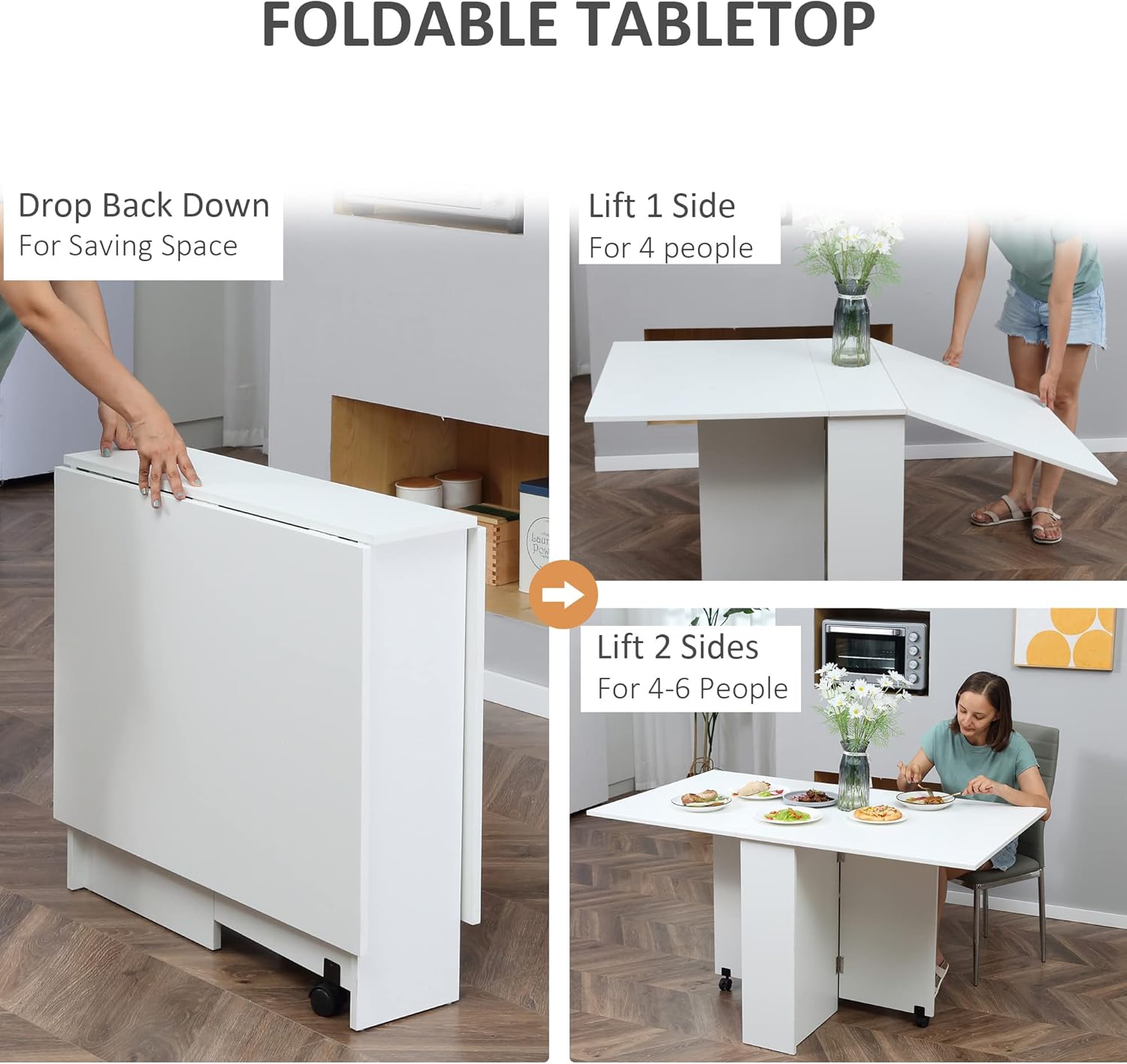

Image 5.1: Visual guide for folding and extending the tabletop.
5.2 Folding the Tabletop
- Disengage the locking mechanism for the support leg.
- Gently lower the drop leaf until it rests vertically against the central unit.
- Ensure the casters are unlocked for easy movement when folding or unfolding.
5.3 Using the Shelves
The central unit features two shelves for discreet storage. These shelves are accessible when the table is fully or partially folded, and can hold small items such as condiments or kitchen accessories.
Image 5.2: The integrated 2-tier shelves provide convenient storage.
6. Maintenance
- Cleaning: Wipe clean with a damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the melamine finish.
- Inspection: Periodically inspect all hardware, including screws and hinges, for tightness. Tighten as necessary to maintain stability.
- Caster Care: Keep casters free of debris to ensure smooth movement.
7. Troubleshooting
- Table feels unstable:
- Ensure all assembly screws are fully tightened.
- Verify that the support legs are fully extended and their locking mechanisms are engaged when the table is in use.
- Check that the casters are locked when the table is stationary.
- Drop leaves do not align properly:
- Recheck hinge alignment during assembly. Ensure screws were inserted perpendicularly.
- Loosen hinge screws slightly, adjust alignment, then retighten.
- Difficulty opening/closing drop leaves:
- Ensure casters are unlocked before attempting to move or fold the table.
- Check for any obstructions in the folding mechanism or around the support legs.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | HOMCOM |
| Model Number | B07FCCZTWR |
| Overall Dimensions (Extended) | 75D x 140W x 74H Centimetres (29.5" W x 55.1" D x 29.1" H) |
| Overall Dimensions (Half Folded) | 75D x 80W x 74H Centimetres (29.5" W x 31.5" D x 29.1" H) |
| Overall Dimensions (Fully Folded) | 75D x 23W x 74H Centimetres (29.5" W x 9.1" D x 29.1" H) |
| Item Weight | 27.6 Kilograms |
| Maximum Recommended Load | 20 Kilograms |
| Material | Engineered Wood with Melamine Faced Finish |
| Color | White |
| Number of Shelves | 2 (integrated) |
| Included Components | Casters |
| Assembly Required | Yes |
Image 8.1: Dimensional overview of the HOMCOM Folding Dining Table.
9. Warranty and Support
This product comes with a 90 Day Warranty Against Manufacturer Defects. For warranty claims, missing parts, or technical support, please contact HOMCOM customer service. Refer to your purchase documentation for specific contact details.
Manufacturer: Aosom Canada
Place of Business: Markham, Ontario, CA
Telephone: 1-416-792-6088
