Product Overview
The Feit Electric LEDR56/930CA is a versatile 5-6 inch LED Recessed Downlight designed for easy DIY installation. It features a pre-mounted trim and a standard base adapter, making it suitable for most recessed can housings. This dimmable LED light offers a smooth dimming range from 10% to 100%, allowing for customizable ambiance. With a 90+ CRI, it enhances interior colors, providing a vibrant and true-to-life illumination. The 3000K color temperature produces a comfortable, warm, yellowish glow, ideal for living rooms, bedrooms, bathrooms, lobbies, and hallways. It is an energy-efficient replacement for 75W incandescent bulbs, consuming only 10.2W, and is UL listed and FCC compliant, ensuring optimal performance and safety.
Key Features
- Easy Installation: Designed for DIY installation, fits most 5-6" recessed can housings with a standard base adapter and pre-mounted trim.
- Dimmable: Compatible with most LED dimmers, offering a smooth dimming range from 10% to 100%.
- High Color Rendering Index (CRI): 90+ CRI enhances interior colors for vibrant and true-to-life illumination.
- 3000K Color Temperature: Produces a comfortable, warm, yellowish, and calm glow, popular for residential spaces.
- Energy Saving: Replaces 75W incandescent bulbs with 10.2W LED, providing up to 86.4% energy savings.
- Quality and Safety: UL listed and FCC compliant, ensuring high standards for performance and safety.
Figure 1: Feit Electric 5-6 inch LED Recessed Downlight.
Safety Information
No specific warnings beyond standard electrical safety precautions. Always ensure power is off before installation or maintenance. The product is UL listed and FCC compliant for safety.
Setup & Installation
The Feit Electric LED Recessed Downlight is designed for straightforward installation into existing 5-6 inch recessed can housings. The unit comes with a standard E26 socket adapter for direct screw-in replacement of traditional bulbs, or it can be hardwired if the adapter is removed. The pre-mounted trim and spring clips simplify the process, ensuring a secure and flush fit.
- Turn Off Power: Before beginning any installation, ensure the power to the light fixture is turned off at the circuit breaker.
- Remove Old Fixture: Carefully remove the existing bulb and trim from the recessed can housing.
- Connect Adapter: If using the E26 socket adapter, screw it into the existing light bulb socket within the recessed can. If hardwiring, disconnect the E26 adapter and connect the fixture's wires to the house wiring using appropriate connectors (e.g., wire nuts).
- Secure Fixture: Gently push the LED downlight into the recessed can. The spring clips on the sides of the fixture will compress and then expand to hold the light securely in place against the ceiling.
- Verify Fit: Ensure the trim is flush with the ceiling for a clean, finished look.
- Restore Power: Once installed, turn the power back on at the circuit breaker.
Figure 2: Visual guide for easy installation, showing the E26 socket adapter and compatible housing types.

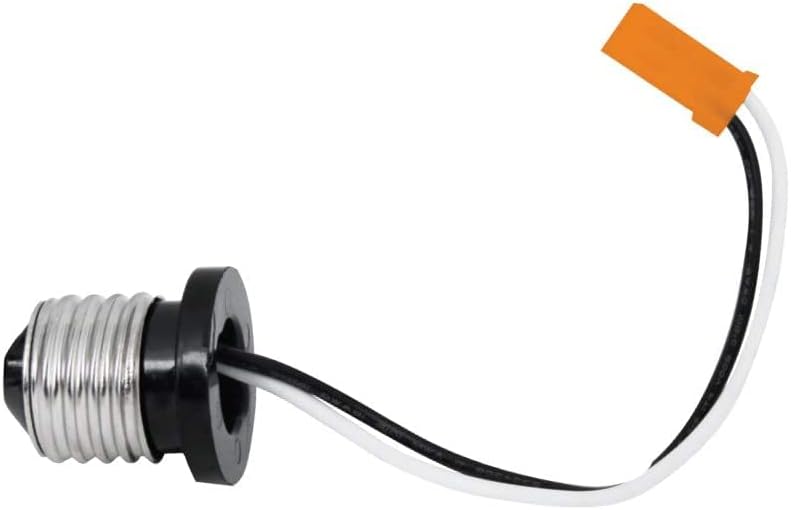

Figure 3: Close-up of the included E26 socket adapter.
Note: No official product installation videos from the seller were available for embedding. Please refer to the detailed steps above.
Operation
The Feit Electric LED Recessed Downlight is designed for simple operation. Once installed and powered, it functions like a standard light fixture. Its primary operational features include dimmability and a fixed color temperature.
- Dimmable Functionality: This downlight is fully dimmable, allowing you to adjust the light output from 10% to 100% using a compatible LED dimmer switch (sold separately). This feature enables you to create various ambiances, from bright task lighting to soft, ambient illumination.
- Color Temperature (3000K): The light provides a consistent 3000K (Bright White) color temperature, offering a warm and inviting glow suitable for most home environments. This model does not feature adjustable color temperature.
Figure 4: Illustration of the smooth dimmability feature, showing varying light levels.
Maintenance
Feit Electric LED Recessed Downlights are designed for long-term, maintenance-free operation. With an average life of 50,000 hours (approximately 45 years based on 3 hours/day usage), frequent bulb replacement is not necessary.
- Cleaning: To clean the fixture, ensure power is off. Use a soft, dry, or slightly damp cloth. Avoid abrasive cleaners or solvents that could damage the finish or electrical components.
- No User-Serviceable Parts: The LED components are integrated and not user-replaceable. Do not attempt to disassemble the fixture.
Figure 5: Highlighting the energy efficiency and long lifespan of the LED downlight.
Troubleshooting
If you encounter issues with your Feit Electric LED Recessed Downlight, consider the following common troubleshooting steps:
- Light Not Turning On:
- Check the circuit breaker to ensure power is supplied to the fixture.
- Verify that the E26 adapter (if used) is securely screwed into the socket, or that hardwired connections are firm.
- Ensure the wall switch is in the 'ON' position.
- Flickering Light:
- Ensure you are using an LED-compatible dimmer switch. Incompatible dimmers can cause flickering.
- Check for loose wiring connections at the fixture or switch.
- Light Fading/Dimming Prematurely:
- While these LEDs have a long lifespan, extreme heat or improper voltage can reduce it. Ensure the fixture is installed in a suitable environment.
- If multiple lights are fading, it might indicate a broader electrical issue or dimmer incompatibility.
For persistent issues, contact Feit Electric customer support or consult a qualified electrician.
Specifications
Figure 6: Detailed product specifications as provided by Feit Electric.
| Attribute | Value |
|---|---|
| Model Name | LEDR56 |
| Part Number | LEDR56/930CA |
| Brand | Feit Electric |
| Color Temperature (CCT) | 3000K (Bright White) |
| Brightness | 925 Lumens |
| Wattage | 10.2 Watts |
| Incandescent Equivalent | 75 Watts |
| Average Life | 50,000 Hours (approx. 45 years) |
| Color Rendering Index (CRI) | 90 |
| Dimmable | Yes (10% - 100%) |
| Product Dimensions | 7.5"L x 7.5"W x 3"H |
| Item Weight | 8 ounces |
| Material | Plastic |
| Certifications | UL Listed, FCC Compliant, Energy Star, RoHS |
Warranty Information
This Feit Electric product comes with a manufacturer's warranty. For specific details regarding the warranty period and coverage, please refer to the documentation included with your purchase or visit the official Feit Electric website.
