1. Product Overview
The JONATHAN Y JYL8001A Williams Tiffany-Style 71" Torchiere LED Floor Lamp combines traditional design with modern functionality. Featuring a handcrafted Tiffany-style stained glass shade and a durable bronze-finished metal base, this lamp provides ambient uplighting suitable for various indoor spaces. It includes an energy-efficient LED bulb and operates with a convenient foot-step switch.
Figure 1.1: Full view of the JONATHAN Y JYL8001A Tiffany-Style Torchiere LED Floor Lamp.
Video 1.1: A 10-second visual overview of the JONATHAN Y JYL8001A floor lamp, showcasing close-ups of its ornate base and intricate Tiffany-style stained glass shade.
2. Safety Information
- Indoor Use Only: This lamp is designed for indoor use in dry locations. Do not use in wet or damp environments.
- Electrical Safety: Ensure the lamp is connected to a 120-volt power supply. The product is ETL Listed and meets UL standards for safety.
- Bulb Compatibility: Use only E26 base bulbs. The lamp is compatible with LED bulbs. Do not exceed the maximum recommended wattage for replacement bulbs.
- Handling: Always unplug the lamp before cleaning, changing bulbs, or performing any maintenance.
- Placement: Place the lamp on a stable, level surface to prevent tipping. Keep away from flammable materials.
- Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
3. Package Contents
Carefully unpack all components and inspect for any damage. Retain packaging materials until assembly is complete and you are satisfied with the product. The package should contain the following items:
- Tiffany-Style Stained Glass Shade
- Lamp Pole Sections (typically multiple sections that screw together)
- Lamp Base
- LED Bulb (E26 base)
- Power Cord with Foot-Step Switch
Figure 3.1: Labeled components of the JYL8001A floor lamp.
4. Assembly Instructions
Assembly of the JONATHAN Y JYL8001A floor lamp is designed to be straightforward. Follow these steps:
- Prepare the Base: Place the lamp base on a flat, stable surface where the lamp will be used.
- Assemble the Pole: Carefully screw the lamp pole sections together, ensuring each connection is secure and straight. Do not overtighten.
- Attach Pole to Base: Screw the assembled lamp pole into the lamp base until it is firmly attached. Ensure the power cord is not twisted or pinched during this step.
- Install the Shade: Carefully place the Tiffany-style stained glass shade onto the top of the lamp pole. Secure it according to the lamp's design (e.g., with a finial or by screwing it onto a socket ring).
- Insert the Bulb: Screw the provided LED bulb into the lamp socket. Do not overtighten.
- Connect to Power: Plug the power cord into a standard 120-volt electrical outlet.
Figure 4.1: Key features and easy assembly of the floor lamp.
5. Operating Instructions
To operate your JONATHAN Y JYL8001A floor lamp:
- Power On/Off: Locate the foot-step switch on the power cord. Press the switch with your foot to turn the lamp ON or OFF.
- Bulb Type: The lamp uses one E26 base LED bulb. The included LED bulb provides warm white light at 800 lumens with a 12-watt equivalent output.
6. Maintenance and Care
- Cleaning the Shade: To clean the stained glass shade, gently wipe with a soft, dry cloth. For stubborn dirt, a slightly damp cloth can be used, followed by immediate drying. Avoid abrasive cleaners or harsh chemicals, as these can damage the glass or solder.
- Cleaning the Base: Wipe the bronze metal base with a soft, dry cloth. Do not use polishing agents or abrasive cleaners.
- Bulb Replacement: Ensure the lamp is unplugged and the bulb has cooled before attempting to replace it. Unscrew the old bulb and screw in a new E26 base LED bulb.
- Cord Care: Regularly inspect the power cord for any signs of damage. If the cord is damaged, discontinue use and contact a qualified electrician for repair or replacement.

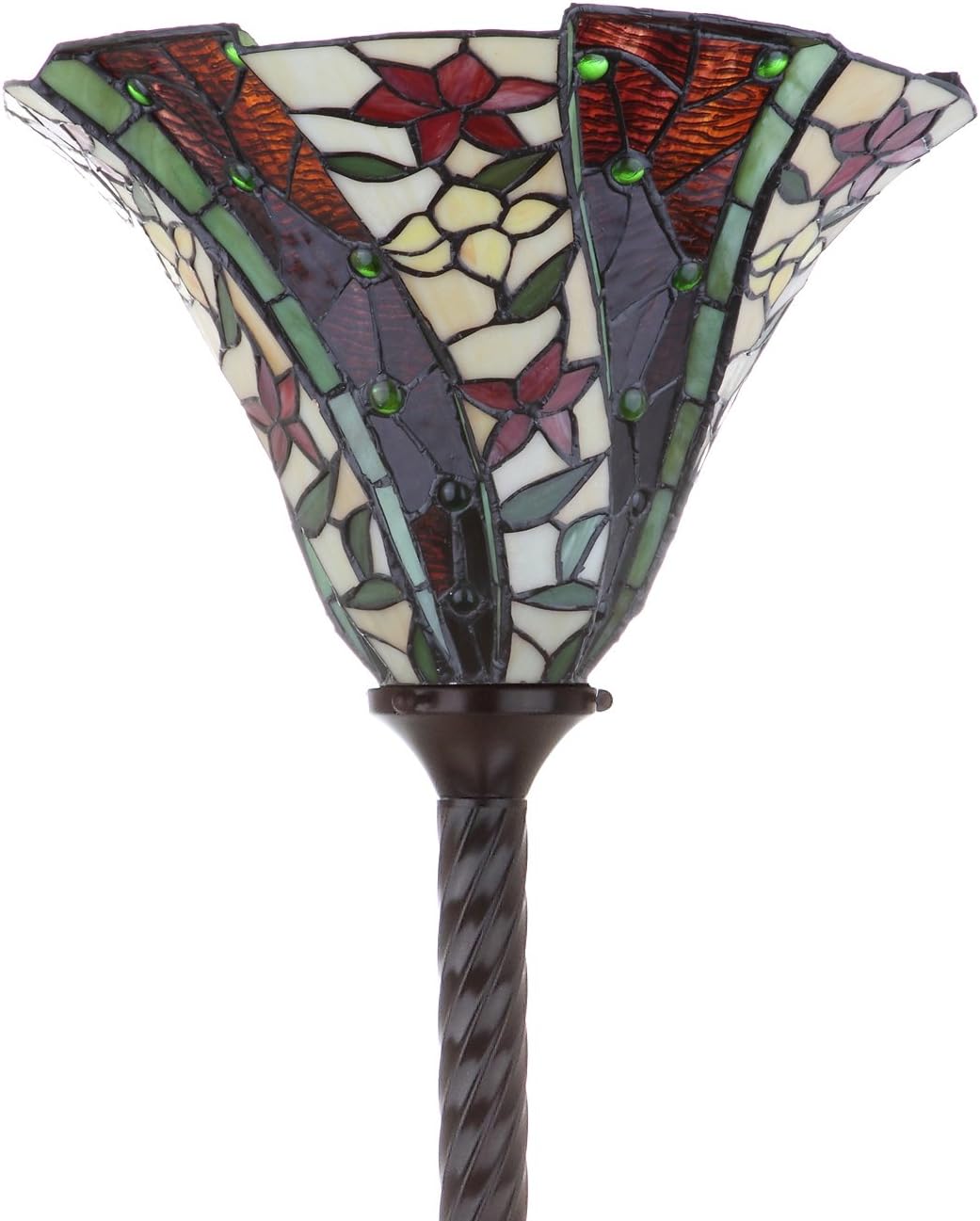

Figure 6.1: Detailed view of the stained glass shade.
Figure 6.2: Detailed view of the ornate bronze base.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not turn on. | 1. Power cord not plugged in. 2. Bulb is loose or faulty. 3. Wall outlet is not functioning. | 1. Ensure the power cord is securely plugged into a working outlet. 2. Unplug the lamp, then check if the bulb is screwed in tightly. Replace the bulb if necessary. 3. Test the outlet with another appliance. If the outlet is faulty, contact an electrician. |
| Light flickers. | 1. Loose bulb. 2. Incompatible bulb. | 1. Unplug the lamp and tighten the bulb. 2. Ensure you are using an E26 base LED bulb. |
| Lamp is unstable. | 1. Pole sections not fully tightened. 2. Lamp not on a level surface. | 1. Unplug the lamp and ensure all pole sections and the base connection are securely tightened. 2. Move the lamp to a flat, stable surface. |
8. Specifications
| Feature | Specification |
|---|---|
| Model Name | JYL8001A |
| Brand | JONATHAN Y |
| Lamp Type | Floor Lamp, Torchiere |
| Style | Tiffany, Traditional |
| Product Dimensions | 15"D x 15"W x 71"H |
| Item Weight | 20.24 Pounds |
| Base Material | Metal |
| Finish Type | Bronze |
| Shade Material | Stained Glass |
| Shade Dimensions | 15.5" Width x 10.25" Height |
| Light Source Type | LED |
| Bulb Base | E26 |
| Wattage | 12 Watts (LED) |
| Brightness | 800 Lumens |
| Light Color | Warm White |
| Voltage | 120 Volts |
| Switch Type | Foot-Step Switch |
| Indoor/Outdoor Usage | Indoor Use Only |
| Water Resistance Level | Not Water Resistant |
| Special Features | Bulbs Included, UL Listed |
| UPC | 819727021355 |
Figure 8.1: Dimensions of the JYL8001A floor lamp.
9. Warranty and Support
Warranty Description: This product comes with a 30-day manufacturer warranty for defects only. Normal wear and tear is not warranted. Visible damages not noted upon delivery will be determined to be customer damage and will not be warranted. All products are inspected upon arrival, and worn, dirty, or stained merchandise will not be accepted for warranty claims.
For warranty information or product support, please contact JONATHAN Y customer service. Refer to your purchase documentation or the manufacturer's website for current contact details.
