1. Product Overview
The vidaXL Metal Garden Shed, Model 42910, is designed to provide a durable and practical outdoor storage solution for your garden tools, lawn care equipment, and other household items. Constructed from galvanized steel, this shed offers resistance to weather elements and features a spacious interior with sliding doors for easy access. Integrated air vents ensure proper circulation, helping to prevent moisture buildup.
This manual will guide you through the assembly process, provide instructions for proper use, and offer tips for maintenance and troubleshooting to ensure the longevity and optimal performance of your shed.

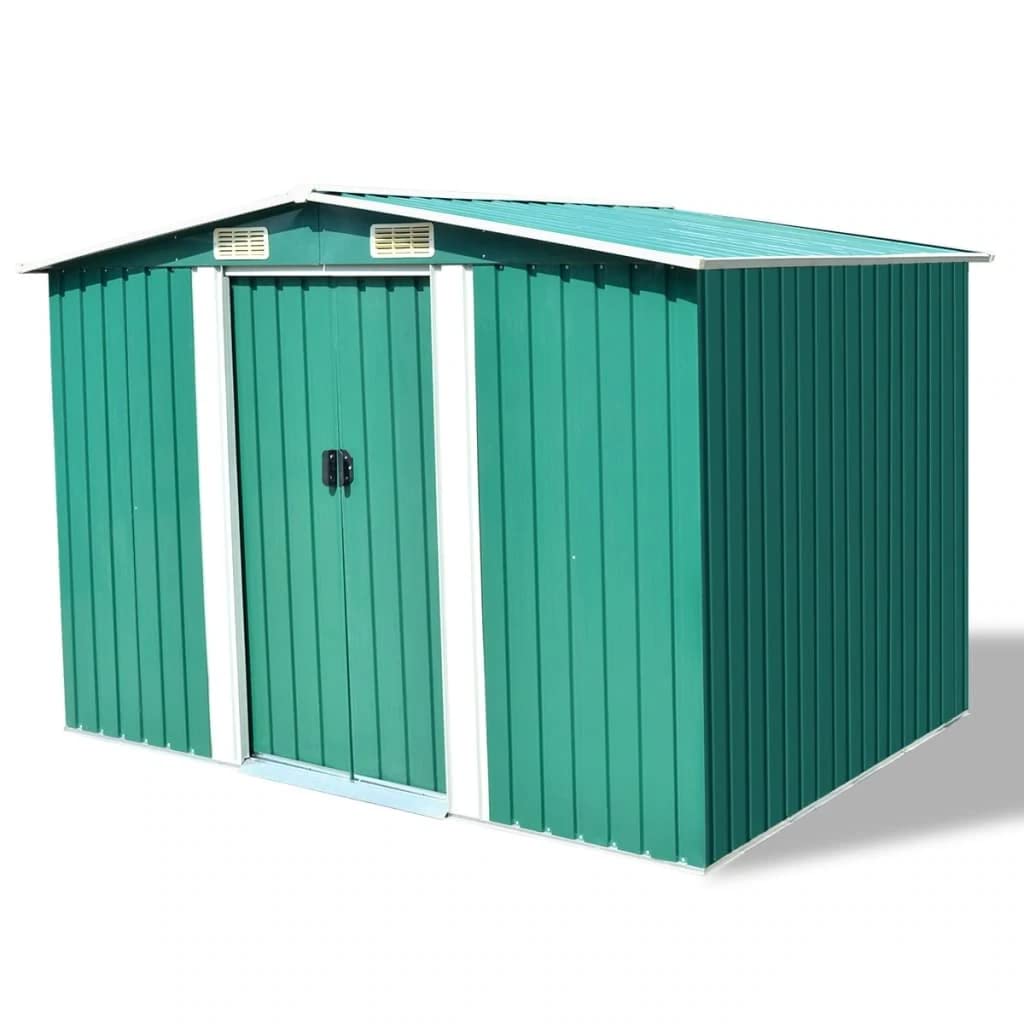

Figure 1.1: Overall view of the vidaXL Metal Garden Shed, Model 42910, featuring its galvanized steel construction and sliding doors.
2. Safety Information
Please read and understand all safety instructions before assembly and use. Failure to follow these instructions may result in injury or damage to the product.
- Two-Person Assembly: Assembly requires at least two adults. Do not attempt to assemble alone.
- Wear Protective Gear: Always wear work gloves, safety glasses, and appropriate footwear during assembly to prevent cuts, scrapes, and other injuries.
- Site Preparation: Choose a level, stable, and well-drained site for the shed. Ensure there is adequate clearance around the shed for assembly and future access.
- Secure Foundation: The shed must be anchored to a solid foundation (e.g., concrete slab, wooden base) to prevent wind damage. Anchoring hardware may not be included and should be purchased separately based on your foundation type.
- Sharp Edges: Metal components may have sharp edges. Handle with care.
- Children and Pets: Keep children and pets away from the assembly area. Do not allow them to play inside or around the shed.
- Ventilation: Ensure the shed's vents are not obstructed to maintain proper air circulation.
- Weight Distribution: Distribute stored items evenly inside the shed. Do not overload shelves or walls.
- Electrical Safety: Do not install electrical wiring or appliances inside the shed unless done by a qualified electrician and in compliance with local codes.
3. Package Contents
Before beginning assembly, unpack all components and verify that all parts are present according to the packing list provided with your product. If any parts are missing or damaged, do not proceed with assembly and contact customer support.
Typical components include:
- Roof panels
- Wall panels
- Door panels (sliding)
- Frame components (beams, posts, connectors)
- Hardware kit (screws, bolts, nuts, washers)
- Door handles and locking mechanism components
- Ventilation grilles
4. Setup and Assembly Instructions
Follow these steps carefully for proper assembly. Refer to the detailed diagrams in your product-specific assembly guide for visual assistance.
4.1 Site Preparation
- Select a flat, level, and dry area for your shed.
- Clear the area of any debris, rocks, or vegetation.
- Install a suitable foundation (e.g., concrete slab, paved area, or treated timber frame) that is slightly larger than the shed's base dimensions.
4.2 Base Frame Assembly
- Assemble the base frame components using the provided bolts and nuts. Ensure all corners are square.
- Secure the base frame to your prepared foundation using appropriate anchoring hardware (not included).
4.3 Wall Panel Installation
- Attach the corner posts to the base frame.
- Begin attaching the wall panels to the frame, working from one corner. Overlap panels as indicated in your specific assembly guide.
- Secure panels to the frame and to each other using the designated screws.
Figure 4.1: Side view of the shed, illustrating the corrugated metal wall panels and the initial roof structure.
4.4 Roof Assembly
- Install the roof support beams and trusses.
- Carefully place and secure the roof panels, ensuring proper overlap for weather sealing.
- Attach the roof ridge cap and trim pieces.

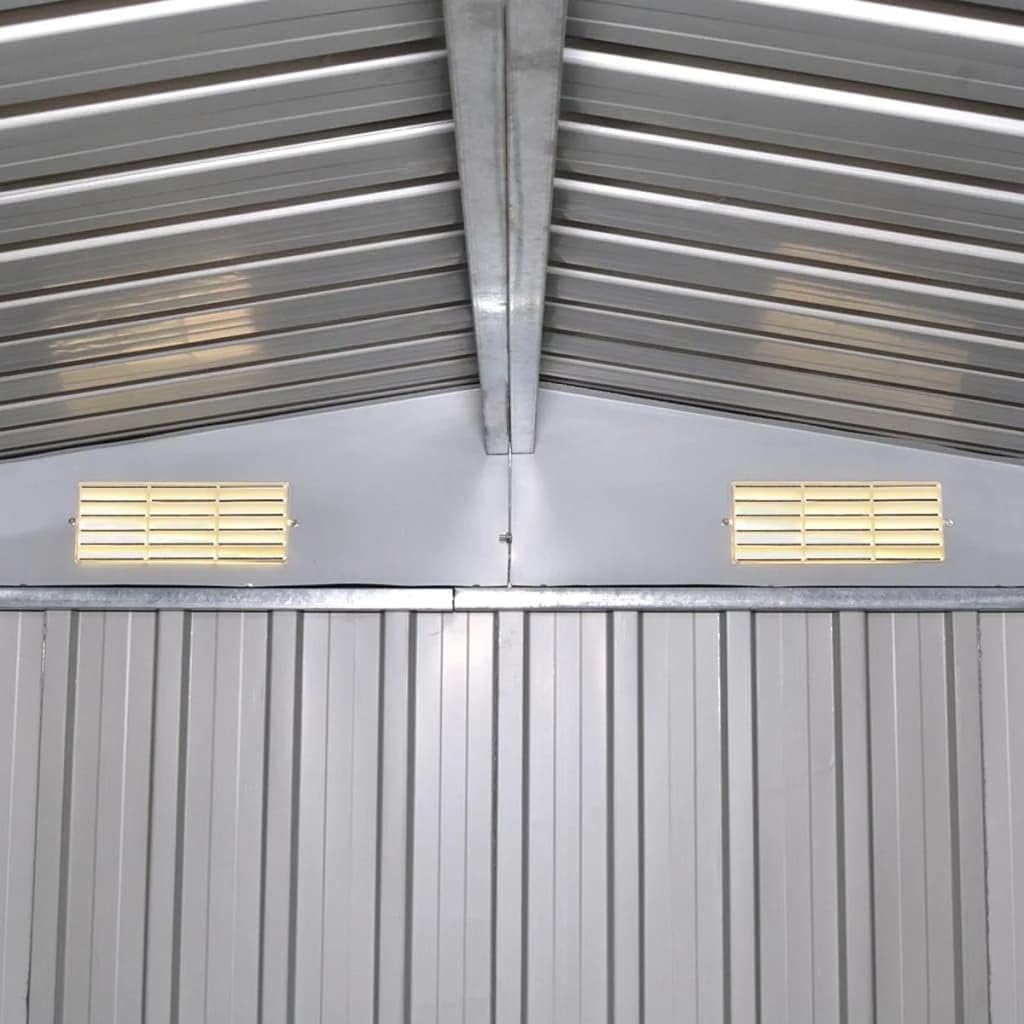

Figure 4.2: Interior view of the shed roof, highlighting the structural beams and integrated ventilation grilles for air circulation.
4.5 Door Installation
- Assemble the sliding door panels and attach the handles.
- Mount the door runners and guides according to the instructions.
- Carefully insert the door panels into the runners, ensuring they slide smoothly.
- Install the locking mechanism.
Figure 4.3: Front view of the shed with its sliding doors partially open, demonstrating ease of access.
Figure 4.4: Close-up of the robust black handle on the grey metal sliding door, designed for secure closure.
4.6 Final Checks
- Ensure all bolts and screws are tightened securely.
- Check that doors slide freely and close properly.
- Verify that all ventilation grilles are clear and unobstructed.
5. Operating Instructions
The vidaXL Metal Garden Shed is designed for straightforward operation.
- Opening/Closing Doors: To open, grasp the door handle and slide the door along its track. To close, slide the door back until it meets the other door or the frame.
- Securing the Shed: Use the integrated locking mechanism on the doors. For added security, a padlock (not included) can be used with the provided hasp.
- Storage: Store garden tools, lawn equipment, and other outdoor items. Ensure items are dry before storing to prevent moisture buildup.
- Ventilation: The shed is equipped with air vents to promote air circulation. Do not block these vents.
6. Maintenance
Regular maintenance will extend the life and appearance of your vidaXL Metal Garden Shed.
- Cleaning: Clean the exterior of the shed periodically with mild soap and water. Rinse thoroughly and allow to air dry. Avoid abrasive cleaners or harsh chemicals that could damage the galvanized finish.
- Check Fasteners: Annually, inspect all bolts, screws, and connections. Tighten any that have become loose due to vibration or weather changes.
- Door Tracks: Keep the sliding door tracks clean and free of debris (leaves, dirt) to ensure smooth operation. Lubricate tracks with a silicone-based spray if doors become stiff.
- Rust Prevention: While galvanized steel is rust-resistant, inspect for any scratches or chips in the coating. Touch up with rust-inhibiting paint if necessary to prevent corrosion.
- Ventilation: Ensure air vents remain clear of obstructions (e.g., spiderwebs, leaves) to maintain proper airflow.
- Snow Removal: In areas with heavy snowfall, remove excessive snow from the roof to prevent structural strain.
7. Troubleshooting
Here are solutions to common issues you might encounter with your garden shed.
| Problem | Possible Cause | Solution |
|---|---|---|
| Doors stick or are difficult to slide | Debris in tracks, bent track, lack of lubrication | Clean tracks thoroughly. Check for bent sections and straighten if possible. Apply silicone lubricant to tracks. |
| Water leakage inside the shed | Improper panel overlap, loose fasteners, damaged sealant | Inspect roof and wall panel overlaps. Tighten all fasteners. Apply silicone sealant to any gaps or damaged areas. Ensure the foundation is properly drained. |
| Shed feels unstable or wobbly | Not properly anchored, loose frame connections, uneven foundation | Ensure the shed is securely anchored to a solid, level foundation. Tighten all frame bolts and screws. Re-level the foundation if necessary. |
| Condensation inside the shed | Poor ventilation, high humidity, items stored wet | Ensure vents are clear. Avoid storing wet items. Consider adding a dehumidifier in very humid climates. |
8. Specifications
Detailed specifications for the vidaXL Metal Garden Shed, Model 42910:
- Brand: vidaXL
- Model Number: 42910
- Color: Lyndee (Green/Grey variant also available)
- Material: Galvanized Steel (Frame, Base, Top Material: Alloy Steel)
- Product Dimensions (Depth x Width x Height): 2.05 m x 2.57 m x 1.78 m (80.7" x 101.2" x 70.1")
- Item Weight: Approximately 59 kg (130.07 lbs)
- Door Style: Sliding
- Assembly Required: Yes
- Water Resistance Level: Waterproof
- UV Protection: Yes
- Ventilation: Equipped with 4 air vents (each approx. 23.3 cm x 9.9 cm)
9. Warranty Information
vidaXL products are manufactured to high-quality standards. For specific warranty terms and conditions applicable to your Metal Garden Shed, please refer to the warranty documentation included with your purchase or visit the official vidaXL website. Generally, warranties cover manufacturing defects under normal use and service.
10. Customer Support
If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact vidaXL customer support. Have your model number (42910) and purchase details ready when contacting support.
For the most up-to-date contact information, please visit the official vidaXL website or refer to the contact details provided in your product packaging.
