ART+SOUND AR3001 All-in-One Classic Retro Nostalgic Wooden Turntable with Bluetooth

Introduction

The ART+SOUND AR3001 is a versatile all-in-one audio system designed to bring a nostalgic touch to your listening experience while offering modern connectivity. This system allows you to enjoy your favorite music from various sources, including vinyl records, CDs, cassette tapes, FM radio, and Bluetooth-enabled devices. It also features an RCA output for connecting to external speakers, enhancing your audio setup.

This manual provides detailed instructions on how to set up, operate, and maintain your AR3001 system to ensure optimal performance and longevity.

Important Safety Instructions

Please read all instructions carefully before using this product and retain them for future reference. Follow all warnings and instructions marked on the product.

• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Package Contents

Please ensure all items listed below are included in your package. If any items are missing or damaged, please contact your retailer.

• ART+SOUND AR3001 All-in-One Audio System
• Power Adapter
• User Manual (this document)

Product Overview

Familiarize yourself with the various components and controls of your AR3001 system.

Figure 1: Front view of the AR3001 system with the lid open, revealing the turntable, CD player, and main control panel.

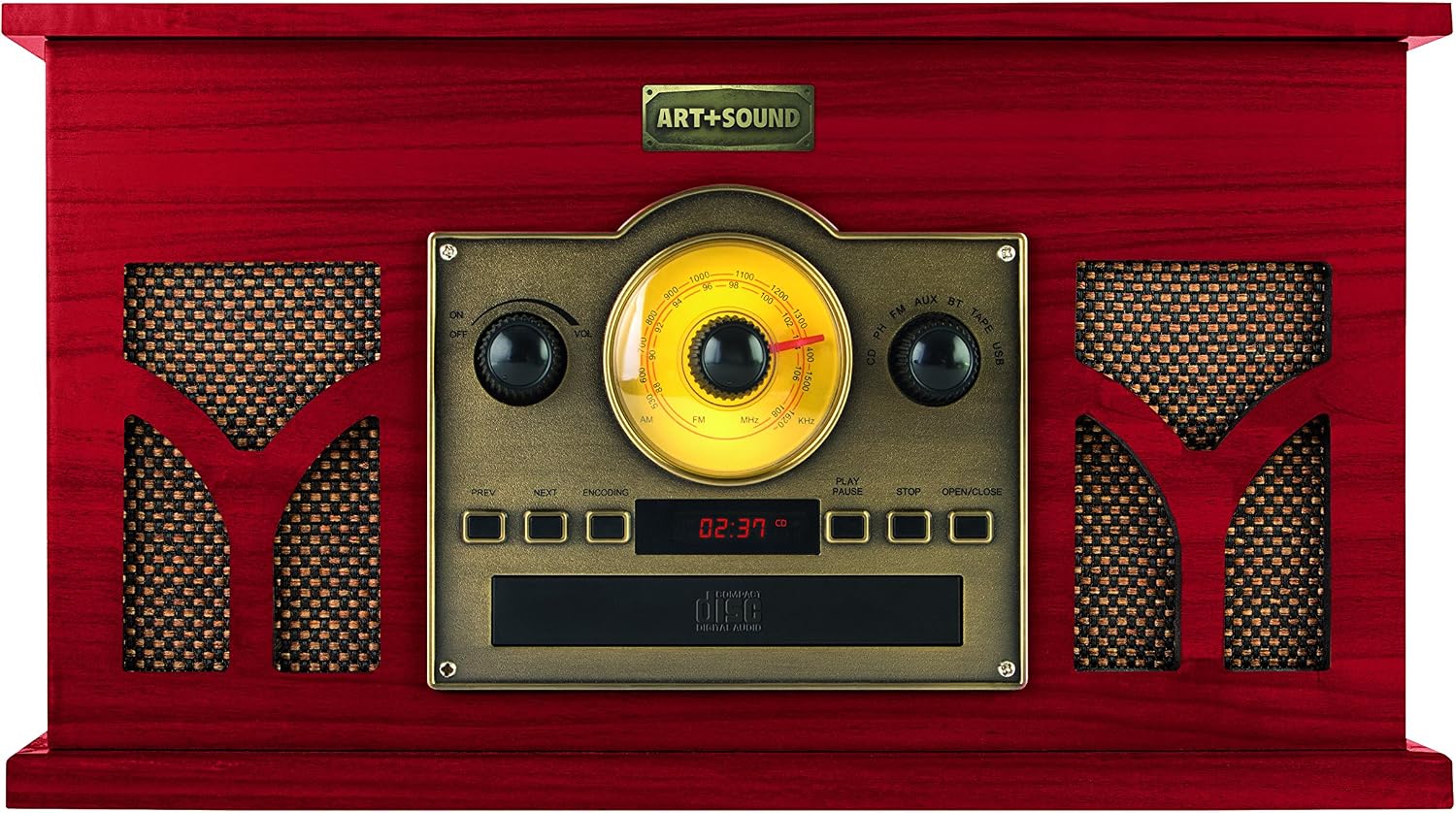

Figure 2: Detailed view of the AR3001's front control panel, highlighting the various knobs and buttons for operation.

Front Panel Controls:

• Power/Volume Knob: Turns the unit on/off and adjusts the volume level.
• Function Selector Knob: Switches between Phono (Turntable), CD, FM, AM, AUX, Bluetooth, and Tape modes.
• Tuning Knob: Used to tune FM/AM radio stations.
• Digital Display: Shows current mode, track number, or radio frequency.
• CD Tray: For inserting compact discs.
• Playback Control Buttons: Play/Pause, Stop, Skip Forward, Skip Backward, Open/Close (for CD tray).
• Cassette Deck: For playing cassette tapes.

Top Panel (Under Lid):

• Turntable Platter: Where records are placed.
• Tone Arm: Holds the stylus (needle) for playing records.
• Speed Selector: Allows selection of 33 1/3, 45, or 78 RPM for records.
• 45 RPM Adapter: For playing 45 RPM records with a large center hole.

Rear Panel:

• RCA Output Jacks (L/R): For connecting to external amplifiers or powered speakers.
• AUX Input Jack: For connecting external audio devices via a 3.5mm cable.
• Power Input Jack: For connecting the AC power adapter.

Setup

1. Unpacking: Carefully remove the unit from its packaging. Retain the packaging for future transport or storage.
2. Placement: Place the unit on a flat, stable surface away from direct sunlight, heat sources, and excessive dust or moisture. Ensure adequate ventilation around the unit.
3. Power Connection:
   • Connect the AC power adapter to the Power Input Jack on the rear of the unit.
   • Plug the other end of the adapter into a standard wall outlet.
4. Antenna (for Radio): The unit has a built-in FM antenna. For improved reception, you may need to adjust the unit's position or extend any external wire antenna if provided.
5. External Speaker Connection (Optional): If you wish to connect external powered speakers or an amplifier, use RCA cables (not included) to connect the RCA Output Jacks on the rear of the AR3001 to the input jacks on your external audio equipment.

Operating Instructions

General Operation:

• Turn the Power/Volume Knob clockwise to turn on the unit and adjust the volume.
• Use the Function Selector Knob to choose your desired audio source (Phono, CD, FM, AM, AUX, Bluetooth, Tape).

Turntable Operation:

1. Lift the lid of the unit.
2. Place a record on the turntable platter. If playing a 45 RPM single, place the 45 RPM adapter on the center spindle first.
3. Set the Speed Selector to the correct speed for your record (33 1/3, 45, or 78 RPM).
4. Move the Function Selector Knob to "Phono".
5. Gently lift the tone arm from its rest and position the stylus over the desired track on the record.
6. Lower the tone arm slowly onto the record. Playback will begin automatically.
7. To stop playback, gently lift the tone arm and return it to its rest.

CD Player Operation:

1. Move the Function Selector Knob to "CD".
2. Press the Open/Close button to open the CD tray.
3. Place a CD with the label side facing up into the tray.
4. Press the Open/Close button again to close the tray. The unit will read the disc.
5. Press the Play/Pause button to start playback.
6. Use the Skip Forward and Skip Backward buttons to navigate between tracks.
7. Press the Stop button to stop playback.

Bluetooth Operation:

1. Move the Function Selector Knob to "Bluetooth" (BT). The unit will enter pairing mode, indicated by a flashing Bluetooth indicator on the display.
2. On your Bluetooth-enabled device (smartphone, tablet, etc.), enable Bluetooth and search for available devices.
3. Select "ART+SOUND AR3001" (or similar name) from the list of devices.
4. Once paired, the Bluetooth indicator will become solid. You can now play audio from your device wirelessly through the AR3001.
5. Control playback (play/pause, skip) from your connected device.

FM/AM Radio Operation:

1. Move the Function Selector Knob to "FM" or "AM".
2. Rotate the Tuning Knob to find your desired radio station. The frequency will be displayed on the digital display.
3. Adjust the unit's position or the antenna for optimal reception.

Cassette Player Operation:

1. Move the Function Selector Knob to "Tape".
2. Insert a cassette tape into the cassette deck slot.
3. Press the Play button on the cassette deck to start playback.
4. Use the Fast Forward and Rewind buttons as needed.
5. Press the Stop/Eject button to stop playback and eject the tape.

AUX Input Operation:

1. Connect an external audio device (e.g., MP3 player, smartphone) to the AUX Input Jack on the rear of the unit using a 3.5mm audio cable (not included).
2. Move the Function Selector Knob to "AUX".
3. Play audio from your connected device. The sound will be output through the AR3001's speakers.

Maintenance

Cleaning:

• Always unplug the unit from the power outlet before cleaning.
• Use a soft, dry cloth to clean the exterior surfaces. Do not use abrasive cleaners, waxes, or solvents.
• For the turntable stylus, use a soft brush designed for stylus cleaning, brushing gently from back to front.
• Keep the CD tray and cassette deck free of dust and debris.

Storage:

If you plan to store the unit for an extended period, ensure it is clean and dry. Store it in a cool, dry place, preferably in its original packaging to protect it from dust and damage.

Troubleshooting

Specifications

Warranty and Support

ART+SOUND products are designed and manufactured to the highest quality standards. For information regarding warranty coverage and customer support, please refer to the warranty card included with your purchase or visit the official ART+SOUND website. Please retain your proof of purchase for warranty claims.

For technical assistance or service inquiries, please contact ART+SOUND customer support. Contact details can typically be found on the manufacturer's website or on the product packaging.
