Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Moen T2123 Posi-Temp Shower Trim. Please read all instructions carefully before beginning installation and retain this manual for future reference.

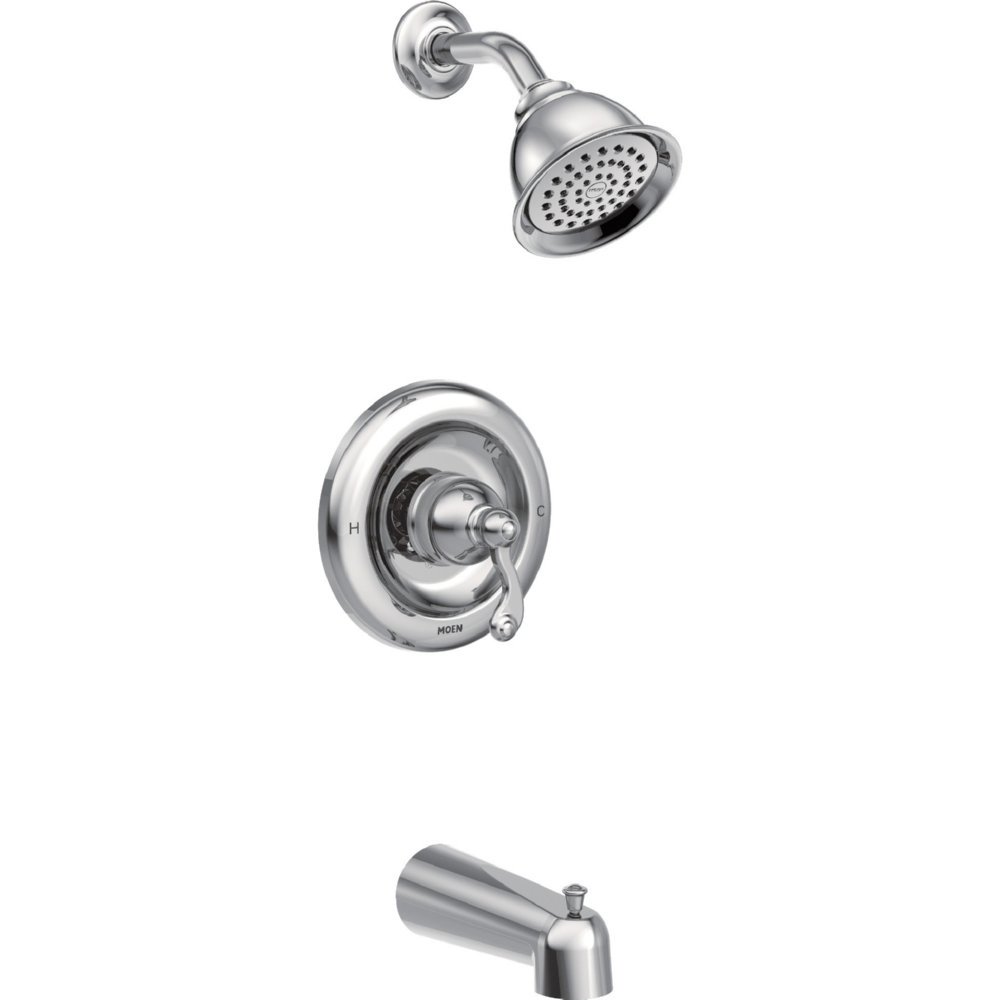

Image: Moen T2123 Posi-Temp Shower Trim, showcasing its chrome finish and traditional design.
Safety Information
Always turn off the main water supply before installing or servicing any plumbing fixture. Wear appropriate personal protective equipment, such as safety glasses, during installation. If you are unsure about any part of the installation process, consult a qualified plumber.
Package Contents
Verify that all components are present before beginning installation:
- Moen T2123 Posi-Temp Shower Trim (Chrome)
- Shower Faucet Traditional Tub and Shower components (handle, escutcheon, showerhead, tub spout)
- Mounting hardware
Setup and Installation
The Moen T2123 is designed for wall-mount installation. Ensure all plumbing connections are secure and leak-free. The Posi-Temp valve (sold separately) is required for operation. Critical dimensions for rough-in are provided in the diagram below to ensure proper fit and function. Follow local plumbing codes during installation.
Image: Detailed installation diagram and critical dimensions for the Moen T2123 Posi-Temp Shower Trim, including rough-in specifications for thin and thick wall applications.
- Prepare the wall opening according to the rough-in dimensions shown in the diagram.
- Install the Posi-Temp valve body (sold separately) securely within the wall.
- Connect hot and cold water lines to the valve body.
- Install the shower arm and showerhead.
- Install the tub spout.
- Mount the escutcheon plate over the valve body, ensuring it is flush with the finished wall.
- Attach the handle assembly to the valve stem.
- Test for leaks and proper operation.
Operating Instructions
The Moen T2123 features a single-handle design for controlling both water temperature and flow. Rotate the handle to adjust temperature. The Posi-Temp pressure-balancing valve maintains water temperature within ±3°F, protecting against sudden temperature changes caused by other water usage in the home.
- To Turn On/Off: Rotate the handle from the 'Off' position to the desired flow.
- To Adjust Temperature: Rotate the handle counter-clockwise for warmer water and clockwise for cooler water.
- The showerhead provides a maximum flow rate of 1.75 gallons per minute (gpm) at 80 psi.
Maintenance
To maintain the chrome finish, clean with a soft, damp cloth. Avoid abrasive cleaners, solvents, or polishing agents, as these can damage the finish. Regularly check for leaks and ensure all connections are tight. Periodically clean the showerhead nozzles to prevent mineral buildup and maintain optimal spray performance.
Troubleshooting
- Low Water Flow: Check for debris or mineral buildup in the showerhead or aerator. Ensure water supply valves are fully open.
- Temperature Fluctuations: Verify the Posi-Temp valve is correctly installed and functioning. Ensure hot and cold water supplies are adequately balanced and that the temperature limit stop is set correctly.
- Leaks: Inspect all connections for tightness. Replace worn washers or O-rings if necessary. If leaks persist from the handle area, the valve cartridge may need replacement.
Specifications
| Manufacturer | Moen |
| Part Number | T2123 |
| Item Weight | 3.75 pounds |
| Product Dimensions | 9.6 x 8.5 x 5.6 inches |
| Model Number | T2123 |
| Color | Chrome |
| Style | Traditional |
| Finish | Chrome |
| Material | Metal (Brass handle) |
| Item Package Quantity | 1 |
| Number of Handles | 1 |
| Handle Material | Brass |
| Mounting Type | Wall mount |
| Included Components | Shower Faucet Traditional Tub and Shower |
| Flow Rate | 1.75 gpm (6.6 L/min) max. at 80 psi |
| Pressure Balancing | Posi-Temp valve maintains water temperature within ±3°F |
Warranty Information
This Moen product is backed by a Limited Lifetime Warranty against leaks, drips, and finish defects to the original consumer purchaser. This warranty covers defects in material and manufacturing workmanship. Refer to the official Moen website or contact customer service for full warranty details, terms, and conditions.
