Pyle PDIC4 4-Inch Ceiling/Wall Speakers Instruction Manual

Introduction

The Pyle PDIC4 in-wall/ceiling speakers are designed to deliver full-range stereo sound for various audio applications in your home or office. These speakers feature a flush-mount design, allowing for seamless integration into your walls or ceilings. Each speaker is constructed with a lightweight aluminum alloy frame for enhanced durability and heat resistance, ensuring long-lasting performance.

The system includes a pair of 4-inch speakers, each equipped with a built-in 1/2-inch polymer tweeter for clear high-frequency reproduction. The reinforced polypropylene cone with a rubber edge contributes to rich and detailed audio output. Installation is simplified with spring-loaded clips and an included cut-out template, making them ideal for custom installations.

Key Features

• Two-Way Full Range Stereo Sound: Provides comprehensive audio reproduction across the frequency spectrum.
• Flush Mount Design: Allows for discreet installation directly into walls or ceilings.
• Lightweight Aluminum Alloy Frame: Offers robust construction and improved heat resistance.
• Built-in 1/2-inch Polymer Tweeter: Ensures crisp and clear high-frequency audio.
• Reinforced Polypropylene Cone with Rubber Edge: Delivers powerful and accurate bass response.
• Spring-Loaded Clips: Facilitate quick and secure installation.
• Environmentally Friendly ABS Construction: Durable and safe materials.
• Includes Speaker Connection Wires: Ready for immediate setup.

Setup and Installation

Proper installation is crucial for optimal sound performance and safety. Please follow these steps carefully.

1. Planning the Installation

• Location Selection: Choose a location in your wall or ceiling that is free from obstructions such as electrical wires, plumbing, or structural beams. Ensure there is sufficient depth for the speaker (mounting depth: 2.7 inches).
• Speaker Placement: For stereo sound, place speakers equidistant from the primary listening area. Consider room acoustics and furniture placement.
• Wiring: Plan your speaker wire routing from your amplifier/receiver to each speaker location. Ensure wires are of appropriate gauge for the distance and power.

2. Cutting the Opening

1. Use the included cut-out template to mark the exact circular opening on your wall or ceiling. The cut-out diameter is 4.5 inches.
2. Carefully cut the opening using a drywall saw or appropriate tool. Ensure the cut is clean and precise.

Image: Front view of a single Pyle PDIC4 speaker, highlighting its circular design for flush installation.

3. Wiring the Speakers

3. Pull the speaker wires through the cut opening.
4. Connect the speaker wires to the simple speaker connector posts on the back of the speaker. Ensure correct polarity (positive to positive, negative to negative) for optimal sound. The included speaker connection wires can be used for this purpose.

Image: Rear view of the Pyle PDIC4 speaker, detailing the spring-loaded mounting clips and the speaker wire terminals for connection.

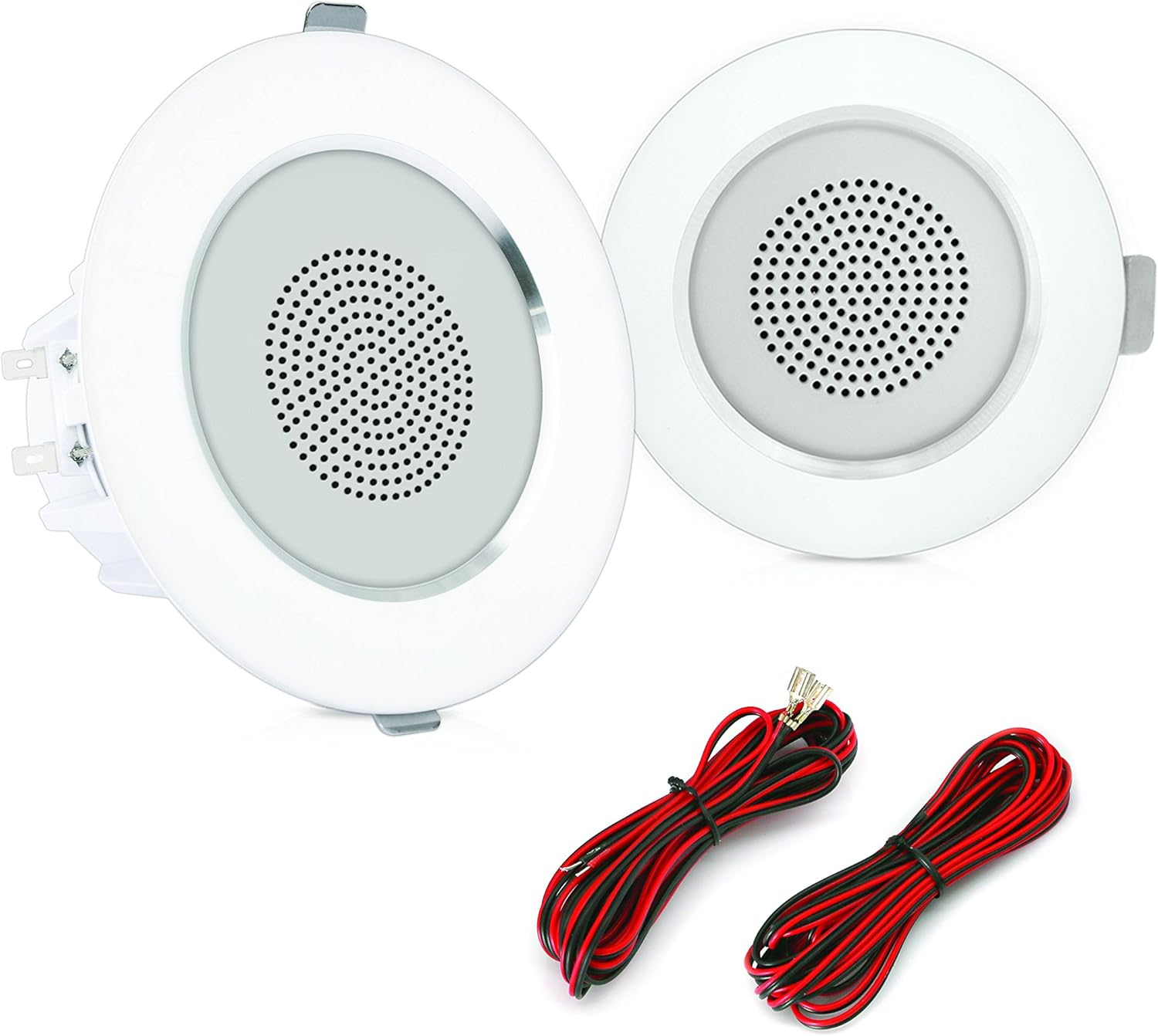

Image: The Pyle PDIC4 speaker pair, accompanied by the red and black speaker connection wires provided for installation.

4. Securing the Speaker

4. Carefully insert the speaker into the cut opening.
5. The spring-loaded clips will automatically engage and secure the speaker firmly against the wall or ceiling surface. Ensure the speaker is flush with the surface.

Image: An illustrative diagram demonstrating the lightweight aluminum frame housing and the functionality of the spring-loaded clips for secure and easy mounting.

Image: A Pyle PDIC4 speaker seamlessly installed and flush-mounted into a wooden ceiling, demonstrating its integrated aesthetic.

Operating Instructions

The Pyle PDIC4 speakers are passive speakers and require an external amplifier or receiver to function. Once properly installed and connected to your audio source, operation is straightforward.

1. Ensure your amplifier/receiver is turned off before making any connections.
2. Connect the speaker wires from the PDIC4 speakers to the corresponding speaker outputs on your amplifier/receiver, observing correct polarity.
3. Turn on your amplifier/receiver and select the desired audio input.
4. Adjust the volume on your amplifier/receiver to a comfortable listening level. Avoid excessively high volumes that may cause distortion or damage to the speakers or amplifier.

For optimal sound quality, refer to your amplifier/receiver's manual for settings such as balance, tone controls, and speaker configuration.

Maintenance

The Pyle PDIC4 speakers are designed for durability and require minimal maintenance.

• Cleaning: Gently wipe the speaker grilles and frames with a soft, dry cloth to remove dust. For stubborn marks, a slightly damp cloth can be used, but ensure no moisture enters the speaker components. Do not use harsh chemicals or abrasive cleaners.
• Inspection: Periodically check the speaker grilles for any damage or blockages. Ensure the mounting clips remain secure.
• Environment: Avoid exposing the speakers to extreme temperatures, high humidity, or direct water contact. While the aluminum frame offers some protection, these speakers are not waterproof.

Troubleshooting

Technical Specifications

Warranty and Support

Pyle products typically come with a limited warranty. For specific warranty details, including coverage period and terms, please refer to the warranty card included with your product or visit the official Pyle website.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Pyle customer service. Contact information can usually be found on the Pyle website or in your product packaging.

You can find more information and support resources at the official Pyle website: www.pyleusa.com
