Wilbar 'Fallston' 24 ft Round Above Ground Swimming Pool Instruction Manual

Product Overview

The Wilbar 'Fallston' 24 ft Round Above Ground Swimming Pool is designed for durability and ease of use. It features a robust steel wall with resin coating for enhanced protection against corrosion. This pool bundle includes essential components for setup and enjoyment.

Pool Style: Fallston
Pool Size: 24 ft Round
Wall Height: 52 inches
Estimated Water Capacity: 10,000 - 12,000 Gallons
Top Ledge Width: 9 inches
Upright Width: 7 inches
Included Components: 25 Gauge Bedrock Overlap liner, Widemouth Skimmer, Coping Strips

Wilbar Fallston 24 ft Round Above Ground Swimming Pool with Bedrock Liner and Skimmer — Image 1: The Wilbar Fallston 24 ft Round Above Ground Swimming Pool, showcasing its overall appearance, the Bedrock liner pattern, and the included widemouth skimmer.

Setup and Installation

Proper site preparation is crucial for the longevity and stability of your above ground pool. Ensure the ground is level and free of debris before beginning assembly.

Pool Wall Assembly

The pool features a super strong steel wall that has been hot dip galvanized and resin coated for protection. All parts are designed for exact-fit components to lock out corrosion, ensuring an easy one-time installation.

Diagram showing dimensions of 24 ft Round Fallston pool wall — Image 2: A diagram illustrating the key dimensions of the 24 ft Round Fallston pool wall, including the 52-inch wall height, 9-inch wide top ledge, and 7-inch wide uprights. It also highlights the resin-coated galvanized steel construction.

Liner Installation

The 25 Gauge Bedrock Overlap liner is made of 100% virgin vinyl. Overlap liners are designed to fold over the top of your pool wall and are secured in place with coping strips. For optimal installation, lay the liner out in the sun for at least one hour to warm the vinyl, allowing it to stretch properly when adding water. The ideal installation temperature is between 70-80 degrees Fahrenheit.

Bedrock pattern for pool liner — Image 3: A close-up view of the Bedrock pattern for the pool liner, featuring a design that mimics glistening water with pebbles and seashells.

Diagram of overlap liner installation — Image 4: A cross-section diagram illustrating how an overlap liner is installed, showing the excess liner folding over the pool wall and secured by a stabilizer bar and flat coping strip.

Skimmer Installation

The pool wall includes a pre-drilled cutout for the widemouth skimmer. Ensure the skimmer is properly sealed during installation to prevent leaks. The pool wall also has pre-drilled holes for the suction and discharge lines for your pump system (pump not included).

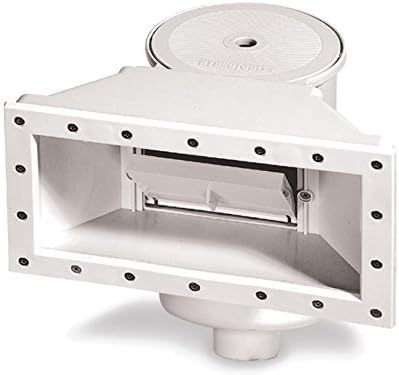

Widemouth skimmer component — Image 5: A detailed view of the widemouth skimmer component, which is included with the pool bundle.

Pool interior with installed skimmer — Image 6: A view of the pool's interior, showing the installed widemouth skimmer and the Bedrock liner pattern.

Operating Your Pool

Once installed, fill your pool with water. The estimated capacity is between 10,000 and 12,000 gallons. Ensure your filtration system (not included) is properly connected to the pre-drilled suction and discharge holes to maintain water circulation and cleanliness.

Maintenance

The 'Fallston' above ground swimming pool is designed to remain in place all year round, simplifying seasonal maintenance. The resin-coated steel wall offers excellent protection against premature rusting, contributing to maximum longevity.

Wall Protection: The copper bearing steel wall is hot dip galvanized and resin coated on both the inside and outside for superior protection.
Liner Security: Interlocking stabilizer rails and coping strips fit tightly over your liner and the top of the pool wall, securely locking the Bedrock liner in place.
Year-Round Design: This pool is built to withstand year-round outdoor conditions, eliminating the need for disassembly during colder months.

Troubleshooting and FAQs

Here are answers to some frequently asked questions regarding the Wilbar 'Fallston' pool:

Does the pool come with coping strips? Yes, coping strips are included for liner installation.
Is there a pre-drilled cutout in the wall for a skimmer? Yes, the wall has a pre-drilled cutout for the included widemouth skimmer.
Are there holes for the suction and discharge for the pump? Yes, the pool wall includes pre-drilled holes for connecting your pump's suction and discharge lines.
Can this pool be sunk into the ground? No, sinking this pool into the ground is not recommended and will void the manufacturer's warranty.

Specifications

Brand	Wilbar
Model Number	PIBF2452
Product Dimensions	288"L x 288"W x 52"H (24 ft Round, 52 inch Wall Height)
Shape	Round
Color	Fallston
Material	Resin (components), Steel (wall)
Capacity	10,000 - 12,000 Gallons
Included Components	25 Gauge Bedrock Overlap liner, Widemouth Skimmer, Coping Strips
Assembly Required	No (refers to pre-assembly of some parts, but user assembly is required for full setup)

Warranty Information

The Wilbar 'Fallston' Above Ground Swimming Pool comes with a 10-Year Limited Manufacturer Warranty. Please refer to the warranty documentation included with your product for full terms and conditions.

Customer Support

For any questions, technical assistance, or warranty claims, please contact Wilbar customer support. Contact information can typically be found on the product packaging or the manufacturer's official website.

Wilbar PIBF2452
