Jamara 404960 Fire Fighter Mercedes Benz Antos Utility Vehicle User Manual

1. Introduction and Safety Information

This manual provides essential instructions for the safe operation, setup, and maintenance of your Jamara 404960 Fire Fighter Mercedes Benz Antos Utility Vehicle. Please read it thoroughly before first use and retain it for future reference.

Safety Warnings:

• Age Recommendation: Suitable for ages 6 years to 18 years.
• Adult Supervision: Use under the direct supervision of adults.
• Choking Hazard: Not suitable for children under 36 months due to small parts which can be swallowed.
• Water Use: Only use clean tap water in the water reservoir. Do not use other liquids.
• Battery Safety: Follow all battery installation and charging instructions carefully. Do not mix old and new batteries, or different types of batteries.

2. Package Contents

Carefully unpack the box and ensure all items are present and undamaged. If any parts are missing or damaged, contact your retailer immediately.

• Jamara 404960 Fire Fighter Mercedes Antos 2.4G Vehicle
• 2.4 GHz Transmitter (Remote Control)
• Instruction Manual

Figure 2.1: The Jamara Fire Fighter Mercedes Benz Antos Utility Vehicle as packaged in its retail box.

3. Setup

3.1 Battery Installation

Batteries are required for both the vehicle and the transmitter (not included). Use alkaline batteries for optimal performance.

1. Vehicle Battery: Locate the battery compartment on the underside of the vehicle. Open the cover, insert the required batteries (refer to the compartment for polarity), and close the cover securely.
2. Transmitter Battery: Locate the battery compartment on the back of the 2.4 GHz transmitter. Open the cover, insert the required batteries with correct polarity, and close the cover securely.

3.2 Filling the Water Reservoir

The vehicle features a realistic splash function. To use this, the water reservoir must be filled.

1. Locate the water reservoir cap on the top of the vehicle, near the ladder base.
2. Carefully open the cap.
3. Fill the reservoir with up to 420 ml of clean tap water. Do not overfill.
4. Securely close the cap to prevent leaks.

Figure 3.1: Location of the water reservoir cap for filling.

4. Operating Instructions

Familiarize yourself with the transmitter controls and vehicle functions before operating.

4.1 Basic Driving Functions

• Forward/Reverse: Use the designated joystick or buttons on the transmitter to move the vehicle forward or backward.
• Left/Right: Use the steering control on the transmitter to turn the vehicle left or right.
• Stop: Release the controls to bring the vehicle to a stop.
• 4-Wheel Drive: The vehicle features 4-wheel drive for enhanced traction.

4.2 Special Functions

• Engine Sound: The vehicle produces a realistic engine sound. This function can be switched off via a button on the transmitter.
• Lights and Sirens: Activate the bright headlights, blue LED signal lights, and German fire siren using the corresponding controls on the transmitter.
• Backwards Drive Alarm: An audible alarm sounds when the vehicle is driven in reverse.
• Rotating Ladder: The ladder can rotate 660 degrees (clockwise and counter-clockwise) using the transmitter controls.
• Retractable Ladder: The ladder can be extended and retracted.
• Realistic Splash Function: Press the designated button on the transmitter to activate the water spray from the ladder nozzle. Ensure the water reservoir is filled.
• Programmable Functions: The vehicle supports programmable functions, including a repeat function. Refer to the transmitter's specific instructions for programming details.
• Auto Switch-off: The vehicle features an auto switch-off function to conserve battery power when inactive.

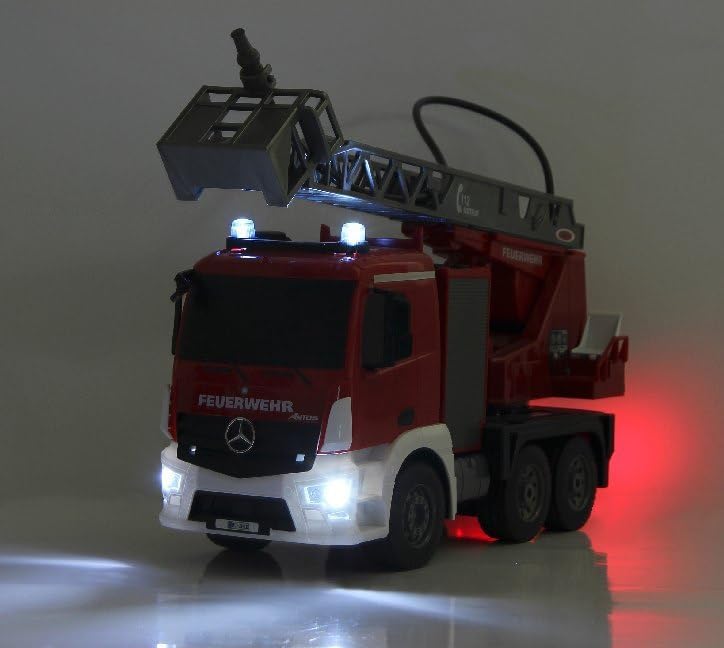

Figure 4.1: The vehicle with its headlights and blue LED signal lights active.

Figure 4.2: Demonstration of the realistic splash function from the ladder nozzle.

5. Maintenance

Proper maintenance will extend the life and performance of your utility vehicle.

• Cleaning: Wipe the vehicle with a soft, dry cloth after each use. Do not use harsh chemicals or immerse the vehicle in water.
• Water Reservoir: After using the splash function, empty any remaining water from the reservoir to prevent mold or residue buildup.
• Storage: Store the vehicle and transmitter in a cool, dry place away from direct sunlight and extreme temperatures. Remove batteries from both the vehicle and transmitter if storing for extended periods.
• Inspection: Periodically check for loose screws, damaged parts, or worn components. Replace any damaged parts before further use.

6. Troubleshooting

If you encounter issues with your vehicle, refer to the following common troubleshooting steps:

7. Specifications

Key technical details for the Jamara 404960 Fire Fighter Mercedes Benz Antos Utility Vehicle:

• Model: Jamara 404960
• Scale: 1:20
• Frequency: 2.4 GHz
• Material: Plastic
• Operation Mode: Remote Control
• Power Source: Battery Powered (Alkaline batteries required, not included)
• Water Reservoir Capacity: Approximately 420 ml
• Dimensions (Approx.):
  • Length: 380 mm (14.96 inches)
  • Width: 130 mm (5.12 inches)
  • Height: 220 mm (8.66 inches)
• Weight (Approx.): 1.4 kg (3.09 lbs)

8. Warranty and Support

Specific warranty details and direct support contact information are not provided within this manual. For warranty claims, technical support, or replacement parts, please refer to the documentation included with your purchase or visit the official Jamara website for the most current information.
