Festo CPA14-VI Valve Terminal User Manual

Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of the Festo CPA14-VI Valve Terminal. The CPA14-VI is a compact solenoid valve terminal designed for pneumatic control applications, operating within a pressure range of 0.9 to 10 bar and typically requiring a 24VDC power supply. Please read this manual thoroughly before installation or operation to ensure proper function and safety.

Product Overview

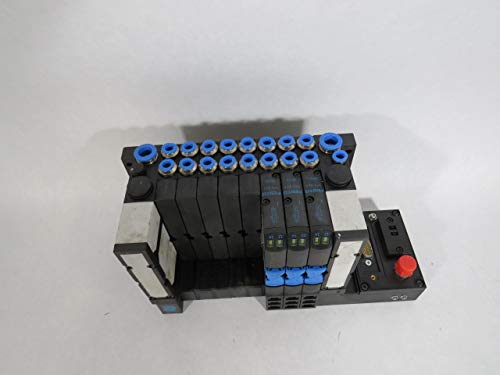

Figure 1: Overall view of the Festo CPA14-VI Valve Terminal. This image shows the compact design with multiple valve positions and pneumatic connections, ready for integration into a system.

Figure 2: Detailed view of a valve module on the terminal, displaying the Festo brand and part number 173 941, along with a production code W502. This indicates specific component identification.

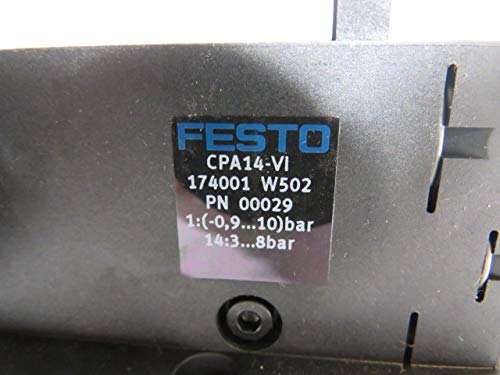

Figure 3: Product identification label for the CPA14-VI, indicating model number, part number (174001), production code (W502), and operating pressure ranges (0.9-10 bar and 3-8 bar). This label is crucial for product identification and specifications.

Safety Instructions

Always observe general safety regulations and local accident prevention regulations when working with pneumatic systems. Only qualified and trained personnel should install, operate, and maintain this device. Ensure the system is completely depressurized and de-energized before performing any work on the valve terminal, including connections or disconnections. Failure to do so can result in serious injury or equipment damage.

Setup and Installation

1. Mounting: Securely mount the CPA14-VI valve terminal to a stable, vibration-free surface using appropriate fasteners. Ensure adequate space around the terminal for pneumatic tubing, electrical connections, and future maintenance access.
2. Pneumatic Connections: Connect the main pneumatic supply line to the designated inlet port. Connect actuators or other pneumatic components to the individual output ports. The valve terminal features 4 ports for pneumatic control. Ensure all connections are tight and leak-free to prevent pressure loss and ensure efficient operation.
3. Electrical Connections: Connect the 24VDC power supply to the terminal's power input terminals. Connect control signals from your PLC or control system to the respective valve solenoids. Refer to the detailed wiring diagram provided with your specific terminal configuration for correct pin assignments and polarity.
4. Pressure Regulation: Verify that the incoming compressed air pressure is regulated and maintained within the specified operating range of 0.9 to 10 bar (1E+1 Bars) to prevent damage to the valves and connected components.

Operating Instructions

The Festo CPA14-VI valve terminal functions by receiving electrical signals to actuate its integrated solenoid valves, thereby controlling the flow of compressed air to connected pneumatic components. Its operation is typically integrated into an automated control system.

• Power On: Once all pneumatic and electrical connections are secure, apply the specified 24VDC power to the valve terminal.
• Signal Input: Send electrical control signals from your control system (e.g., PLC) to the desired valve solenoids. Each solenoid corresponds to a specific pneumatic output port on the terminal.
• Air Flow Control: When a solenoid receives an electrical signal and is energized, it shifts the internal valve mechanism, directing compressed air to the corresponding output port. De-energizing the solenoid typically returns the valve to its initial, unactuated state, often exhausting air from the connected component.
• System Integration: The valve terminal is designed for seamless integration with industrial control systems to automate complex pneumatic sequences and processes.

Maintenance

Regular and proper maintenance is crucial for ensuring the longevity, reliability, and optimal performance of your Festo CPA14-VI valve terminal.

• Periodic Inspection: Routinely inspect all pneumatic connections for any signs of leaks, and electrical connections for corrosion, loose wiring, or physical damage. Address any issues promptly.
• Cleaning: Keep the valve terminal clean and free from accumulated dust, dirt, and debris. Use a soft, dry cloth for cleaning. Avoid using harsh chemicals, solvents, or abrasive materials, as these can damage the housing or internal components.
• Air Quality: Ensure that the compressed air supply is consistently clean, dry, and free of contaminants (e.g., oil, moisture, particulates). The use of appropriate air filters and dryers upstream of the valve terminal is highly recommended to prevent internal valve damage.
• Component Replacement: In the event of a component failure, such as a valve module or solenoid, always replace it with an original Festo spare part to ensure compatibility and maintain performance specifications.

Troubleshooting

Specifications

• Model Number: CPA14-VI
• Manufacturer: Festo
• Valve Type: Solenoid Valve Terminal
• Material: Stainless Steel (for critical internal components)
• Operating Pressure Range: 0.9 - 10 bar (1E+1 Bars)
• Number of Ports: 4
• Typical Operating Voltage: 24VDC (as commonly used with this model)
• Product Dimensions (L x W x H): 7.09 x 6.3 x 8.27 inches
• Product Weight: 1.32 Pounds
• Certifications: CSA, ULC

Warranty and Support

For detailed warranty information, technical support, or to inquire about spare parts and service, please contact Festo directly or your authorized Festo distributor. It is recommended to refer to the official Festo website for the most current contact details, product documentation, and service information.

Festo Official Website: www.festo.com
