CELLSTAR CSD-560FH Drive Recorder User Manual

Product Overview

The CELLSTAR CSD-560FH is a compact drive recorder designed for reliable in-car video recording. It features a 2.4-inch touch panel for easy operation and records in Full HD quality. This model is manufactured in Japan and comes with a 3-year warranty, ensuring durability and peace of mind.

The Cellstar CSD-560FH drive recorder, shown from the front, highlighting its compact design.

Key Features

• Made in Japan with a 3-year warranty.
• Equipped with a 5-megapixel camera for Full HD recording (2-megapixel recording resolution).
• Features a 2.4-inch touch panel for intuitive control.
• Includes Parking Mode functionality (requires optional accessory GDO-05).
• Can be connected with a radar detector (requires dedicated connection cord).
• Utilizes a heat-resistant and durable glass lens.
• Supports voice recording (can be toggled ON/OFF).
• Offers three recording modes: Continuous, Event, and Quick.
• Designed with countermeasures against terrestrial digital TV noise.
• Flexible installation options, including dashboard mounting.

This image highlights the main features of the CSD-560FH, including its Full HD recording capability, 5-megapixel camera, 2.4-inch touch panel, and the assurance of a 3-year warranty from a Japanese manufacturer.

Package Contents

Please ensure all the following items are included in your package:

• Drive Recorder Unit
• Mount Base
• Ball Joint (for dashboard mounting)
• Double-sided Tape (for front glass)
• Double-sided Tape (for dashboard)
• DC Cord (4.5m)
• Cord Clips (5 pieces)
• 8GB microSD Card (Class 10/SDHC compliant, with case adapter)
• Dedicated Viewer Software (pre-loaded on the included microSD card)
• Instruction Manual
• Warning Sheet

This diagram illustrates all items included in the product package, ensuring you have everything needed for installation and operation.

Installation and Mounting

The CSD-560FH offers versatile mounting options to achieve the best recording angle for your vehicle. The included mount base and ball joint allow for installation on the front glass or dashboard, adapting to various car interiors.

This image demonstrates various mounting angles for the drive recorder, including typical passenger car front glass, sloped front glass, one-box vans/trucks, and dashboard installations.

Operating Instructions

Recording Modes

The device supports three primary recording modes:

• Continuous Recording: Records continuously in 1-minute segments. The LED indicator blinks during recording.
• Event Recording (Automatic): When an external impact or event occurs during continuous recording, the device automatically saves the footage before and after the event (typically 20 seconds before and 20 seconds after). The LED blinks rapidly during event recording.
• Quick Recording: Allows for manual recording of an event by user action.

This image details the three primary recording modes: continuous, event-triggered, and quick manual recording. It also provides a helpful table indicating recording durations based on video quality (Full HD, HD, D1) and microSD card capacity (8GB, 16GB, 32GB, 64GB).

Touch Panel Interface

The 2.4-inch touch panel provides an easy and intuitive way to navigate menus and adjust settings.

The 2.4-inch touch panel allows for easy navigation and adjustment of various settings, providing intuitive control over the device's functions.

Connectivity

Radar Detector Linkage

The CSD-560FH can be linked with compatible radar detectors to enhance your driving experience. Dedicated connection cords (e.g., GDO-03, GDO-04) are required for this functionality.

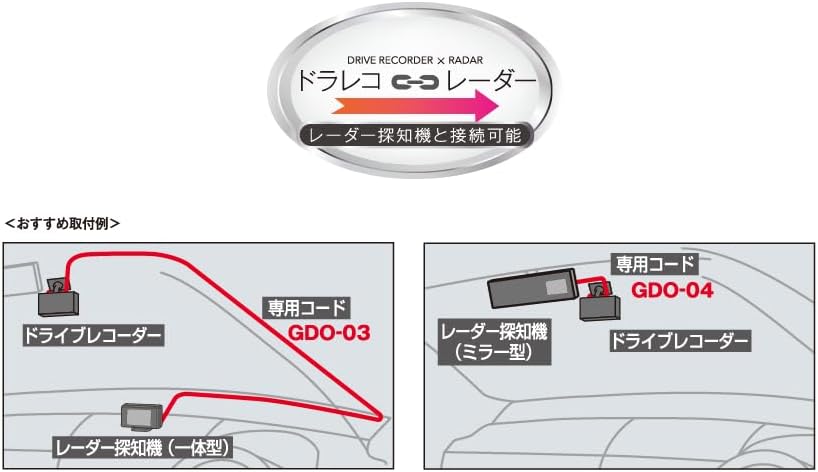

These diagrams illustrate how to connect the drive recorder to integrated and mirror-type radar detectors using specific GDO-03 and GDO-04 cords.

Video Quality and Examples

The Cellstar CSD-560FH is designed to capture clear and detailed video footage, ensuring important moments on the road are recorded effectively. It excels in various lighting conditions, including night time.

This section showcases the high-quality video capture of the Cellstar drive recorder, including examples of standard full high-definition recording and clear night vision capabilities.

Specifications

Troubleshooting

If you encounter any issues with your CSD-560FH drive recorder, please refer to the dedicated troubleshooting section in the included instruction manual. Common issues often relate to power supply, microSD card formatting, or mounting stability. Ensure the device is securely powered and the microSD card is correctly inserted and formatted as per the manual's instructions.

Warranty and Support

The CELLSTAR CSD-560FH comes with a comprehensive 3-year manufacturer's warranty, reflecting the high quality and reliability of products made in Japan. For warranty claims, technical support, or service inquiries, please contact CELLSTAR customer service through their official channels. Retain your proof of purchase for warranty validation.

Cellstar products are manufactured in Japan, ensuring high quality and reliability, backed by a comprehensive 3-year warranty.
