Introduction
This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your ZINUS Gerard Full Size Faux Leather Upholstered Platform Bed Frame. Please read all instructions carefully before assembly and use to ensure proper setup and safe operation.
For a downloadable PDF version of the installation manual, please refer to this link.
Setup and Assembly
Your ZINUS Gerard bed frame is designed for easy assembly. All necessary parts, tools, and instructions are conveniently located within the zippered compartment of the headboard. We recommend two people for assembly, which typically takes less than an hour.
Image: The zippered compartment on the back of the headboard, where all assembly parts and tools are stored.
Assembly Steps:
- Unpack Components: Carefully open the packaging. All components, including the legs, hardware, and tools (Allen wrench), are stored in the zippered compartment located on the back of the headboard.
- Attach Legs: Begin by attaching the legs to both the headboard and footboard. Ensure they are securely fastened but do not overtighten initially.
- Assemble Metal Cross Beams: Connect the metal cross beams. Verify that they rest flat on the floor without requiring downward pressure.
- Connect Side Rails: Loosen the pre-installed bolts on the headboard and footboard. Slide the side rails into place. Do not fully tighten the bolts at this stage.
- Position and Tighten: Ensure the headboard and footboard legs are free-floating on the floor, meaning they do not bear significant weight or require force to stay stable. With slight pressure applied to the top of the frame, tighten all bolts securely. This ensures the metal frame bears the primary load, not the upholstered components.
- Install Wood Slats: Place the wood slats across the frame. The slats are typically connected and may feature Velcro strips to secure them to the frame, preventing movement and squeaking.
Image: Detail of the wood slats, showing the Velcro attachment system designed to prevent mattress movement and reduce noise.
Image: An illustrative diagram highlighting the key structural components of the bed frame, including the durable steel framework, wood slats, and the headboard's storage compartment.
Operating Instructions
The ZINUS Gerard Platform Bed Frame is designed to support your mattress directly, eliminating the need for a box spring. Its durable wood slats provide optimal support for various mattress types, including latex, memory foam, and spring mattresses.
Weight Capacity:
- Full Size: Supports a maximum weight capacity of 700 lbs.
- Note: Twin size supports 350 lbs; all other sizes support up to 700 lbs.
Underbed Clearance:
The frame provides approximately 7 inches of underbed clearance, offering convenient space for storage.

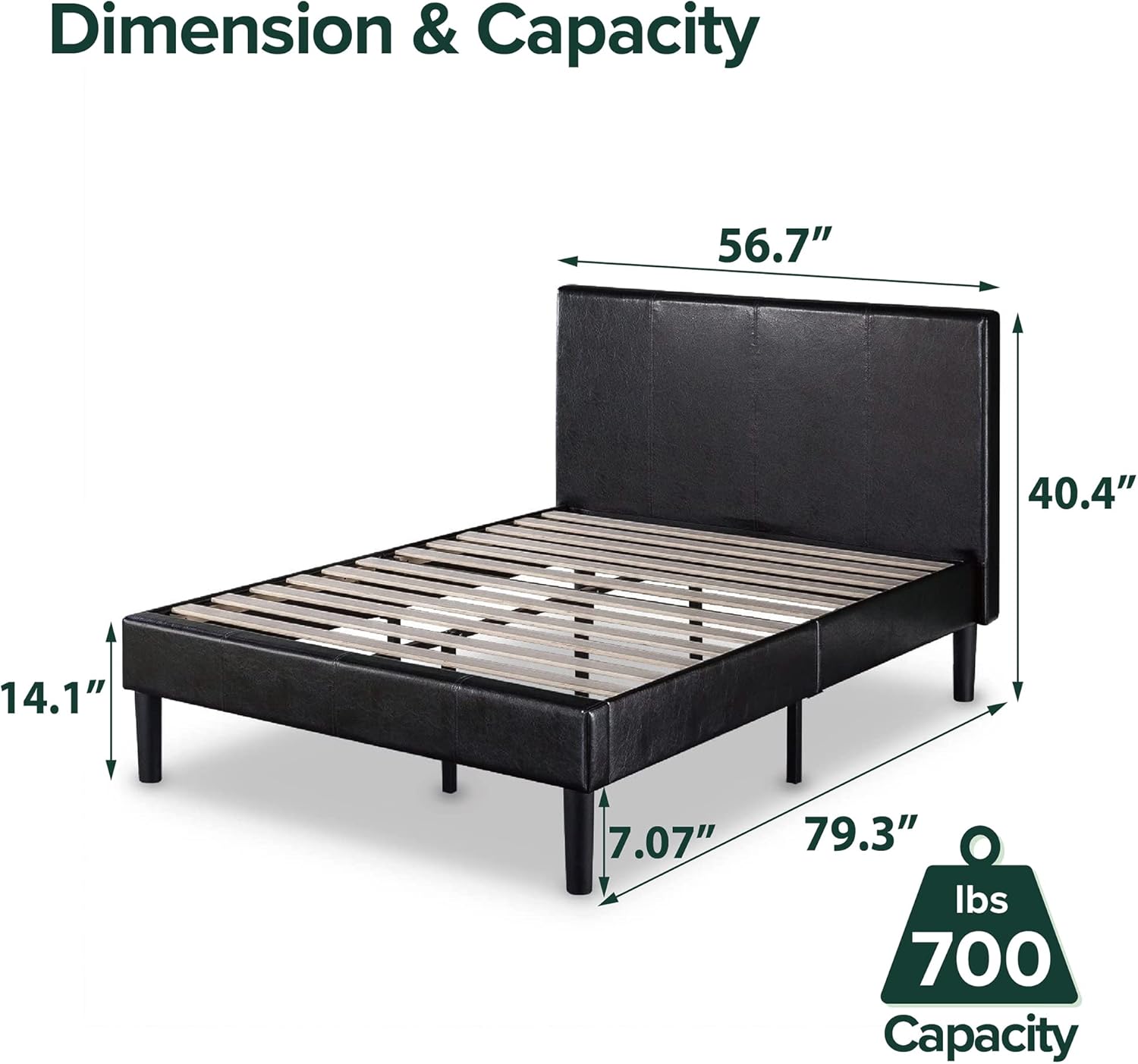

Image: A visual representation of the bed frame's dimensions (length, width, height, underbed clearance) and its maximum weight capacity of 700 lbs.
Image: The ZINUS Gerard Full Size Platform Bed Frame fully assembled with a mattress and bedding, showcasing its design and functionality.
Maintenance
Cleaning Instructions:
- Upholstery: Wipe the faux leather upholstery with a dry cloth to remove dust and light debris. Avoid using harsh chemicals or abrasive cleaners, which can damage the material.
- Frame: The steel framework can also be wiped clean with a dry cloth.
General Care:
- Regularly check all bolts and connections to ensure they remain tight. Loose connections can lead to instability and squeaking.
- Avoid exposing the faux leather to sharp objects, as this can cause tears or punctures.
- Do not exceed the specified weight capacity of 700 lbs for the Full size frame.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame feels wobbly or unstable. | Loose bolts or connections. | Inspect all bolts and connections. Tighten any loose hardware using the provided Allen wrench. Ensure the headboard and footboard are properly seated and not bearing excessive load. |
| Squeaking noises during use. | Loose connections; slats rubbing against the frame or each other. | Tighten all assembly bolts. Verify that the Velcro strips on the slats are securely attached to the frame. Ensure slats are evenly spaced and not damaged. |
| Slats appear to be sagging or damaged. | Exceeded weight capacity; improper installation; material fatigue. | Ensure the total weight on the bed (mattress + occupants) does not exceed 700 lbs. Check for proper slat placement and support. Contact customer support if slats are damaged under normal use within the warranty period. |
| Mattress slides on the frame. | Lack of friction between mattress and slats/frame. | The wood slats are designed to provide grip. Ensure the mattress is centered. If sliding persists, consider using a non-slip mattress pad. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | WSPB-F |
| Size | Full |
| Product Dimensions (L x W x H) | 79.3" x 56.7" x 40.4" |
| Color | Espresso |
| Upholstery Fabric Type | Faux Leather |
| Frame Material | Steel |
| Slat Material | Wood |
| Weight Limit | 700 Pounds |
| Item Weight | 75 Pounds |
| Underbed Clearance | 7 Inches |
| Assembly Required | Yes |
| Included Components | Headboard, Footboard, Side Rails, Wood Slats, Assembly Hardware, Tools |
| UPC | 841550077919 |
| Manufacturer | Zinus |
Image: A comprehensive diagram illustrating the dimensions (width, length, and headboard height) for various sizes of the ZINUS Gerard Platform Bed, including Full size.
Warranty Information
The ZINUS Gerard Faux Leather Upholstered Platform Bed Frame comes with a Worry-Free 5-Year Limited Warranty. This warranty covers manufacturing defects and ensures the quality and durability of your product under normal use.
For detailed terms and conditions of the warranty, please refer to the documentation included with your product or contact Zinus customer support.
Customer Support
If you have any questions, require assistance with assembly, or need to address a warranty claim, please contact Zinus customer support.
- Online Resources: Visit the official Zinus store on Amazon for additional product information and support: Zinus Store
- Installation Manual (PDF): A detailed PDF manual is available for download: Download Manual
Note: This product does not have official product videos from the seller available for embedding in this manual.
