Hamilton Beach Proctor Silex 60200-2-Speed Commercial Drink Mixer User Manual

1. Introduction

This manual provides instructions for the safe and efficient operation, maintenance, and care of your Hamilton Beach Proctor Silex 60200-2-Speed Commercial Drink Mixer. Designed for commercial use, this mixer is suitable for preparing various beverages, including shakes and coffee drinks. Please read all instructions carefully before using the appliance.

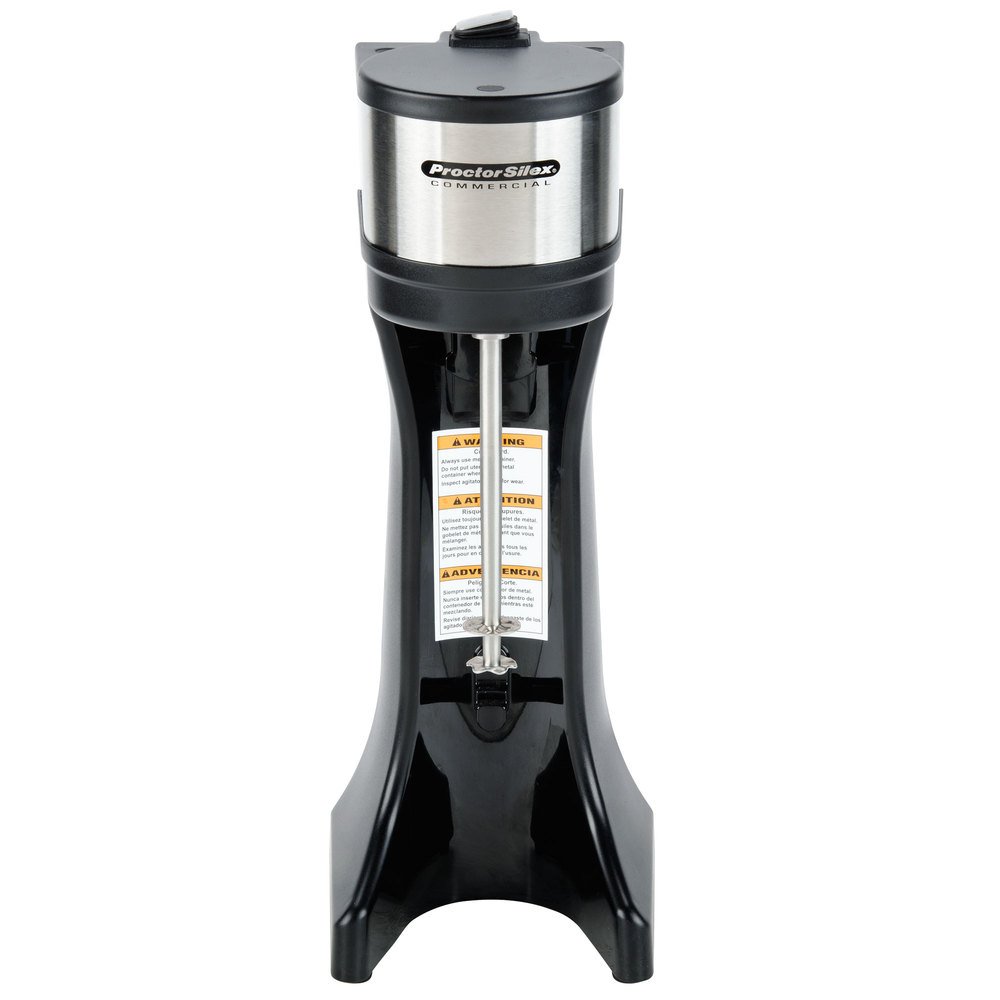

Figure 1: Hamilton Beach Proctor Silex 60200-2-Speed Commercial Drink Mixer. This image shows the mixer's main unit, the stainless steel cup, and the mixing shaft.

2. Important Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and/or injury to persons.

• Read all instructions.
• Do not immerse cord, plug, or mixer base in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
• Avoid contact with moving parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to OFF, then remove plug from wall outlet.
• Do not use appliance for other than intended use.

3. Parts and Features

Familiarize yourself with the components of your drink mixer:

• Mixer Base: Heavy base for stability during operation.
• Motor Housing: Contains the 300-watt motor.
• Mixing Shaft: Stainless steel shaft with agitator for blending ingredients.
• Stainless Steel Cup: Included for mixing beverages.
• Cup Guide: Guides the cup into position for mixing.
• Cup Rest: Supports the bottom of the cup during hands-free operation.
• Speed Switch: Controls the two available mixing speeds (Low and High).

Figure 2: Key components of the drink mixer. This image highlights the mixer base, motor housing, mixing shaft, and the stainless steel cup.

4. Setup

1. Unpacking: Carefully remove all packaging materials and ensure all parts are present. Retain packaging for future storage or transport if needed.
2. Placement: Place the mixer on a stable, flat, and dry surface. Ensure there is adequate clearance around the unit, especially above, as the unit is approximately 52 cm (20.5 inches) tall.
3. Initial Cleaning: Before first use, wash the stainless steel cup, cup guide, and cup rest in warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the mixer base with a damp cloth.
4. Power Connection: Ensure the speed switch is in the OFF position. Plug the power cord into a standard 120 Volt AC electrical outlet.

5. Operating Instructions

This drink mixer features cup-activated mixing and two speed settings for versatile use.

1. Prepare Ingredients: Add desired ingredients to the stainless steel cup. For best results, add liquid ingredients first, followed by solids. Do not overfill the cup.
2. Position Cup: Place the stainless steel cup onto the cup rest, ensuring the mixing shaft is inserted into the center of the cup. The lip of the cup should engage with the cup guide. The mixer will automatically activate once the cup is correctly positioned.
3. Select Speed: Use the speed switch located at the top of the unit to select either LOW or HIGH speed.
   • LOW Speed: Ideal for lighter liquids, mixing milk, or gently incorporating ingredients.
   • HIGH Speed: Suitable for thicker mixtures, such as ice cream, yogurt, or when blending diced fruits.
4. Mixing: Allow the mixer to operate until desired consistency is achieved. The hands-free operation allows you to attend to other tasks while mixing. For very thick mixtures, you may need to gently rotate or lift the cup slightly to ensure all ingredients are thoroughly blended, keeping the agitator submerged.
5. Finish Mixing: Once mixing is complete, lift the cup from the cup rest. The mixer will automatically turn off.
6. Serve: Remove the cup and pour the prepared beverage.

Note: The mixer is designed for intermittent commercial use. Avoid continuous operation for extended periods to prevent motor overheating.

6. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your mixer.

1. Unplug: Always unplug the mixer from the electrical outlet before cleaning.
2. Clean Mixing Shaft:
   • Fill the stainless steel cup with 1 cup of warm water and a drop of mild dish soap.
   • Place the cup on the mixer and run on LOW speed for 5 seconds.
   • Empty the soapy water, rinse the cup, and refill with 1 cup of clean water.
   • Run on LOW speed for another 5 seconds to rinse the agitator.
   • Wipe the mixing shaft with a damp cloth to remove any remaining residue.
3. Clean Cup, Cup Guide, and Cup Rest: These parts are removable for easy cleaning. Wash them in warm, soapy water, rinse thoroughly, and dry completely. They may also be dishwasher safe (refer to specific product labeling if available).
4. Clean Mixer Base: Wipe the exterior of the mixer base with a damp cloth. Do not immerse the base in water or any other liquid.
5. Storage: Store the mixer in a clean, dry place when not in use.

7. Troubleshooting

If you encounter issues with your drink mixer, refer to the following common problems and solutions:

8. Specifications

9. Warranty and Support

For warranty information, product registration, or technical support, please visit the official Hamilton Beach website or contact their customer service department. Keep your purchase receipt as proof of purchase for warranty claims.

Online Support: www.hamiltonbeach.com

Note: Specific warranty terms and conditions may vary by region and product.
