Introduction
This manual provides essential instructions for the installation, operation, and maintenance of the Groen GRZ003908 Thermostat Knob. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.
Product Overview
The Groen GRZ003908 is a genuine OEM replacement thermostat knob designed for use with Groen foodservice equipment. It allows for precise temperature control of compatible appliances.

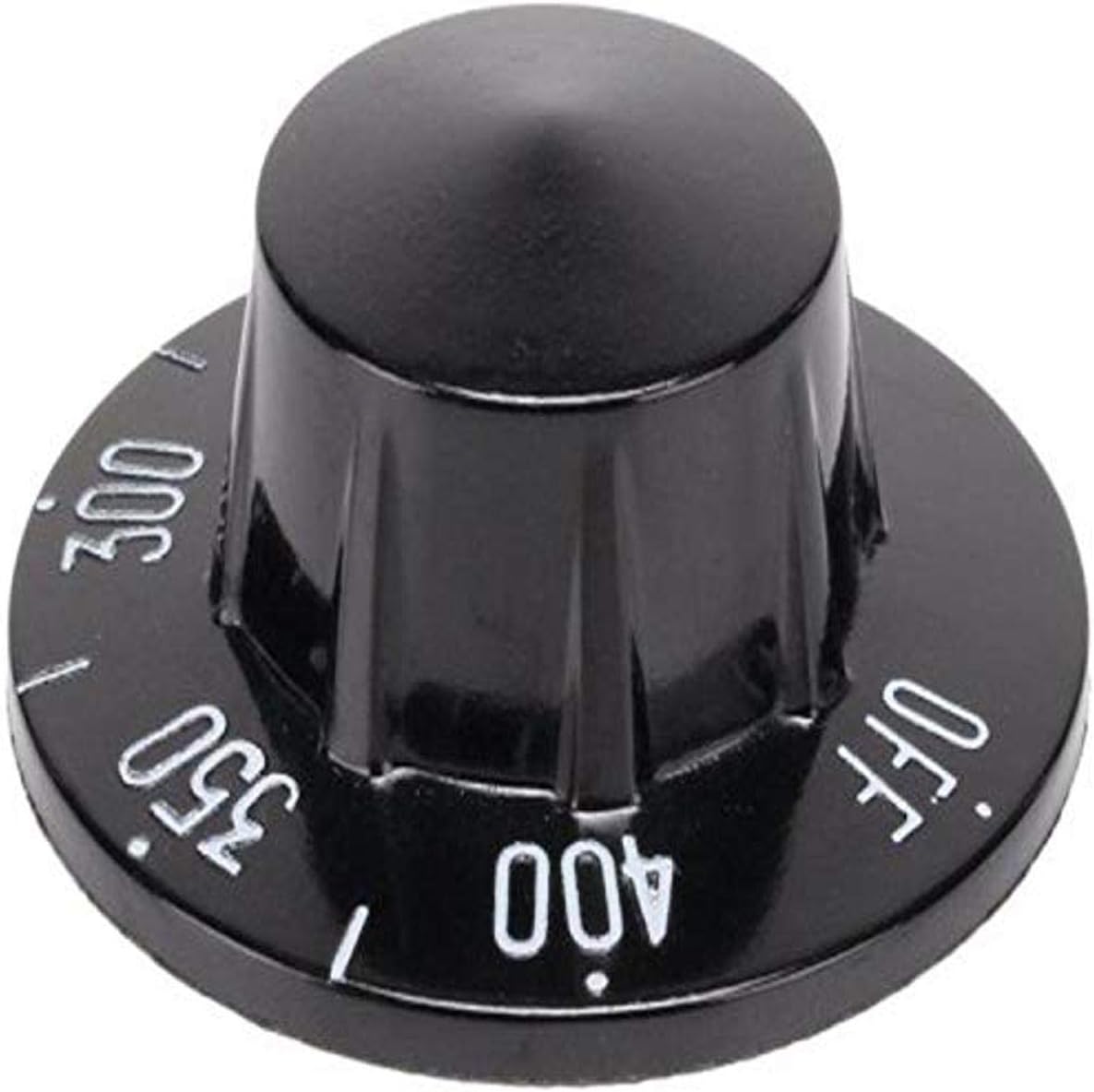

Figure 1: Groen GRZ003908 Thermostat Knob. This image displays the black thermostat knob with white temperature markings (300, 350, 400) and an 'OFF' position, indicating its function for temperature selection on a compatible appliance.
Safety Information
Always disconnect power to the appliance before attempting any installation, removal, or maintenance procedures. Failure to do so may result in personal injury or damage to the equipment. Only qualified personnel should perform installation and service.
Setup and Installation
- Power Disconnection: Ensure the appliance is completely disconnected from its power source before beginning installation.
- Remove Old Knob (if applicable): Gently pull the existing thermostat knob straight off the control shaft. Avoid twisting or prying, which could damage the shaft.
- Inspect Shaft: Verify that the control shaft is clean and free from debris or damage.
- Install New Knob: Align the D-shaped opening on the back of the new Groen GRZ003908 thermostat knob with the D-shaped control shaft. Push the knob firmly onto the shaft until it is seated securely. Do not force the knob.
- Verify Functionality: Once installed, gently turn the knob to ensure it rotates smoothly and engages with the thermostat mechanism.
- Reconnect Power: After successful installation, reconnect the appliance to its power source.
Operating Instructions
The Groen GRZ003908 thermostat knob is used to select the desired operating temperature for your compatible Groen appliance. The markings on the knob indicate temperature settings (e.g., 300, 350, 400) and an 'OFF' position.
- Turning On: Rotate the knob clockwise from the 'OFF' position to the desired temperature setting.
- Adjusting Temperature: Rotate the knob to increase or decrease the temperature as needed.
- Turning Off: Rotate the knob counter-clockwise to the 'OFF' position to power down the heating element controlled by the thermostat.
Note: The actual temperature reached by the appliance may vary slightly depending on environmental factors and the specific model of the appliance. Refer to your appliance's primary instruction manual for detailed operational guidelines.
Maintenance
Regular maintenance of the thermostat knob ensures continued functionality and readability.
- Cleaning: Clean the knob periodically with a soft, damp cloth. Avoid abrasive cleaners or solvents, which can damage the finish or erase the temperature markings.
- Inspection: Periodically inspect the knob for any signs of wear, cracks, or fading of the markings. If markings become illegible, replacement may be necessary for safe and accurate operation.
- Secure Fit: Ensure the knob remains securely attached to the control shaft. If it becomes loose, gently push it back into place.
Troubleshooting
This section addresses common issues related to the thermostat knob.
| Problem | Possible Cause | Solution |
|---|---|---|
| Knob is loose or falls off. | Improper installation; worn control shaft. | Ensure knob is fully seated. Inspect control shaft for damage; replace if necessary. |
| Temperature markings are fading or illegible. | Normal wear and tear; use of harsh cleaning agents. | Replace the knob for accurate temperature selection. Use only mild cleaners. |
| Knob does not turn smoothly or gets stuck. | Debris on shaft; damaged control shaft or thermostat mechanism. | Remove knob and clean shaft. If issue persists, consult a qualified service technician as the thermostat or shaft may be damaged. |
Specifications
- Brand: Groen
- Model Number: GRZ003908 (also known as 3908)
- Part Type: Thermostat Knob
- Material: Durable plastic/composite (typical for appliance knobs)
- Color: Black with white markings
- Dimensions: Approximately 6 x 4 x 4 inches (packaging dimensions, actual knob dimensions are compact)
- Weight: Approximately 0.353 ounces
Contact and Support
For further assistance, technical support, or to inquire about replacement parts, please contact Groen customer service or an authorized Groen service provider. Refer to your appliance's main documentation for specific contact information.
Manufacturer: Groen
Model: GRZ003908
