Einhell TC-MS 2112 T Miter and Table Saw

1. Introduction

This manual provides essential information for the safe and effective operation, setup, and maintenance of your Einhell TC-MS 2112 T Miter and Table Saw. Please read all instructions carefully before using the tool to ensure personal safety and optimal performance. Keep this manual in a safe place for future reference.

2. Safety Instructions

General Power Tool Safety Warnings:

• Always wear appropriate personal protective equipment, including safety glasses, hearing protection, and a dust mask.
• Ensure the work area is clean, well-lit, and free from obstructions.
• Keep children and bystanders away from the operating area.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Avoid accidental starting. Ensure the switch is in the off-position before connecting to power, picking up, or carrying the tool.
• Maintain proper footing and balance at all times.
• Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.

Specific Miter and Table Saw Safety Warnings:

• Always use the push stick when operating in table saw mode, especially for narrow workpieces.
• Ensure the blade guard is in place and functioning correctly before each use.
• Never reach into the blade area while the saw is running or connected to power.
• Secure the workpiece firmly before cutting. Do not attempt to hand-hold small pieces.
• Use only sharp, correctly sized saw blades suitable for the material being cut.
• Allow the blade to reach full speed before beginning a cut.
• Never remove cut-off pieces or other parts of the workpiece from the cutting area while the blade is running.

3. Product Overview

The Einhell TC-MS 2112 T is a versatile 2-in-1 tool, functioning as both a miter saw and a table saw, designed for precise cutting of wood and similar materials.

Figure 3.1: Overall view of the Einhell TC-MS 2112 T Miter and Table Saw.

Figure 3.2: Close-up of the miter scale and model designation on the saw base.

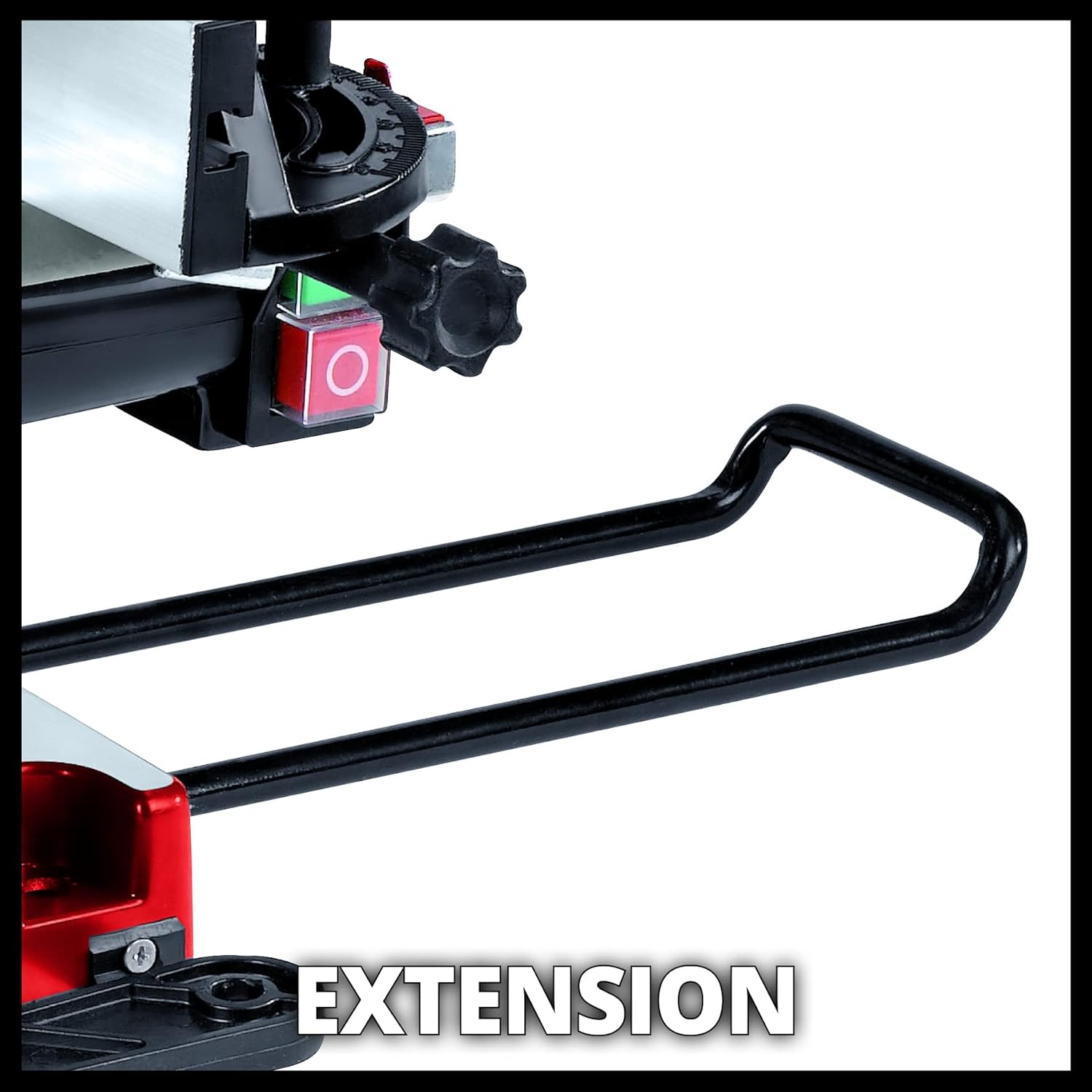

Figure 3.3: View of the integrated table extension for supporting longer workpieces.

Figure 3.4: The parallel guide, used for consistent rip cuts in table saw mode.

4. Setup and Assembly

Before initial use, ensure all components are present and undamaged. Refer to the packing list for verification.

1. Unpacking: Carefully remove the saw and all accessories from the packaging. Retain packaging for potential future transport or storage.
2. Base Stability: Place the saw on a stable, level workbench. Secure the saw to the workbench using appropriate fasteners through the mounting holes in the base to prevent movement during operation.
3. Blade Installation (if not pre-installed): Ensure the saw is unplugged. Follow the instructions for safely installing the 210mm saw blade, ensuring the rotation direction matches the arrow on the saw.
4. Guard Check: Verify that all blade guards move freely and return to their protective positions automatically.
5. Table Extensions: Extend the workpiece supports (extensions) as needed for longer materials.

5. Operating Instructions

The Einhell TC-MS 2112 T offers both miter saw and table saw functionalities. Always select the appropriate mode for your cutting task.

5.1. Miter Saw Function

For cross-cutting and angle cuts on workpieces.

1. Adjusting Miter Angle: Loosen the locking knob for the turntable. Rotate the turntable to the desired angle (up to 45° left or right). Securely tighten the locking knob.
2. Adjusting Bevel Angle: Loosen the locking mechanism for the saw head. Tilt the saw head to the desired bevel angle (up to 45° to the left). Securely tighten the locking mechanism.
3. Positioning Workpiece: Place the workpiece firmly against the fence and the turntable. Use clamps if necessary.
4. Making the Cut: Depress the safety switch and then the main power switch. Allow the blade to reach full speed. Slowly lower the saw head through the workpiece. Once the cut is complete, release the power switch and allow the blade to stop before raising the saw head.

Figure 5.1: Demonstrating the miter saw function for angled cuts.

Figure 5.2: Illustration of a 90° x 90° cross-cut (max. 120 x 55 mm).

Figure 5.3: Illustration of a 90° x 45° miter cut (max. 65 x 55 mm).

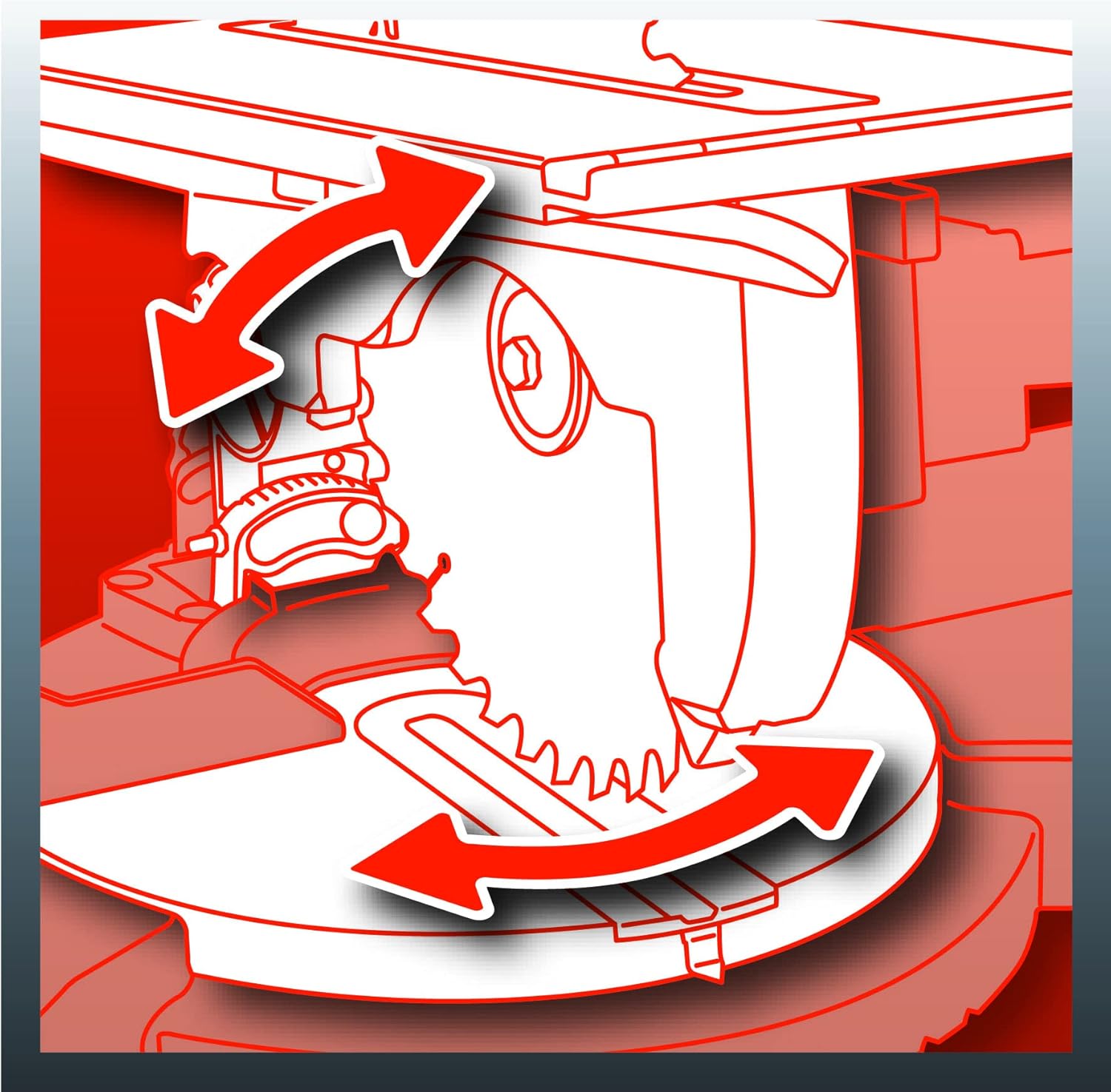

Figure 5.4: Illustration of a 45° x 45° compound miter cut (max. 40 x 23 mm).

5.2. Table Saw Function

For ripping and sizing workpieces.

1. Converting to Table Saw: Ensure the saw head is locked in the upright position. Adjust the blade height using the appropriate mechanism.
2. Adjusting Blade Height: Use the height adjustment knob to set the desired blade exposure above the table (0-33 mm).
3. Using Parallel Guide: Position the parallel guide to achieve the desired cutting width. Securely lock the guide in place.
4. Positioning Workpiece: Place the workpiece on the table, ensuring it is flat and against the parallel guide.
5. Making the Cut: Depress the safety switch and then the main power switch. Allow the blade to reach full speed. Using the push stick, slowly feed the workpiece through the blade. Never use your hands to push the workpiece directly into the blade.

Figure 5.5: Demonstrating the table saw function for rip cuts.

Figure 5.6: Close-up of the blade height adjustment for table saw mode.

Figure 5.7: The included push stick, essential for safe table saw operation.

5.3. Dust Extraction

The saw is equipped with a dust extraction port to connect to a vacuum cleaner or dust extractor, helping to keep the work area clean and reduce airborne dust.

Figure 5.8: The dust extraction port for connecting a vacuum system.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your saw.

• Cleaning: After each use, disconnect the saw from power and clean off dust and debris using a brush or compressed air. Do not use harsh chemicals.
• Blade Replacement: When the saw blade becomes dull or damaged, replace it with a new, sharp blade of the correct size (210mm diameter, 30mm bore). Always unplug the saw and use appropriate tools for safe blade removal and installation.
• Lubrication: Periodically apply a light machine oil to moving parts and pivot points to ensure smooth operation.
• Inspection: Regularly inspect the power cord, plug, switches, and guards for any signs of damage or wear. Replace damaged parts immediately.
• Storage: Store the saw in a dry, secure location, out of reach of children.

7. Troubleshooting

This section addresses common issues you might encounter.

8. Specifications

Technical data for the Einhell TC-MS 2112 T Miter and Table Saw.

Figure 8.1: Blade specifications.

Figure 8.2: Max cut depth.

Figure 8.3: Height adjustment range.

Figure 8.4: Product weight.

9. Warranty

This Einhell product is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase or visit the official Einhell website for detailed terms and conditions regarding warranty coverage and claims.

10. Customer Support

For technical assistance, spare parts, or further information, please contact Einhell customer service or visit their official website:

• Website: www.einhell.com
• Contact Information: Refer to the contact section on the official website for regional support details.
