EUFAB 11523 Premium II Plus Bicycle Carrier Instruction Manual

1. Introduction

This manual provides detailed instructions for the safe and proper use of your EUFAB 11523 Premium II Plus tow bar mounted bicycle carrier. Please read all instructions carefully before installation and use to ensure maximum safety and product longevity. This carrier is designed for transporting bicycles securely on the rear tow bar of your vehicle.

2. Safety Instructions

• Always ensure the carrier is securely attached to the tow bar before loading bicycles.
• Verify that all bicycles are properly secured to the carrier using frame clamps and wheel straps.
• Do not exceed the maximum load capacity of 60 kg.
• Check that the carrier's lights and license plate are visible and functional.
• Drive cautiously, especially when cornering or braking, as the vehicle's handling characteristics will change with the added weight and length.
• Regularly inspect the carrier for any signs of wear, damage, or loose components.
• Remove the carrier when not in use or if it obstructs visibility.

3. Package Contents

Upon unpacking, please ensure all components are present:

• EUFAB 11523 Premium II Plus Bicycle Carrier (pre-assembled)
• Keys for locking mechanisms
• Instruction Manual
• Storage bag (may be included depending on package)

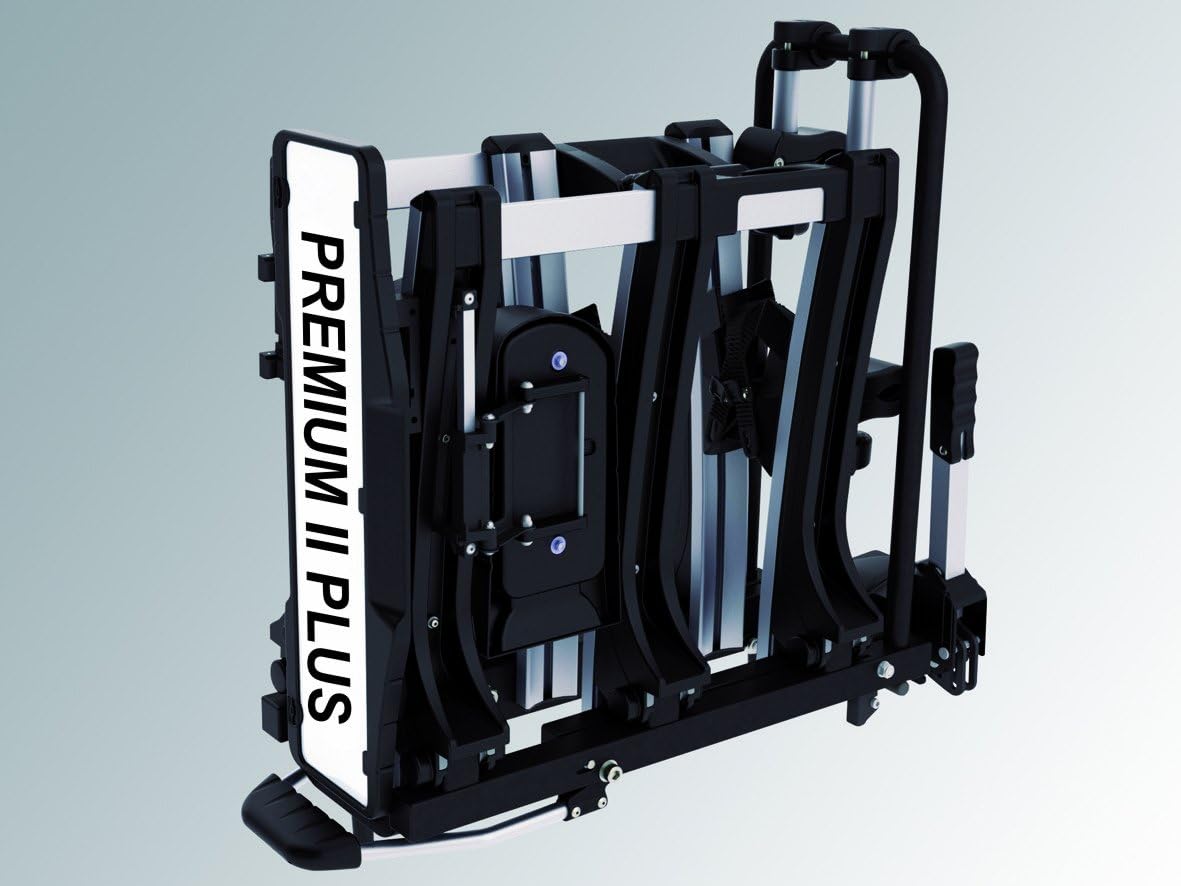

Figure 3.1: The EUFAB 11523 Premium II Plus bicycle carrier in its folded state, ready for storage or transport.

4. Setup and Installation

4.1 Mounting the Carrier to the Tow Bar

1. Ensure the tow bar is clean and free of grease or dirt.
2. Place the folded carrier onto the tow ball.
3. Press down the locking lever firmly until it clicks into place, securing the carrier to the tow bar.
4. Lock the carrier to the tow bar using the provided key for anti-theft protection.
5. Connect the 13-pin electrical plug from the carrier to your vehicle's tow bar socket. Ensure all lights are functioning correctly (brake lights, turn signals, tail lights).

Figure 4.1: The bicycle carrier securely mounted on the vehicle's tow bar, ready for bicycle loading.

5. Operating Instructions

5.1 Loading Bicycles

1. Unfold the carrier arms and wheel trays.
2. Place the first bicycle onto the inner tray, ensuring the wheels sit correctly in the grooves.
3. Attach the frame clamp to the bicycle's frame and the carrier's support arm. Tighten the clamp securely, then lock it with the key for anti-theft.
4. Secure both wheels using the provided ratchet straps. Ensure the straps are tight and the wheels are firmly held in place.
5. Repeat for the second bicycle, placing it on the outer tray. Alternate the direction of the handlebars to prevent interference between bikes.

Figure 5.1: Two bicycles loaded onto the carrier, demonstrating proper positioning and spacing.

Figure 5.2: Detail of the locking mechanism for securing the bicycle frame to the carrier arm.

Figure 5.3: A bicycle wheel secured in the tray with a robust ratchet strap.

5.2 Tilting Function for Trunk Access

The EUFAB 11523 Premium II Plus features a convenient tilting mechanism, allowing access to your vehicle's trunk even with bicycles loaded.

1. Ensure the vehicle is stationary and safe to access the rear.
2. Locate the foot pedal or lever for the tilting mechanism (often at the base of the carrier).
3. Press the pedal or pull the lever to release the lock, then gently tilt the carrier downwards.
4. Once tilted, the trunk can be opened.
5. To return the carrier to its upright position, lift it until it clicks back into place. Ensure it is fully locked before driving.

Figure 5.4: The carrier tilted downwards, providing clear access to the vehicle's rear hatch.

Figure 5.5: A foot engaging the pedal to activate the carrier's tilting function.

6. Maintenance

• Cleaning: Clean the carrier regularly with mild soap and water, especially after exposure to road salt or dirt. Avoid abrasive cleaners.
• Inspection: Periodically check all bolts, nuts, and moving parts for tightness and wear. Replace any damaged components immediately.
• Lubrication: Lightly lubricate moving parts, such as hinges and the tilting mechanism, with a suitable lubricant to ensure smooth operation.
• Electrical Connections: Ensure the electrical plug and socket are clean and free of corrosion.

7. Troubleshooting

• Carrier feels loose on tow bar: Ensure the locking lever is fully engaged and locked. Check the tow ball for proper size and condition.
• Lights not working: Check the electrical plug connection. Inspect vehicle's fuse box for blown fuses. Verify bulbs in the carrier's light units.
• Difficulty tilting the carrier: Ensure the release mechanism is fully engaged. Check for any obstructions or excessive dirt in the hinge area. Lubricate moving parts if necessary.
• Bicycles not stable: Re-check all frame clamps and wheel straps for tightness. Ensure bikes are positioned correctly and not interfering with each other.

8. Specifications

9. Warranty and Support

EUFAB products are designed for durability and reliability. Spare parts for the EUFAB 11523 Premium II Plus bicycle carrier are available for a period of 10 years from the date of purchase.

For technical support, warranty claims, or inquiries regarding spare parts, please refer to the contact information provided with your purchase documentation or visit the official EUFAB website.
