1. Product Overview
The Zuo Modern Blast Ceiling Lamp (Model 50093) is a contemporary lighting fixture designed to enhance any space with its radiant metallic glow. It features dangling crystals, a translucent metallic shade, and a chrome base. The lamp's height is adjustable to suit various ceiling heights and aesthetic preferences.
Image 1.1: Front view of the Zuo Modern Blast Ceiling Lamp, showcasing its illuminated crystals and metallic shade.
Image 1.2: The Zuo Modern Blast Ceiling Lamp installed above a dining table, demonstrating its aesthetic appeal in a living space.
2. Safety Information
Please read all safety instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or personal injury.
- Electrical Safety: Always disconnect power at the circuit breaker before installing, cleaning, or servicing the fixture. Ensure all wiring is performed by a qualified electrician and complies with local electrical codes.
- Installation: This fixture is designed for flush ceiling mount installation. Ensure the mounting surface can support the weight of the lamp (approximately 5.99 kg / 13.2 lbs). Do not install on sloped ceilings without appropriate adapters.
- Bulb Requirements: Use only E27 base incandescent bulbs, maximum 60 Watts per bulb. Do not exceed the recommended wattage.
- Handling: The lamp contains delicate crystal components. Handle with care to prevent breakage or injury.
- Environment: This lamp is intended for indoor use only. Do not expose to moisture or extreme temperatures.
3. Package Contents
Carefully unpack the box and ensure all components are present and undamaged. Keep packaging materials until you are satisfied with the product.
- Zuo Modern Blast Ceiling Lamp Fixture (including chrome base, metallic shade, and crystal strands)
- Mounting Hardware (screws, wire nuts, ceiling plate) - May vary, refer to actual package for specifics.
- Instruction Manual (this document)
Note: Bulbs are typically not included and must be purchased separately. This fixture requires 3 E27 incandescent bulbs, max 60W each.
4. Setup and Installation
Installation requires basic electrical knowledge and tools. If you are unsure, consult a qualified electrician. Assembly is required.
4.1 Tools Required (Not Included)
- Screwdriver (Phillips and/or Flathead)
- Wire Strippers
- Pliers
- Electrical Tape
- Ladder
- Voltage Tester
4.2 Pre-Installation Steps
- Turn off Power: Locate the circuit breaker controlling the light fixture's power supply and turn it OFF. Verify power is off using a voltage tester.
- Unpack: Carefully remove all components from the packaging. Place them on a clean, soft surface to prevent scratches.
- Review Diagram: Familiarize yourself with the lamp's components and dimensions.

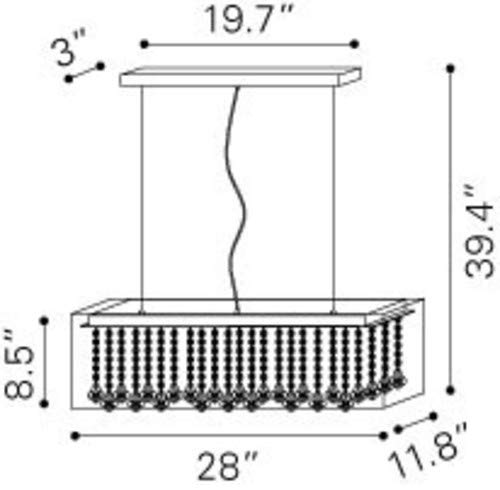

Image 4.1: Dimensional diagram of the Zuo Modern Blast Ceiling Lamp, showing measurements in inches.
4.3 Mounting the Fixture
- Attach Mounting Plate: Secure the mounting plate (usually included with hardware) to the ceiling junction box using the provided screws. Ensure it is firmly attached.
- Wire Connections: Connect the fixture's wires to the house wiring.
- Connect the black wire (live) from the fixture to the black wire (live) from the junction box.
- Connect the white wire (neutral) from the fixture to the white wire (neutral) from the junction box.
- Connect the green or bare copper wire (ground) from the fixture to the green or bare copper wire (ground) from the junction box.
- Secure Fixture: Carefully push the wired connections into the junction box. Align the fixture's canopy with the mounting plate and secure it with the decorative nuts or screws provided.
- Adjust Height: The lamp features adjustable height. Before fully securing, adjust the suspension wires to achieve the desired hanging length. Ensure the lamp is level.
- Install Bulbs: Screw 3 E27 base incandescent bulbs (max 60W each) into the sockets. Do not overtighten.
Once installation is complete, restore power at the circuit breaker.
5. Operating Instructions
The Zuo Modern Blast Ceiling Lamp operates via a standard wall switch (Push Button type, as per specifications) connected to your home's electrical system.
- Turning On/Off: Use the wall switch connected to the fixture to turn the lamp on or off.
- Adjusting Brightness: If connected to a dimmer switch (not included), you can adjust the brightness of the incandescent bulbs. Ensure your bulbs are dimmable compatible.
- Height Adjustment: The lamp's height can be adjusted during installation. If further adjustment is needed after installation, power must be disconnected at the circuit breaker before making any changes to the suspension wires.
6. Maintenance
Regular maintenance will help preserve the appearance and functionality of your Zuo Modern Blast Ceiling Lamp.
6.1 Cleaning
- Always disconnect power before cleaning.
- Chrome Base and Metallic Shade: Wipe with a soft, dry, or slightly damp cloth. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish.
- Crystals: Gently wipe crystals with a soft, lint-free cloth. For a deeper clean, a mild glass cleaner can be sparingly applied to the cloth (not directly to the crystals or metal parts). Ensure no liquid drips into electrical components.
Image 6.1: Close-up of the lamp's crystal elements, highlighting their delicate nature and requiring careful cleaning.
6.2 Bulb Replacement
- Disconnect power at the circuit breaker.
- Allow bulbs to cool completely before touching.
- Carefully unscrew the old bulb from its socket.
- Screw in a new E27 base incandescent bulb (max 60W). Do not overtighten.
- Restore power at the circuit breaker.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not light up. |
|
|
| Flickering light. |
|
|
| Crystals appear dull or dirty. | Dust or residue buildup. | Clean crystals as per Maintenance section. |
If problems persist after attempting these solutions, please contact customer support or a qualified electrician.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Zuo |
| Model Number | 50093 |
| Product Type | Ceiling Lamp / Chandelier |
| Material | Metal (Chrome finish), Crystal |
| Color / Shade | Translucent / Metallic |
| Dimensions (LxWxH) | 71.1 x 30 x 100.1 cm (28 x 11.8 x 39.4 inches) - Adjustable height |
| Item Weight | 5.99 kg (13.2 lbs) |
| Power Source | Corded Electric |
| Voltage | 120 Volts |
| Bulb Base | E27 |
| Number of Light Sources | 3 |
| Max Wattage per Bulb | 60 Watts (Incandescent) |
| Installation Type | Flush Mount, Ceiling Mount |
| Special Feature | Adjustable Height |
| Assembly Required | Yes |
9. Warranty and Support
For warranty information or technical support, please refer to the documentation provided at the point of purchase or contact Zuo Modern customer service directly. Keep your purchase receipt as proof of purchase.
Manufacturer: Zuo Modern - DROPSHIP
Date First Available: 20 August 2012
