Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Elk Home Parameters Flush Mount light fixture. Please read all instructions carefully before beginning installation to ensure safe and proper operation.
The Elk Home Parameters Flush Mount is a 2-light fixture featuring an oiled bronze finish with clear glass, designed for ceiling-mounted, hardwired installation. It is compatible with dimmer switches.
Image: Elk Home Parameters Flush Mount light fixture. This image displays the fixture's design, highlighting the square bronze frame, clear glass panels, and the two internal light bulb sockets.
Important Safety Information
Always turn off the power at the main fuse or circuit breaker box before beginning installation or performing any maintenance. Consult a qualified electrician if you are unsure about the installation process. Adhere to all local electrical codes.
- Do not exceed the maximum wattage of 60 watts per bulb.
- Ensure all electrical connections are secure and properly insulated.
- Handle glass components with care to prevent breakage.
- This fixture is designed for indoor use only.
Setup and Installation
Package Contents
Verify that all components are present before beginning installation:
- Elk Home Parameters Flush Mount Fixture
- Mounting Hardware (included)
- Note: Two A19 Medium Base Bulbs (60 Watt max) are NOT included and must be purchased separately.
Installation Steps
- Turn Off Power: Locate the circuit breaker or fuse box and turn off the power to the junction box where the fixture will be installed.
- Prepare Mounting: Attach the mounting bracket to the junction box using the provided screws. Ensure it is securely fastened.
- Wire Connections: Connect the fixture's wires to the corresponding household wires (black to black, white to white, ground to ground) using wire nuts. Ensure all connections are tight and secure.
- Secure Fixture: Carefully push the wired connections into the junction box. Align the fixture with the mounting bracket and secure it in place with the provided screws or nuts.
- Install Glass Panels: If the glass panels are separate, carefully insert them into the fixture frame according to the design.
- Install Bulbs: Screw in two A19 Medium Base bulbs (not included) into the sockets. Do not exceed 60 watts per bulb.
- Restore Power: Turn the power back on at the circuit breaker or fuse box.
Image: Installed Elk Home Parameters Flush Mount. This image shows the light fixture mounted on a ceiling, demonstrating its appearance in a typical home setting, such as a porch entrance.
Operating Instructions
The Elk Home Parameters Flush Mount is operated via a standard wall switch. It is designed to be dimmer compatible, allowing you to adjust the light intensity if connected to a compatible dimmer switch (sold separately).
- Power On/Off: Use the wall switch connected to the fixture to turn the light on or off.
- Dimming Functionality: If a dimmer switch is installed, rotate or slide the dimmer control to adjust the brightness of the light.
- Bulb Type: This fixture uses two E26 Medium base bulbs. While incandescent bulbs are specified, it is also compatible with LED bulbs of the same base type and wattage equivalent.
- Light Output: Each 60-watt bulb can produce approximately 800 lumens of white light.
Care and Maintenance
Regular cleaning and proper maintenance will ensure the longevity and optimal performance of your light fixture.
- Cleaning:
- Before cleaning, ensure the power is turned off at the circuit breaker.
- Wipe the metal finish with a soft, dry cloth. Do not use abrasive cleaners or polishes as they may damage the finish.
- Clean the clear glass panels with a soft, damp cloth and a mild glass cleaner. Dry thoroughly.
- Bulb Replacement:
- Turn off the power to the fixture before replacing bulbs.
- Allow bulbs to cool completely before touching them.
- Unscrew the old bulb and screw in a new A19 Medium Base bulb (E26). Ensure the new bulb does not exceed 60 watts.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power to the fixture. Loose wire connections. Faulty bulb. | Check circuit breaker/fuse. Verify all wire connections are secure (with power off). Replace bulb. |
| Light flickers. | Loose bulb. Incompatible dimmer switch. Faulty wiring. | Tighten bulb. Ensure dimmer switch is compatible with the bulb type. Check wiring connections (with power off). |
| Bulbs burn out quickly. | Incorrect wattage bulb. Voltage fluctuations. | Ensure bulbs do not exceed 60 watts. Consult an electrician to check household voltage. |
Product Specifications

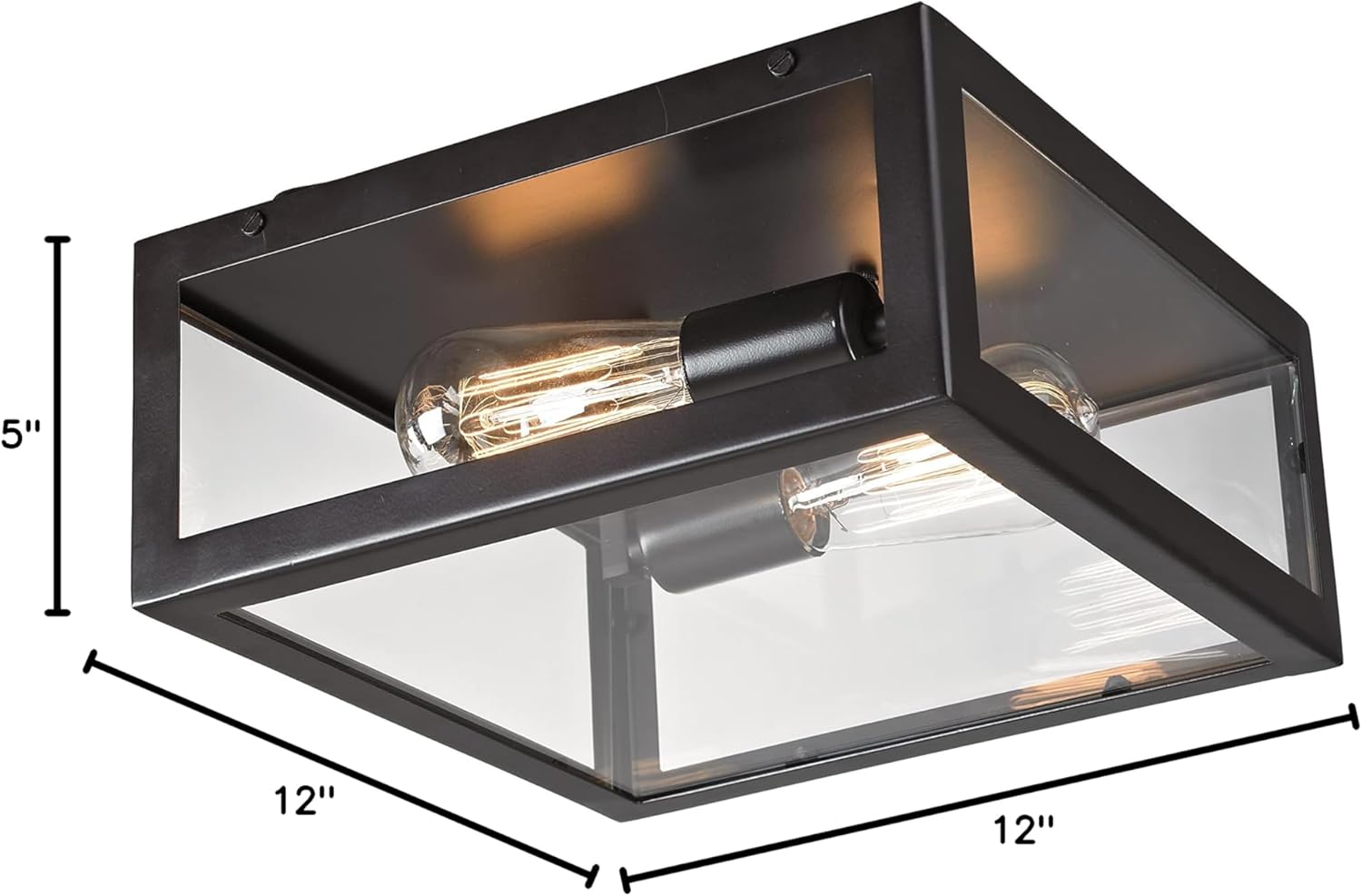

Image: Product Dimensions. This diagram illustrates the precise measurements of the fixture, indicating a width of 12 inches, a depth of 12 inches, and a height of 5 inches.
| Feature | Detail |
|---|---|
| Model Name | Parameters Flush Mount |
| Model Number | 63021-2 |
| Brand | Elk Home |
| Product Dimensions | 12"L x 12"W x 5"H |
| Color | Bronze (Finish), Clear (Glass) |
| Material | Metal, Glass |
| Light Fixture Form | Close to Ceiling |
| Installation Type | Flush Mount, Hardwire Electric |
| Number of Light Sources | 2 |
| Bulb Base | E26 Medium |
| Max Wattage per Bulb | 60 watts |
| Voltage | 120 Volts |
| Brightness | 800 Lumen (per bulb) |
| Special Features | Dimmable, LED bulb compatible |
| Item Weight | 7 Pounds |
| Assembly Required | Yes |
| Indoor/Outdoor Usage | Indoor |
Warranty Information
This Elk Home product is covered by a manufacturer's warranty.
- Warranty Period: 1 year from the date of purchase.
- Coverage: The warranty covers defects in materials and workmanship.
- Exclusions: This warranty does not cover damage caused by improper installation, misuse, abuse, accidents, or normal wear and tear.
For warranty claims or further details, please contact Elk Home customer support.
Customer Support
For assistance with your Elk Home Parameters Flush Mount, including technical support, replacement parts, or warranty inquiries, please contact Elk Home directly.
- Manufacturer: Elk Home
- Online Store: Visit the official Elk Home Store on Amazon for more products and information.
- Contact Information: Please refer to the Elk Home website or product packaging for the most current customer service contact details.
