Introduction
The Schlage J-Series JD60619 Single Cylinder Deadbolt provides enhanced security for residential doors. Designed for ease of use and durability, this deadbolt operates with a key from the exterior and a thumb turn from the interior, offering reliable protection and peace of mind. Its satin nickel finish complements a wide range of home aesthetics.

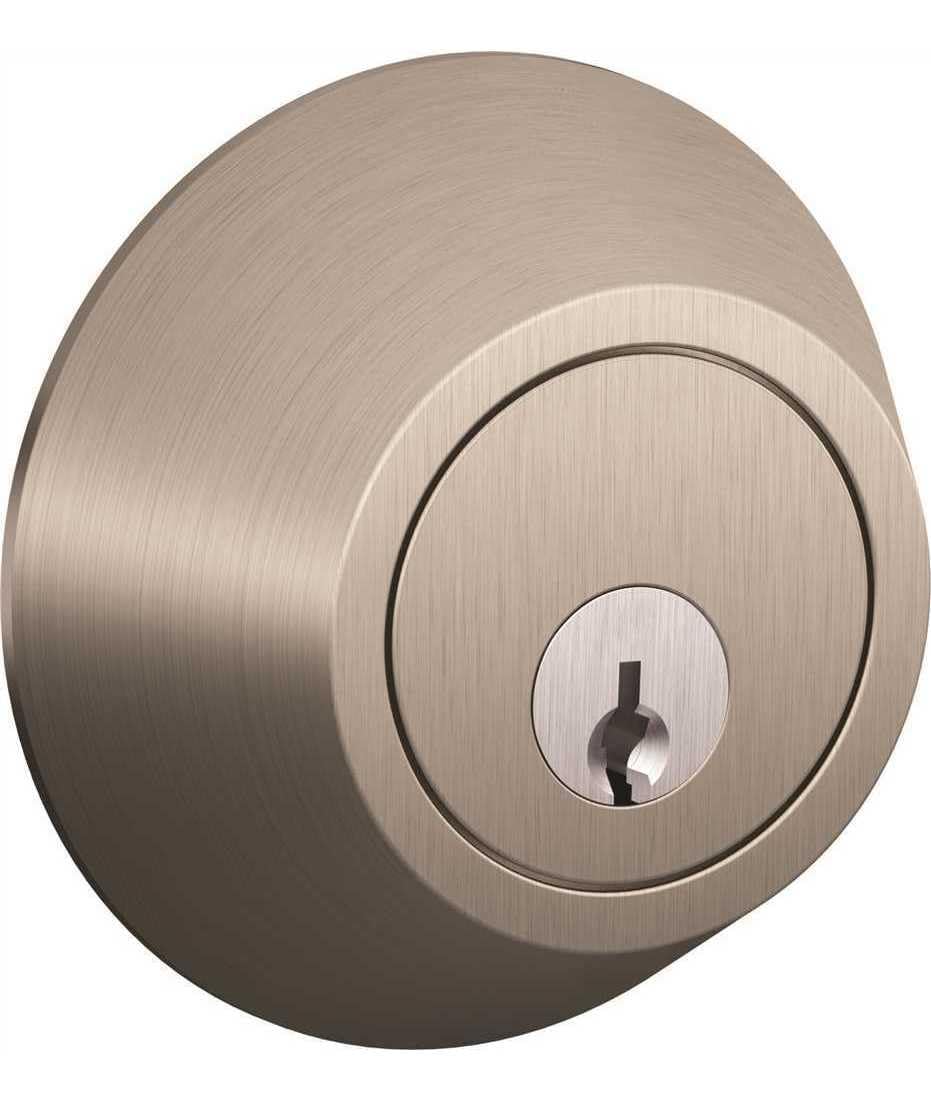

Image: Schlage J-Series JD60619 Single Cylinder Deadbolt, exterior view in Satin Nickel finish.
Setup and Installation
This deadbolt is designed for easy installation and fits all standard door preparations. Before beginning, ensure your door's backset, cross bore, and thickness are compatible with the deadbolt specifications.
Key Installation Steps:
- Prepare the Door: Verify that the door has the correct bore holes and backset.
- Install the Latch: Insert the latch into the door edge and secure it with screws.
- Install the Exterior Cylinder: Place the exterior cylinder into the door, ensuring the tailpiece aligns with the latch mechanism.
- Install the Interior Thumb Turn Assembly: Position the interior thumb turn assembly, connecting it to the exterior cylinder and securing it with mounting screws.
- Test Operation: Use the key from the exterior and the thumb turn from the interior to ensure smooth locking and unlocking.
Operation
The Schlage JD60619 deadbolt offers straightforward operation for securing your door.
- From the Exterior: Insert the provided key into the keyway and turn it to extend or retract the deadbolt latch. Remove the key once the desired action is complete.
- From the Interior: Rotate the thumb turn knob located on the interior side of the deadbolt to extend or retract the deadbolt latch.
Video: A quick overview of the Schlage single cylinder deadbolt, demonstrating its exterior and interior operation. This video provides a visual reference for how to use the product.
Maintenance
To ensure the longevity and smooth operation of your Schlage deadbolt, follow these simple maintenance guidelines:
- Cleaning: Wipe the exterior and interior surfaces with a soft, damp cloth. Avoid abrasive cleaners or solvents, as these can damage the finish.
- Lubrication: Periodically apply a small amount of graphite-based lubricant to the keyway to maintain smooth key insertion and turning. Do not use oil-based lubricants.
- Screw Tightness: Occasionally check and tighten any loose mounting screws to ensure the deadbolt remains securely fastened to the door.
Troubleshooting
If you encounter issues with your Schlage JD60619 deadbolt, consider these common solutions:
- Sticking Latch: Ensure the strike plate on the door frame is properly aligned with the deadbolt latch. Adjust the strike plate if necessary.
- Key Difficult to Turn: Apply graphite lubricant to the keyway. Check for any debris obstructing the keyway.
- Loose Deadbolt: Tighten the mounting screws on both the interior and exterior assemblies.
- Deadbolt Not Extending Fully: Verify that the door frame's bore hole for the deadbolt is deep enough and clear of obstructions.
Specifications
| Feature | Detail |
|---|---|
| Brand | SCHLAGE |
| Model Number | JD60619 |
| Material | Zinc |
| Color | Satin Nickel |
| Item Dimensions (L x W x H) | 3.15 x 3.74 x 3.74 inches |
| Lock Type | Key Lock (Single Cylinder) |
| Special Feature | Key Lock |
| UPC | 043156784189 |
| GTIN | 00043156784189 |
Warranty and Support
The Schlage J-Series JD60619 Deadbolt comes with a Lifetime Mechanical Warranty and a 5-Year Finish Warranty, ensuring long-term reliability and aesthetic quality.
For further assistance, detailed installation guides, or to contact customer support, please visit the official Schlage website or refer to the documentation included with your product. You can also find helpful resources and FAQs on the SCHLAGE Store on Amazon.
