Landmann USA 3405GLA Smoky Mountain Gas Smoker

Important Safety Information

Please read and understand all safety warnings and instructions before assembling, operating, or servicing this gas smoker. Failure to follow these instructions could result in property damage, bodily injury, or death.

• For outdoor use only. Do not operate indoors or in an enclosed area.
• Keep children and pets away from the smoker at all times.
• Always operate the smoker on a level, non-combustible surface.
• Maintain a minimum distance of 10 feet (3 meters) from combustible materials.
• Never leave a lit smoker unattended.
• Use caution when handling hot surfaces. Always use heat-resistant gloves.
• Ensure proper ventilation to prevent carbon monoxide buildup.
• Check all gas connections for leaks before each use using a soapy water solution.
• Only use propane gas with this appliance.

Product Overview

The Landmann USA 3405GLA Smoky Mountain Gas Smoker is designed for efficient outdoor smoking with its two-drawer heat-saving system. This design allows for easy access to add wood chips and water without opening the main cooking chamber door, helping to maintain consistent internal temperatures.

Key Features:

• Cool grip front door handle and drawer handles for safe operation.
• Heavy-duty side carrying handles for portability.
• Three adjustable chrome-plated cooking grates for versatile cooking space.
• Includes a porcelain-coated steel water pan and a cast iron wood chip box with lid.
• Wide stance legs provide enhanced stability.

Figure 1: Front view of the Landmann USA 3405GLA Gas Smoker with the lower drawer open, showing the wood chip box and water pan access.

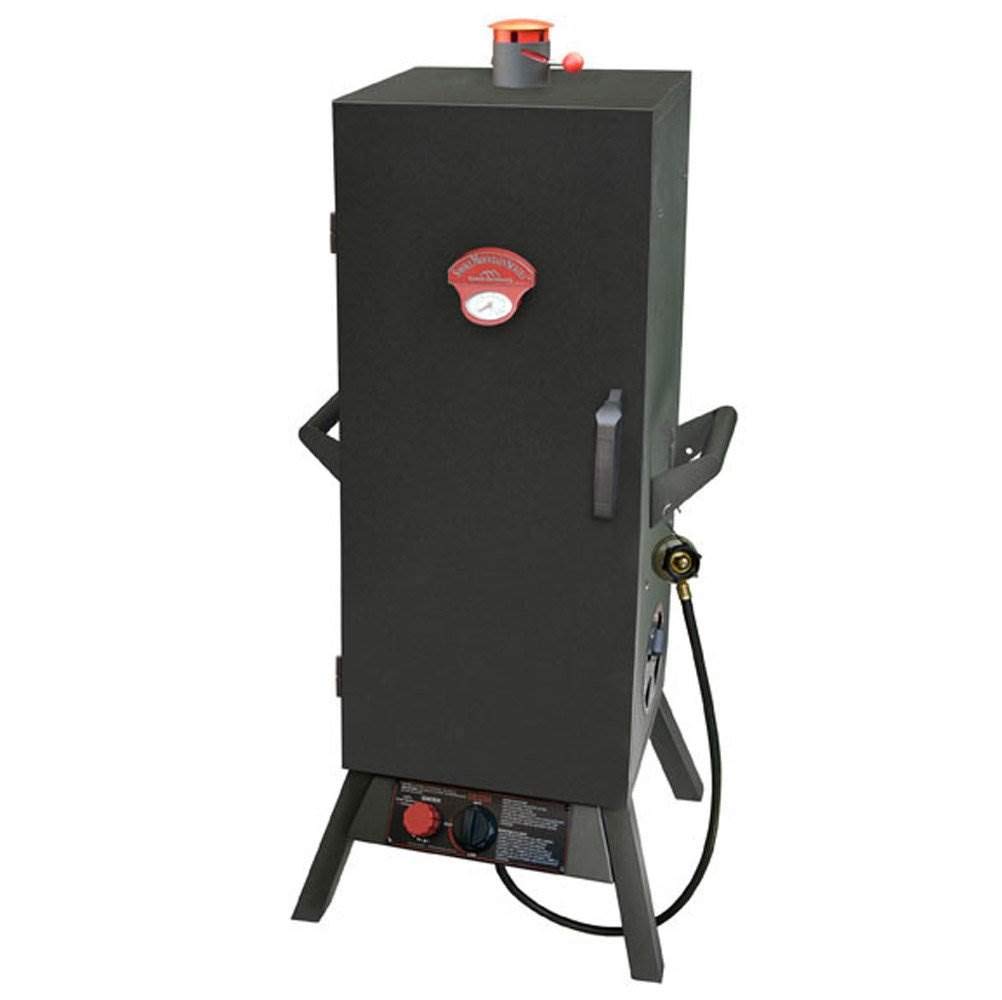

Figure 2: Full front view of the Landmann USA 3405GLA Gas Smoker, highlighting its compact design.

Figure 3: Interior view of the Landmann USA 3405GLA Gas Smoker, showing the adjustable cooking grates and capacity for various foods.

Assembly Instructions

Carefully unpack all components and ensure all parts are present before beginning assembly. Refer to the included assembly diagram (if applicable) for detailed steps. Typically, assembly involves attaching the legs, handles, and internal components such as cooking grates, water pan, and chip box.

1. Attach the legs to the main body of the smoker using the provided hardware. Ensure they are securely fastened for stability.
2. Install the side carrying handles and the front door handle.
3. Place the adjustable chrome-plated cooking grates into their desired positions within the cooking chamber.
4. Insert the porcelain-coated steel water pan and the cast iron wood chip box into the lower drawer assembly.
5. Connect the gas hose and regulator to the smoker's gas inlet. Ensure all connections are tight.
6. Perform a leak test on all gas connections using a soapy water solution. Bubbles indicate a leak. Tighten connections or replace parts as necessary.

Setup

Proper setup is crucial for safe and effective smoking.

1. Placement: Position the smoker on a flat, stable, non-combustible surface outdoors. Ensure adequate clearance from walls, fences, and other combustible materials.
2. Propane Tank Connection: Connect your propane tank to the regulator and then to the smoker's gas inlet. Hand-tighten the connection.
3. Initial Burn-off: Before first use, operate the smoker empty for approximately 30-60 minutes at a medium temperature. This process burns off any manufacturing oils or residues.

Operating Instructions

Follow these steps for optimal smoking results.

1. Prepare Wood Chips and Water: Soak wood chips in water for at least 30 minutes. Fill the water pan with water, juice, or other liquids to add moisture and flavor.
2. Add Wood Chips and Water: Slide out the lower drawer. Place the soaked wood chips into the cast iron chip box and position the water pan. Close the drawer securely.
3. Light the Burner: Open the main door. Turn the gas control knob to the 'LIGHT' or 'START' position and press the igniter button. Once lit, adjust the knob to the desired temperature setting.
4. Preheat: Close the main door and allow the smoker to preheat to your target smoking temperature. Monitor the built-in thermometer.
5. Load Food: Once preheated, carefully place your food on the cooking grates. Arrange food to allow for proper air circulation.
6. Maintain Temperature: Adjust the gas control knob as needed to maintain a consistent temperature. The two-drawer system allows you to add more wood chips or water without opening the main door, which helps stabilize the internal temperature.
7. Monitor Cooking: Use a separate meat thermometer to check the internal temperature of your food for doneness.
8. Shut Down: When finished, turn the gas control knob to the 'OFF' position and close the valve on the propane tank.

Maintenance

Regular cleaning and maintenance will extend the life of your smoker.

• After Each Use: Allow the smoker to cool completely. Remove and clean the cooking grates, water pan, and wood chip box with warm, soapy water.
• Interior Cleaning: Scrape off any accumulated grease or food residue from the interior walls and bottom of the smoker. A stiff brush or scraper can be used.
• Exterior Cleaning: Wipe down the exterior surfaces with a damp cloth. Avoid abrasive cleaners that could damage the finish.
• Storage: Disconnect the propane tank and store it separately. Store the smoker in a dry, protected area, preferably covered, to prevent rust and weather damage.
• Gas Hose Inspection: Periodically inspect the gas hose for any signs of wear, cuts, or kinks. Replace if damaged.

Troubleshooting

Refer to this section for common issues and their solutions.

Specifications

• Brand: Landmann
• Model: 3405GLA
• Power Source: Propane
• Color: Black
• Outer Material: Chrome, Steel, Iron
• Inner Material: Stainless steel
• Item Weight: Approximately 51.7 Pounds
• UPC: 715117319593

Warranty Information

Landmann will replace missing and defective parts within 90 days of purchase. Please retain your proof of purchase for warranty claims. For specific warranty details or to initiate a claim, refer to the documentation included with your product or contact Landmann customer support.

Customer Support

For assistance with assembly, operation, troubleshooting, or replacement parts, please contact Landmann customer support. Have your model number (3405GLA) and proof of purchase ready when contacting support.

Note: Specific contact information (phone number, website) is typically provided in the product packaging or on the manufacturer's official website.
