Winco Analog Receiving Scale SCAL-820 Instruction Manual
Model: SCAL-820 | Brand: Winco
Introduction
The Winco SCAL-820 analog receiving scale is designed for accurate weight measurement of various items such as produce, meat, and grains. This durable scale features an easy-to-read dial displaying measurements in both pounds and kilograms, with precise graduations. Constructed from heavy-duty stainless steel, it is built for daily use in commercial and home environments.
Image: The Winco Analog Receiving Scale (SCAL-820) with avocados on its stainless steel platform, positioned on a kitchen counter. The large, clear dial is visible, indicating its analog nature.
Setup
Unpacking: Carefully remove the scale from its packaging. Inspect for any shipping damage.
Placement: Place the scale on a stable, flat, and level surface to ensure accurate readings. Avoid placing it near vibrations or drafts.
Remove Protective Packaging: Locate and remove any internal corrugated cylinders or protective materials that may be securing the weighing mechanism during transit. These are typically found beneath the weighing platform.
Zeroing the Scale: Before first use and periodically thereafter, ensure the scale reads zero when nothing is on the platform. If the needle is not at zero, gently turn the calibration knob, usually located at the bottom front or side of the dial, until the needle aligns with the '0' mark.
Image: A detailed view of the scale's weighing platform attachment, highlighting the robust construction and connection points. This area should be checked for any protective packaging during initial setup.
Operating Instructions
Prepare for Weighing: Ensure the scale is on a stable surface and the dial is set to zero. Adjust the zeroing knob if necessary.
Place Item: Gently place the item to be weighed onto the center of the stainless steel platform.
Read Measurement: Observe the red needle on the dial. The outer ring indicates weight in pounds (lbs), and the inner ring indicates weight in kilograms (kg). The scale features graduations of 1 ounce (50g) for precise readings.
Remove Item: Once the weight is recorded, carefully remove the item from the platform.
Tare Function (Manual): To weigh multiple ingredients in the same container, place the empty container on the platform, then turn the zeroing knob to reset the needle to zero. Add the first ingredient, record its weight, then reset to zero again before adding the next ingredient.

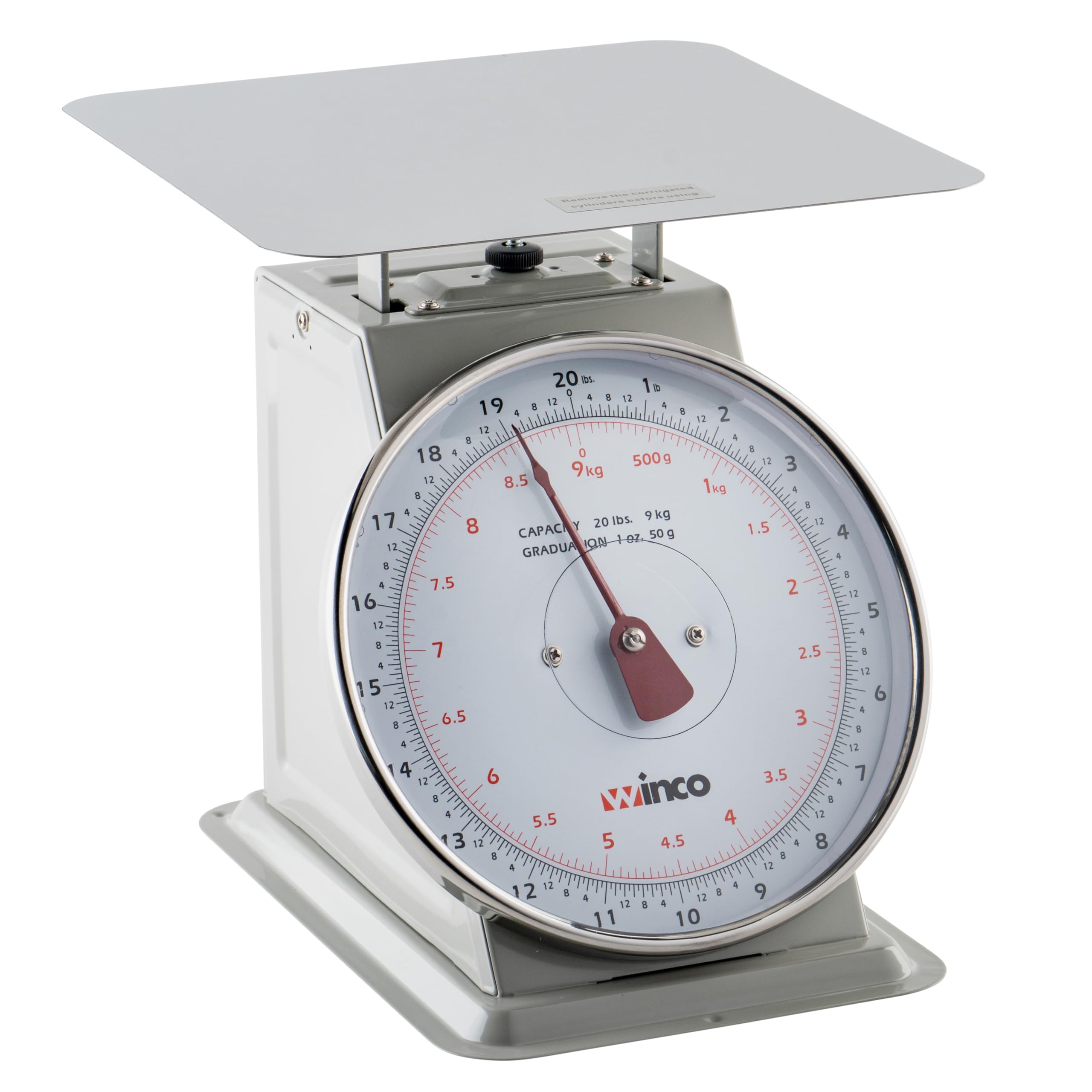

Image: A close-up of the scale's analog dial, clearly showing the measurement markings for pounds (outer ring) and kilograms (inner ring), along with the red indicator needle. The Winco logo is visible at the bottom of the dial.
Maintenance
Cleaning: The stainless steel platform can be removed and is dishwasher safe for easy cleaning. The main body of the scale should be wiped clean with a damp cloth and mild detergent. Avoid submerging the entire scale in water.
Storage: Store the scale in a dry, clean environment.
Inspection: Periodically check the scale for any signs of wear or damage. Ensure the platform is securely attached and the dial moves freely.
Troubleshooting
Problem
Possible Cause
Solution
Inaccurate readings
Scale not zeroed; unstable surface; internal obstruction.
Ensure the scale is zeroed before use. Place on a stable, level surface. Check for any debris or packaging material obstructing the mechanism.
Needle does not move smoothly
Internal mechanism obstruction or damage.
Inspect for any visible obstructions. If the issue persists, contact Winco customer support.
Scale appears damaged
Physical impact or manufacturing defect.
Do not attempt to repair. Contact Winco customer support for assistance.
Specifications
Brand: Winco
Model: SCAL-820
Display Type: Analog
Weight Limit: 20 Pounds (9 Kilograms)
Readout Accuracy: 1 ounce (50g)
Material: Stainless Steel
Color: White, Steel
Special Feature: Dishwasher Safe (Platform)
Item Weight: 6.3 Pounds
Included Components: Scale
UPC: 842169122533
Warranty and Support
For warranty information or technical support regarding your Winco Analog Receiving Scale SCAL-820, please refer to the documentation included with your purchase or visit the official Winco website. You may also contact Winco customer service directly for assistance with product inquiries, parts, or service.
Manufacturer: Winco USA
Contact: Please visit wincous.com for contact details and support resources.
