Equipex Sirocco Quarter Size Countertop Convection Oven

1. Introduction

Thank you for purchasing the Equipex Sirocco Quarter Size Countertop Convection Oven. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.

Figure 1: Equipex Sirocco Quarter Size Countertop Convection Oven. This image shows the compact, stainless steel convection oven with a glass door, revealing three wire racks inside. Control knobs are visible on the right side.

2. Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons.

• Read all instructions before operating the oven.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Oversized foods or metal utensils must not be inserted in a toaster oven as they may create a fire or risk of electric shock.
• A fire may occur if the oven is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
• Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.
• Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
• Do not place any of the following materials in the oven: paper, cardboard, plastic, or any other flammable materials.
• Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.

3. Product Features and Components

3.1 Key Features

• Compact footprint for countertop placement.
• 120-minute mechanical timer.
• Accommodates up to four cookie trays (quarter size).
• Durable stainless steel interior and exterior construction.
• Equipped with three wire racks and one cookie tray.
• Rear fan and heating element for true convection cooking.
• Unique airflow pattern ensures quick and uniform baking.

3.2 Components

The Equipex Sirocco Convection Oven includes the following main components:

• Oven Unit with Glass Door
• Temperature Control Knob
• Timer Knob
• Three (3) Wire Racks
• One (1) Cookie Tray
• Power Cord

4. Setup and Installation

1. Unpacking: Carefully remove the oven and all accessories from the packaging. Retain packaging for future transport or storage.
2. Placement: Place the oven on a stable, heat-resistant, and level surface. Ensure adequate clearance (at least 4 inches) from walls and other appliances for proper ventilation. Do not place near flammable materials.
3. Power Connection: Ensure the electrical supply matches the oven's requirements (Voltage: 208-240V, Amps: 13/15A, Wattage: 3,000W, Hz: 60). Plug the oven into a grounded electrical outlet.
4. Initial Cleaning: Before first use, wipe down the interior and accessories with a damp cloth. Run the oven empty at maximum temperature for approximately 15 minutes to burn off any manufacturing residues. A slight odor or smoke may be present during this initial burn-off; ensure the area is well-ventilated.

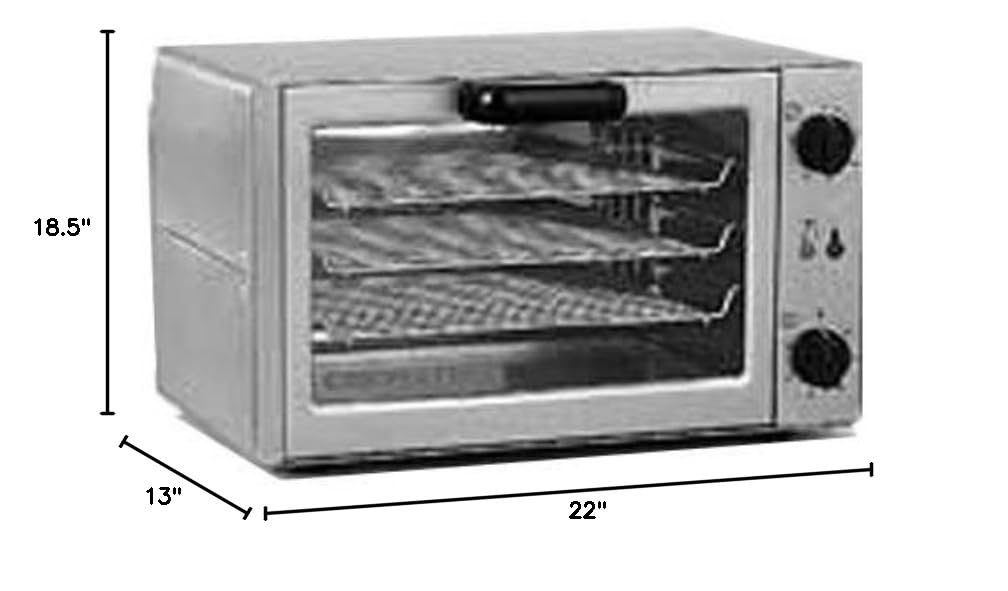

Figure 2: Dimensions of the Equipex Sirocco Quarter Size Countertop Convection Oven. The image illustrates the oven's dimensions: 18.5 inches in height, 22 inches in width, and 13 inches in depth, providing a clear understanding of its physical footprint.

5. Operating Instructions

5.1 Preheating the Oven

1. Place the desired number of wire racks inside the oven.
2. Turn the temperature control knob to the desired cooking temperature (up to 480°F / 249°C).
3. Turn the timer knob to the "ON" position or set it to a preheating time (e.g., 10-15 minutes). The oven will begin to heat.
4. Once the oven reaches the set temperature, it is ready for use.

5.2 Cooking with the Convection Oven

1. Carefully place food items on the wire racks or cookie tray. Use oven mitts.
2. Close the oven door securely.
3. Set the timer knob to the desired cooking duration (up to 120 minutes). The oven will operate until the timer reaches zero and rings, or until manually turned off.
4. Monitor food through the glass door. Convection ovens cook faster and more evenly than conventional ovens, so adjust cooking times and temperatures as needed.
5. To stop cooking before the timer expires, turn the timer knob to the "OFF" position.
6. When cooking is complete, carefully remove food using oven mitts.

5.3 Temperature and Timer Controls

The oven features two primary control knobs:

• Temperature Knob: Located on the right side, this knob allows you to select temperatures from ambient to 480°F (249°C).
• Timer Knob: Also on the right side, this mechanical dial timer can be set for up to 120 minutes. It will automatically shut off the heating elements and fan when the set time expires.

6. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your oven.

1. Always unplug the oven and allow it to cool completely before cleaning.
2. Exterior: Wipe the exterior surfaces with a damp cloth and mild detergent. Do not use abrasive cleaners or scouring pads, as they may scratch the stainless steel finish.
3. Interior: For light cleaning, wipe the interior with a damp cloth. For stubborn food residue, use a non-abrasive oven cleaner. Ensure to cover the fan and heating element vents with plastic or foil before spraying oven cleaner to prevent damage. Rinse thoroughly with a damp cloth after cleaning.
4. Wire Racks and Cookie Tray: These can be washed with warm, soapy water or placed in a dishwasher.
5. Glass Door: Clean with a glass cleaner or a damp cloth.
6. Crumb Tray: The oven does not feature a removable crumb tray. Ensure to clean the bottom interior surface regularly to prevent buildup.
7. Storage: When not in use for extended periods, store the oven in a clean, dry place.

7. Troubleshooting

8. Specifications

• Model: FC-34/1
• Brand: Equipex
• Type: Quarter Size Countertop Convection Oven
• Dimensions (H x W x D): 13" x 22" x 18.5" (33cm x 55.9cm x 47cm)
• Interior Dimensions (H x W x D): 10" x 16" x 11.5" (25.4cm x 40.6cm x 29.2cm)
• Weight: 50 lbs (22.7 kg)
• Voltage: 208-240V
• Amperage: 13 / 15 Amps
• Wattage: 3,000 W
• Frequency: 60 Hz
• Maximum Temperature: 480°F (249°C)
• Timer: 120-minute mechanical timer
• Rack Capacity: 3 wire racks, fits up to four quarter-size cookie trays
• Construction: Stainless steel interior and exterior
• Door Type: Glass Dropdown Door
• Control Type: Knob

9. Warranty and Support

9.1 Warranty Information

Equipex products are manufactured to high standards and are backed by a manufacturer's warranty. Specific warranty terms and duration may vary. Please refer to the warranty card included with your product or visit the official Equipex website for detailed warranty information. Keep your purchase receipt as proof of purchase for warranty claims.

9.2 Customer Support

For technical assistance, parts, or service inquiries, please contact Equipex customer support. Have your model number (FC-34/1) and purchase date ready when contacting support.

Equipex Contact Information:

• Website: www.equipex.com (Please note: This is a placeholder URL as specific support contact info is not provided in the input.)
• Phone: Refer to the Equipex website or product packaging for the most current contact numbers.
