1. Product Overview
The STI-1230 Stopper II is a clear, protective polycarbonate cover designed to prevent false fire alarms without impeding legitimate access to emergency devices. This durable cover is suitable for various public and commercial environments, including schools, hospitals, and hotels. It features a robust design and is connected to its frame by a cable, ensuring it remains attached even when lifted.
Key Features:
- Protective cover helps prevent false fire alarms.
- Constructed from super tough, UV-stabilized clear polycarbonate.
- Cover remains attached to the frame via a cable when lifted.

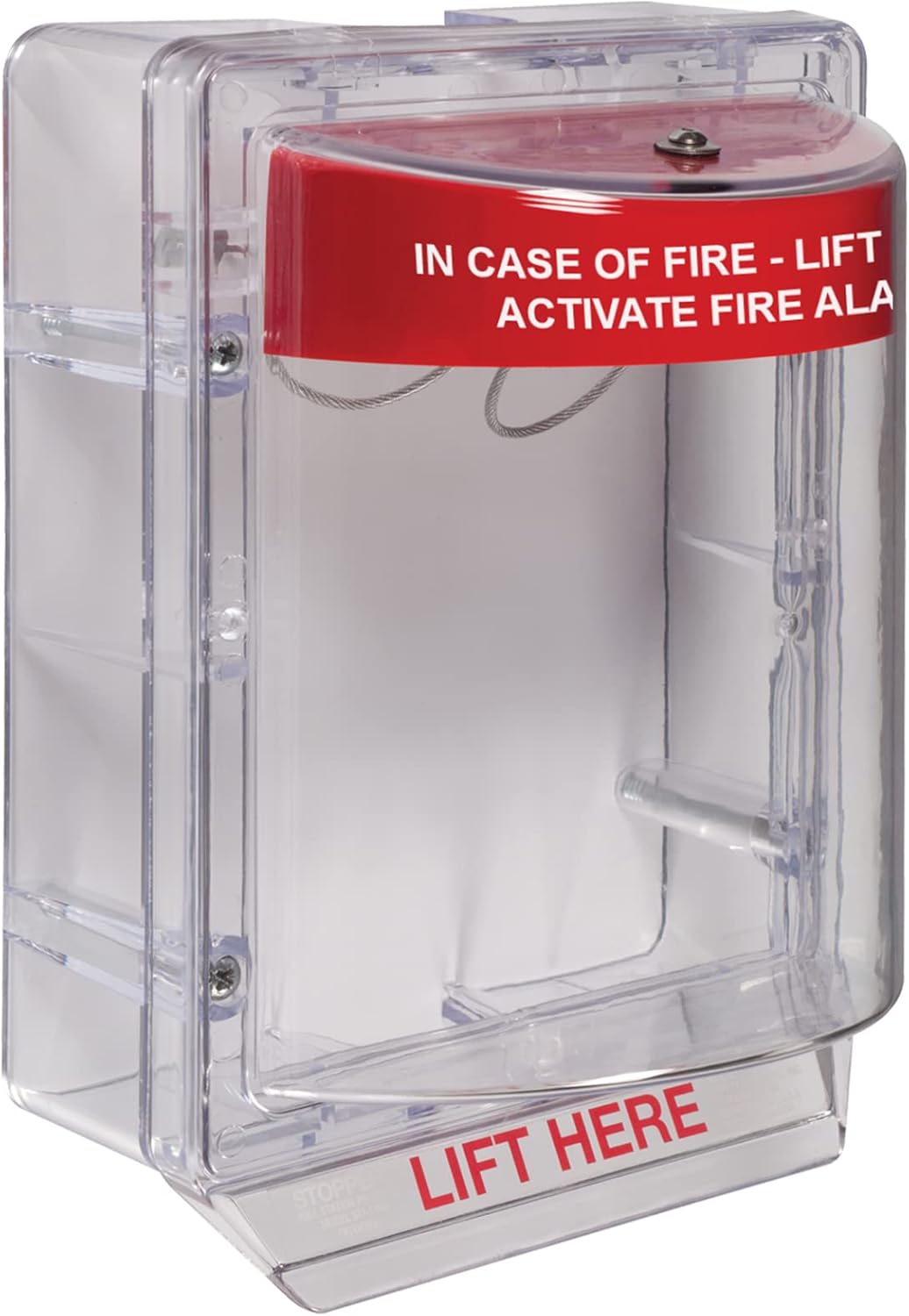

Figure 1: Front view of the STI-1230 Stopper II protective cover installed over a fire alarm pull station.
2. Setup and Installation
The STI-1230 Stopper II is designed for straightforward installation over existing fire alarm pull stations. It includes a clear spacer with conduit knockouts for surface mount applications.
Installation Steps:
- Prepare the Mounting Surface: Ensure the wall surface is clean and flat where the cover will be mounted.
- Position the Frame: Place the cover's frame over the fire alarm pull station, aligning it correctly. Mark the mounting holes.
- Drill Pilot Holes: Drill appropriate pilot holes for the mounting screws at the marked locations.
- Secure the Frame: Attach the frame securely to the wall using suitable screws. Ensure it is firmly fixed and does not wobble.
- Attach the Cover: The clear polycarbonate cover is connected to the frame by a cable. Align the cover with the frame and close it. The cover should snap securely into place.
- Conduit Knockouts (if applicable): If surface mount conduit is used, utilize the pre-formed knockouts on the clear spacer for proper cable routing.
Figure 2: Side view illustrating the depth of the STI-1230 Stopper II cover.
Installation Video
Video 1: Demonstrates the features and installation process of the STI-1230 Stopper II protective cover.
3. Operating Instructions
The STI-1230 Stopper II is a passive protective device. Its operation is simple and intuitive:
- To access the fire alarm pull station, lift the clear polycarbonate cover. The cover is hinged and will swing upwards, remaining attached to the frame by a cable.
- Once the cover is lifted, the fire alarm pull station is fully exposed and can be activated as intended.
- After activating the alarm or if no alarm is necessary, simply close the cover by pushing it back down until it securely latches.
The primary function of this cover is to deter accidental or malicious activation of fire alarms by requiring a deliberate action (lifting the cover) before the alarm can be pulled.
4. Maintenance
Regular maintenance ensures the longevity and effectiveness of your STI-1230 Stopper II cover.
- Cleaning: Clean the polycarbonate cover periodically with a soft cloth and mild soap and water. Avoid abrasive cleaners or solvents, as these can damage the material.
- Inspection: Routinely inspect the cover and its mounting for any signs of damage, cracks, or loose components. Ensure the hinge mechanism operates smoothly and the cable connecting the cover to the frame is intact.
- Functionality Check: Occasionally lift and close the cover to ensure it opens and closes freely and latches securely.
5. Troubleshooting
Most issues with the STI-1230 Stopper II are related to physical damage or improper installation.
- Cover does not close securely: Check for any obstructions around the hinge or latching mechanism. Ensure the frame is mounted flush against the wall and not warped.
- Cover appears loose or wobbly: Verify that all mounting screws are tightened. Inspect the frame for any damage that might compromise its rigidity.
- Cracks or damage to polycarbonate: While the cover is made from tough polycarbonate, extreme impact can cause damage. If significant damage occurs, the unit should be replaced to maintain its protective integrity.
For issues not covered here, please refer to the support section.
6. Specifications
| Attribute | Detail |
|---|---|
| Model Number | STI-1230 |
| Brand | STI (Safety Technology International, Inc.) |
| Material | Polycarbonate (PC) |
| Color | Clear |
| Product Dimensions (L x W x H) | 5.51" x 5.2" x 7.48" (140mm x 132mm x 190mm approx.) |
| Item Weight | 1 Pound |
| Finish Type | Smooth |
| UL/cUL Listed | Yes |
| ADA Compliant | Yes |
7. Warranty Information
The STI-1230 Stopper II comes with a comprehensive warranty:
- Lifetime Guarantee: Against breakage of the polycarbonate housing in normal use.
- One Year Warranty: On electronic components (Note: This model does not contain electronic components, so this part of the general warranty description is not applicable to the STI-1230).
This warranty covers defects in materials and workmanship under normal use. For warranty claims or further details, please contact Safety Technology International, Inc. directly.
8. Support
For technical assistance, product inquiries, or warranty claims regarding your STI-1230 Stopper II, please contact Safety Technology International, Inc. (STI) through their official channels. Refer to the product packaging or the manufacturer's website for the most current contact information.
Manufacturer: Safety Technology International, Inc.
