1. Introduction
The RIDGID WD1450 is a 14-gallon, 6-horsepower wet/dry vacuum designed for powerful suction and versatile cleaning tasks. It features noise reduction technology for quieter operation, a durable 2-piece drum construction, and a 20-foot power cord for extended reach. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your vacuum.
Figure 1.1: The RIDGID WD1450 Wet/Dry Vacuum. This image shows the overall design of the vacuum, highlighting its orange and black color scheme and robust build.
2. Setup
Before operating your RIDGID WD1450 wet/dry vacuum, ensure all components are correctly assembled and secured.
2.1 Unpacking and Component Identification
Carefully remove all items from the packaging. Verify that all included components are present:
- Vacuum unit (motor head, drum, casters)
- 2-1/2-inch-by-7-foot Tug-A-Long locking hose
- 2 Extension wands
- Utility nozzle
- Car nozzle
- Wet nozzle
- 3-layer fine dust filter
- Owner’s manual
2.2 Caster Installation
Attach the four swivel casters to the base of the vacuum drum. Ensure they are securely locked into place for 360-degree mobility.
2.3 Filter Installation
For dry vacuuming, install the 3-layer fine dust filter. This filter is designed to capture fine dust particles such as drywall dust. The filter snaps into place, requiring no additional cloths, foam, or rings.
Figure 2.1: Internal view of the vacuum showing the filter. This image illustrates the pleated fine dust filter installed inside the vacuum drum, ready for dry use.
2.4 Hose and Accessory Connection
Connect the Tug-A-Long locking hose to the inlet port on the drum. This hose is designed to prevent accidental disconnections during use. Attach desired accessories (extension wands, nozzles) to the end of the hose.
Video 2.1: Features of the RIDGID Wet/Dry Vac. This video demonstrates various features of the vacuum, including hose and accessory connections, and overall design.
2.5 Power Cord Management
The 20-foot power cord wraps neatly around the large carry handle for convenient storage and transport.
3. Operation
The RIDGID WD1450 offers powerful suction for both wet and dry applications, as well as a blowing function.
3.1 Dry Vacuuming
Ensure the 3-layer fine dust filter is properly installed for dry debris collection. Connect the hose to the front inlet port. Use the utility nozzle for general cleaning, or the car nozzle for upholstery and tight spaces. The 6 peak HP motor provides strong suction for tough job site clean-up, including sawdust and other dry debris.

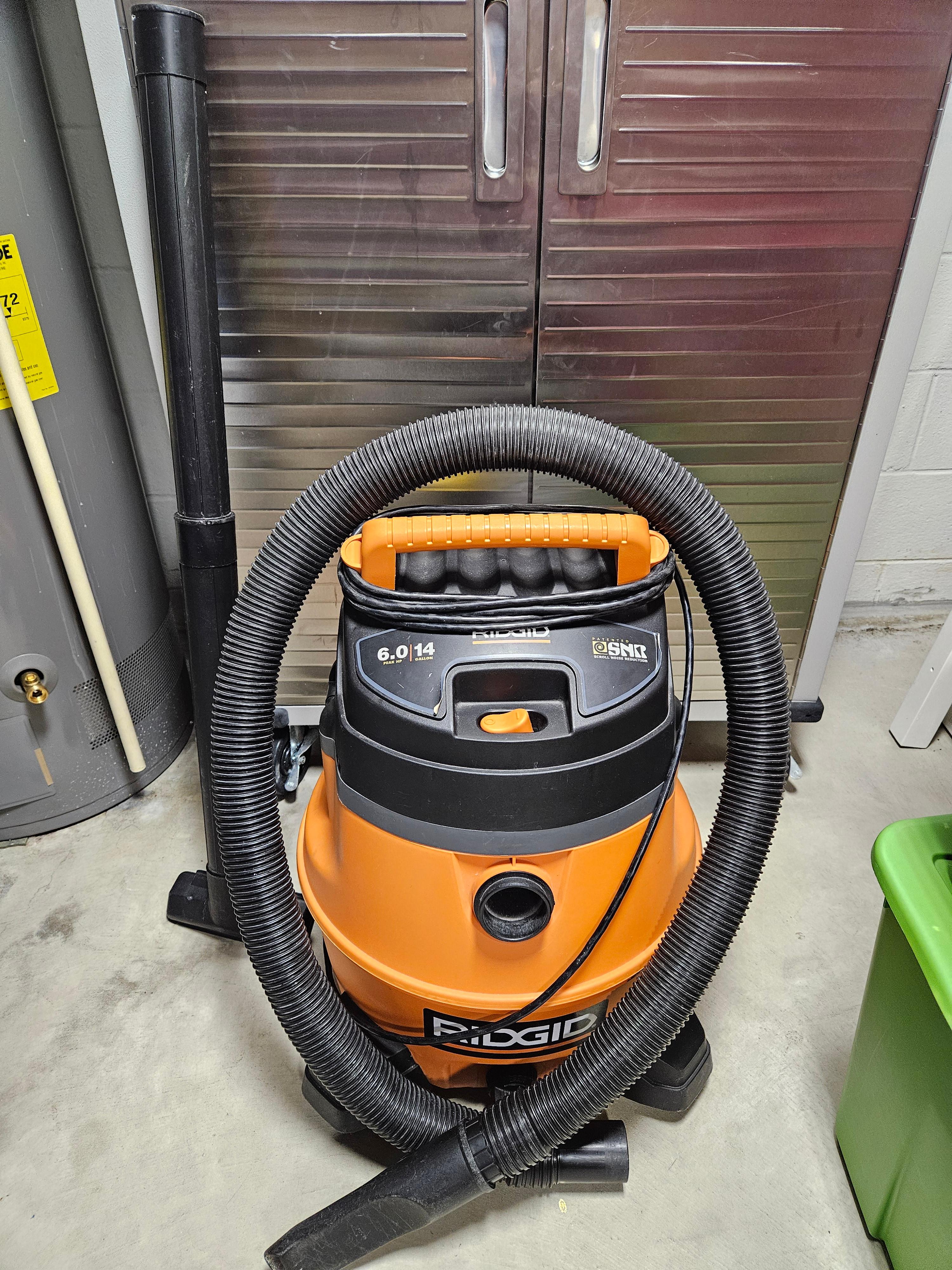

Figure 3.1: The RIDGID WD1450 in operation. This image shows the vacuum with its hose and accessories, ready for dry cleaning tasks.
3.2 Wet Vacuuming
When vacuuming liquids, remove the dry filter. The vacuum is designed to pick up small amounts of liquid with the wet nozzle. The 14-gallon capacity allows for significant liquid collection. After wet use, empty the drum using the built-in drain plug.
3.3 Blowing Function
To use the blowing feature, connect the hose to the exhaust port located on the back of the motor head. The powerful exhaust airstream can be directed through the vac hose to blow debris from garages, decks, and sidewalks.
Video 3.1: Powerful Shop Vacuum - Wet or Dry. This video demonstrates the vacuum's capability for both wet and dry applications, showcasing its power.
3.4 Maneuverability
The vacuum is equipped with 4 swivel casters for easy 360-degree mobility. The large carry handle facilitates easy lifting and transport of the unit.
4. Maintenance
Regular maintenance ensures optimal performance and extends the life of your RIDGID WD1450 vacuum.
4.1 Filter Cleaning and Replacement
The 3-layer fine dust filter can be cleaned and reused. For best results, clean the filter outdoors by gently tapping it against a solid surface to dislodge accumulated dust. Replace the filter when it shows signs of wear or reduced performance.
Figure 4.1: Internal view of the vacuum showing a used filter. This image highlights the filter with accumulated dust, indicating the need for cleaning or replacement.
4.2 Drum Emptying
For dry debris, the quick-release accessory storage bag can be removed to easily empty the drum. For liquids, utilize the built-in drain plug at the bottom of the drum to release contents into a suitable drain.
Figure 4.2: Close-up of the drain plug on the RIDGID WD1450. This image shows the drain plug located at the bottom of the vacuum drum for convenient liquid disposal.
4.3 General Cleaning
Wipe down the exterior of the vacuum with a damp cloth. Ensure all ports and accessories are free from obstructions.
5. Troubleshooting
Refer to the following table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum does not turn on | No power supply; faulty switch. | Check power cord connection and outlet. Ensure the power switch is in the "ON" position. |
| Reduced suction power | Clogged filter; blocked hose/accessories; full drum. | Clean or replace the filter. Check hose and accessories for blockages. Empty the drum. |
| Water leaking from drum | Drain plug not sealed; damaged drum. | Ensure the drain plug is securely closed. Inspect the drum for cracks or damage. |
| Excessive noise during operation | Motor issue; foreign object in fan. | If noise is unusual, discontinue use and contact customer support. |
6. Specifications
Detailed technical specifications for the RIDGID WD1450 Wet/Dry Vacuum.
- Brand: RIDGID
- Model Name: WD1450
- Model Number: 18718
- Capacity: 14 gallons
- Peak Horsepower: 6 HP
- Power Source: Corded Electric
- Voltage: 116 volts
- Amperage: 11 A
- Wattage: 4476 watts
- Hose Length: 7 feet (2.1 meters)
- Cord Length: 20 feet
- Filter Type: 3-layer Fine Dust Cartridge
- Noise Level: 80 dB
- Item Weight: 26 pounds
- Special Features: Quiet operation (SNR technology), 360° mobility (4 swivel casters), 2-piece drum, Tug-A-Long locking hose, Large carry handle, Built-in drain, On-board accessory storage, Blowing feature.
- Included Components: Nozzle (Utility, Car, Wet), 2 Extension Wands, Owner's Manual.
7. Warranty & Support
7.1 Manufacturer's Warranty
The RIDGID WD1450 Wet/Dry Vacuum comes with a Lifetime Warranty from the manufacturer. Please retain your proof of purchase for warranty claims. For full details on warranty coverage and terms, refer to the official RIDGID website or the warranty information included with your product packaging.
7.2 Customer Support
For technical assistance, replacement parts, or further inquiries, please contact RIDGID customer support. Visit the official RIDGID website for contact information and service center locations.
Online Resources: www.ridgid.com
