Introduction
The Carson LT-10 LED Lighted LinenTest Focusing Loupe is a compact, portable magnifier designed for detailed inspection and measurement of small objects. It features 11.5x magnification and an integrated LED light for enhanced viewing clarity. This manual provides instructions for its proper setup, operation, and care.
Image: Carson LT-10 Loupe product box.
Product Overview
The LT-10 loupe is a fold-open design, making it highly portable. Key components include:
- 11.5x Magnification Lens: Provides clear, distortion-free viewing.
- Focus Wheel: Allows for fine adjustment to achieve a sharp image.
- Super Bright LED Light: Illuminates the viewing area for optimal clarity.
- Measurement Scales: Integrated scales in both inches and centimeters for precise object measurement.
- Folding Mechanism: Enables compact storage and protection of the lens.
- Battery Compartment: Houses three button cell batteries for the LED light.
Image: Unfolded Carson LT-10 Loupe with measurement scales.
Setup
- Unfolding the Loupe: Gently unfold the loupe from its compact, folded position until it forms a stable viewing stand. The lens should be positioned above the measurement base.
- Battery Installation (if necessary): The loupe comes with 3 button cell batteries pre-installed. If the LED light does not function, locate the battery compartment (typically on the side or rear of the main body). Open the compartment and insert three new button cell batteries, ensuring correct polarity as indicated inside the compartment.
Image: Carson LT-10 Loupe in folded position.
Operating Instructions
- Positioning: Place the unfolded loupe directly over the object you wish to magnify. Ensure the object is flat against the measurement base for accurate viewing and measurement.
- Activating the LED Light: Locate the small switch on the side of the loupe's body. Slide the switch to the 'ON' position to illuminate the viewing area. Slide it to 'OFF' when not in use to conserve battery life.
- Focusing: While looking through the lens, rotate the focus wheel until the image of the object appears sharp and clear.
- Measuring Objects: Use the etched scales on the base of the loupe to measure the dimensions of the magnified object. The scales are marked in both inches and centimeters.

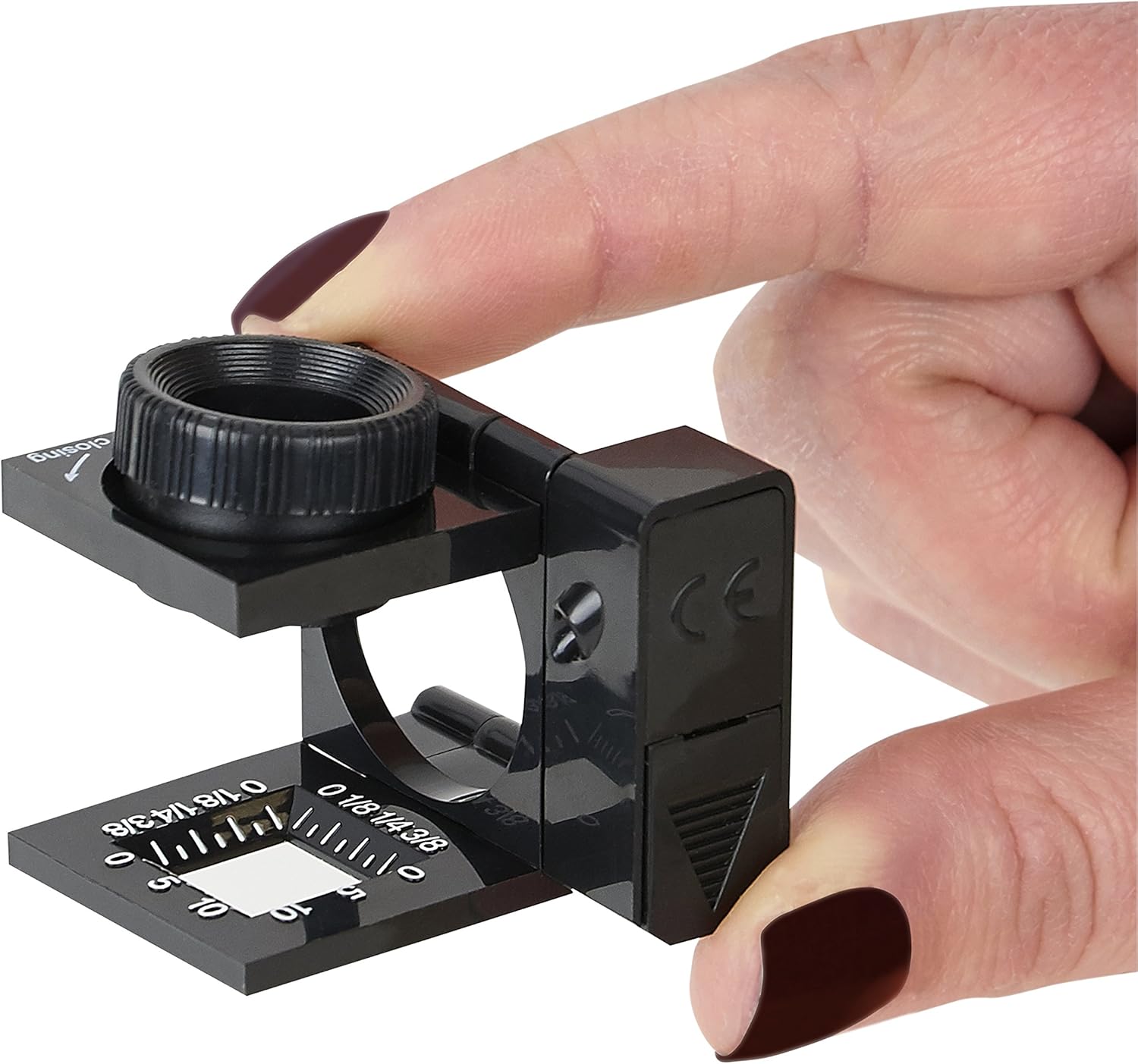

Image: Operating the LED light switch on the Carson LT-10 Loupe.
Maintenance
- Cleaning the Lens: Use a soft, lint-free microfiber cloth specifically designed for optical lenses to gently wipe the lens surface. Do not use abrasive cleaners, paper towels, or harsh chemicals, as these can scratch the lens.
- Battery Replacement: If the LED light dims or stops working, it is time to replace the batteries. Open the battery compartment, remove the old batteries, and insert three new button cell batteries (e.g., LR44 or equivalent), ensuring correct orientation.
- Storage: When not in use, fold the loupe into its compact form and store it in its durable plastic case to protect the lens and mechanism from dust and damage.
Image: Carson LT-10 Loupe stored in its protective case.
Troubleshooting
- LED Light Not Working:
- Ensure the LED switch is in the 'ON' position.
- Check the batteries. Replace them if they are depleted or incorrectly installed.
- Image Appears Unclear or Blurry:
- Adjust the focus wheel until the image is sharp.
- Ensure the lens is clean and free of smudges or dust. Refer to the cleaning instructions in the Maintenance section.
- Verify the object is positioned correctly on the measurement base.
Specifications
| Feature | Detail |
|---|---|
| Model Number | LT-10 |
| Magnification | 11.5x |
| Lens Diameter | 15mm |
| Light Source | LED |
| Power Source | 3 Button Cell Batteries (included) |
| Product Dimensions (folded) | 3.8 x 3.8 x 3.8 cm |
| Item Weight | 13 Grams |
| Material | Plastic |
| Measurement Scales | Inches and Centimeters |
Warranty and Support
Carson provides a Lifetime Limited Warranty for the LT-10 LED Lighted LinenTest Focusing Loupe. This warranty covers manufacturing defects in materials and workmanship.
If your product is found to have such defects, Carson will repair or replace it. For additional warranty details, service inquiries, or technical support, please contact Carson directly through their official website or customer service channels.
