801-KS Local and Remote
Monitoring and Control Station
Installation Instructions
801-KS Local and Remote Monitor Control Station

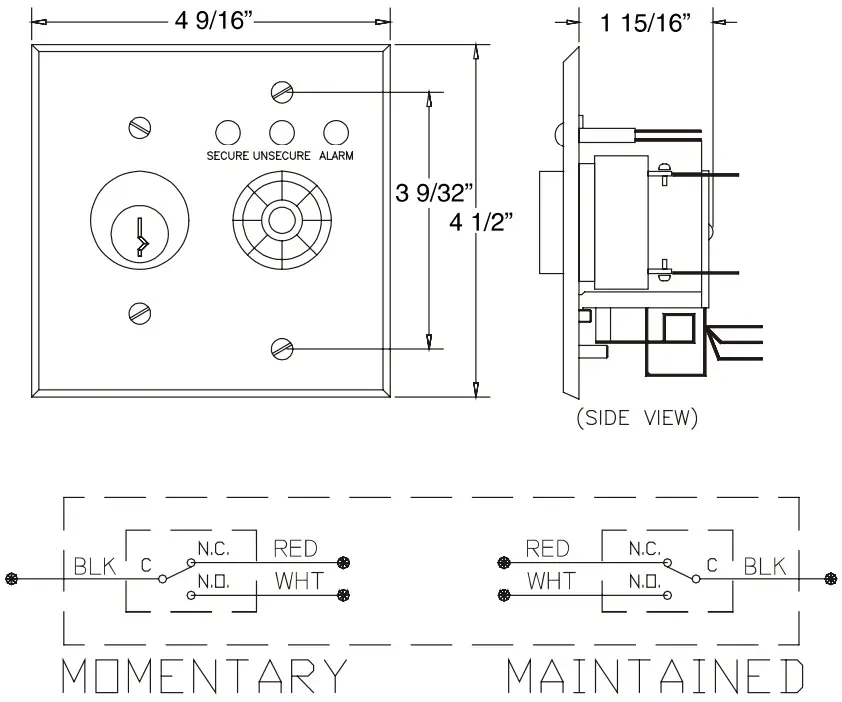

Specifications
Audible
Input Req: 10-28VDC/3-14mA
Rated: 70dB @ 2ft
Hook-Up Leads:
(4) 24 AWG – 6” long
BLK (C) – Common
RED (U) – Unsecured
RED (S) – Secure
RED (A) – Alarm
LED Indicators:
Input Req: 12-24VDC/30mA ea.
Secure – Green
Unsecured – Red
Alarm – Yellow
Keyswitch:
Contacts: 5Amp/30VDC
Wire Leads: 22AWG – 6” long
IMPORTANT NOTES
Unit must be equipped with MBS option for LEDs to work.
Description
Provides local signal to assure users that a delayed egress system is functioning (code requirement). Includes audible and visual indication of lock status and delay activation. Provides two (2) SPDT switches: one momentary, one maintained, which can be wired to release lock and/or reset alarm condition. The keyswitch requires a standard 1-1/4” mortise cylinder with a standard straight cam. Unit mounts in a standard, double-gang electrical box.
Description of Operation
The 801-KS is wired to a magnetic lock delayed egress system. The following is an operation sequence from normal (secure) condition, through an unauthorized egress attempt, to system reset:
| Condition: Door closed and secure Unauthorized egress attempt After 15 (or 30) second delay System reset Legal release |
801-KS Status Alarm Silent – Green LED on Alarm Sounds – Green & Yellow LED on Alarm Sounding – Yellow & Red LED on Alarm Silent – Green LED on Alarm Silent – Red LED on |
 |
|
RISER FOR GRAPHIC REFERENCE. LOCATE ALL DEVICES PER A-E/G.C/O.R. ADDITIONAL WIRING FOR OTHER DEVICES MAY BE REQUIRED. |
NOTE: Fire alarm connection – for direct connection, terminals 3 & 4 connect to N.C. Dry output contacts (open on alarm). Conductor count to mag changes to four (4). If power supply output is controlled by fire alarm – place jumper between 3 & 4.  NOTE:All low voltage runs – 18 GA. minimum, except as noted. Recommended 2 spares per run. All wiring to comply with all applicable national, state, and local codes. |
Customer Service
1-877-671-7011
www.allegion.com/us
© Allegion 2017
Printed in U.S.A,
24481491 Rev. 11/17-d
24481491
