Xiaomi Mi Electric Kettle N1 User Manual

1. Introduction

Thank you for choosing the Xiaomi Mi Electric Kettle N1. This electric kettle is designed for fast and efficient water boiling, featuring a 1.5L large capacity, 1500W rapid heating, and a double-layer anti-scald design for enhanced safety. Its 304 stainless steel seamless inner liner ensures pure and safe drinking water. Please read this manual carefully before use to ensure proper operation and maintenance.

2. Important Safety Instructions

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock, and injury to persons, do not immerse cord, plugs, or electric kettle in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off,” then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure the lid is securely closed before operating.
• Do not fill above the MAX line or below the MIN line.
• This appliance is for household use only.

3. Package Contents

• Xiaomi Mi Electric Kettle N1
• Power Base with retractable cord
• User Manual

4. Product Overview

Familiarize yourself with the components of your Xiaomi Mi Electric Kettle N1:

Figure 4.1: Front view of the Xiaomi Mi Electric Kettle N1.

Figure 4.2: Top-down view of the 304 stainless steel seamless inner liner, ensuring food-contact safety and no odor.

Figure 4.3: Exploded view of the high-quality temperature controller, designed for precise boiling.

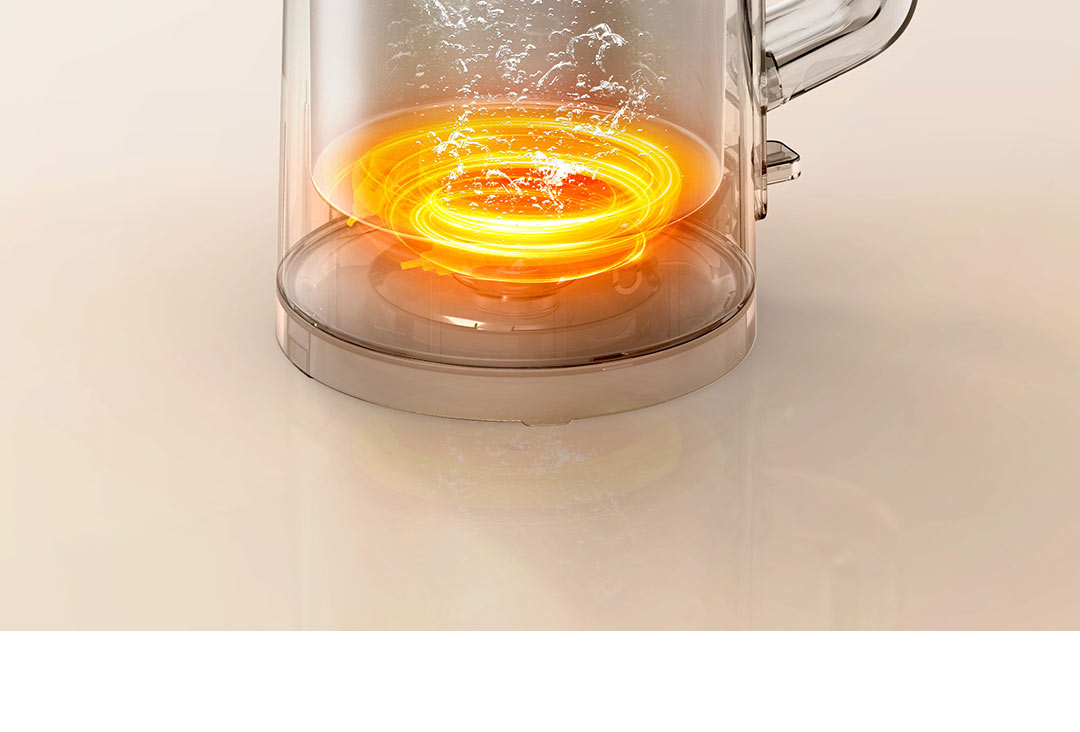

Figure 4.4: Illustration of the 1500W energy-concentrated ring heating element for rapid boiling.

Figure 4.5: The double-layer insulated kettle body prevents burns, maintaining a warm and smooth touch.

Figure 4.6: The seamless stainless steel inner tank and wide-mouth design facilitate easy cleaning.

Figure 4.7: Two-stage damped lid opening (30° and 65°) to prevent instant steam spray.

Figure 4.8: Features a retractable power cord for convenience and a visible heating light to indicate boiling status.

Figure 4.9: The U-shaped rounded kettle spout with meticulous edge wrapping ensures smooth, splash-free pouring.

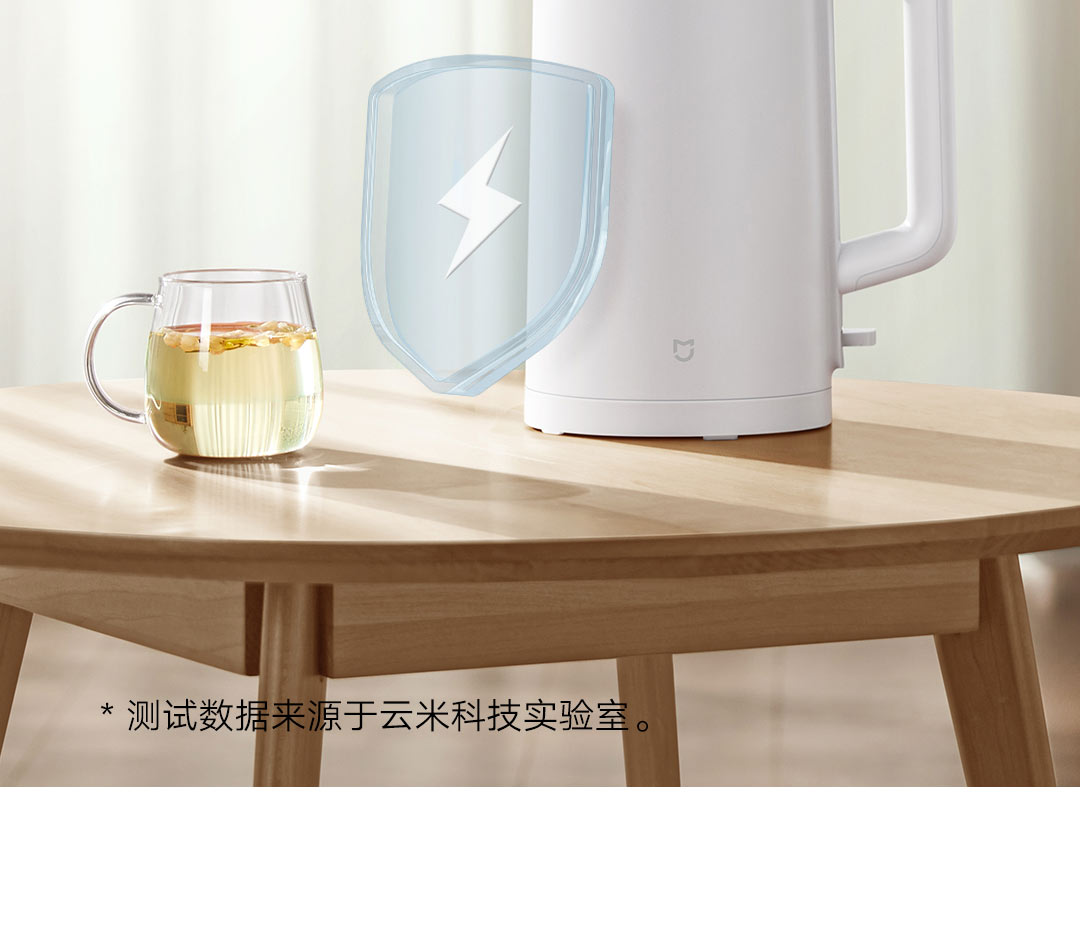

Figure 4.10: Multiple safety protections include dry-burning protection, high-temperature power-off, and steam sensing.

5. Specifications

6. Setup

1. Unpack: Carefully remove all packaging materials and ensure all parts are present.
2. Initial Cleaning: Before first use, fill the kettle with clean water to the MAX line, boil the water, and then discard it. Repeat this process 2-3 times to remove any manufacturing residues.
3. Placement: Place the power base on a flat, stable, heat-resistant surface. Ensure the kettle is not near the edge of the counter or within reach of children.
4. Power Connection: Plug the power cord into a suitable 220V/50Hz wall outlet.

7. Operating Instructions

1. Fill the Kettle: Open the lid using the two-stage damped opening mechanism (press the lid release button to open to 30°, then manually push to 65° if needed). Fill the kettle with fresh water, ensuring the water level is between the MIN and MAX marks. Close the lid securely.
2. Place on Base: Place the kettle firmly onto its power base. The kettle features a 360-degree rotational base for convenience.
3. Start Boiling: Press the power switch located on the handle. The visible heating light at the base will illuminate, indicating that the kettle is heating.
4. Automatic Shut-off: The kettle will automatically turn off once the water reaches a rolling boil. The heating light will extinguish.
5. Pouring Water: Carefully lift the kettle from the base. Use the rounded spout for smooth, controlled pouring without splashing.
6. Re-boiling: If you need to boil water again, wait a few moments for the internal thermostat to reset before pressing the power switch.

8. Maintenance and Cleaning

• Always unplug the kettle from the power outlet and allow it to cool completely before cleaning.
• Exterior Cleaning: Wipe the exterior of the kettle with a soft, damp cloth. Do not use abrasive cleaners or harsh chemicals.
• Interior Cleaning (Descaling): Over time, mineral deposits (limescale) may build up inside the kettle, especially in hard water areas. To descale:
  • Fill the kettle with a mixture of equal parts water and white vinegar (or a commercial descaling solution) to about half capacity.
  • Boil the mixture and let it stand for at least 30 minutes, or longer for heavy buildup.
  • Discard the mixture and rinse the interior thoroughly with fresh water several times.
  • For stubborn stains, a soft brush or sponge can be used on the stainless steel interior.
• Power Base: Never immerse the power base in water or any other liquid. Wipe it with a dry cloth if necessary.
• Storage: When not in use, store the kettle in a dry place. The power cord can be retracted into the base for neat storage.

9. Troubleshooting

10. Warranty and Support

Your Xiaomi Mi Electric Kettle N1 comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical support, troubleshooting assistance, or warranty claims, please contact your local Xiaomi service center or the retailer from whom you purchased the product.
