Shunt trip
INSTALLATION AND
OPERATING INSTRUCTION
S3C-A1 2CDS200982R0001
S3C-A2 2CDS200982R0002

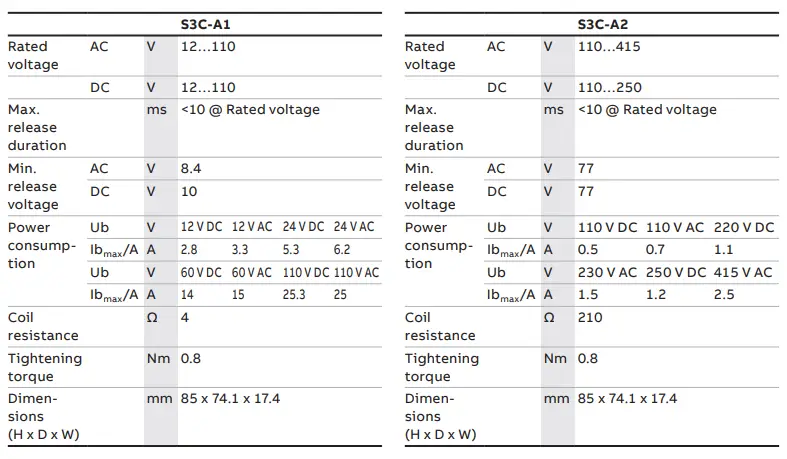

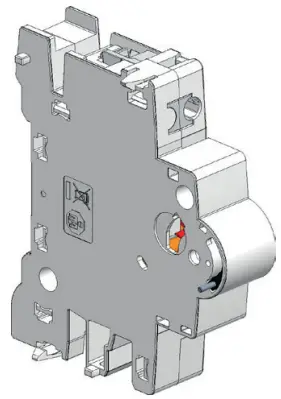

Shunt trip
1 wire 0.75 … 2.5 mm² /AWG 18-142 wires max. 2×1.5mm² /AWG 18-16 max. 2 wires per slot

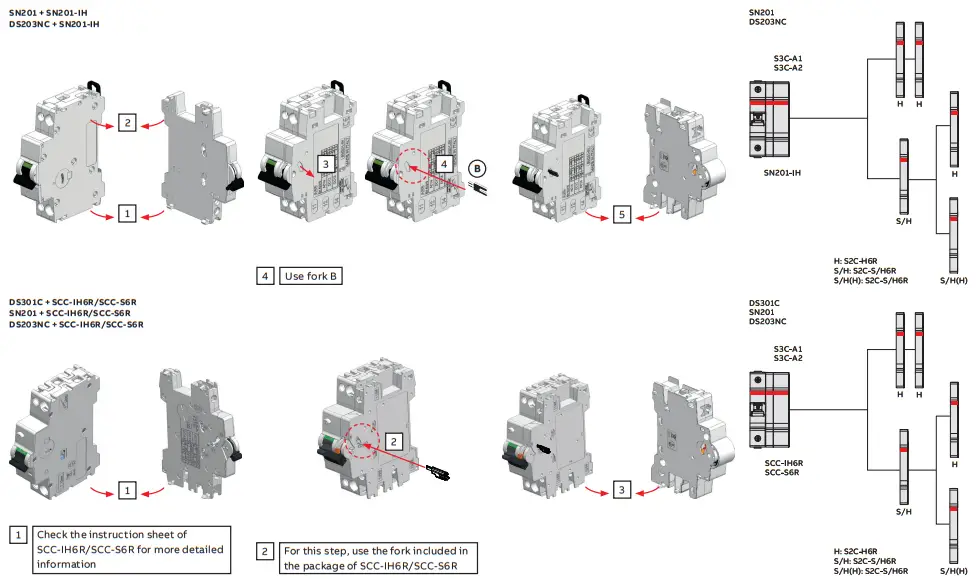

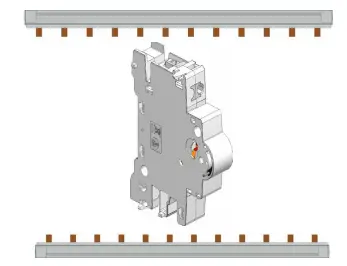

Busbar PS pass-through TOP and BOTTOM
Caution: When using S3C-A1 and S3C-A2 with OTHER busbar types, make sure that routing cable is not contacting with the pin of the busbar. Take into account also high bending radius.
Caution: When positioning the device on the edge, it must be positioned outside the busbar.
Protection against contact with the connection pins of the busbar must be ensured through suitable selection of the busbar, device positioning and covers.
Dimensional drawing
Contact us
ABB STOTZ-KONTAKT GmbH
Eppelheimer Str. 82
69123 Heidelberg
Germany
www.abb.com/lowvoltage
Warning! Installation by person with electro technical expertise only.
