8BitDo PCB Mod Kit for NGC Controller

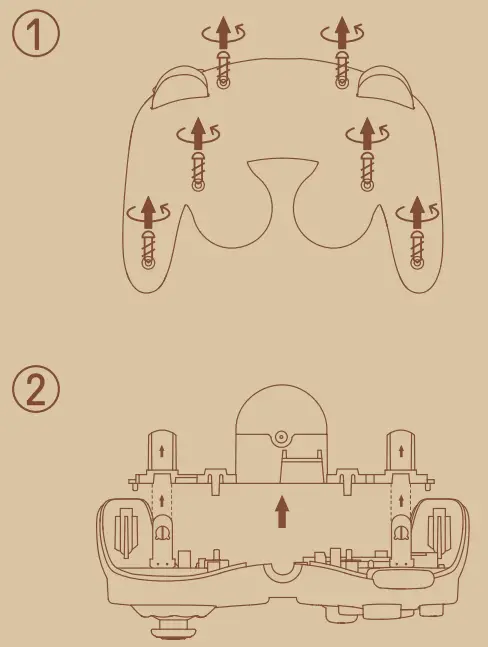

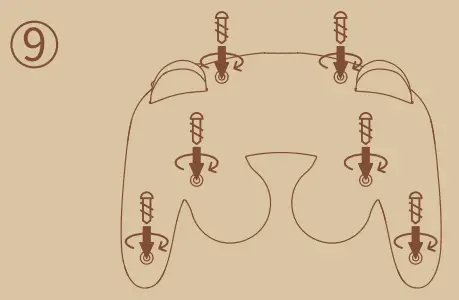

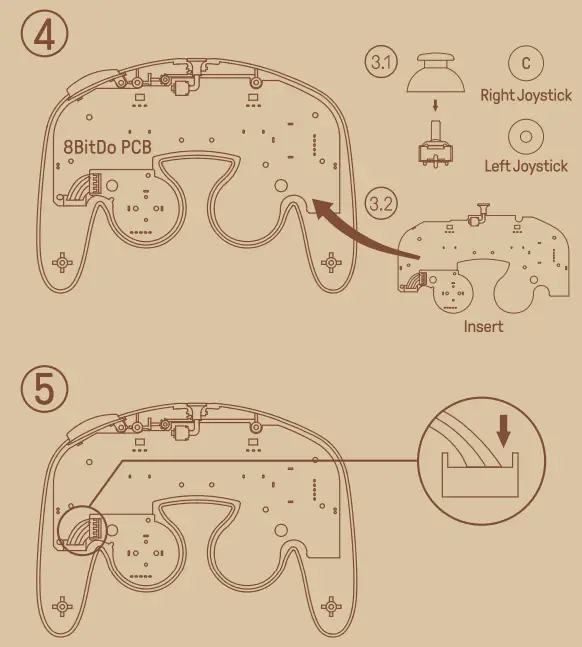

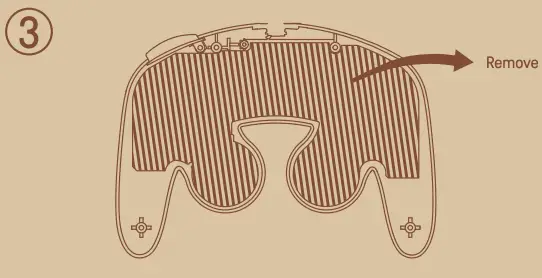

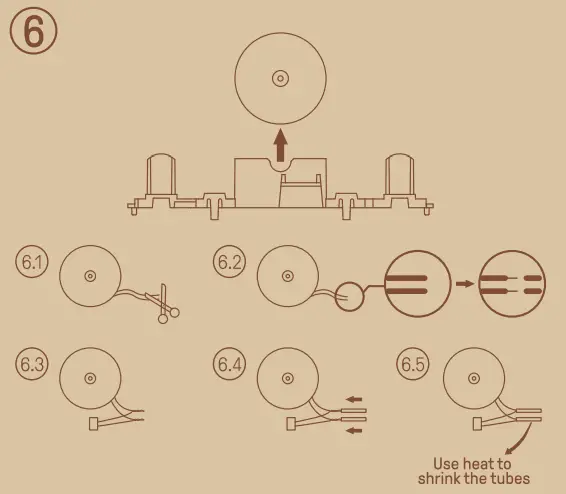

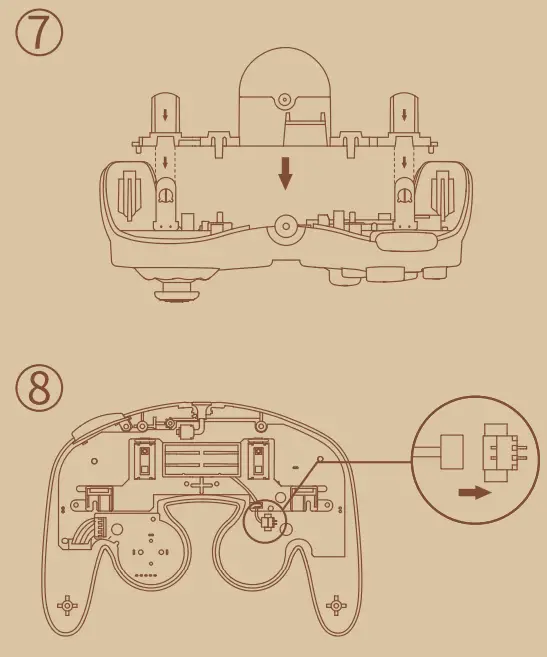

INSTALLATION
Please handle with care. 8BitDo is not liable for any damage incurred during use.
POWER
- Press the Start button to turn on the controller.
- Hold the Start button for 3 seconds to turn off the controller.
- Hold the Start button for 8 seconds to force the controller off.
Switch
- system requirements: Switch 3.0.0 or above.
Bluetooth Connection
- Ensure the controller is OFF, then press and hold Y+Start for 3 seconds to turn on the controller and enter its pairing mode, the Status LED will blink rapidly. (This is required for the very first time only.)
- Go to Switch’s Controller > Change Grip/Order, and wait for the connection.
- The Status LED will remain solid to indicate a successful connection.

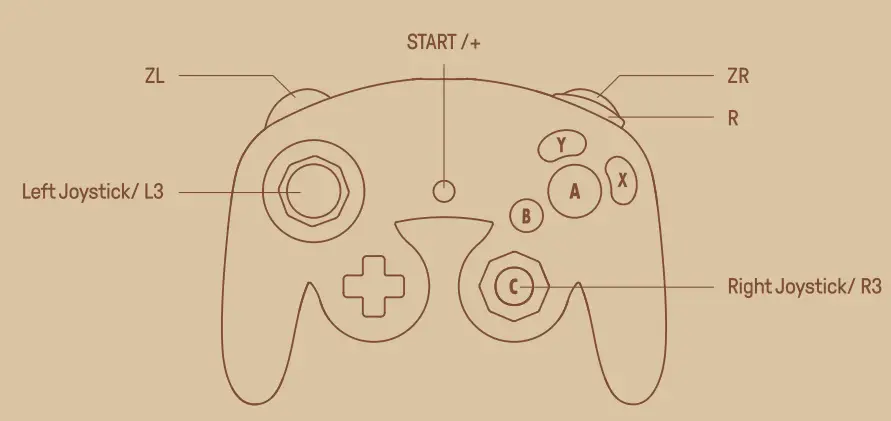

Hot Keys
- START + Down = Home Button
- START + Up = Back Button

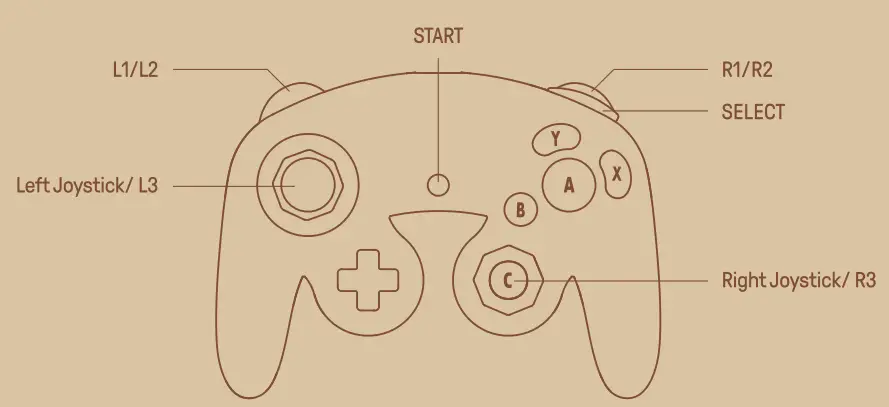

Android
- system requirements: Android 9.0 or above.
Bluetooth Connection
- Ensure the controller is OFF, then press and hold B+Start for 3 seconds to turn on the controller and enter its pairing mode, the Status LED will blink rapidly. (This is required for the very first time only.)
- Turn on the Bluetooth of your Android device and pair with [8BitDo NGC Modkit].
- The Status LED will remain solid to indicate a successful connection.
Battery
6 hours of playtime with a 300mAh built-in battery pack, rechargeable with 2 hours charging time.
The controller will automatically shut down if it fails to connect within 1 minute of startup, or if there are no operations within 15 minutes after establishing a connection.
Support
Please visit support.8bitdo.com for further information & additional support.
