ZKTECO VT07-B01 7 Inch Touch Screen Video Intercom System Installation Guide
Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the actual product and the written information in this manual.

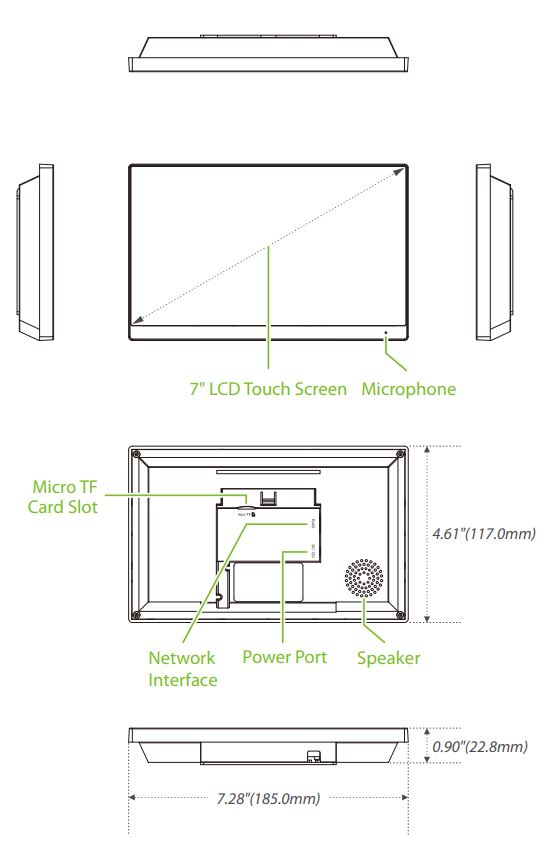

1. Dimensions
VT07-B01

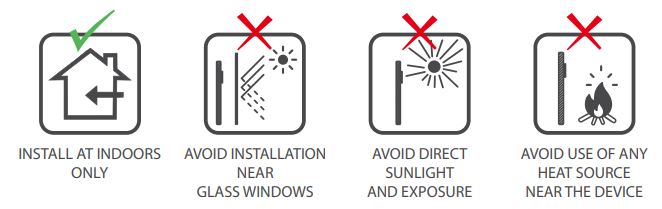

2. Installation Environment
3. Device Installation
Mode 1: Install on the wall
- Find a suitable indoor installation location, the recommended installation height is 59.1 inches (1.5m), which can be adjusted as needed.
- Attach the mounting template stickers to the wall and drill holes, then fix the back plate on the wall with the wall mounting screws.
- Finally, push the device into the back plate and secure it to the back plate.

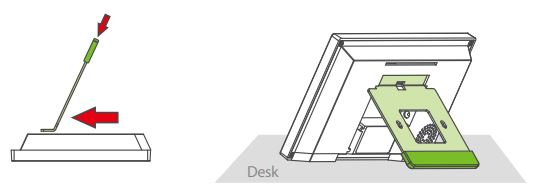

Mode 2: Install on the desktop
- Take out the device and the bracket from the box.
- Put the white bracket rubber sleeve on the bottom of the bracket.
- Finally, insert the bracket into the mounting slot behind the device.

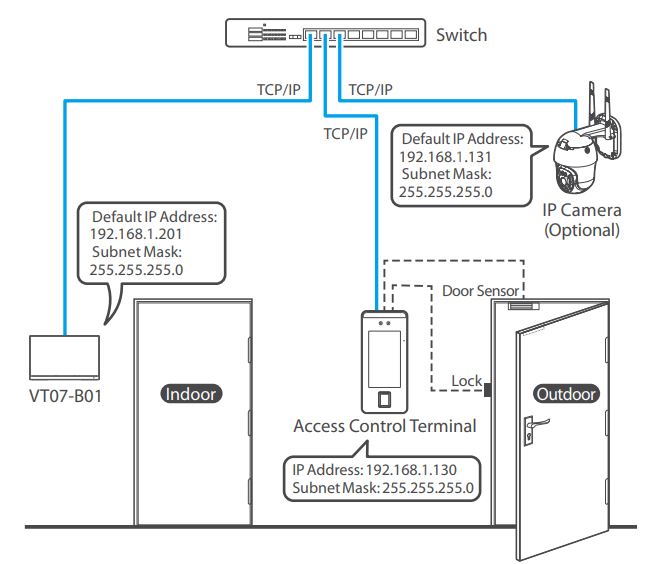

4. Connection Diagram
Note:
- VT07-B01, VTO and IP Camera are connected through out the network cable.
- In LAN, the IP addresses of all devices must be in the same network segment.
5. Ethernet Settings
Click Setting > Advanced Setting > Network Manage to enter the Wired Network Configuration Setting interface to set the network parameters.
6. Video Door Phone Connection

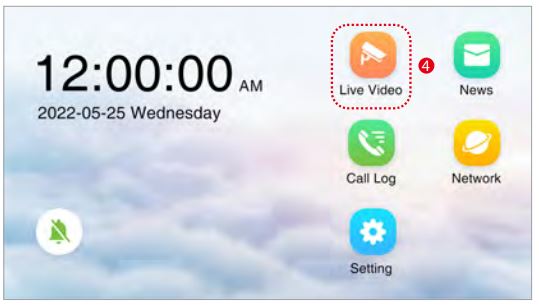

On the Video Intercom
Once the indoor station is configured with the network, the video intercom function can be activated by tapping the icon on the Video Intercom screen. Enter the IP address of the indoor station in the jumping interface.

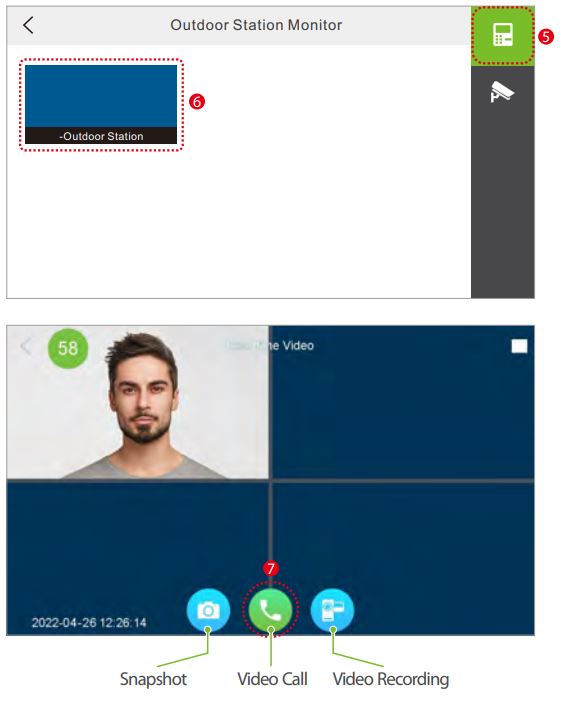

On the VT07-B01
After receiving the caller tone, you can perform the following operations.
ZKTeco Industrial Park, No. 32, Industrial Road,
Tangxia Town, Dongguan, China.
Phone : +86 769 – 82109991
Fax : +86 755 – 89602394
www.zkteco.com
