Home automation system push button control devices, KNX standard
SMART HOME&BUILDING
WELL – CONTACT PLUS
General characteristics
The new KNX home automation system devices constitute the evolution of all the control devices used to date, offering new functions teamed with an optimised range that guarantees flexibility and simple installation.
The new home automation system control devices stand out for:
- renovated styling and RGB backlighting (on Eikon and Arkè,e each symbol has backlighting, which is a more attractive and functional characteristic, whereas on Plana each indicator lens and non-illuminated symbol has backlighting);
- management of short, long and timed button press;
- single code for the three series: Eikon, Arkè and Plana (the button covers relating to the chosen wiring series are then fitted on the device);
- two types of modular design (2 and 3 modules) for maximum installation flexibility;
- 4 activations for 2-module devices (4 push buttons);
- 6 activations for 3-module devices (6 push buttons);
- RGB LED with adjustable brightness (visible in darkness/night function), colour coordinated with the thermostats;
- reduced dimensions of flush mounting box for more practical wiring;
- requiring the application of the new button covers in the 1- or 2-module versions, with a set of differentiated symbols for each series and finish, not compatible with the previously available controls.
1.1 Device firmware and ETS version to use
The ETS version to use according to the device firmware is identified via the digits of the serial number highlighted in red in the table below.
| Art. | Rev. | FW Vers. | ETS database |
| 30583 | 001 | 1.0.0 | 1.0 |
| 01583 | 001 | 1.0.0 | 1.0 |
| 01583.AX | 001 | 1.0.0 | 1.0 |
| 30588 | 001 | 1.0.0 | 1.0 |
| 01588 | 001 | 1.0.0 | 1.0 |
| 01588.AX | 001 | 1.0.0 | 1.0 |
Devices
General characteristics
The devices are equipped with four or six independent buttons that can be used as ON/OFF controls and for controlling roller shutters and lights. The device is KNX Data Secure and is equipped with a dedicated QR code to be used with ETS (version 5.5 and later) during configuration. Especially:
- Art. 30583-01583-01583.AX:
– 4 independent pushbuttons
– 4 RGB LEDs with configurable colour
– built-in temperature sensor - Art. 30588-01588-01588.AX:
– 6 independent pushbuttons
– 6 RGB LEDs with configurable colour
Functions
The push buttons can be used in two ways:
- Functions with independent push buttons:
– Sending ON, OFF, timed ON, forcing and toggle controls both on short press and on long press
– Switch ON and OFF on the rising edge and on the falling edge
– Calling up a scenario with a short press of the push button, calling up a second scenario or saving a scenario with a long press
– Sending cyclic or increasing/decreasing bit or byte sequences via short and long press
– Sending one or two values via short or long press of the push button
– Sending bit, byte or 2 byte controls via multiple close presses
– Roller shutter control
– Dimmer control - Functions possible with push buttons and 2 associated channels:
– Switch ON and OFF
– Dimmer control
– Roller shutter control
For all three functions, the direction of the controls can be inverted. - Temperature measurement (only for art. 30583-01583-01583.AX):
– Built-in sensor: measurement range from 0 °C to 40 °C, ±0.5 °C between 15 °C and 30 °C, ±0.8 °C at the extremes
– Adjustable temperature offset from -2 °C to 2 °C
– Cyclical transmission
– Send on change. - The following can be set for the RGB LEDs:
– The colour each individual LED, either by choosing from a list or by setting the RGB coordinates using the ETS software
– Brightness or flashing also using the ETS software
– The LED colours and brightness can be customised according to day/night time
– The LED colours and brightness can be customised according to load status
Communication objects and ETS parameters
SWITCHING MODULE AND PUSH BUTTON FUNCTIONAL UNITS
List of existing communication objects and standard settings
| No. | ETS name | Function | Description | Length | Flag 1 | ||||
| C | R | W | T | U | |||||
| 2 PUSH BUTTON MODE | |||||||||
| 1 | Up key | Value to send | (if set as “Push button” and the “switching 1 object” function is selected) – to send “ON/OFF/timed ON” messages. | 1 bit | X | X | X | ||
| 1 | Up key | Sends value – short press | (if set as “Push button” and “Short/Long press” function) – to send “Toggle/send ON/send OFF” messages with short press: if used in Toggle mode, also associate the object of “ON/OFF state” of the button in the same group as this object. | 1 bit | X | X | X | ||
| 1 | Up key | Send forcing | (if set as “Push button” and ” Switching module with several objects/Forcing” function) to send one of the forcing functions for selection as “forcing On/forcing OFF/Forced disable” | 2 bit | X | X | X | ||
| 1 | Up key | Send value – up | (if set as “Push button” and ” Switching module with several objects/on the edge” function) to send one of functions for selection as “ON/OFF on the rising edge” (pressing the button) | 1 bit | X | X | X | ||
| 1 | Up key | Scenario – short press | (if set as “Push button” and ” Switching module with several objects/Short-long press/call up or store scenario” function) to call up or store a scenario on short press. |
1 byte |
X | X | X | ||
| 1 | Up key | Send value – short press | (if set as “Push button” and ” Switching module with several objects/Value” function) to send a value that can be set between 0 and 255 on short press. | 1 byte | X | X | X | ||
| 1 | Up key | ON/OFF control | (if set as “Push button” and “Single push button dimming” func- tion) to control a dimmed light | 1 bit | X | X | X | ||
| 1 | Up key | Short sequence – Value 1 | (if set as “Push button” and “Switching module with several ob- jects/Sequence” function) – to send the first 1 bit or 1 byte se- quence message on short press. | 1 bit/1 byte | X | X | X | ||
| 1 | Up key | Multiple press – Value 1 | (if set as “Push button” and “Switching module with several ob- jects/Multiple presses” function) – to send a message at the first event of multiple presses. | 1bit/1byte/ 2byte | X | X | X | ||
| 1 | Keys | ON/OFF | (if set as “Switching module” and the “Power on/off” function is selected) – to send “On/Off” messages pressing the top/bottom or bottom/top part respectively (direction set by the parameter) on the double push button | 1 bit | X | X | X | ||
| 1 | Keys | ON/OFF control | (if set as “Switching module” and “Dimmer control” function) to control a dimmed light. The controls of the switching module can be inverted using the parameter. | 1 bit | X | X | X | ||
| 1 | Keys | Roller shutter Up/Down | (if set as “Switching module” and “Roller shutters” function) to control the operation of a roller shutter. The controls of the switch- ing module can be inverted using the parameter. | 1 bit | X | X | X | ||
| 1 | Up key | Sends value – long press | (if set as “Push button” and “short/long press” function) – to send “Toggle/send ON/send OFF” messages with long press: if used in Toggle mode, also associate the object of “ON/OFF state” of the button in the same group as this object. | 1 bit | X | X | X | ||
| 1 | Up key | Venetian blinds / Stop | (if set as “Push button” and “Roller shutter single push button control” function) – to stop the roller shutter on short press. | 1 bit | X | X | X | ||
| 1 | Up key | Send value – long press | (if set as “Push button” and ” Switching module with several objects/Value” function) – to send a value that can be set between 0 and 255 on long press. | 1 byte | X | X | X | ||
| 2 | Up key | Dimmer control | (if set as “Push button” and “Single push button dimming” func- tion) to control a dimmed light | 4 bit | X | X | X | ||
| 2 | Up key | Send value – down | (if set as “Push button” and ” Switching module with several objects/on the edge” function) to send one of functions for selection as “ON/OFF on the falling edge (release the button) | 1 bit | X | X | X | ||
| 2 | Up key | Send forcing | (if set as “Push button” and ” Switching module with several objects/Forcing” function) to send one of the forcing functions for selection as “forcing On/forcing OFF/Forced disable” | 2 bit | X | X | X | ||
| 2 | Up key | Scenario – long press | (if set as “Push button” and ” Switching module with several objects/Short-long press/call up or store scenario” function) to call up or store a scenario on long press. | 1 byte | X | X | X | ||
| 2 | Up key | Short sequence – Value 2 | (if set as “Push button” and “Switching module with several objects/Sequence” function) – to send the second 1 bit or 1 byte sequence message on short press. | 1 bit/1 byte | X | X | X | ||
| No. | ETS name | Function | Description | Length | Flag 1 | ||||
| C | R | W | T | U | |||||
| 2 | Up key | Multiple press – Value 2 | (if set as “Push button” and “Switching module with several objects/Multiple presses” function) – to send a message at the sec- ond event of multiple presses. | 1bit/1byte/ 2byte | X | X | X | ||
| 2 | Keys | Dimmer control | (if set as “Switching module” and “Dimmer control” function) to control a dimmed light | 4 bit | X | X | X | ||
| 2 | Keys | Venetian blind ON/OFF | (if set as “Switching module” and “Roller shutters” function) to stop a roller shutter or the movement of the slat | 1 bit | X | X | X | ||
| 3 | Up key | Short sequence – Value 3 | (if set as “Push button” and “Switching module with several objects/Sequence” function) – to send the third 1 bit or 1 byte se- quence message on short press. | 1bit/1byte | X | X | X | ||
| 3 | Up key | Multiple press – Value 3 | (if set as “Push button” and “Switching module with several objects/Multiple presses” function) – to send a message at the third event of multiple presses. | 1bit/1byte/ 2byte | X | X | X | ||
| 4 | Up key | ON/OFF state ON/OFF state – short press Roller shutter state | (if set as “Push button” and “Single push button dimming” func- tion or ” Switching module with several objects/Short-long press/ toggle” or “Roller shutter single push button control” function se- lected) this object must be associated with the group with the light “ON/OFF control” datapoint (relay or dimmer) or the roller shutter “roller shutter up/down” datapoint to receive the ON/OFF state of the associated load. If this is not the case, it will be unable to manage light control or roller shutter operation. | 1 bit | X | X | X | ||
| 4 | Up key | Multiple press – Value 4 | (if set as “Push button” and “Switching module with several objects/Multiple presses” function) – to send a message at the fourth event of multiple presses. | 1bit/1byte/ 2byte | X | X | X | ||
| 4 | Up key | Short sequence – Value 4 | (if set as “Push button” and “Switching module with several ob- jects/Sequence” function) – to send the fourth 1 bit or 1 byte se- quence message on short press. | 1bit/1byte | X | X | X | ||
| 5 | Up key | ON/OFF state – long press | (if set as “Push button” and “Switching module with several ob- jects/Short-long press/toggle” function) – this object must be as- sociated with the group with the light “ON/OFF control” datapoint on long press to receive the ON/OFF state of the associated load. If this is not the case, it will be unable to manage light control. | 1 bit | X | X | X | ||
| 5 | Up key | Long sequence – Value 1 | (if set as “Push button” and “Switching module with several ob- jects/Sequence” function) – to send the first 1 bit or 1 byte se- quence message on long press. | 1bit/1byte | X | X | X | ||
| 6 | Up key | Long sequence – Value 2 | (if set as “Push button” and “Switching module with several ob- jects/Sequence” function) – to send the second 1 bit or 1 byte sequence message on long press. | 1bit/1byte | X | X | X | ||
| 7 | Up key | Long sequence – Value 3 | (if set as “Push button” and “Switching module with several ob- jects/Sequence” function) – to send the third 1 bit or 1 byte se- quence message on long press. |
1bit/1byte |
X | X | X | ||
| 8 | Up key | Long sequence – Value 4 | (if set as “Push button” and “Switching module with several ob- jects/Sequence” function) – to send the fourth 1 bit or 1 byte se- quence message on long press. | 1bit/1byte | X | X | X | ||
| 9 | upper LED | State | To display an ON or OFF state on the LED with a colour (red, green, blue, amber, white, cyan, magenta, RGB custom triple) and the type selected during configuration (maximum brightness, medium brightness, minimum brightness, OFF, rapid flashing, slow flashing) | 1 bit | X | X | X | ||
| 10 | Down key | Value to send | (if set as “Push button” and the “switching 1 object” function is selected) – to send “ON/OFF/timed ON” messages. | 1 bit | X | X | X | ||
| 10 | Down key | Sends value – short press | (if set as “Push button” and “Short/Long press” function) – to send “Toggle/send ON/send OFF” messages with short press: if used in Toggle mode, also associate the object of “ON/OFF state” of the button in the same group as this object. | 1 bit | X | X | X | ||
| 10 | Down key | Send forcing | (if set as “Push button” and ” Switching module with several ob- jects/Forcing” function) to send one of the forcing functions for selection as “forcing On/forcing OFF/Forced disable” | 2 bit | X | X | X | ||
| 10 | Down key | Send value – up | (if set as “Push button” and ” Switching module with several ob- jects/on the edge” function) to send one of functions for selection as “ON/OFF on the rising edge” (pressing the button) | 1 bit | X | X | X | ||
| 10 | Down key | Scenario – short press | (if set as “Push button” and ” Switching module with several ob- jects/Short-long press/call up or store scenario” function) to call up or store a scenario on short press. | 1 byte | X | X | X | ||
| No. | ETS name | Function | Description | Length | Flag 1 | ||||
| C | R | W | T | U | |||||
| 10 | Down key | Send value – short press | (if set as “Push button” and ” Switching module with several ob- jects/Value” function) to send a value that can be set between 0 and 255 on short press. | 1 byte | X | X | X | ||
| 10 | Down key | ON/OFF control | (if set as “Push button” and “Single push button dimming” func- tion) to control a dimmed light | 1 bit | X | X | X | ||
| 10 | Down key | Short sequence – Value 1 | (if set as “Push button” and “Switching module with several ob- jects/Sequence” function) – to send the first 1 bit or 1 byte se- quence message on short press. | 1 bit/1 byte | X | X | X | ||
| 10 | Down key | Multiple press – Value 1 | (if set as “Push button” and “Switching module with several ob- jects/Sequence” function) – to send the first 1 bit or 1 byte se- quence message on short press. | 1bit/1byte/ 2byte | X | X | X | ||
| 10 | Down key | Sends value – long press | (if set as “Push button” and “short/long press” function) – to send “Toggle/send ON/send OFF” messages with long press: if used in Toggle mode, also associate the object of “ON/OFF state” of the button in the same group as this object. | 1 bit | X | X | X | ||
| 10 | Down key | Venetian blinds / Stop | (if set as “Push button” and “Roller shutter single push button control” function) – to stop the roller shutter on short press. | 1 bit | X | X | X | ||
| 10 | Down key | Send value – long press | (if set as “Push button” and ” Switching module with several ob- jects/Value” function) – to send a value that can be set between 0 and 255 on long press. | 1 byte | X | X | X | ||
| 11 | Down key | Dimmer control | (if set as “Push button” and “Single push button dimming” func- tion) to control a dimmed light | 4 bit | X | X | X | ||
| 11 | Down key | Send value – down | (if set as “Push button” and ” Switching module with several ob- jects/on the edge” function) to send one of functions for selection as “ON/OFF on the falling edge (release the button) |
1 bit |
X | X | X | ||
| 11 | Down key | Send forcing | (if set as “Push button” and ” Switching module with several ob- jects/on the edge” function) to send one of functions for selection as “ON/OFF on the falling edge (release the button) | 2 bit | X | X | X | ||
| 11 | Down key | Scenario – long press | (if set as “Push button” and ” Switching module with several ob- jects/Short-long press/call up or store scenario” function) to call up or store a scenario on long press. | 1 byte | X | X | X | ||
| 11 | Down key | Short sequence – Value 2 | (if set as “Push button” and “Switching module with several ob- jects/Sequence” function) – to send the second 1 bit or 1 byte sequence message on short press. | 1 bit/1 byte | X | X | X | ||
| 11 | Down key | Multiple press – Value 2 | (if set as “Push button” and “Switching module with several ob- jects/Multiple presses” function) – to send a message at the sec- ond event of multiple presses. | 1bit/1byte/ 2byte | X | X | X | ||
| 11 | Keys | Dimmer control | (if set as “Switching module” and “Dimmer control” function) to control a dimmed light | 4 bit | X | X | X | ||
| 11 | Keys | Venetian blind ON/OFF | (if set as “Switching module” and “Roller shutters” function) to stop a roller shutter or the movement of the slat | 1 bit | X | X | X | ||
| 12 | Down key | Short sequence – Value 3 | (if set as “Push button” and “Switching module with several ob- jects/Sequence” function) – to send the third 1 bit or 1 byte se- quence message on short press. | 1bit/1byte | X | X | X | ||
| 12 | Down key | Multiple press – Value 3 | (if set as “Push button” and “Switching module with several ob- jects/Multiple presses” function) – to send a message at the third event of multiple presses. | 1bit/1byte/ 2byte | X | X | X | ||
| 13 | Down key | ON/OFF state ON/OFF state – short press Roller shutter state | (if set as “Push button” and “Single push button dimming” func- tion or ” Switching module with several objects/Short-long press/ toggle” or “Roller shutter single push button control” function se- lected) this object must be associated with the group with the light “ON/OFF control” datapoint (relay or dimmer) or the roller shutter “roller shutter up/down” datapoint to receive the ON/OFF state of the associated load. If this is not the case, it will be unable to manage light control or roller shutter operation. | 1 bit | X | X | X | ||
| 13 | Down key | Multiple press – Value 4 | (if set as “Push button” and “Switching module with several objects/Multiple presses” function) – to send a message at the fourth event of multiple presses. | 1bit/1byte/ 2byte | X | X | X | ||
| 13 | Down key | Short sequence – Value 4 | (if set as “Push button” and “Switching module with several ob- jects/Sequence” function) – to send the fourth 1 bit or 1 byte se- quence message on short press. | 1bit/1byte | X | X | X | ||
| No. | ETS name | Function | Description | Length | Flag 1 | ||||
| C | R | W | T | U | |||||
| 14 | Down key | ON/OFF state – long press | (if set as “Push button” and “Switching module with several ob- jects/Short-long press/toggle” function) – this object must be as- sociated with the group with the light “ON/OFF control” datapoint on long press to receive the ON/OFF state of the associated load. If this is not the case, it will be unable to manage light control. | 1 bit | X | X | X | ||
| 14 | Down key | Long sequence – Value 1 | (if set as “Push button” and “Switching module with several ob- jects/Sequence” function) – to send the first 1 bit or 1 byte se- quence message on long press. | 1bit/1byte | X | X | X | ||
| 15 | Down key | Long sequence – Value 2 | (if set as “Push button” and “Switching module with several ob- jects/Sequence” function) – to send the second 1 bit or 1 byte sequence message on long press. | 1bit/1byte | X | X | X | ||
| 16 | Down key | Long sequence – Value 3 | (if set as “Push button” and “Switching module with several ob- jects/Sequence” function) – to send the third 1 bit or 1 byte se- quence message on long press. | 1bit/1byte | X | X | X | ||
| 17 | Down key | Long sequence – Value 4 | (if set as “Push button” and “Switching module with several ob- jects/Sequence” function) – to send the fourth 1 bit or 1 byte se- quence message on long press. | 1bit/1byte | X | X | X | ||
| 18 | Lower LED | State | To display an ON or OFF state on the LED with a colour (red, green, blue, amber, white, cyan, magenta, RGB custom triple) and the type selected during configuration (maximum brightness, medium brightness, minimum brightness, OFF, rapid flashing, slow flashing) | 1 bit | X | X | X | ||
| 41 | Temperature | Temperature | To find out the temperature read by the sensor on board the control (this object is only present in art. 30583-01583-01583.AX) | 2 byte | X | X | X | ||
| 43 | Day/Night | State | To set the day/night mode with which the device changes the colour of the LEDs | 1 bit | X | X | |||
C = Communication; R = Read; W = Write; T = Transmission; U = Enable update
| Number of communication objects | Max. number of group addresses | Max. number of associations |
| 20 | 254 | 255 |
Reference ETS parameters

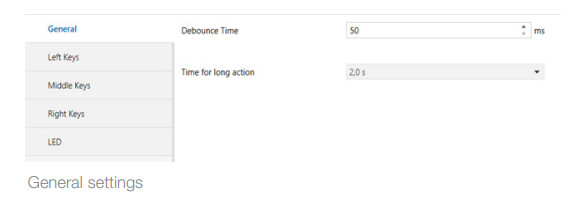

General
The device can be used in the “push button” mode, completed with 1-module interchangeable buttons (e.g. 20751) and using the 4 keys associated with 4 different functions separately (push button function), or by associating the top/bottom keys of the left or right side to a single function (switching module function).
General parameters
| ETS text | Values available | Comment |
| [Default value] | ||
| Debounce time | 50…500 ms | Time during which the control ignores any state change (mini- mum pressing time) |
| [50] | ||
| Time for long action [s] | 1…30 s | Minimum press time to per- form the action associated with a long press |
| [2] |
Button configuration
Each button can be configured like a push button or 2 buttons can be grouped together to act as a rocker button.
Button configuration
| ETS text | Values available | Comment |
| [Default value] | ||
| Basic function of the buttons | 0 = deactivated | “Push button” can be used as “Switching module with one object”, “Switching module with several objects”, “Single push button dimming” or “Roller shutter single button control”. “Switching module” can be used as “ON/OFF switching”, “Dimmer control” or “Roller Shutters” |
| 1 = push button | ||
| 2 = switching module | ||
| [0] |
PUSH BUTTON Mode
Each button can operate as a push button.
The parameter configuration is shown in the table below.
Push button configuration
| ETS text | Values available | Comment |
| [Default value] | ||
| Function | 255 = disabled | Identical for top and bottom (left, right and, where present, central) buttons |
| 0 = switching one object | ||
| 1 = switching several objects | ||
| 2 = single push button dimming | ||
| 3 = single push button roller shutter control | ||
| [255] |
Let’s look in detail at the functions that can be associated with the button set as “Push button”.
“Switching one object” parameters
| ETS text | Values available | Comment |
| [Default value] | ||
| Value to send | 0 = send ON | Possibility of choosing whether to send an ON message, an OFF message or an ON mes- sage with a set time |
| 1 = send OFF | ||
| 2 = timed ON | ||
| [0] | ||
| Time in seconds | 1…32000 s | Only if timed |
| [30] |
“Switching several objects” parameters
| ETS text | Values available | Comment |
| [Default value] | ||
| Type of operation | 0 = On the edge | Possibility of choosing the behaviour and sending over sev- eral objects |
| 1 = Short/Long press | ||
| 2 = Force | ||
| 3 = Value | ||
| 4 = Sequence | ||
| 5 = Multiple presses | ||
| [0] |
“Switching several objects/on the edge” parameters
To obtain a “Bell” ON/OFF and OFF/ON function.
| ETS text | Values available | Comment |
| [Default value] | ||
| Value on the rising edge | 0 = send OFF | On pressing the push button it will send ON or OFF |
| 1 = send ON | ||
| [1] | ||
| Value on the falling edge | 0 = send OFF | On releasing the push button it will send ON or OFF |
| 1 = send ON | ||
| [0] |
“Switching several objects/Short-long press” parameter with Toggle and ON/OFF” options
To send cyclical ON/OFF messages with push button.
| ETS text | Values available | Comment |
| [Default value] | ||
| Short press func- tion | No reaction | Possibility of choosing the mes- sage to send on a short press of the push button. By choosing “Toggle”, ON/OFF/ON etc. will be sent in sequence with each press of the push button. Both the con- trol object and the push button “State” object must be associated with the group |
| Toggle | ||
| Send ON | ||
| Send OFF | ||
| [Toggle] | ||
| Long press func- tion | No reaction | Possibility of choosing the mes- sage to send on a short press of the push button. By choosing “Toggle”, ON/OFF/ON etc. will be sent in sequence with each press of the push button. Both the con- trol object and the push button “State” object must be associated with the group |
| Toggle | ||
| Send ON | ||
| Send OFF | ||
| [Toggle] |
“Switching several objects/Short-long press” parameter with options for the scenario
A scenario can be activated or stored.
| ETS text | Values available | Comment |
| [Default value] | ||
| Short press func- tion | 0 = no action | If enabled, a short push button press saves a scenario in the bus or calls up a scenario |
| 1 = stores scenario | ||
| 2= calls up another sce- nario | ||
| [0] | ||
| Scenario | 1-64 | Number of the scenario called up or saved on short press |
| [1] | ||
| Long press func- tion | 0 = no action | If enabled, a prolonged push button press saves a scenario in the bus or calls up another scenario |
| 1 = stores scenario | ||
| 2= calls up another sce- nario | ||
| [0] | ||
| Long press sce- nario | 1-64 | Number of the scenario called up or saved on long press |
| [1] |
“Switching several objects/Forcing” parameter The push button can be used for forcing functions.
| ETS text | Values available | Comment |
| [Default value] | ||
| Short press func- tion | 0 = no reaction | To send forced ON or OFF con- trols and to disable forcing on short press |
| 1 = forced ON | ||
| 2 = forced OFF | ||
| 3 = disable forcing | ||
| [0] | ||
| Long press func- tion | 0 = no reaction | To send forced ON or OFF con- trols and to disable forcing on long press |
| 1 = forced ON | ||
| 2 = forced OFF | ||
| 3 = disable forcing | ||
| [0] |

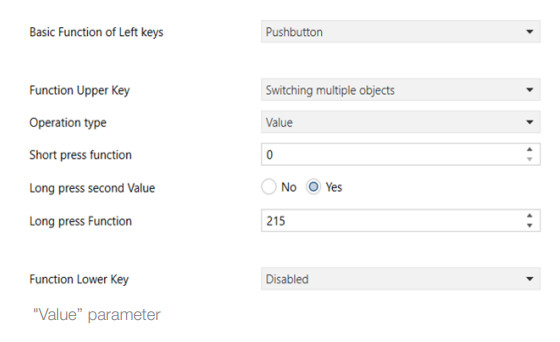

“Switching several objects/Value” parameter
To send a value 0÷255 on short or long push button press.
| ETS text | Values available | Comment |
| [Default value] | ||
| Short press func- tion | 0÷255 | Sends a value between “0” and “255” over the bus on a long push button press |
| Enables second value on long press | Yes | To enable a second value to send on long press |
| No | ||
| [No] | ||
| Long press func- tion | 0÷255 | Sends a value between “0” and “255” over the bus on a long push button press |

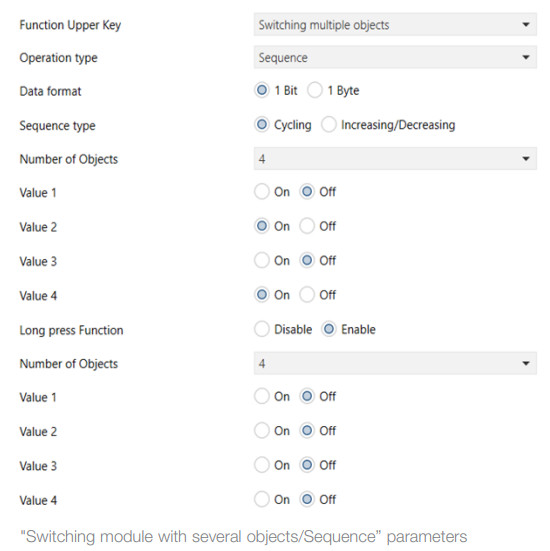

“Switching several objects/Sequence” parameters
| ETS text | Values available | Comment |
| [Default value] | ||
| Data format | 0 = 1 bit | Type of data to send |
| 1 = 1 byte | ||
| [0] |
If data format = 1 bit
| Type of sequence | 0 = Cyclical | By choosing cyclical sequence, for each press the data on the objects Value 1, Value 2, Value 3, Value 4, Value 1, Value 2, Value 3, Value 4… are sent By choosing increasing/ decreasing sequence, the data on the objects Value 1, Value 2, Value 3, Value 4, Value 3, Value 2, Value 1, Value 2, Value 3, Value 4… are sent |
| 1 = Increasing/Deceas- ing | ||
| [0] | ||
| Number of objects | 0÷4 | Number of objects concerned in the sequence for short press |
| [2] | ||
| Value 1..n | 0 = ON | ON or OFF values to send for short press |
| 1 = OFF | ||
| [1] | ||
| Long press func- tion | Disable | Enabling of the sequence func- tion for long press |
| Enable | ||
| [Disable] | ||
| Number of objects | 0÷4 | Number of objects concerned in the sequence for long press |
| [2] | ||
| Value 1..n | 0 = ON | ON or OFF values to send for long press |
| 1 = OFF | ||
| [1] |
If data format = 1 byte
| Type of sequence | 0 = Cyclical | By choosing cyclical sequence, for each press of the dedicated object, the data on the objects Value 1, Value 2, Value 3, Value 4, Value 1, Value 2, Value 3, Value 4… are sent By choosing increasing/ decreasing sequence, the data Value 1, Value 2, Value 3, Value 4, Value 3, Value 2, Value 1, Value 2, Value 3, Value 4… are sent |
| 1 = Increasing/Deceas- ing | ||
| [0] | ||
| Number of values | 0÷4 | Number of different values to send in the sequence for short press |
| [2] | ||
| Value 1..n | 0÷255 | Values to send for short press |
| [0] | ||
| Long press func- tion | Disable | Enabling of the sequence func- tion for long press |
| Enable | ||
| [Disable] | ||
| Number of values | 0÷4 | Number of different values to send in the sequence for long press |
| [2] | ||
| Value 1..n | 0÷255 | Values to send for long press |
| [0] |

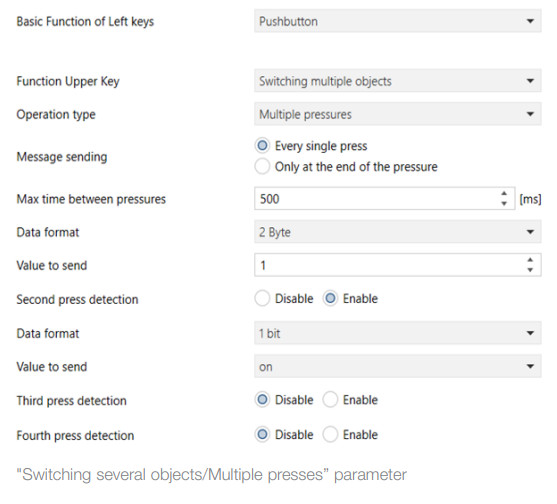

“Switching several objects/Multiple presses” parameters
| ETS text | Values available | Comment |
| [Default value] | ||
| Message trans- mission | 0 = Each single press | To establish whether to send the messages at all presses in the series or only at the end of the series. |
| 1 = Only at the end of pressing | ||
| [0] | ||
| Maximum time between presses | 100÷32000 ms | This time determines the end of the series of presses |
| [500] | ||
| Data format | 0 = 1 bit | Type of data to send |
| 1 = 1 byte | ||
| 2 = 2 byte | ||
| [0] | ||
| Value to send (if data format = 1bit) | 0 = OFF | 1 bit values to send for short press |
| 1 = ON | ||
| 2 = Toggle | ||
| [0] | ||
| Value 1..n (if data format = 1byte) | 0÷255 | 1 byte values to send for short press |
| [0] | ||
| Value 1..n (if data format = 2byte) | 0÷ 65535 | 2 byte values to send for short press |
| [0] | ||
| Detection of sec- ond press | Disable | Enabling management of sec- ond press |
| Enable | ||
| [Disable] | ||
| Data format | 0 = 1 bit | Type of data to send |
| 1 = 1 byte | ||
| 2 = 2 byte | ||
| [0] | ||
| Value to send (if data format = 1bit) | 0 = OFF | 1 bit values to send for short press |
| 1 = ON | ||
| 2 = Toggle | ||
| [0] | ||
| Value 1..n (if data format = 1byte) | 0÷255 | 1 byte values to send for short press |
| [0] | ||
| Value 1..n (if data format = 2byte) | 0÷ 65535 | 2 byte values to send for short press |
| [0] | ||
| Detection of third press | Disable | Enabling management of third press |
| Enable | ||
| [Disable] | ||
| Data format | 0 = 1 bit | Type of data to send |
| 1 = 1 byte | ||
| 2 = 2 byte | ||
| [0] | ||
| Value to send (if data format = 1bit) | 0 = OFF | 1 bit values to send for short press |
| 1 = ON | ||
| 2 = Toggle | ||
| [0] | ||
| Value 1..n (if data format = 1byte) | 0÷255 | 1 byte values to send for short press |
| [0] | ||
| Value 1..n (if data format = 2byte) | 0÷ 65535 | 2 byte values to send for short press |
| [0] |
| ETS text | Values available | Comment |
| [Default value] | ||
| Detection of fourth press | Disable | Enabling management of fourth press |
| Enable | ||
| [Disable] | ||
| Data format | 0 = 1 bit | Type of data to send |
| 1 = 1 byte | ||
| 2 = 2 byte | ||
| [0] | ||
| Value to send (if data format = 1bit) | 0 = OFF | 1 bit values to send for short press |
| 1 = ON | ||
| 2 = Toggle | ||
| [0] | ||
| Value 1..n (if data format = 1byte) | 0÷255 | 1 byte values to send for short press |
| [0] | ||
| Value 1..n (if data format = 2byte) | 0÷ 65535 | 2 byte values to send for short press |
| [0] |
“Single push button dimming” parameter Dimmer control with a single push button.
| ETS text | Values available | Comment |
| [Default value] | ||
| Dimming step | 1.5…. 100% | Sets the control speed |
| [100%] | ||
| Repeat control tel- egrams | 0 = No | Sets the control mode (con- tinuous or step-step) |
| 1 = Yes | ||
| [0] | ||
| Repeat time | 0.3.. 5 s | Control message repeat time |
| [1.0 s] |
“Single push button roller shutter control” parameter Roller shutter control with a single push button.
| ETS text | Values available | Comment |
| [Default value] | ||
| Roller shutter behaviour | Roller shutter up (long press), stop/step (short press) | Possibility of choosing the behaviour for short and long press |
| Roller shutter down (long press), stop/step (short press) | ||
| Roller shutter toggle move- ment (long press), stop (short press) | ||
| Roller shutter up (short press), stop/step (long press) | ||
| Roller shutter down (short press), stop/step (long press) | ||
| Roller shutter toggle move- ment (short press), stop (long press) | ||
| [Roller shutter up (long press), stop/step (short press)] | ||
| Stop Sending on release | 0 = No | Possibility of choosing whether to send the stop when the push button is released |
| 1 = Yes | ||
| [0] |
Note.
By setting “Push button” and selecting the “Single push button dimming” function or the “Toggle object” function or the “Single push button roller shutter control” function, this object must be associated with the group with the light “ON/OFF control” datapoint (relay or dimmer) or the roller shutter “roller shutter up/down” datapoint to receive the ON/OFF state of the associated load. If this is not the case, it will be unable to manage light control or roller shutter operation.
Let’s look in detail at the functions that can be associated with the button set as “Switching module”.
“Switching module” configuration
For relay controls, dimmers, roller shutters with two push buttons acting as a switching module.
| ETS text | Values available [Default value] | Comment |
| Function | 0= ON/OFF | |
| 1 = dimmer control | ||
| 2 = roller shutters | ||
| [0] |

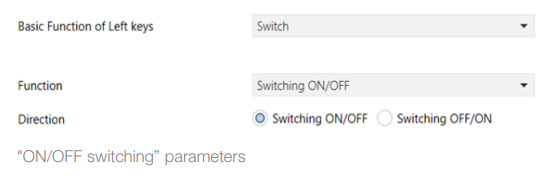

“ON/OFF switching” parameter
To send ON/OFF messages with push button.
| ETS text | Values available | Comment |
| [Default value] | ||
| Direction | 0 = ON/OFF switching | Possibility of choosing the direction of the switching module |
| 1 = OFF/ON switching | ||
| [0] |
“Dimmer control” parameter
| ETS text | Values available | Comment |
| [Default value] | ||
| Dimming step | 0…. 100% | Sets the control speed |
| [100%] | ||
| Direction | Brighter/Darker | Possibility of choosing the direction of the switching module |
| Darker/Brighter | ||
| [Brighter/Darker] |
“Roller shutter control” parameter
| ETS text | Values available | Comment |
| [Default value] | ||
| Function | Roller shutter move- ment (long press), Stop/ Step (short press) | Possibility of choosing the behaviour for short and long press |
| Roller shutter movement (short press), Stop/Step (long press) | ||
| [Roller shutter move- ment (long press), Stop/Step (short press)] | ||
| Functions for switching module pressing | Roller shutter move- ment (long press), Stop/ Step (short press) | Possibility of choosing the behaviour for short and long press |
| Roller shutter move- ment (short press), Stop/Step (long press) | ||
| [Roller shutter move- ment (long press), Stop/Step (short press)] | ||
| Stop Sending on release | 0 = No | Possibility of choosing whether to send the stop when the push button is released |
| 1 = Yes | ||
| [0] | ||
| Direction | Upper button pressed for roller shutter up, low- er button pressed for roller shutter down | Possibility of choosing the direction of the switching module |
| Upper button pressed for roller shutter down, lower button pressed for roller shutter up | ||
| [Upper button pressed for roller shutter up, lower button pressed for roller shutter down] |
LED
LED parameters
| ETS text | Values available | Comment |
| [Default value] | ||
| Select upper/lower LH, RH or central colour | Default colours | Possibility of choos- ing between standard colours or the user’s RGB setting |
| Custom colours | ||
| [Default colours] |

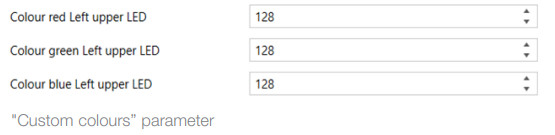

“Custom colours” parameter
Used to set a different colour from those in the default list.
| ETS text | Values available | Comment |
| [Default value] | ||
| Red, green, blue (for each LED) | 0….255 | Possibility of choos- ing a user RGB setting for the LED colour |
| [128] |

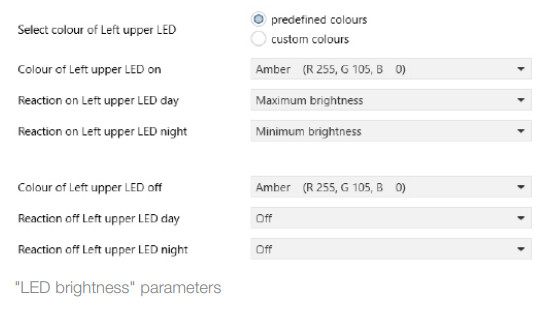

“LED brightness” parameter
Used to set the state of each LED according to the related object value.
| ETS text | Values available | Comment |
| [Default value] | ||
| Reaction on Day LED ON | Maximum brightness | Possibility of choosing the LED behaviour when the related object is ON and the Day/Night object is set to Day (0) |
| Medium brightness | ||
| Minimum brightness | ||
| OFF | ||
| Rapid flashing | ||
| Slow flashing | ||
| [Maximum brightness] | ||
| Reaction on Night LED ON | Maximum brightness | Possibility of choosing the LED behaviour when the related object is ON and the Day/Night object is set to Night (1) |
| Medium brightness | ||
| Minimum brightness | ||
| OFF | ||
| Rapid flashing | ||
| Slow flashing | ||
| [Maximum brightness] | ||
| Reaction on Day LED OFF | Maximum brightness | Possibility of choosing the LED behaviour when the related object is OFF and the Day/Night object is set to Day (0) |
| Medium brightness | ||
| Minimum brightness | ||
| OFF | ||
| Rapid flashing | ||
| Slow flashing | ||
| [Maximum brightness] | ||
| Reaction on Night LED OFF | Maximum brightness | Possibility of choosing the LED behaviour when the related object is OFF and the Day/Night object is set to Night (1) |
| Medium brightness | ||
| Minimum brightness | ||
| OFF | ||
| Rapid flashing | ||
| Slow flashing | ||
| [Maximum brightness] | ||
| Day/Night | 0 (Day) | Used to receive the related information from a supervisor, where not present the default is 0 (Day). If the device is restarted, the parameter is 0 (Day) |
| 1 (Night) | ||
| [0] |
Temperature measurement
(only for art 30583-01583-01583.AX)
Parameters
| ETS text | Values available | Comment |
| [Default value] | ||
| Temperature Offset | -2 °C… +2 °C | Calibration of sensor reading |
| [0] | ||
| Cyclic Send Time | 0… 30 min. | 0=OFF Activates the object cyclical transmission |
| [0=OFF] | ||
| Send on Change | 0… 1.0 °C | Sets the minimum measured temperature change with respect to the setpoint that will cause the sensor to send the current value over the bus to a supervisor |
| [0=OFF] | ||
| Name of temperature measured | Max 40 bytes | Name displayed only within the Indoor temperature sensor screen |
Viale Vicenza 14
36063 Marostica VI – Italy
www.vimar.com
Documents / Resources
 |
VIMAR 30583 4-button KNX Secure control [pdf] Installation Guide 30583 4-button KNX Secure control, 30583, 4-button KNX Secure control, KNX Secure control, Secure control, control |
