Package Contents

ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Package ContentsViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Package ContentsViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Package Contents

NOTE:

  • This product is packed in an air transport box.
  • Due to the size and weight, it is recommended that two or more people handle it.

Product Overview

Front Panel

ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Front Panel

Rear Panel

ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Rear Panel

Introduction

Before Installing

ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Exclamation mark iconMaintain an adequate air gap between the back of the display and any wall for proper ventilation.
ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Exclamation mark iconEnsure there is no direct airflow from air conditioning or heating vents blowing on the display.
ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Exclamation mark icon Avoid installing the display in places with high humidity.
ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Exclamation mark iconDue to high power usage, always use power cords specifically designed for this product.

Wall Mounting

Installing the Upper and Lower Wall Mount Brackets

ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Installing the Upper and Lower Wall Mount Brackets

  1. Ensure the wall area and size is an appropriate installation site.
    NOTE: The height of the Upper Wall Mount Brackets must not be less than 90.55″ (2.3 meters) from the ground.
  2. Using the Wall Mount Bracket (pictured above) as a guide, mark at least eight (8) holes and pre-drill them.
  3. Install the first Upper Wall Mount Bracket with the provided screws (M6x50mm Expansion for masonry; TA6x30mm for load bearing wood).
  4. Repeat Step 2, ensuring the second Upper Wall Mount Bracket is level with the first upper bracket.
    ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Repeat Step 2
  5. Install the Lower Wall Mount Brackets in the same manner as the Upper Wall Mount Brackets. The distance between the Upper and Lower Wall Mount Brackets is 641/16″ (1627.5 mm).
    NOTE: You can also install the Upper Wall Mount Brackets, hang the screen, and then install the Lower Wall Mount Brackets for a more precise fit.ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Install the Lower Wall Mount Brackets
    ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Exclamation mark iconEnsure the wall can safely support 297.62 lbs. (135 kg).
  6. After installing both Upper and Lower Wall Mount Brackets, the installation wall should look like:

ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Ensure the wall can safely

Installing the Middle Cabinets

  1. Ensure the Mounting Brackets on the rear of the three (3) Middle Cabinets are positioned at the top and bottom mounting positions as shown below:ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Ensure the Mounting Brackets
  2. Carefully lift each Middle Cabinet up onto the Upper Wall Mount Brackets.
    ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Carefully lift each Middle Cabinet
  3. Ensure the Mounting Brackets sit securely on the Wall Mount Brackets as shown below.
    ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Ensure the Mounting Brackets sit securely
  4. Push each Locking Bolt and lock each Hook with the hex tool to securely connect each cabinet together. It may be necessary to align the hole with an Allen wrench in order to engage the Locking Bolt. Push the Locking Bolt. Lock each Hook with the hex tool.
    ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Push each Locking Bolt
    NOTE: There are five (5) Locking Bolts and 10 Hooks between each cabinet.
  5. Lift the remaining Middle Cabinet up onto the Upper Wall Mount Brackets, ensuring the Mounting Brackets sit securely on the Wall Mount Brackets.
  6. Repeat Step 4, securing the cabinets together with each Locking Bolt and Hook.

ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Repeat Step 4

Installing the Left and Right Cabinet

  1. Ensure the Mounting Brackets on the rear of the Left and Right Cabinet are positioned at the top and bottom mounting positions as shown below:

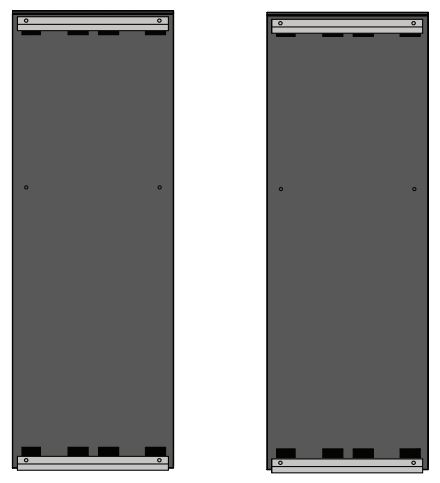

    ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Ensure the Mounting Brackets on the rear
  2. Carefully lift the Left and Right Cabinet up onto the Upper Wall Mount Brackets, ensuring the Mounting Brackets sit securely on the Wall Mount Brackets.ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Carefully lift the Left and Right Cabinet
  3. Adjust the Left or Right Cabinet so that they fit seamlessly with the Middle Cabinets.
  4. Push each Locking Bolt and lock each Hook with the hex tool to securely connect the Left and Right Cabinets. It may be necessary to align the hole with an Allen wrench in order to engage the Locking Bolt.

ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Push each Locking Bolt and lock each Hook with the hex tool

NOTE: There are five (5) Locking Bolts and 10 Hooks between each cabinet.

Connecting the System Control Box

  1. Carefully unfold the System Control Box panel. Ensure the main system control board is on the left.
    NOTE: Use caution as the System Control Box panel is separated into two pieces with wires attached.
  2. Align the holes of the Cabinet with the System Control Box to attach.ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Align the holes of the Cabinet with the System Control Box to attach
  3. You can also reinstall the power cable for an attractive appearance, Loosen the three(3) PWM 4x6mm screws, pull the power cable out, thread the power cable through the back hole and then fasten the screws tightly.
    ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - You can also reinstall the power cable for an attractive appearance
  4. Further secure the System Control Box to the Cabinets with the 20 provided M6x16mm screws.

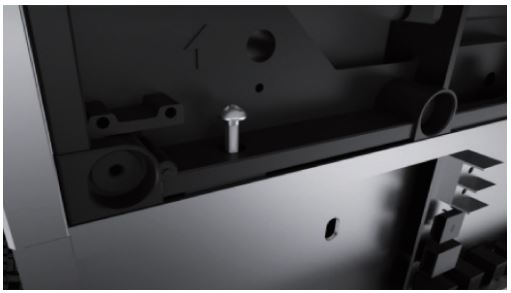

    ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Further secure the System Control Box
  5. Connect the Network and Power cables of the Cabinets to the System Control Box.

NOTE: There are five (5) Network and five (5) Power cables to connect.

ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Connect the Network and Power cables

Installing the LED Modules

Install each LED Module onto the Cabinets, being sure to match the corresponding numbers on the Module to the Cabinet.

ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Exclamation mark iconPlease wear Anti-Static Gloves before handling the LED modules.

ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Install each LED Module onto the Cabinets

Ensure each Module is flush and that there is little to no gap between each. It may be necessary to gently tap the module to make it flush.

ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Ensure each Module is flush

Installing System Control Box Covers

There are three (3) System Control Box Covers: Left, Middle, and Right.

ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - There are three (3) System Control Box Covers

  1. Begin by installing the Right Cover onto the System Control Box.
    NOTE: Ensure the Power Button cable is connected to the System Control Box Power cable before securing the Cover.
  2. After connecting the Power Button cable, ensure the Right Cover is properly aligned with the System Control Box; then secure it with the 12 provided KM3x6mm screws.
    ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - After connecting the Power Button cable
  3. Repeat the above steps for the Middle and Left Cover.ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Repeat the above steps for the Middle and Left Cover
  4. Your display is now ready to power on.

ViewSonic LD135-151 All-in-one Direct View LED Display User Guide - Your display is now ready to power on
