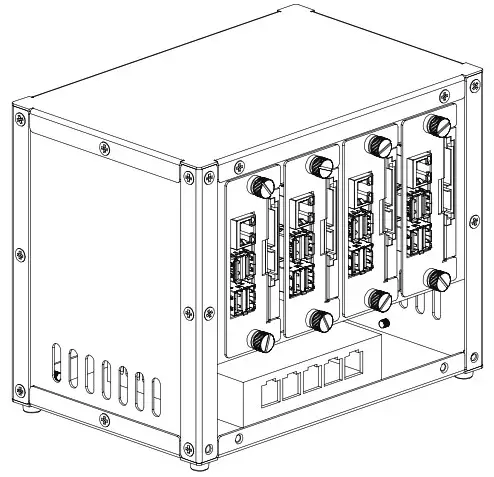

UCTRONICS U6260 Complete Enclosure for Raspberry Pi Cluster - Cover

SKU: U6260
ASSEMBLY GUIDE
www.uctronics.com

Package Contents

UCTRONICS U6260 Complete Enclosure for Raspberry Pi Cluster - Package Contents

Installation

  1. Install the fan to the back panel. Pay attention to the direction of the fan, the stickers should face the Raspberry Pi.
    UCTRONICS U6260 Complete Enclosure for Raspberry Pi Cluster - Installation 1
  2. Fix cooling fans with M5 * 10 screws.
    UCTRONICS U6260 Complete Enclosure for Raspberry Pi Cluster - Installation 2
  3. Install two frameworks to the back panels. Please note that all the screws for the enclosure are M3 * 4 countersunk screws.
    UCTRONICS U6260 Complete Enclosure for Raspberry Pi Cluster - Installation 3
  4. Mount the side panels to the frameworks.
    UCTRONICS U6260 Complete Enclosure for Raspberry Pi Cluster - Installation 4
  5. Install two frameworks on the other side of the side panel.
    UCTRONICS U6260 Complete Enclosure for Raspberry Pi Cluster - Installation 5
  6. Mount the front panel.
    UCTRONICS U6260 Complete Enclosure for Raspberry Pi Cluster - Installation 6
  7. Use the top panel to cover the top of the enclosure.
    UCTRONICS U6260 Complete Enclosure for Raspberry Pi Cluster - Installation 7
  8. Snap the bottom panel into the enclosure.
    UCTRONICS U6260 Complete Enclosure for Raspberry Pi Cluster - Installation 8

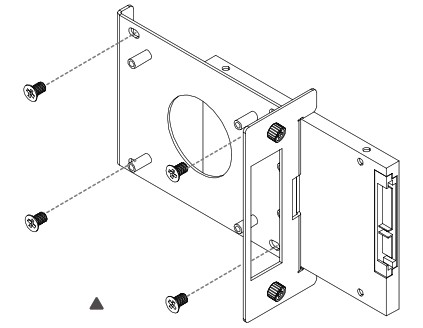

  9. Insert the 2.5-inch SSD into the mounting bracket, align the direction of the mounting hole, and fix it with M3*5 screws.
    UCTRONICS U6260 Complete Enclosure for Raspberry Pi Cluster - Installation 9

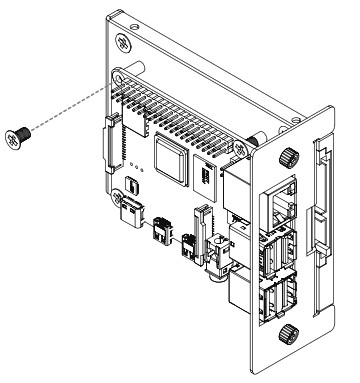

  10. Mount the Raspberry Pi with M2.5 *5 screws.
    UCTRONICS U6260 Complete Enclosure for Raspberry Pi Cluster - Installation 10
  11. Insert the fan adapter board into the power interface of Raspberry Pi.
    UCTRONICS U6260 Complete Enclosure for Raspberry Pi Cluster - Installation 11
  12. Polarity diagram of fan adapter.
    UCTRONICS U6260 Complete Enclosure for Raspberry Pi Cluster - Installation 12
  13. Connect the fan wire to the fan adapter board. Please pay attention to the red-and-black wires. Red represents the positive pole and black represents the negative pole.
    UCTRONICS U6260 Complete Enclosure for Raspberry Pi Cluster - Installation 13
  14. Tilt and insert the installed bracket into the case and fix it with Captive Loose-Off Screws.
    UCTRONICS U6260 Complete Enclosure for Raspberry Pi Cluster - Installation 14
  15. Insert the other Raspberry Pi mounting brackets into the enclosure.
    UCTRONICS U6260 Complete Enclosure for Raspberry Pi Cluster - Installation 15

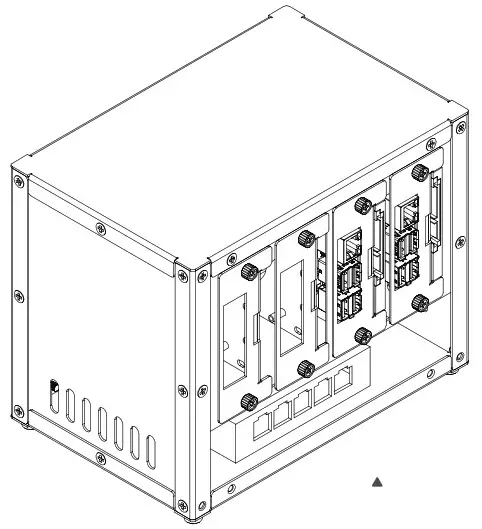

  16. Finally stick the footpads to the bottom panel. The installation is complete.
    UCTRONICS U6260 Complete Enclosure for Raspberry Pi Cluster - Installation 16
