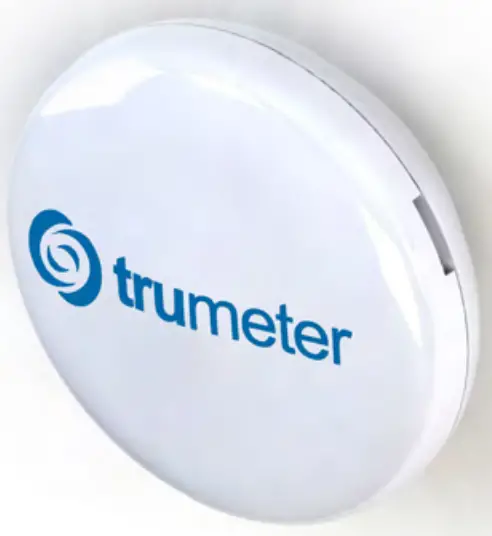

FlexAlert
from
QUICKSTART GUIDE
Starting and resetting the unit
1 Unclip housing by twisting a flat screwdriver in the slot between the front and rear cover.
2 To turn on, remove the battery insulation tab ensuring the battery remains in place.
To reset, remove the old battery. Insert the CR2032 battery into the battery holder. The markings on the battery holder specify the orientation of the battery.
Turning on the unit

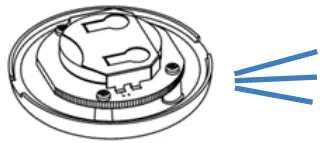

3 The buzzer will beep 4 times to confirm the battery is fitted correctly and the timer has now started.
4 Clip the rear cover back onto the front cover taking care to align the cutouts of front and rear housing.
Note: Unit begins to count to the pre-programmed time duration (1-732days). Once pre-programmed time has elapsed, the unit will make a repeated audible sound, beeping every 2 seconds until the battery is replaced.
Mounting using hook and loop
- Peel the film from one side and stick it to the rear cover of the unit.
- Peel film from the opposite side and stick hook and loop pad to the desired area.
Mounting using a cable tie
- Slide cable ties through the slots on the rear cover.
- Tighten cable around pipe or filter.
Contact us
Europe – Trumeter
Pilot Mill, Alfred Street, Bury, BL9 9EF UK
Tel: +44 161 674 0960 Email: sales.uk@trumeter.com
Americas – Trumeter
6601 Lyons Rd, Suite H-7, Coconut Creek, Florida, 33073 USA
Tel: +1 954 725 6699 Email: sales.usa@trumeter.com
Asia Pacific – Innovative Design Technologies
Lot 5881, Lorong Iks Bukit Minyak 1 Taman Perindustrian Iks,
14000 Bukit Tengah, Penang, Malaysia
Tel: + 604 5015700 Email: info@idtworld.com
Information
WARNING
CAUTION: CHOKING HAZARD
– small parts. Not suitable for children under 3 yrs.
