SYNERGEE Adjustable Incline Bench
PARTS LIST
HARDWARE SIZING CHART
ASSEMBLY
Step-1
| STEP PART GUIDE | ||
| # | PART NAME | QTY |
| 1. | 02-09-01 | 1 |
| 2. | 02-09-02 | 1 |
| 3. | 02-09-03 | 1 |
| 4. | 02-09-04 | 1 |
| B. | M10X20 FULLY THREADED BOLT | 2 |
| C. | M10X55 FULLY THREADED BOLT | 4 |
| F. | M10 WASHER | 12 |
| G. | M10 CAP NUT | 6 |
Step-2
| STEP PART GUIDE | ||
| # | PART NAME | QTY |

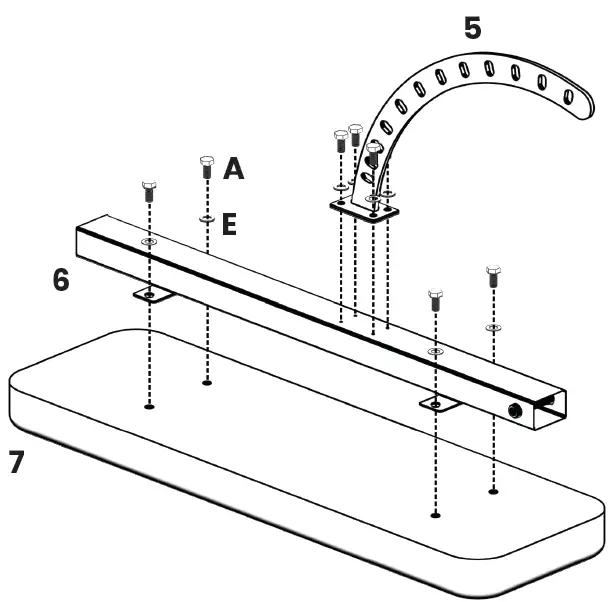

| 5. | 02-09-05 | 1 |
| 6. | 02-09-06 | 1 |
| 7. | 02-09-07 | 1 |
| A. | M8x20 FULLY THREADED BOLT | 8 |
| E. | M8 WASHER | 8 |
ATTENTION
ENSURE THE LOGO IS IN THE TOP LEFT SIDE OF THE SEAT
Step-3
| STEP PART GUIDE | ||
| # | PART NAME | QTY |
| 8. | 02-09-08 | 1 |
| 9. | 02-09-09 | 1 |
| A. | M8x20 FULLY THREADED BOLT | 4 |
| E. | M8 WASHER | 4 |
Step-4
| STEP PART GUIDE | ||
| # | PART NAME | QTY |
| – | ASSEMBLY FROM STEP 2 | – |
| – | ASSEMBLY FROM STEP 3 | – |
Step-5
| STEP PART GUIDE | ||
| # | PART NAME | QTY |
| D. | M10x100 PARTIALLY THREADED BOLT | 1 |
| F. | M10 WASHER | 2 |
| H. | M10 NUT | 1 |
Step-6
| STEP PART GUIDE | ||
| # | PART NAME | QTY |
| 10. | 02-09-10 | 2 |
FAQs
Q: What should I do if any pieces are missing?
- A: Please contact us immediately at hello@synergeefitness.com or call us at 1.855.217.7136.
