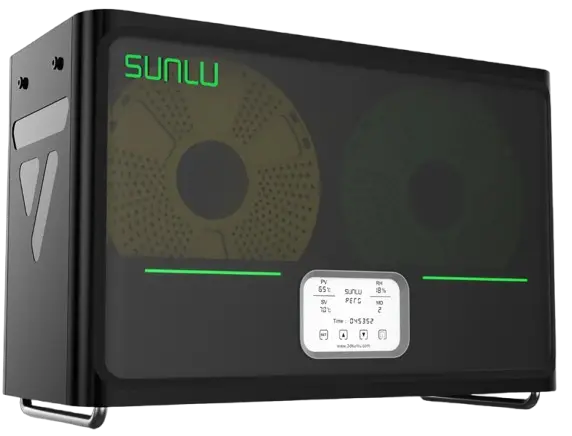

sunlu S4 3D Upgrade Storage Saving Arid Machine
PRODUCT INFORMATION
Foreword Vorwort
- Thank you for using SUNLU products!
- If you have any questions about this product, please contact the customer service of the official store where you purchased it.
- Please read this manual carefully to avoid wrong installation and use. Scan the QR code on the cover to download detailed instructions for use.
Product Parts Description
- 1 3 5: Filament outlet
- 2: Control Panel Top Cover (0 Power Input
- 4: Top Cover
- 6: Power Input
Usage Steps
- Step 1 Insert the Teflon tube into the filament outlet according to the picture.
- Step 2 Open the top cover and put the filament into the dryer box.
- Step 3 Thread the filament through the filament output of the filament dryer and the Teflon tube.
- Step 4 Connect the power supply and press the switch.
Touch Screen
- Click the
to turn on; double-click the button to turn off. - Click the
button to select the menu. pay attention to the flashing status of screen characters at this time. - Click the
button to increase the value (or change the state). - Click the
button to decrease the value (or change the state). - When the
is flashing, the target heating temperature can be set. Click the button to increase/ decrease the setting temperature. - When the ‘C is flashing, Click the button to Switch the *C/*F unit.
- When the
is flashing, Click the button to change the LED running light status (flow led, always on or turn off) - When the
is flashing, Click the button to set the type of filament and use the recommended temperature parameters. - When the
is flashing, Click the button to set the drying time (Maximum 99h) - When the
is flashing, click the button to preset the automatic startup humidity value of MO2 mode (Maximum 50%, minimum 30%). - When the
is flashing, click the button to switch between MO1|MO2
- Modes
- MO 1 Time control mode (shut down after countdown)
- MO 2 Humidity control mode (after the countdown ends, when the humidity slowly rises to 50% or the User-set humidity value, it will automatically start heating until the humidity drops to 25%)
- Modes
Note: If the humidity does not decrease to the target value, please check whether the top cover is properly closed, or appropriately increase the set heating temperature by 5°C.
Packing Listing
Temperature Reference
CONTACT INFORMATION
- Enjoy 3D Printing with SUNLU
- Zhuhai Sunlu Industrial Co., Ltd.
- Official website: www.3dsunlu.com
- Brand cooperation: branding@sunlu.com
- Business cooperation: sales@sunlu.com
- After-sales service: support@sunlu.com
- Address: No. 38, Yongtian Road, Sanxi Science and Innovation Town,
- Xiangzhou District, Zhuhai City, Guangdong Province, China
- Please scan the QR code to download the detailed manual
