SUMMIT-logo SUMMIT SCENTING AE103 Plug-In Aroma Diffuser

SUMMIT-SCENTING-AE103-Plug-In-Aroma-Diffuser-product

Specification

  1. Model: AE103
  2. Size: 122*65*214mm
  3. Bottle: 100ml
  4. Voltage: AC100V-240V 50/60HZ
  5. Power:  2W
  6. Coverage:  25rrl/75m3 /2650ft3
  7. N.W.: 300g
  8. Material: Plastic

SUMMIT-SCENTING-AE103-Plug-In-Aroma-Diffuser-fig-2

SUMMIT-SCENTING-AE103-Plug-In-Aroma-Diffuser-fig-3

Product Information

  1. Upper shell
  2. Grade button
  3. Mode
  4. Powershell
  5. Plug
  6. Atomized head
  7. Oil bottleSUMMIT-SCENTING-AE103-Plug-In-Aroma-Diffuser-fig-1

Installation method

Application place
  • Hotel
  • Meeting room
  • Toilet
  • Aisle
  • Brand store

SUMMIT-SCENTING-AE103-Plug-In-Aroma-Diffuser-fig-4

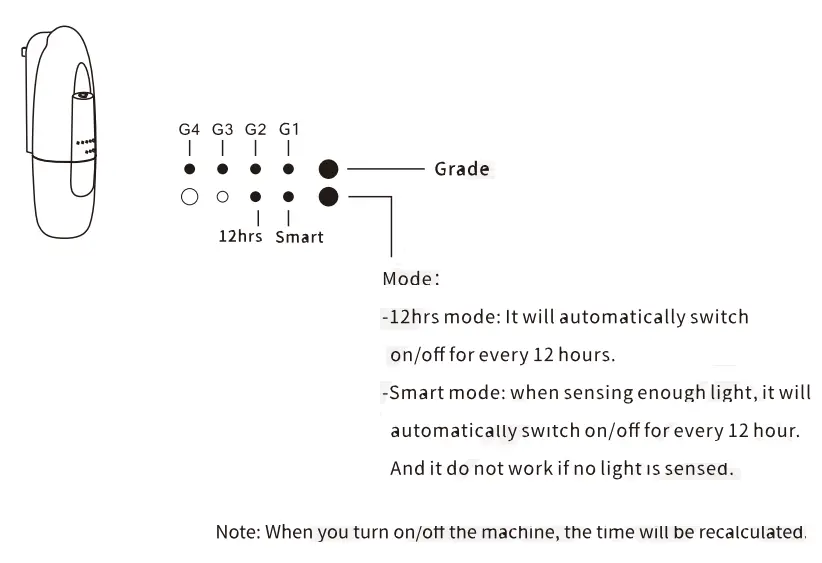

Operating instructions

Button control version: easy to handle and light sensor mode

SUMMIT-SCENTING-AE103-Plug-In-Aroma-Diffuser-fig-5.

Mode
  • 12hrs mode: It will automatically switch on/off for every 12 hours.
  • Smart mode: when sensing enough light, it will automatically switch on/off every 12 hours. And it does not work if no light is sensed.
Note: When you turn on/off the machine, the time will be recalculated.

Concentration and consumption

SUMMIT-SCENTING-AE103-Plug-In-Aroma-Diffuser-fig-7

Notes
  1. The working time above of each grade is 15.
  2. Different grades and oils may have different consumption.
Warning
  1. Please keep the machine vertical. Tilt or lying flat may cause the oil to overflow. The efficiency of the machine may be affected.
  2. Shall not modity, disassemble, or repair the machine.
  3. Do not use this product under high humidity and high-pressure conditions.
  4. It is better to screw the machine on the wall than just stick it via tape; otherwise, the machine will be easy to fall.

SUMMIT-SCENTING-AE103-Plug-In-Aroma-Diffuser-fig-8

Troubleshooting

Before having the machine repaired, please try to diagnose the problem first with the below instructions
SUMMIT-SCENTING-AE103-Plug-In-Aroma-Diffuser-fig-9

Equipment cleaning

The machine needs to be cleaned when the below situation happens:
  1. You’re about to change to another kind of essential oils
  2. The atomization volume goes weak

Cleaning steps

  1. Unscrew the lower cover and take out the oil bottle
  2. Find a larger container and fill the industrial alcohol up. Then soak the bottle for 5-10 minutes.
    Airing the bottle.
