BFT DEIMOS BT B400 24V Sliding Gate Motor

1. Bubuka

This manual provides essential information for the installation, operation, and maintenance of the BFT DEIMOS BT B400 24V sliding gate motor. This product is designed for automating sliding gates with a maximum weight of 400 kg.

penting: This is a professional product. Installation must be performed by a qualified professional installer. It is not suitable for DIY (Do-It-Yourself) installation due to safety and technical requirements.

WARNING: This item is NOT suitable for paneled gates.

2. Parentah Kasalametan

Read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in serious injury or damage to property.

• Installation must be carried out by qualified personnel in compliance with local regulations and standards.
• Pastikeun catu daya dipegatkeun samemeh ngalakukeun pamasangan, pangropéa, atanapi perbaikan.
• Jauhkeun barudak sareng piaraan ti daérah gerbang salami operasi.
• Do not operate the gate if any part is damaged or malfunctioning.
• Regularly check safety devices such as photocells and emergency stop buttons.
• The motor is equipped with a D-Track anti-crush system for enhanced safety.

3. Produk Langkungview

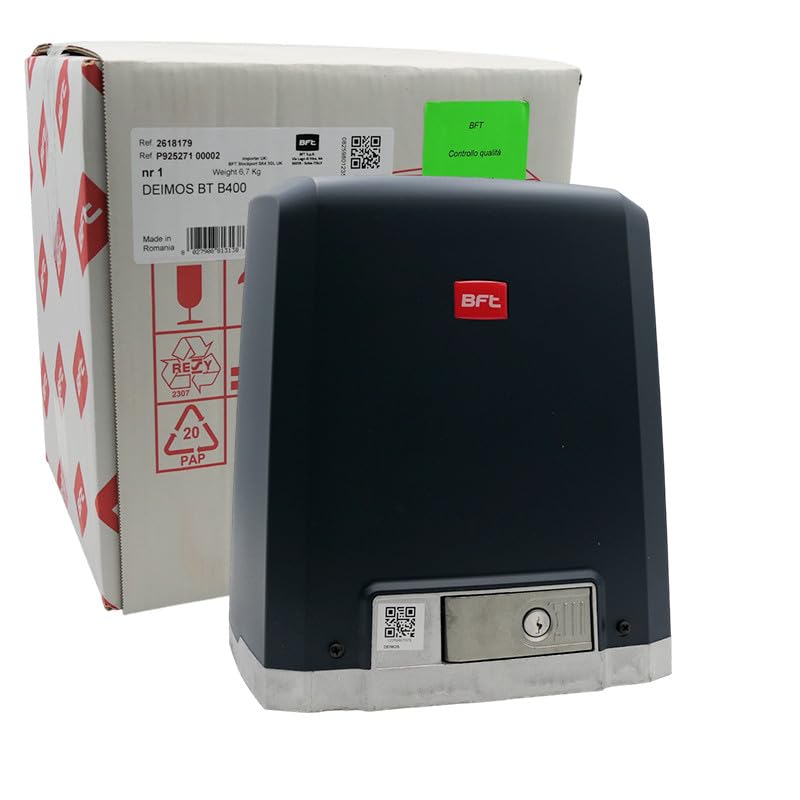

The BFT DEIMOS BT B400 is a 24V motor designed for reliable and efficient automation of sliding gates. It features a robust design and advanced safety systems.

Komponén utama:

• Unit motor
• HAMAL BT A control unit
• Electromechanical limit switches
• Personalized key for manual release

4. Setup jeung Instalasi

Pamasangan profésional diperlukeun: Due to the complexity and safety requirements, the installation of the BFT DEIMOS BT B400 motor must be carried out by a certified professional installer. This ensures proper functioning, compliance with safety standards, and validity of the warranty.

Key Installation Steps (Overview for Professional):

1. Persiapan Situs: Ensure the gate structure is sound and moves freely. Prepare a stable mounting base for the motor.
2. Motor Mounting: Securely fasten the motor unit to the prepared base, ensuring correct alignment with the gate rack.
3. Pamasangan rak: Install the gate rack (pinion module 4) onto the gate, ensuring proper engagement with the motor's pinion.
4. Sambungan listrik: Connect the motor to the 230V power supply (for the control board) and the 24V motor power. Connect all safety devices (photocells, flashing lights, etc.) to the HAMAL BT A control unit.
5. Ngatur wates switch: Adjust the electromechanical limit switches to define the gate's open and closed positions.
6. Control Unit Programming: Program the HAMAL BT A control unit according to the specific requirements of the installation, including D-Track sensitivity and remote controls.
7. Uji coba: Thoroughly test all functions, including manual release, safety devices, and emergency stops.

5. Parentah Operasi

Once installed and programmed by a professional, operating the BFT DEIMOS BT B400 is straightforward.

Operasi normal:

• Use the provided remote control or wall-mounted button to open or close the gate.
• Pressing the button once will initiate the gate movement. Pressing it again during movement will stop the gate. A third press will reverse the direction.
• The D-Track anti-crush system will detect obstacles and reverse the gate movement to prevent injury or damage.

Kaluaran Manual:

In case of power failure or malfunction, the gate can be operated manually.

1. Locate the manual release mechanism on the motor unit.
2. Insert the personalized key into the lock.
3. Turn the key and operate the lever to disengage the motor.
4. The gate can now be moved by hand.
5. To re-engage, reverse the steps, ensuring the lever is fully returned to its locked position.

6. Pangropéa

Regular maintenance ensures the longevity and safe operation of your BFT DEIMOS BT B400 motor. It is recommended to have a professional perform annual checks.

User Checks (Monthly):

• Gate Movement: Observe the gate's movement. It should be smooth and consistent.
• Deteksi halangan: Test the D-Track anti-crush system by placing a soft, non-damaging object in the gate's path. The gate should stop and reverse.
• Kaluaran Manual: Test the manual release mechanism to ensure it functions correctly.
• Kabersihan: Keep the motor area and gate track free from debris, leaves, and dirt.

Professional Checks (Annually):

• Lubrication of mechanical parts.
• Inspection of electrical connections and wiring.
• Verification of safety device functionality (photocells, emergency stops).
• Adjustment of limit switches and D-Track sensitivity.
• General wear and tear inspection.

7. Cara ngungkulan

Sateuacan nelepon jasa, pariksa heula masalah umum ieu:

Upami masalahna tetep aya saatos nyobian solusi ieu, hubungi teknisi servis anu mumpuni.

8. Spésifikasi

9. Garansi jeung Rojongan

For warranty information and technical support, please refer to the documentation provided by your professional installer or contact BFT customer service directly. Ensure you have your product model number (2618179) and purchase date available.

Catetan: Improper installation or unauthorized modifications will void the product warranty.

For further assistance, visit the official BFT websitus atanapi ngahubungan distributor lokal Anjeun.
