Bubuka
Thank you for choosing the Generic TS-FT007 Digital Ultrasonic Water Level Gauge. This device is designed to accurately measure the liquid level in water tanks and provide high and low-level alarms. Its IP65 rating ensures durability in various environments. Please read this manual thoroughly before installation and operation to ensure correct usage and optimal performance.
Émbaran Kasalametan
- Pastikeun sadaya kakuatan dipegatkeun sateuacan instalasi atanapi pangropéa.
- Do not expose the device to extreme temperatures or corrosive substances.
- Only use the specified power supply for the device.
- Avoid direct contact with the ultrasonic sensor during operation.
- This device is rated IP65 for water and dust resistance; however, avoid submerging it in water.
Eusi pakét
Mangga parios pakét kanggo barang-barang ieu:
- TS-FT007 Digital Ultrasonic Water Level Gauge Unit
- Pemasangan Hardware (screws, jangkar)
- Manual pangguna (dokumén ieu)
Lamun aya item nu leungit atawa ruksak, mangga ngahubungan supplier Anjeun langsung.
Produk Leuwihview
The TS-FT007 utilizes ultrasonic technology to measure the distance to the liquid surface, thereby determining the water level. It features a digital display and configurable high/low-level alarms.

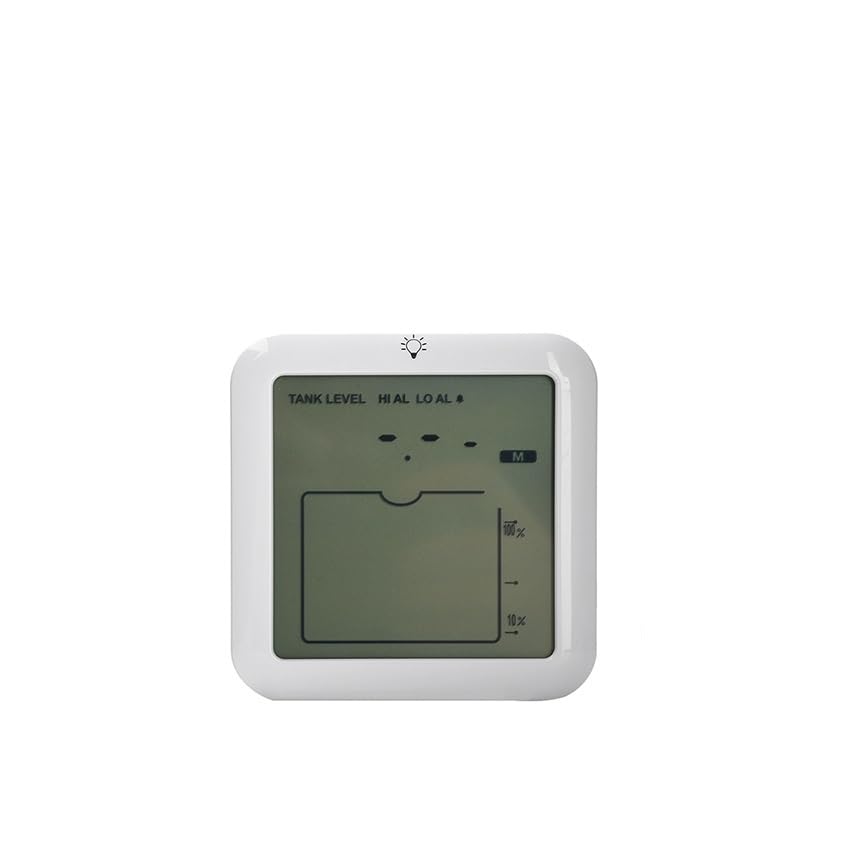

Gambar 1: Hareupeun view of the TS-FT007 Digital Ultrasonic Water Level Gauge. This image shows the compact design of the sensor unit, typically mounted above the water tank.
Setup sareng Instalasi
1. Milih hiji Lokasi Instalasi
Select a location directly above the water tank where the ultrasonic sensor will have a clear, unobstructed path to the liquid surface. Avoid areas with excessive turbulence or foam.
2. Pasang Sénsor
- Using the provided mounting hardware, securely attach the sensor unit to a stable surface directly above the tank opening.
- Ensure the sensor is level and pointing vertically downwards towards the liquid surface.
- Maintain a minimum distance of 20 cm from the tank walls to prevent false readings.
3. Sambungan Daya
Connect the power supply to the designated input port on the device. Ensure the power source matches the device's voltage requirements (refer to specifications). Once connected, the device will power on and begin initialization.
4. Initial Calibration (if applicable)
Some models may require initial calibration to set the tank depth or empty level. Refer to the on-screen prompts or specific instructions provided with your unit for calibration procedures. Typically, this involves setting the maximum and minimum water levels.
Parentah Operasi
1. Daya Hurungkeun
Once connected to power, the device will automatically power on. The digital display will show the current liquid level.
2. Maca Tampilan
The display typically shows the water level in a chosen unit (e.g., cm, inches, percentage). Refer to the display indicators for current readings.
3. Nyetel Alarm
The TS-FT007 features high and low-level alarms. To set these:
- Access the alarm settings menu (refer to device buttons or interface).
- Set the desired high-level threshold. When the water level exceeds this, an alarm will activate.
- Set the desired low-level threshold. When the water level drops below this, an alarm will activate.
- Konfirmasi sarta simpen setelan Anjeun.
4. Indikasi Alarm
When an alarm condition is met, the device will typically emit an audible alert and/or display a visual indicator (e.g., flashing light, on-screen message). Acknowledge or address the alarm as necessary.
Pangropéa
- beberesih: Periodically clean the sensor surface with a soft, damp cloth to remove dust or debris that may affect readings. Do not use abrasive cleaners.
- Pamariksaan: Regularly inspect the mounting and wiring for any signs of wear or damage. Ensure all connections are secure.
- Kaayaan Lingkungan: Ensure the operating environment remains within the specified temperature and humidity ranges to prolong the device's lifespan.
Pamérésan masalah
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| No Power/Display Off | Power cable disconnected; Faulty power supply. | Check power connections; Test power supply. |
| Bacaan teu akurat | Sensor obstructed; Incorrect calibration; Excessive turbulence. | Clear sensor path; Recalibrate device; Relocate sensor if turbulence is an issue. |
| Alarm Henteu Micu | Alarm thresholds set incorrectly; Alarm function disabled. | Verify alarm settings; Ensure alarm function is enabled. |
| Alarm konstan | Water level consistently above/below threshold; Faulty sensor. | Adjust alarm thresholds; Check actual water level; Contact support if sensor is suspected faulty. |
spésifikasi
- model: WWBFUGAFC-WATERLEVELGAUGE (TS-FT007)
- Prinsip pangukuran: Ultrasonik
- Perlindungan Ingress: IP65
- Fitur: Digital Display, High/Low Level Alarm
- merek: generik
- Nomer Bagian: WWBFUGAFC-WATERLEVELGAUGE
- ASIN: B0G64VF1GY
Garansi sareng Rojongan
Produk ieu dilengkepan ku garansi standar ti produsén. Pikeun syarat sareng katangtuan garansi khusus, mangga tingal dokuméntasi anu disayogikeun nalika mésér atanapi hubungi pangecér anjeun.
For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact the manufacturer or your authorized dealer. Please have your model number (WWBFUGAFC-WATERLEVELGAUGE) and purchase information ready when contacting support.
