1. Bubuka
Hatur nuhun pikeun meuliasing the ULTIMEA Aura A60 U2621 7.1ch Dolby Atmos Soundbar System. This manual provides essential information for setting up, operating, and maintaining your new sound system. Please read this manual thoroughly before use to ensure proper functionality and to maximize your audio experience.
Figure 1.1: Immersive audio experience with the ULTIMEA Aura A60 system.
2. Émbaran Kasalametan
To reduce the risk of electric shock, fire, or damage to your device, please observe the following safety precautions:
- Ulah ngalaan alat ieu ka hujan atawa beueus.
- Ulah nempatkeun objék dieusian ku cairan, kayaning vases, dina alat.
- Pastikeun ventilasi anu leres. Ulah meungpeuk sagala bukaan ventilasi.
- Entong dipasang di deukeut sumber panas sapertos radiator, register panas, kompor, atanapi aparat sanésna (kalebet ampLiifiers) anu ngahasilkeun panas.
- Nangtayungan kabel listrik tina leumpang atawa diciwit, utamana dina colokan, wadah merenah, jeung titik dimana aranjeunna kaluar tina aparat.
- Ngan anggo kantétan/aksésori anu ditunjuk ku produsén.
- Cabut colokan alat ieu nalika badai kilat atanapi nalika henteu dianggo kanggo waktos anu lami.
- Rujuk sadayana jasa ka tanaga jasa anu mumpuni.
3. Eusi Paket
Punten parios yén sadaya barang aya sareng dina kaayaan anu saé:
- ULTIMEA Aura A60 Soundbar
- Wireless Subwoofer (4-inch, BassMX Technology)
- 4 x Surround Speakers (2 front, 2 rear)
- Kadali jauh
- Kabel HDMI
- Power Adapter/Cables
- Manual pangguna (dokumén ieu)
4. Produk Langkungview
The ULTIMEA Aura A60 U2621 is a 7.1ch Dolby Atmos soundbar system designed to deliver an immersive home theater audio experience. It features a main soundbar unit, a powerful wireless subwoofer with BassMX technology, and four surround speakers.
4.1 Main Soundbar Unit
The main soundbar unit houses 3 main channels for clear dialogue and primary audio. It serves as the central hub for all audio connections.
Figure 4.1: Main soundbar unit with front surround speakers.
4.2 Subwoofer tanpa kabel
The dedicated 4-inch wireless subwoofer incorporates BassMX technology to enhance low frequencies, providing deep and resonant bass for a more impactful audio experience.
Figure 4.2: Wireless subwoofer with BassMX technology.
4.3 Speaker Sakuliling
The system includes four surround speakers: two front and two rear. The rear speakers connect wirelessly to the soundbar, minimizing cable clutter and allowing flexible placement to create an expansive acoustic space.
Figure 4.3: Diagram of 7.1ch sound distribution.
4.4 Input / palabuhan kaluaran
The soundbar features multiple input options for versatile connectivity:
- HDMI eARC: For high-quality audio transmission and seamless TV integration.
- Optik: Input audio digital.
- AUX: Input audio analog.
- USB: Pikeun muterkeun média.
- Bluetooth: Streaming audio nirkabel.
Figure 4.4: Rear panel connections, including HDMI eARC.
5. Setélan
5.1 Nempatkeun fisik
Penempatan optimal komponén sistem sora anjeun penting pisan pikeun pangalaman audio anu pangsaéna.
- Soundbar: Tempatkeun soundbar di tengah-tengah handapeun televisi anjeun. Pastikeun teu kahalangan.
- Subwoofers: Position the wireless subwoofer on the floor near the soundbar. Experiment with placement to find the best bass response for your room.
- Front Surround Speakers: Place the two wired front surround speakers to the left and right of your TV, ideally at ear level when seated.
- Speaker Sakuliling Rear: Position the two wireless rear surround speakers behind your primary listening position, to the left and right. These speakers will automatically connect wirelessly to the soundbar once powered on.
Figure 5.1: Recommended speaker placement for Dolby Atmos.
5.2 Sambungan
Turutan léngkah-léngkah ieu pikeun nyambungkeun sistem soundbar anjeun:
- Sambungan Daya: Connect the power cables to the soundbar, subwoofer, and surround speakers, then plug them into a power outlet.
- HDMI eARC (Disarankeun): Connect one end of the provided HDMI cable to the HDMI eARC port on your soundbar and the other end to the HDMI eARC/ARC port on your TV. This connection supports Dolby Atmos and allows for TV remote control of the soundbar.
- Sambungan Optik (Alternatif): If your TV does not have an HDMI eARC/ARC port, connect an optical cable (not included) from your TV's optical output to the OPTICAL input on the soundbar.
- AUX Connection (Alternative): For analog audio sources, connect a 3.5mm AUX cable (not included) from your device's audio output to the AUX input on the soundbar.
- Sambungan USB: Insert a USB drive into the USB port on the soundbar for direct media playback.
- Masangkeun Bluetooth: To connect a Bluetooth device, select the Bluetooth input on the soundbar. On your device, search for 'ULTIMEA Aura A60' and pair.
6. Parentah Operasi
6.1 Daya Hurung/Pareuman
Pencét tombol Daya dina soundbar atanapi remote control pikeun ngahurungkeun atanapi mareuman sistem.
6.2 Pamilihan Input
Use the 'Input' button on the remote control or the soundbar to cycle through available input sources: HDMI eARC, Optical, AUX, USB, and Bluetooth.
Figure 6.1: Remote control for easy operation.
6.3 Volume Control
Adjust the master volume using the 'Volume Up' and 'Volume Down' buttons on the remote control or the soundbar. You can also adjust subwoofer and surround speaker levels independently.
6.4 Sound Modes and EQ Presets
The Aura A60 offers various sound modes and EQ presets to optimize audio for different content and preferences.
- Dedicated Modes: Select from 6 specialized modes: Movie, Music, Voice, Sports, Game, and Night.
- EQ prasetél: Access 121 professional EQ presets for genres like Bass, Pop, Classical, and Rock via the ULTIMEA app.
Figure 6.2: 121 preset EQ matrix for customized audio.
6.5 App Control
Download the ULTIMEA app to your smartphone for advanced control and customization options, including a 10-band EQ and access to all EQ presets.

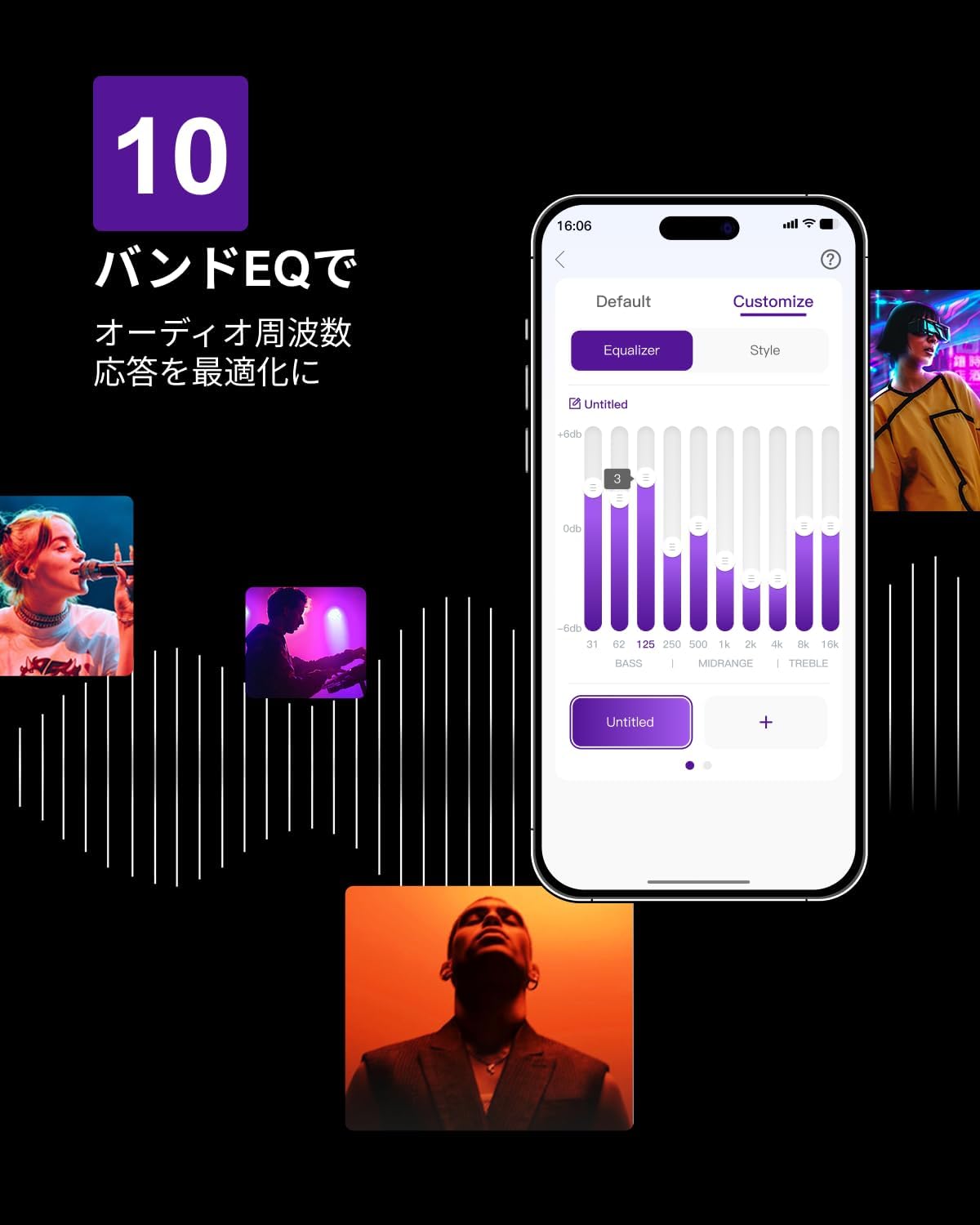

Figure 6.3: ULTIMEA mobile application interface.
7. Pangropéa
To ensure the longevity and optimal performance of your ULTIMEA Aura A60 soundbar system, follow these simple maintenance guidelines:
- beberesih: Use a soft, dry cloth to wipe the surfaces of the soundbar, subwoofer, and speakers. Do not use liquid cleaners or abrasive materials, as they may damage the finish.
- Ventilasi: Ensure that all ventilation openings remain clear and unobstructed to prevent overheating.
- Panyimpenan: Upami nyimpen sistem kanggo waktos anu panjang, pegatkeun sambungan listrik sareng simpen di tempat anu tiis sareng garing, jauh tina sinar panonpoé langsung sareng suhu anu ekstrim.
8. Cara ngungkulan
Upami anjeun mendakan masalah sareng sistem soundbar anjeun, tingal masalah sareng solusi umum ieu:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Taya sora tina soundbar. | Input salah dipilih, polumeu rendah teuing, kabel teu nyambung leres. | Verify the correct input source. Increase volume. Check all cable connections (HDMI, Optical, AUX). Ensure the soundbar is powered on. |
| Taya sora tina subwoofer / speaker sabudeureun. | Subwoofer/speakers not paired or powered on, volume too low. | Ensure subwoofer and surround speakers are powered on. They should automatically pair. If not, refer to the pairing instructions in the full manual (if available) or contact support. Increase their individual volume levels. |
| Kualitas sora anu distorsi atanapi goréng. | Incorrect audio settings, poor source quality, interference. | Adjust EQ settings or try different sound modes. Ensure the audio source is high quality. Check for nearby electronic devices causing interference. |
| Masalah sambungan Bluetooth. | Device out of range, not in pairing mode, interference. | Ensure the soundbar is in Bluetooth pairing mode. Move your device closer to the soundbar. Disconnect and re-pair the device. |
Lamun masalah persists sanggeus nyobian solusi ieu, mangga ngahubungan rojongan customer ULTIMEA.
9. Spésifikasi
| Fitur | Rincian |
|---|---|
| merek | ULTIMEA |
| Ngaran modél | Aura A60 |
| Nomer modél | U2621 |
| Tipe Speaker | Soundbar with 7.1ch Surround Sound |
| Téhnologi Audio | Dolby Atmos, BassMX Technology |
| Konektipitas | HDMI eARC, Bluetooth, Optical, AUX, USB |
| Subwoofer | 4-inch Wired Subwoofer (integrated BassMX) |
| Speaker Sakuliling | 4 (2 wired front, 2 wireless rear) |
| Kontrol | Remote Control, ULTIMEA App |
| Warna | Hideung |
| Diménsi (D x W x H) | 9 cm x 40 cm x 7 cm (Soundbar, approximate) |
| Negara asal | Cina |
10. Garansi jeung Rojongan
ULTIMEA is committed to providing high-quality products and customer satisfaction. Your Aura A60 U2621 soundbar system comes with comprehensive support.
10.1 Émbaran jaminan
Specific warranty details may vary by region. Please refer to the warranty card included with your product or visit the official ULTIMEA websitus pikeun istilah jeung kaayaan jaminan paling up-to-date.
10.2 Rojongan Palanggan
For any questions, technical assistance, or troubleshooting not covered in this manual, please contact our dedicated support team:
- 365-Day Support: Our expert staff is available year-round to assist you.
- Live Chat: Instant responses are available via live chat on our websitus.
- Wangsul: We offer a 30-day return policy with free shipping for your peace of mind.
365-Day Expert Support
Instant Live Chat
30-Day Free mulih
Pikeun pitulung salajengna, mangga buka di ULTIMEA Brand Store.
