1. Bubuka
This manual provides essential information for setting up, operating, maintaining, and troubleshooting your Sharp Aquos QLED 55 Inch 4K Ultra HD Xumo Smart TV. Please read this manual thoroughly before using your television and retain it for future reference.

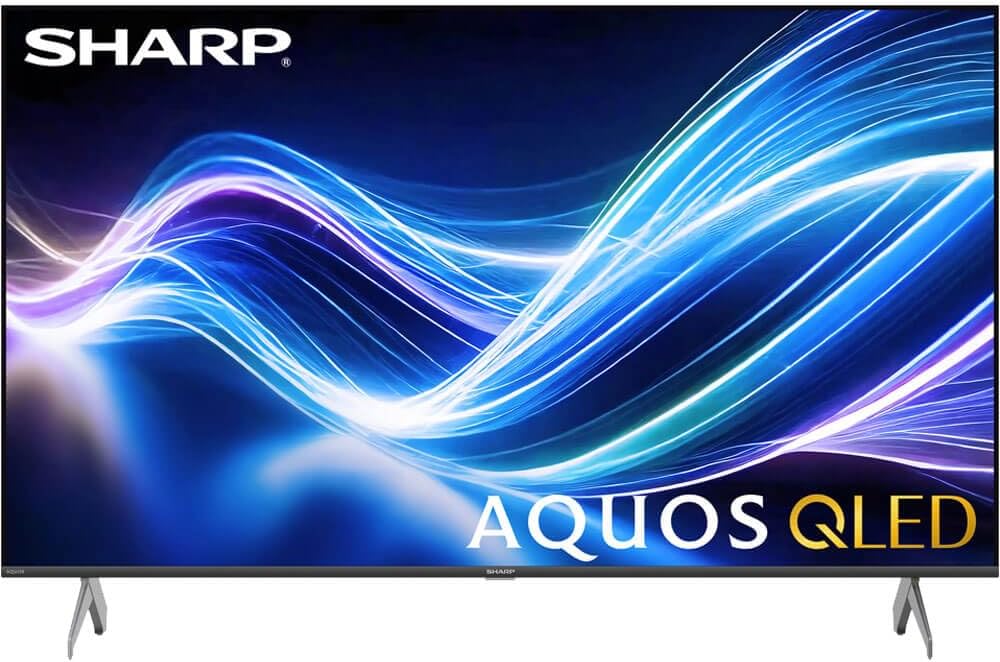

Gambar: Hareupeun view of the Sharp Aquos QLED 55 Inch 4K Ultra HD Xumo Smart TV.
2. Émbaran Kasalametan
Always follow basic safety precautions when using this television to reduce the risk of fire, electric shock, and injury. Keep the television away from moisture, direct sunlight, and heat sources. Ensure proper ventilation and do not block any ventilation openings. Use only the power cord and accessories specified by the manufacturer. Refer to the full safety guidelines in the included printed manual.
3. Naon dina Box
Your Sharp Aquos QLED 55 Inch 4K Ultra HD Xumo Smart TV package includes:
- Sharp Aquos QLED 55 Inch 4K Ultra HD Xumo Smart TV
- Kadali Jauh Sora
- Stand TV (2 buah)
- Screws pikeun TV Stand
- Kabel listrik
- Manual pangguna (dokumén ieu)
- Gancang Mimitian Guide
4. Setélan
4.1 Ngagantelkeun TV Stand
- Teundeun layar TV sacara saksama dina tempat anu lemes sareng datar pikeun nyegah karuksakan.
- Sejajarkeun unggal sapotong nangtung jeung liang screw nu pakait dina handap TV.
- Ngamankeun unggal sapotong nangtung ngagunakeun screws disadiakeun. Pastikeun aranjeunna tightened pageuh.
4.2 Pamasangan Tembok (Pilihan)
If you choose to wall mount your TV, ensure you use a VESA-compatible wall mount kit (sold separately) that supports the 55-inch screen size and weight. Follow the instructions provided with your wall mount kit. Remove the TV stand before mounting.
4.3 Nyambungkeun Alat
Connect your external devices (cable box, gaming console, soundbar, etc.) to the appropriate ports on the back of the TV. The Sharp Aquos QLED TV features multiple HDMI inputs for versatile connectivity.
Gambar: Tukangeun view of the Sharp Aquos QLED TV showing cable management through the stand.
4.4 Sambungan Daya
Plug the power cord into the TV's power input, then into a wall outlet. The TV is now ready for initial setup.
5. Parentah Operasi
5.1 Setup Awal sareng Sambungan Jaringan
Upon first power-on, the TV will guide you through the initial setup process. This includes selecting your language, connecting to your Wi-Fi network (dual-band Wi-Fi supported for reliable streaming), and agreeing to terms and conditions. Follow the on-screen prompts.
5.2 Fungsi Remote Control
The included voice remote allows for intuitive navigation. Use the directional pad to move through menus, the OK button to select, and dedicated buttons for popular streaming services. The built-in voice search feature provides hands-free control for launching apps, adjusting volume, and switching inputs.
5.3 Xumo Smart TV Platform
The Xumo Smart TV system offers fast and intuitive access to your favorite streaming applications. The clean home screen allows for easy navigation and personalized content recommendations.
Image: The Xumo Smart TV home screen displaying various streaming apps and voice search functionality.
5.4 Gambar jeung Sora Setélan
Your Sharp Aquos QLED TV supports advanced picture and sound technologies:
- Tampilan 4K QLED: Enjoy vibrant, lifelike images with Quantum Dot color and enhanced brightness.
- Dolby Visi & HDR10: These premium HDR formats optimize contrast, depth, and clarity for cinematic picture quality. Access picture settings via the TV menu to fine-tune brightness, contrast, color, and sharpness.
- Audio Immersive: The TV features optimized sound processing for clear dialogue and enhanced bass. Connect Bluetooth headphones or speakers for wireless listening. Adjust audio modes (Standard, Music, Movie, Speech, Custom) in the sound settings.
Image: Comparison of Dolby Vision enhanced picture quality against a standard display.
Image: Visual representation of Dolby Atmos creating immersive sound in a living room setting.
6. Pangropéa
6.1 Ngabersihan TV
Pikeun ngabersihkeun layar, usap lembut nganggo kaen anu lemes sareng teu aya serat. Pikeun tanda nekad, rada dampen the cloth with water or a screen-cleaning solution. Never spray liquid directly onto the screen. Clean the TV's exterior with a soft, dry cloth.
6.2 Apdet parangkat lunak
TV Anjeun bisa nampa apdet software otomatis pikeun ngaronjatkeun kinerja jeung nambahkeun fitur anyar. Pastikeun TV Anjeun disambungkeun ka internét pikeun nampa apdet ieu. Anjeun oge tiasa sacara manual mariksa apdet dina menu setelan TV.
7. Cara ngungkulan
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Taya kakuatan | Power cord not connected, power outlet not working. | Pariksa sambungan kabel listrik, cobian stop kontak anu béda. |
| Taya gambar / sora | Incorrect input selected, external device off/disconnected. | Verify input source, check device power and connections. |
| Jauh teu jalan | Batteries low/dead, obstruction between remote and TV. | Ganti batréna, cabut nu ngahalangan, pasang deui remote upami diperyogikeun. |
| Masalah sambungan Wi-Fi | Router issues, incorrect password, weak signal. | Restart router, re-enter Wi-Fi password, move TV closer to router or use Ethernet. |
8. Spésifikasi
- merek: Seukeut
- Jumlah modél: 4TC55HP7050U
- Ukuran layar: 55 inci
- Téknologi tampilan: QLED Smart
- Resolusi: 4K Ultra HD
- Laju Refresh: 60Hz
- Fitur husus: Flat, Dolby Vision, HDR10, Xumo Smart TV, Voice Remote, Bluetooth, Dual-band Wi-Fi
- Téknologi konektipitas: RCA, HDMI (multiple ports)
- Layanan Internét anu Dirojong: Netflix, Hulu, Amazon Prime Video (and more via Xumo platform)
- Beurat barang: 32 pon
- warna: Hideung
9. Garansi jeung Rojongan
Kanggo inpormasi garansi sareng dukungan téknis, mangga tingal kartu garansi anu kalebet dina produk anjeun atanapi kunjungan ka Sharp resmi websitus. Simpen resi pameseran anjeun salaku bukti pameseran pikeun klaim garansi.
