POWERPLUS Powerstation 4-in-1 POWX411 Instruction Manual

1. Bubuka

The POWERPLUS Powerstation 4-in-1 POWX411 is a versatile emergency device designed to provide multiple functionalities for automotive and general utility needs. This unit combines a jump starter for vehicles up to 1600cc, an air compressor, a 12V DC power supply, and a 3.6W emergency light. This manual provides essential information for safe and effective operation, maintenance, and troubleshooting.

2. Parentah Kasalametan

Baca sadaya peringatan sareng parentah kaamanan sateuacan nganggo produk ieu. Gagalna nuturkeun peringatan sareng petunjuk tiasa nyababkeun shock listrik, seuneu, sareng/atawa tatu anu serius.

• Muatan Awal: Charge the Powerstation for a minimum of 12 hours before its first use.
• Ngecas Biasa: Recharge the unit after every use to maintain battery health.
• Pangimeutan Tingkat Batré: Do not allow the charge level to fall into the red area on the voltmeter. Press the red test button to check the battery status. The needle should remain in the green or yellow area for optimal performance.
• Perlindungan Overload: The 12V output is equipped with overload protection for safe operation.
• Ventilasi: Pastikeun ventilasi anu cekap nalika ngecas atanapi ngoperasikeun unit.
• Perlindungan panon: Salawasna nganggo pelindung panon anu pantes nalika damel sareng batré.
• Barudak jeung Pets: Keep the Powerstation out of reach of children and pets.
• Bahan anu gampang kaduruk: Ulah dianggo caket cairan atanapi gas anu gampang kaduruk.
• Paparan cai: Ulah ngalaan unit ka hujan atawa kaayaan baseuh.

Gambar 1: Hareupeun view of the Powerstation, highlighting the voltmeter and charging instructions.

3. Produk Langkungview jeung Komponén

Familiarize yourself with the various parts of your Powerplus Powerstation POWX411:

• Jump Starter Clamps: Beureum (+) jeung Hideung (-) clamps for connecting to vehicle batteries.
• Lampu Darurat: Integrated 3.6W light for illumination.
• Voltmeter: Displays the battery charge level of the Powerstation.
• Tombol tés: Activates the voltmeter to check battery status.
• Recharge Port: Input for charging the Powerstation.
• Lighting ON/OFF Switch: Controls the emergency light.
• Air Compressor Hose: Flexible hose for inflating tires and other items.
• Gauge tekanan: Displays the air pressure during inflation.
• Nozzles aksésori: Three adapter nozzles stored in the rear compartment for various inflation needs.
• Kaluaran DC 12V: For powering external 12V devices.
• Mawa cecekelan: Pikeun portability gampang.

Gambar 2: Sisi view of the Powerstation, showing the integrated jump starter cables.

Gambar 3: Tukangeun view of the Powerstation, detailing the air compressor and accessory storage.

4. Persiapan: Ngecas Mimiti

Before using your Powerstation for the first time, it is crucial to fully charge it. This ensures optimal performance and extends battery life.

1. Locate the recharge port on the unit.
2. Connect the appropriate charging adapter (not specified in input, assume included) to the recharge port and plug it into a standard wall outlet.
3. Charge the Powerstation for a minimum of 12 hours.
4. During charging, monitor the voltmeter. The needle should indicate a charge level within the green or yellow area.
5. Sanggeus dicas pinuh, pegatkeun sambungan carjer.

Catetan: Always recharge the unit after each use and check the battery level regularly, even when not in use, to prevent deep discharge.

5. Parentah Operasi

5.1. Jump Starter Function

The Powerstation can be used to jump-start cars and motorcycles with engines up to 1600cc (1.6L).

1. Ensure the Powerstation is adequately charged (voltmeter in green/yellow).
2. Turn off the ignition and all accessories in the vehicle to be jump-started.
3. Nyambungkeun beureum (+) jump starter clamp ka nu positip (+) terminal batré kandaraan urang.
4. Nyambungkeun hideung (-) jump starter clamp to a clean, unpainted metal part of the vehicle's chassis, away from the battery and fuel lines. Do not connect directly to the negative (-) battery terminal.
5. Wait a few moments, then attempt to start the vehicle. Do not crank for more than 5 seconds.
6. If the vehicle does not start, wait at least 1 minute before trying again.
7. Sakali kendaraan dihurungkeun, pegatkeun sambungan listrikna hideung (-) clamp kahiji, teras teh beureum (+) clamp.
8. Recharge the Powerstation as soon as possible after use.

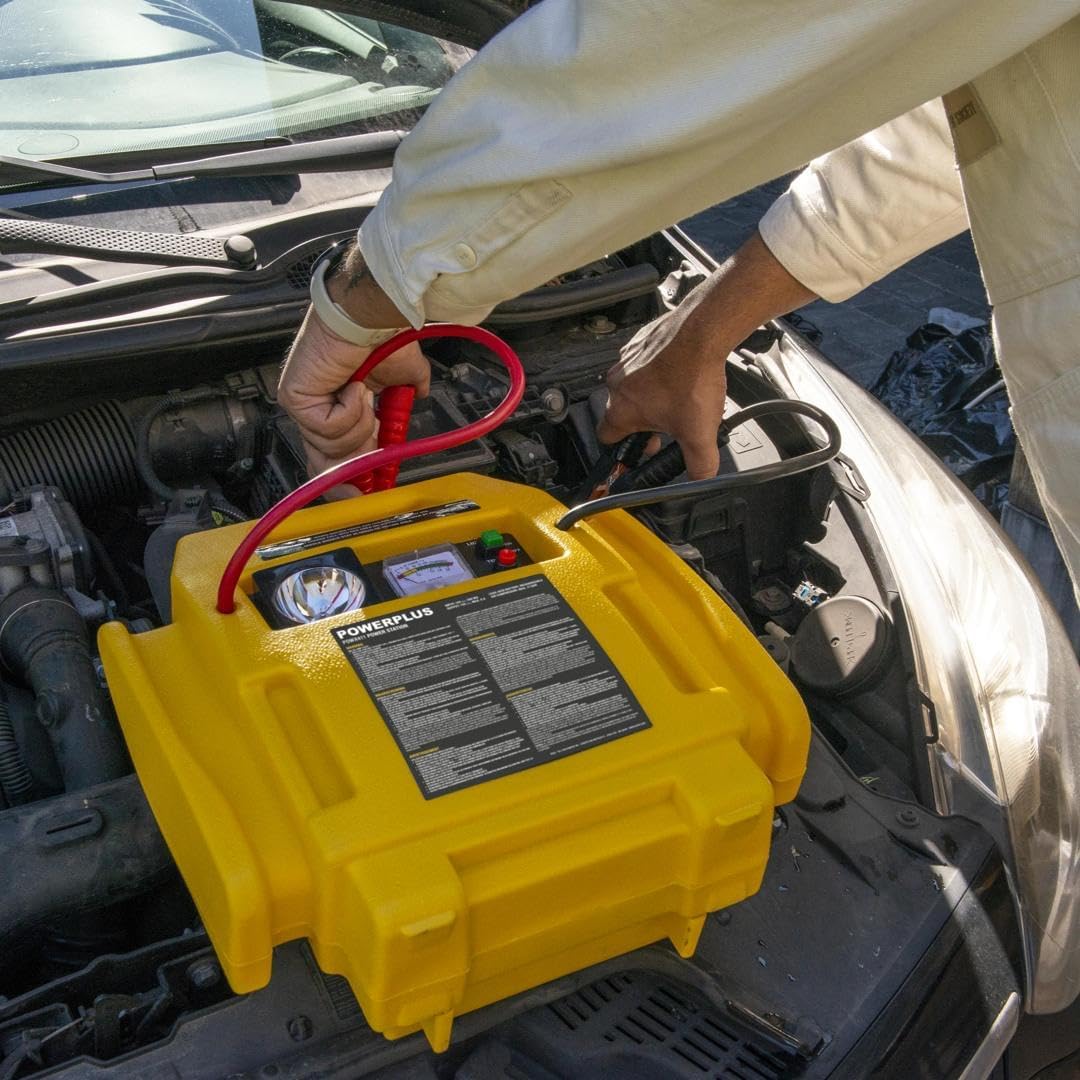

Figure 4: Connecting the jump starter clamps to a vehicle battery.

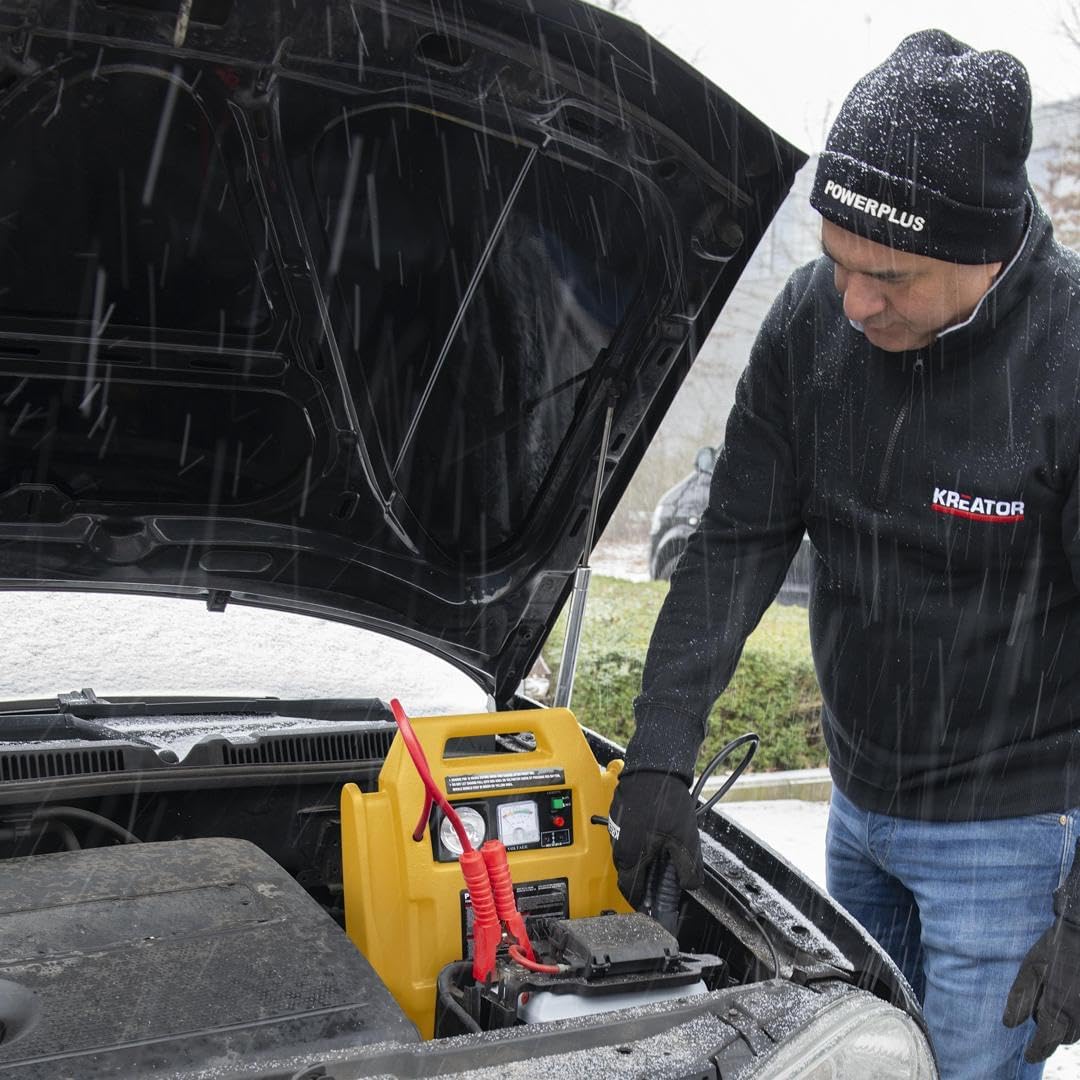

Figure 5: Using the Powerstation to jump start a car in cold weather.

5.2. Air Compressor Function

The integrated air compressor can inflate tires, sports equipment, and other inflatables up to 17 bar (250 PSI).

1. Retrieve the air compressor hose and the appropriate adapter nozzle from the rear compartment.
2. Attach the nozzle to the item you wish to inflate.
3. Connect the compressor hose to the Powerstation's compressor outlet.
4. Turn on the compressor switch (if applicable, not explicitly shown but implied).
5. Monitor the pressure gauge on the Powerstation and inflate to the desired pressure.
6. Once the desired pressure is reached, turn off the compressor and disconnect the hose and nozzle.
7. Store the hose and nozzles back in their designated compartment.

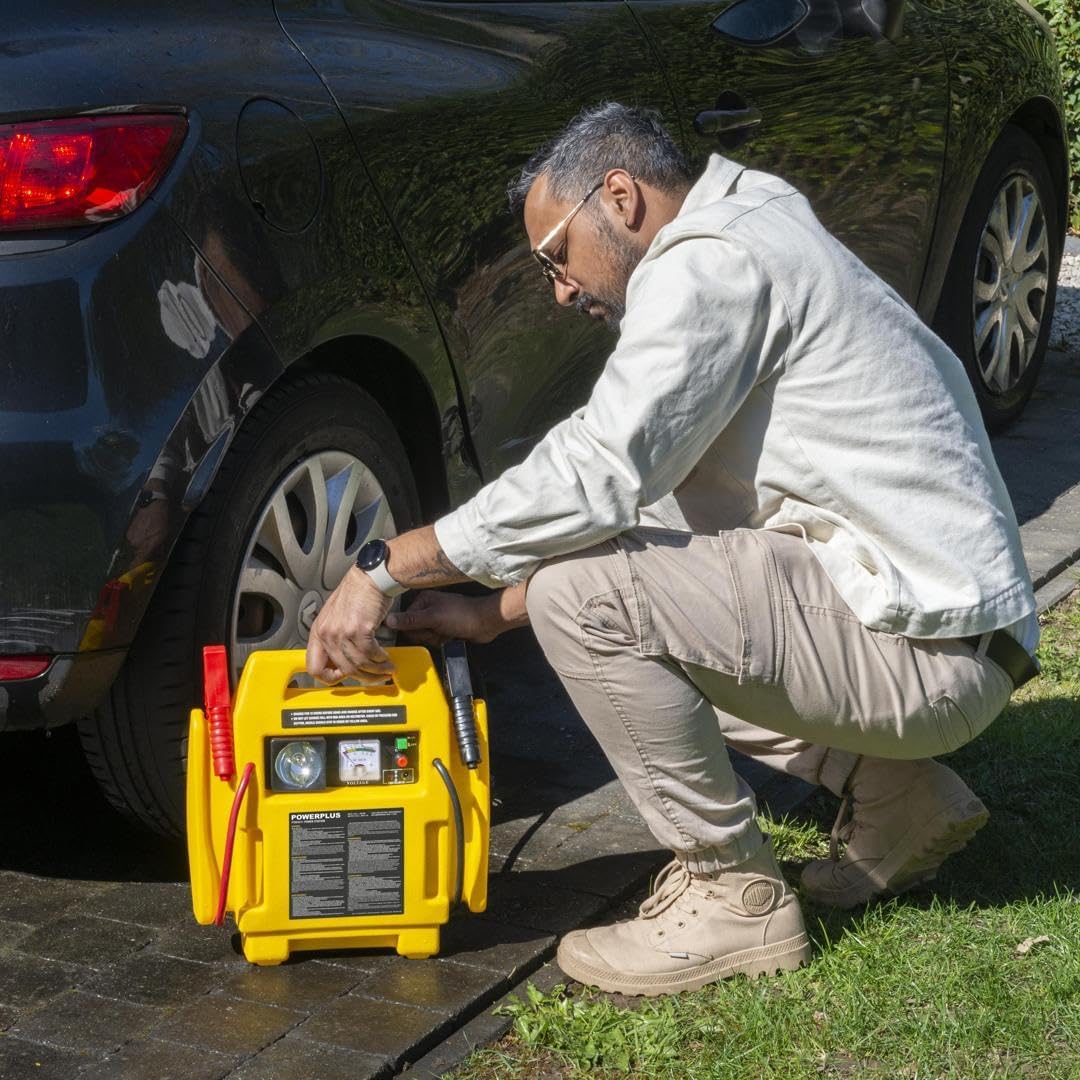

Figure 6: Inflating a car tire using the Powerstation's air compressor.

5.3. 12V DC Power Supply Function

The Powerstation provides a 12V DC output to power various compatible devices.

1. Ensure the Powerstation is charged.
2. Connect your 12V DC device to the 12V output port on the Powerstation.
3. The output is protected against overload. If the device draws too much power, the protection may activate, temporarily cutting power. Disconnect the device and check its power requirements.

5.4. Emergency Light Function

The integrated 3.6W light provides illumination in dark conditions.

1. Locate the Lighting ON/OFF switch on the front panel.
2. Toggle the switch to the 'ON' position to activate the light.
3. Toggle the switch to the 'OFF' position when illumination is no longer needed to conserve battery.

6. Pangropéa

Proper maintenance ensures the longevity and reliability of your Powerstation.

• Ngecas: Always recharge the unit immediately after use. If not used frequently, recharge every 3 months to prevent battery degradation.
• beberesih: Ngabersihan bagian luar unit kalayan lemes, damp lawon. Ulah make bahan kimia kasar atawa cleaners abrasive.
• Panyimpenan: Store the Powerstation in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the clamps are clean and properly stored to prevent accidental short circuits.
• Pariksa batré: Periodically check the battery level using the test button and voltmeter.

7. Cara ngungkulan

If you encounter issues with your Powerstation, refer to the following common problems and solutions:

• Unit does not turn on/charge:
  • Ensure the charging cable is securely connected to both the unit and the power outlet.
  • Pastikeun stop kontak listrik fungsina.
  • Check the voltmeter. If the battery is completely depleted, it may require a longer initial charge to reactivate.
• Jump starter teu jalan:
  • Confirm the Powerstation is fully charged.
  • Pastikeun clamps are connected correctly and securely to the vehicle battery terminals and chassis.
  • Check for corrosion on vehicle battery terminals and clean if necessary.
  • The vehicle's battery might be severely damaged and beyond the capacity of the jump starter.
• Air compressor not inflating:
  • Ensure the hose and nozzle are securely attached to both the Powerstation and the item to be inflated.
  • Pariksa bocor dina selang atawa sambungan.
  • Verify the Powerstation has sufficient charge.
• 12V DC output not working:
  • Check if the connected device is compatible with 12V DC input.
  • The device might be drawing too much current, activating the overload protection. Disconnect and try a lower-power device.

8. Spésifikasi

9. Garansi jeung Rojongan

For warranty information and customer support, please refer to the documentation included with your purchase or contact POWERPLUS directly through their official websitus atanapi saluran layanan palanggan. Simpen bukti pameseran anjeun pikeun klaim garansi.
