Bubuka
Thank you for choosing Kanto UKI 100W Active Desktop Computer Speakers. These speakers are designed to provide an elevated audio experience for your music, games, and movies, featuring seamless connectivity and intelligent subwoofer integration. This manual will guide you through the setup, operation, and maintenance of your new speakers.
Kanto UKI Speakers: Shaped by nature, tuned for balance.
Naon dina Box
- Kanto UKI Active Desktop Computer Speakers (2 units)
- Kabel listrik
- Kawat Speaker
- Gancang Mimitian Guide
Fitur produk
- Sora beunghar: bi-amplified design delivering 100W to 3" woofers and ¾" silk dome tweeters for smooth mids and airy highs.
- Konektipitas Seamless: USB-C, Bluetooth, and RCA inputs for versatile device connection.
- Intelligent Sub Integration: Automatically routes frequencies below 100 Hz to a connected subwoofer for balanced, full-range sound.
- Everyday Ease of Use: Intuitive controls, including a front-mounted control knob for volume, input switching, and power. Stereo orientation can be flipped for convenience.
- Compact, Stylish Design: Space-saving form factor with various color options to complement any workspace.
Key features of Kanto UKI speakers.
Disetél
1. Nempatkeun Speaker
Place the active speaker (with controls and inputs) on your preferred side (left or right). The passive speaker connects to the active speaker via the included speaker wire. For optimal sound, position speakers at ear level and equidistant from your listening position.
Kanto UKI speakers integrated into a desktop workspace.
2. Nyambungkeun Speaker
Connect the active speaker to the passive speaker using the provided speaker wire. Ensure correct polarity (positive to positive, negative to negative) for optimal audio performance.

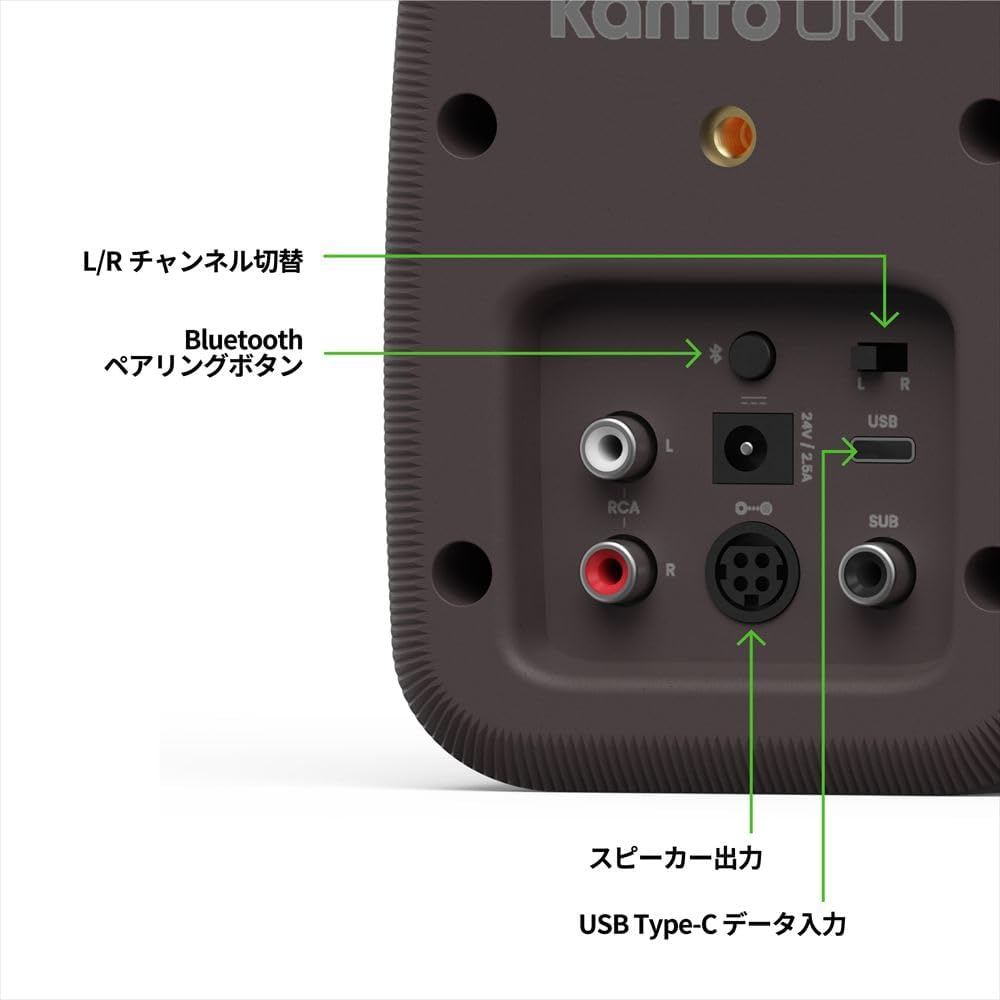

Rear panel of Kanto UKI speakers with connection ports.
3. Sambungan Daya
Connect the power cord to the active speaker and then to a wall outlet.
4. Sambungan Sumber Audio
The Kanto UKI offers multiple input options:
- USB-C: Connect your computer or laptop using a USB-C cable for high-quality digital audio.
- Bluetooth: For wireless connection, refer to the 'Operating Instructions' section for pairing.
- RCA: Use RCA cables to connect analog audio sources.
Diwincik view of Kanto UKI connectivity options.
5. Subwoofer Integration (Optional)
If you wish to add a subwoofer, connect it to the 'SUB OUT' port on the active speaker. The UKI speakers will automatically route frequencies below 100 Hz to the subwoofer, optimizing the sound profile.
Kanto UKI speakers with an optional subwoofer.
Parentah Operasi
1. Power On / Pareum jeung Volume Control
Use the front-mounted control knob on the active speaker to turn the speakers on or off and adjust the volume.
2. Pamilihan Input
Press the control knob to cycle through the available inputs (USB-C, Bluetooth, RCA).
3. Papasangan Bluetooth
- Select Bluetooth input using the control knob.
- On your device, search for 'Kanto UKI' in the Bluetooth settings and select to pair.
- The LED indicator on the speaker will confirm successful pairing.
4. Stereo Orientation
A switch on the rear of the active speaker allows you to flip the stereo orientation (Left/Right) to ensure the headphone output and controls are always within easy reach, regardless of speaker placement.
Adjusting stereo orientation for convenience.
5. Kaluaran headphone
Connect your headphones to the front-mounted headphone jack for private listening. The speakers will automatically mute when headphones are connected.
Pangropéa
1. beberesih
Wipe the speaker cabinets with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners, as they may damage the finish.
2. Kaperawatan Umum
Keep the speakers away from direct sunlight, heat sources, and moisture. Ensure adequate ventilation around the speakers to prevent overheating.
Pamérésan masalah
Taya Sora
- Ensure the speakers are powered on and the volume is turned up.
- Check all cable connections (power, speaker wire, audio source).
- Verify the correct input source is selected on the speakers.
- Upami nganggo Bluetooth, pastikeun alatna dipasangkeun sareng aya dina jangkauan.
- If headphones are connected, disconnect them to enable speaker output.
Sora Distort
- Ngurangan polumeu dina speaker sareng sumber audio.
- Pariksa kabel anu leupas atanapi rusak.
- Ensure the audio source is not overdriving the speakers.
Masalah Nyapasangkeun Bluetooth
- Ensure the speakers are in Bluetooth pairing mode.
- Forget the device from your Bluetooth settings and attempt to re-pair.
- Move your device closer to the speakers to ensure it is within range.
spésifikasi
| Fitur | Rincian |
|---|---|
| Tipe Pamasangan | Speaker komputer |
| Bahan | palastik |
| Ngaran modél | UKIDSBB |
| Tipe Speaker | Speaker komputer |
| Fitur husus | 100W Peak Power (50 Watts Total RMS), 3" Paper Cone Drivers, 3/4" Silk Dome Tweeters, 80 Hz - 22 kHz Frequency Response, Class D Bi-Amppangagung |
| Dianjurkeun Mangpaat | jero rohangan |
| Alat nu cocog | Desktop, Kanto SU2 |
| Jumlah Unit | 1.0 Jumlah (Sapasang) |
| Konfigurasi Saluran Sakuliling Sora | 2.0 |
| Warna | Pumice |
| Komponén Kaasup | Power Cord, Quick Start Guide, Speaker Wire, Speakers x 2 |
| Dimensi produk | 4.3 "D x 4.4" W x 6.5" H |
| Item Beurat | 1.9 Kilogram (4.18 pon) |
| Jenis Garansi | kawates |
| Jumlah Item | 2 |
| Métode kontrol | Toél (ngaliwatan kenop) |
| Téknologi Komunikasi Nirkabel | Bluetooth |
| Ukuran Speaker | 3 inci |
| Sumber Daya | Kabel Listrik |
| Diaméterna Woofer | 3 inci |
| Diaméter Tweeter | 0.75 inci |
| Tipe Supir Audio | Supir dinamis |
| UPC | 800152724669 |
Kanto UKI Speaker Dimensions and Weight.
Video Produk Resmi
Kanto YU2 Bookshelf Speaker Product Video
An official product video from Walts TV showcasing the Kanto YU2 Bookshelf Speakers, highlighting their design and features. While not the UKI model, it provides insight into Kanto's product philosophy and quality.
Kanto ORA Desktop Speakers Product Review
Hiji deui produkview from Walts TV for the Kanto ORA Desktop Speakers. This video offers a closer look at the features and performance of a similar Kanto desktop speaker model, which can be helpful for understanding the brand's offerings.
Garansi & Rojongan
Émbaran jaminan
Kanto UKI speakers come with a limited warranty. Please refer to the included Quick Start Guide or visit the official Kanto websitus pikeun istilah jeung kaayaan jaminan lengkep.
Rojongan Palanggan
For technical assistance, troubleshooting, or any product-related inquiries, please contact Kanto customer support through their official websitus atanapi inpormasi kontak anu disayogikeun dina Panduan Mimitian Gancang anjeun.
