DAC & Headphone Desktop FiiO K13 R2R AmpManual Pamaké lifier

Bubuka

This manual provides detailed instructions for the FiiO K13 R2R Desktop DAC and Headphone Amplifier. The K13 R2R is designed to enhance desktop audio experiences by combining a high-fidelity R2R Digital-to-Analog Converter (DAC) with a powerful headphone amplifier. It features FiiO's proprietary 24Bit R2R resistor ladder DAC, offering distinct sound characteristics. The device supports various audio modes, extensive connectivity options, and customizable sound profiles through its 10-band Parametric Equalizer (PEQ). Additionally, it includes Bluetooth streaming capabilities for wireless audio playback. Please read this manual thoroughly to ensure proper setup and operation of your device.

Eusi pakét

Pastikeun yén sadaya item di handap ieu kalebet dina pakét anjeun:

• DAC & Headphone Desktop FiiO K13 R2R Amppangagung
• Gancang Mimitian Guide
• kabel kakuatan AC
• Infrabeureum kadali jauh
• kabel data USB
• Headphone adapter (e.g., 3.5mm to 6.35mm, if applicable)

Produk Leuwihview

The FiiO K13 R2R is a versatile desktop audio device integrating a Digital-to-Analog Converter (DAC) and a headphone amplifier. It is designed to deliver high-fidelity audio reproduction for various listening setups.

Figure 1: FiiO K13 R2R Front and Top View. This image displays the FiiO K13 R2R unit from a front-top perspective, highlighting its silver finish, front panel controls, and the transparent window on top revealing internal circuitry. An antenna is visible at the rear.

Fitur konci

• FiiO Self-Developed Fully Differential 24Bit R2R DAC: Equipped with a proprietary 4-channel fully differential complementary 24Bit R2R DAC, constructed from 192 ultra-precise 0.1% thin-film resistors. This design aims to provide a distinct analog-like sound signature.
• NOS/OS Dual Modes: Offers Non-Oversampling (NOS) mode for preserving the original sampling rate and Oversampling (OS) mode for upsampling to 384kHz, allowing users to select between different audio processing characteristics.
• Versatile Desktop DAC & Preamp/Headphone Amp: Features comprehensive connectivity including XLR balanced line out, dual RCA outputs, 4.4mm balanced headphone out, and 6.35mm single-ended headphone out. Supports PCM 384kHz/32bit and DSD256 decoding.
• 10-Band High-Precision PEQ with Auto EQ: Provides extensive equalization customization across 10 adjustable bands via FiiO's algorithms, accessible through an app or web panganteur.
• LDAC Bluetooth 5.4 Wireless HiFi: Supports LDAC, AAC, and SBC codecs over Bluetooth 5.4 for high-resolution wireless audio streaming.

Figure 2: Fully Differential 24-bit R2R DAC Resistor Arrays. This diagram illustrates the internal architecture of the K13 R2R's DAC, showing the arrangement of 192 precision thin-film resistors across four channels for digital-to-analog conversion.

Figure 3: NOS/OS Dual Mode Comparison. This graph visually compares the output characteristics of Non-Oversampling (NOS) mode, which maintains the original sampling rate, and Oversampling (OS) mode, which upsamples to 384kHz for potentially clearer sound.

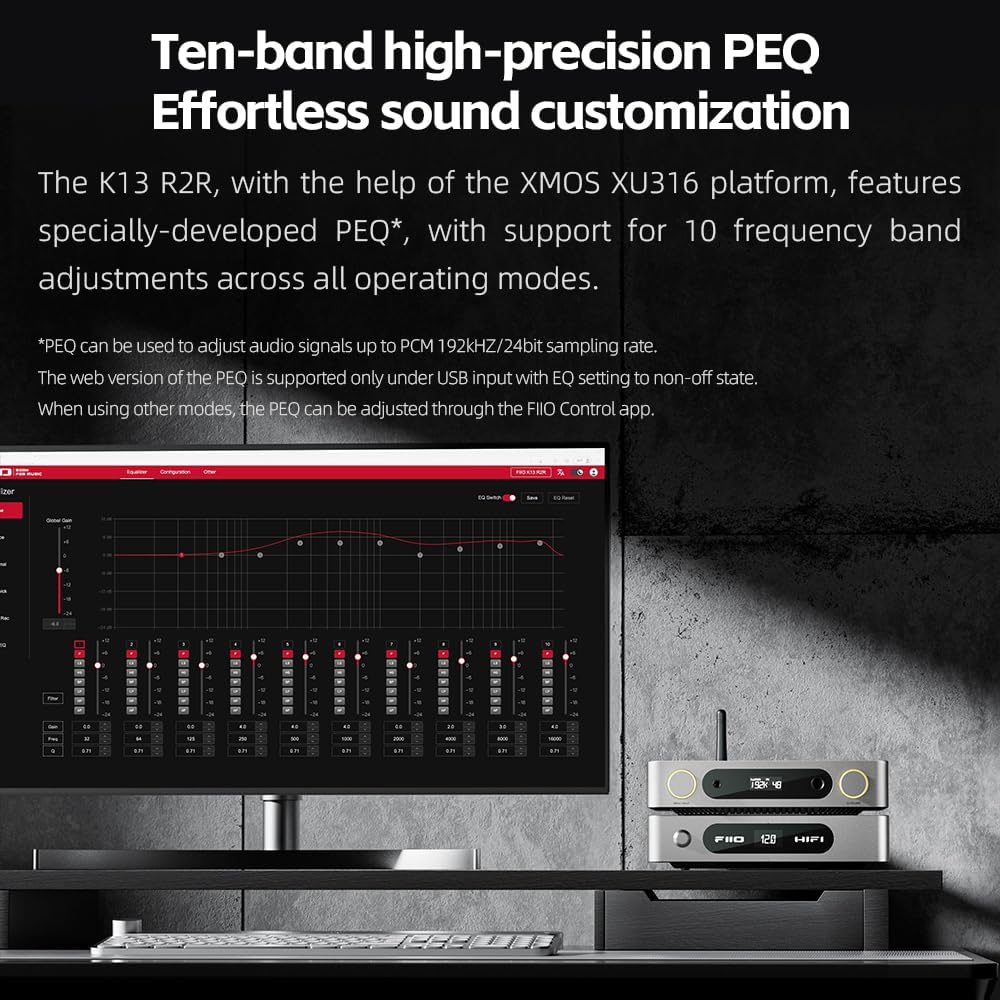

Figure 4: 10-Band High-Precision PEQ Interface. This image shows the graphical user interface for the 10-band Parametric Equalizer, demonstrating the ability to customize sound profiles across various frequency bands.

Figure 5: Robust Output Power. This image highlights the K13 R2R's balanced output power of 2400mW + 2400mW into a 32Ω load, indicating its capability to drive a wide range of headphones and in-ear monitors.

Figure 6: Fully Balanced Audio AmpSirkuit liifier. This block diagram illustrates the signal path and components within the K13 R2R's fully balanced audio chain, designed for interference rejection and high dynamic range.

Figure 7: Rear Panel Connectivity. This image displays the rear panel of the FiiO K13 R2R, showcasing its various input and output ports, including USB, coaxial, optical, XLR balanced line out, and RCA outputs, along with the power input.

Figure 8: Bluetooth 5.4 Module. This diagram illustrates the integrated Bluetooth 5.4 chip, which enables high-resolution wireless audio streaming with support for LDAC, AAC, and SBC codecs.

Parentah Setup

1. Sambungan Daya

1. Connect the provided AC power cord to the power input on the rear panel of the FiiO K13 R2R.
2. Plug the other end of the AC power cord into a suitable wall outlet.
3. Ensure the power switch (if present) is in the OFF position before connecting to power, then switch ON.

2. Sambungan Sumber Audio

The K13 R2R supports multiple digital audio inputs:

• Input USB: Connect your computer or other USB audio source to the USB-B input port on the rear panel using the supplied USB data cable.
• Input Coaxial: Connect a coaxial digital audio cable from your source device to the COAXIAL input.
• Input optik: Connect an optical digital audio cable from your source device to the OPTICAL input.

3. Kaluaran Alat Connection

Connect your headphones or speakers to the appropriate output ports:

• Headphone: Use the 4.4mm balanced headphone output or the 6.35mm single-ended headphone output on the front panel. Use the provided headphone adapter if necessary.
• Active Speakers/Power Amppanguat: Connect to the XLR balanced line outputs or the RCA outputs on the rear panel.

4. Driver Installation (for USB connection on Windows)

For optimal performance when connecting to a Windows computer via USB, it is recommended to install the dedicated FiiO USB DAC driver.

1. Visit the official FiiO support website to download the latest USB DAC driver for the K13 R2R (e.g., V5.74.2 or newer).
2. Follow the on-screen instructions to install the driver. Restart your computer if prompted.
3. After installation, select the FiiO K13 R2R as the audio output device in your computer's sound settings.

Parentah Operasi

1. Daya Hurung / Pareum

• To power on the device, ensure it is properly connected to an AC power source and press the power button (location may vary, refer to Quick Start Guide for exact placement).
• To power off, press and hold the power button or use the remote control.

2. Pamilihan Input

Use the "MENU/INPUT" knob or the remote control to cycle through available input sources (USB, Coaxial, Optical, Bluetooth).

3. Volume Control

Adjust the output volume using the "VOLUME" knob on the front panel or the volume buttons on the remote control. Start with a low volume and gradually increase to a comfortable listening level.

4. Gain Setting

The K13 R2R features multiple gain settings (e.g., Low, Medium, High) to match the sensitivity of your headphones. Access this setting through the device's menu or the FiiO Control app. For sensitive IEMs, a lower gain setting is generally recommended. For high-impedance headphones, a higher gain setting may be necessary.

5. NOS/OS Mode Selection

The K13 R2R offers two DAC operating modes:

• NOS (Non-Oversampling) Mode: Preserves the original sampling rate of the audio signal. This mode is often preferred for a more "organic" or "analog" sound.
• OS (Oversampling) Mode: UPSamples the audio signal to 384kHz. This mode can result in improved audio metrics and a clearer, more refined sound.

Switch between these modes via the device's menu or the FiiO Control app to find your preferred listening experience.

6. Parametric Equalizer (PEQ)

The 10-band PEQ allows for detailed sound customization. It can be adjusted through the FiiO Control app or a web panganteur.

• Accessing PEQ: Pikeun web-based PEQ control, search for "FiiO PEQ Control" online to find the correct interface. Connect the K13 R2R via USB to your computer, then select "Connect" -> "USB" -> "FiiO K13 R2R" in the web panganteur.
• Nyaluyukeun setelan: Navigate to "Device" on the left panel and select a profile (e.g., User1) to adjust. You can modify individual frequency bands.
• Global Gain: When making significant positive gain adjustments to individual bands, it is crucial to lower the "Global Gain" slider (typically the far-left slider) by the same amount as your highest positive gain adjustment. This prevents audio clipping and distortion.
• Nyimpen Profiles: After making adjustments, click "Save" and select "Device" as the save location to store your custom EQ profile directly on the K13 R2R.

7. Bluetooth Streaming

To use the K13 R2R for wireless audio playback:

1. Switch the input mode on the K13 R2R to Bluetooth. The device will enter pairing mode, indicated by a flashing light or display message.
2. Dina alat sumber anjeun (smartphone, tablet, jsb.), aktipkeun Bluetooth teras milarian alat anu sayogi.
3. Select "FiiO K13 R2R" from the list of devices to pair. Once connected, the indicator light will become solid.
4. Begin playing audio from your source device. The K13 R2R supports high-resolution codecs like LDAC for enhanced wireless sound quality.

Pangropéa

• beberesih: Use a soft, dry cloth to clean the exterior of the device. Avoid using liquid cleaners, aerosols, or abrasive materials, as these can damage the finish or internal components.
• Panyimpenan: When not in use for extended periods, store the K13 R2R in a cool, dry place away from direct sunlight and extreme temperatures.
• Penanganan: Handle the device with care. Avoid dropping it or subjecting it to strong impacts. Do not attempt to disassemble the unit, as this will void the warranty and may cause damage.
• Ventilasi: Ensure adequate ventilation around the device to prevent overheating. Do not block any ventilation openings.

Pamérésan masalah

Taya Kaluaran Sora

• Pariksa kakuatan: Ensure the device is properly connected to power and turned on.
• Pilihan Input: Verify that the correct input source (USB, Coaxial, Optical, Bluetooth) is selected on the K13 R2R.
• Tingkat volume: Confirm that the volume is not set to minimum or muted.
• Sambungan kabel: Pariksa sadaya kabel audio (input sareng output) kanggo sambungan anu aman.
• Alat Sumber: Ensure your audio source (computer, phone, etc.) is playing audio and its volume is not muted. For USB, confirm the K13 R2R is selected as the default audio output device.
• Headphone/Speaker Connection: Ensure headphones are fully plugged into the correct jack, or speakers are properly connected to the line outputs.

Distorted or Crackling Sound

• PEQ Settings: If using the Parametric Equalizer, ensure the "Global Gain" has been reduced if you have made significant positive gain adjustments to individual frequency bands. Failure to do so can cause clipping.
• Kualitas Sumber: Check the quality of the audio file or streaming service. Low-quality audio can sound distorted.
• Integritas kabel: Pariksa kabel audio bisi aya karusakan atanapi sambungan anu kendur.
• Driver Issues (USB): Reinstall the FiiO USB DAC driver if you suspect a software conflict or corruption.

Masalah Sambungan Bluetooth

• Mode Papasangan: Ensure the K13 R2R is in Bluetooth pairing mode.
• Jarak: Keep the source device within the effective range of the K13 R2R (typically 10 meters/33 feet) without significant obstructions.
• gangguan: Jauhkeun alat nirkabel anu sanés anu tiasa nyababkeun gangguan.
• pasangan deui: Try unpairing the K13 R2R from your source device and then re-pairing it.

spésifikasi

Garansi sareng Rojongan

For detailed warranty information, please refer to the warranty card included with your product or visit the official FiiO website. FiiO provides customer support for product inquiries, technical assistance, and warranty claims.

FiiO Resmi Websitus: www.fiio.com

Punten mertahankeun bukti pameseran anjeun kanggo jasa anu aya hubunganana sareng garansi.
